Overview:
-

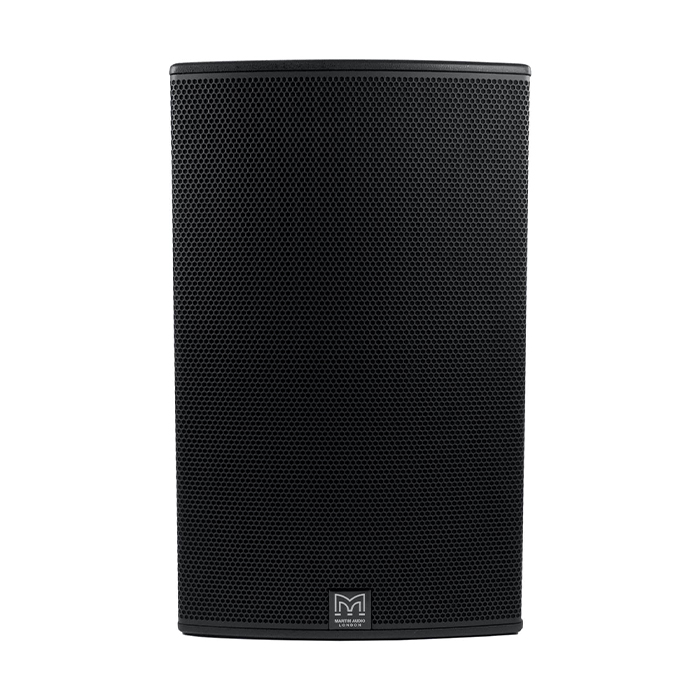

The Blackline X15 is a very high-power, passive two-way system designed for professional portable applications and installations that demand the ultimate in sonic performance from a single enclosure. With an accurately-defined 80° x 50° coverage pattern, it combines very high output capability with exceptional sonic performance and impact.
-
Featuring a powerful 15” (380mm)/3” (75mm) voice coil LF drive unit, and a 1” (25mm) exit HF compression driver with a 1.75” (44mm) polyimide diaphragm for extended high frequency response.
-

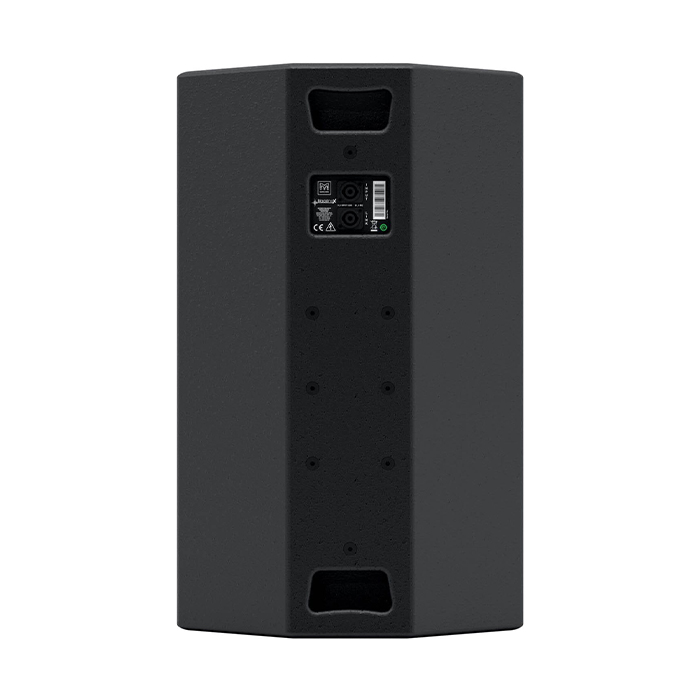

The X15 is constructed from plywood and fitted with a screw-free steel grille, M8 inserts for a wall bracket and eyebolt suspension, plus a pole-mount socket with a removable bung that maintains clean lines in install applications. Finished in black textured paint.
-
A full-range passive two-way system, the X15 may be used without a controller. However, the EQ and limiter functions of a controller such as the Martin Audio DX0.5 will maximize its capabilities. When used in conjunction with an X115, X118 or X210 subwoofer, crossover and EQ functions can be performed by the DX0.5.
Applications:
-
Portable sound reinforcement
-
Live music clubs
-
Bars and restaurants
-
Nightclubs
-
Unobtrusive stage monitoring
-
Corporate AV events and conferences
-
Weddings and parties
-
Main PA infill
-
Secondary stages at festivals
-
How, leisure centers and retail outlets
Specification:
-
TYPE: High-power, passive two-way system
-
FREQUENCY RESPONSE: 55Hz-20kHz ± 3dB, -10dB @ 45Hz
-
DRIVER: LF: 15” (380mm)/3” (75mm) voice coil, ferrite motor system
-
HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
-
RATED POWER: 400W AES, 1600W peak
-
SENSITIVITY: 99dB
-
MAXIMUM SPL: 125dB continuous, 131dB peak
-
NOMINAL IMPEDANCE: 8Ω
-
DISPERSION (-6DB): 80° H x 50° V (user-rotatable)
-
CROSSOVER: 2.2kHz passive
-
ENCLOSURE: Multi-angle birch/poplar ply
-
FINISH: Black textured paint
-
PROTECTIVE GRILLE: Black perforated steel with scrim cloth backing
-
CONNECTORS: 2 x NL4 type
-
PIN CONNECTIONS (INPUT): 1+/1-
-
PIN CONNECTIONS (LINK): 1+/- to 1+/-
-
FITTINGS: 19 x M8 inserts, pole-mount socket, 2 x bar handles
-
DIMENSIONS: (W) 427mm x (H) 690mm x (D) 419mm
-
(W) 16.8ins x (H) 27.2ins x (D) 16.5ins
-
WEIGHT: 24kg (52.9lbs)
