Feelworld

Feelworld LUT7 7" Touchscreen Camera Field Monitor 1920 x 1200 Resolution with Tilt Arm, 4K HDMI In / Out, 2200 nits Ultra Bright, 3D LUTs, 323 PPI IPS LCD

Feelworld LUT7 7" Touchscreen Camera Field Monitor 1920 x 1200 Resolution with Tilt Arm, 4K HDMI In / Out, 2200 nits Ultra Bright, 3D LUTs, 323 PPI IPS LCD

Regular price ₱12,129.00 PHP
Regular price ₱20,248.00 PHP Sale price ₱12,129.00 PHP
Sale Sold out
Tax included.

Overview:

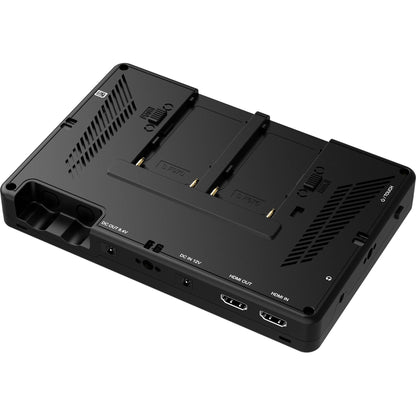

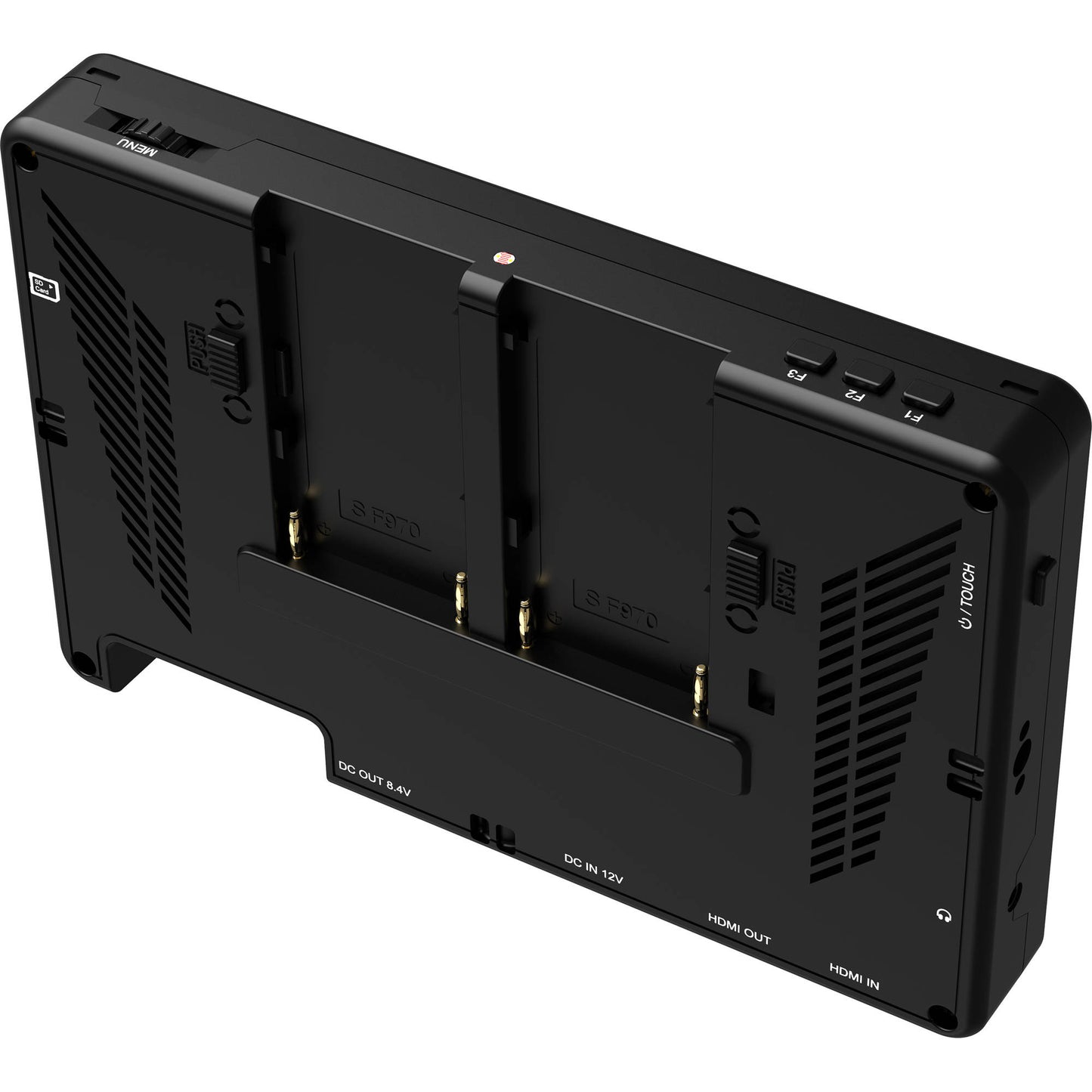

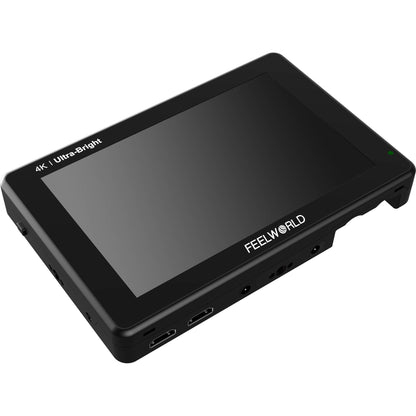

The Feelworld LUT7 is packed with high-end monitoring features in a small, lightweight package that can be connected to virtually any camera. The front features a large high resolution, daylight viewable LCD touchscreen, there are video connections on the bottom and an SD card slot on the side, and space for two NP-F batteries on the back. The outer frame features standard ¼” mount points on the bottom, left, and right for attaching it to cameras and rigs. This design detail makes the Feelworld LUT7 easy to attach to a camera and easy to share with a team member or client on set.

It enables clear and precise field monitoring and image analysis during daytime shoots. It displays your stills and monitoring content at superior color fidelity and 1920 x 1200 maximum resolution on a 7-inch display. The panel is made of optically bonded glass with an anti-reflective coating, which allows comfortable daytime field monitoring. With the monitor displaying your content at 323 pixels per inch (PPI), you can shoot in broad daylight with confidence and refine your content on the spot. The wide 160º viewing angle makes it easy for multiple members of the crew to watch it at the same time. The high bright 2200nit screen at almost 4 times the brightness of conventional field monitors lets you shoot outdoors without reflections washing out your image.

The innovative touchscreen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions. Scopes can be enabled via the touch screen as well as focus and exposure assist. There’s also an extensive range of settings all controlled from the large LCD. With 4K HDMI inputs, you can connect it to a consumer camera or DSLR camera. You also get loop thru outputs, so you can display live video or expand display on external screens or projectors with embedded audio. You can also monitor audio using the 3.5mm stereo headphone jack. For power, there’s a 12V DC input and two NP-F battery slots.

Specifications:

Display:
  • Model: LUT7
  • Screen Size: 7" IPS
  • Resolution: 1920x1200 pixels
  • Pixel Pitch: 0.07875 (H) x 0.07875 (W) (mm)
  • Aspect Ratio: 16:10
  • Brightness: 2200cd/m² (Light Sensor)
  • Contrast Ratio: 1200:1
  • Pixels Per Inch (ppi): 323 ppi
  • Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)

Input/Output:
  • Input: 1 x HDMI Type A (HDMI 1.4)
  • Output: 1 x HDMI Type A (HDMI 1.4)
  • Audio: 1 x 1/8" / 3.5 mm Headphone Output
  • Built-In Speaker: 1
  • Power I/O (Input): 1 x Barrel 2.1 mm (12 VDC)
  • Power I/O (Output): 1 x Barrel 2.1 mm (8.4 VDC)

General:
  • Input Voltage: DC7~24V
  • Power Consumption: ≤20W
  • Working Temperature: -20°C~55°C
  • Storage Temperature: -30°C~65°C
  • Install Way: 1/4"-20 Thread Socket (Left, Right, Bottom)
  • Unit Size: 190Lx126Hx27D (mm)
  • Battery Plate: Dual F970 Battery Plate
  • Mounting1 x 1/4"-20 Female
