Key Features
- Wireless HDMI/SDI/USB Video TX/RX Set
- UHD 4K30 Transmission
- Simultaneous HDMI, SDI, and USB Output
- USB-C Camera Control Interface on TX
- Tri-Band 2.4/5 GHz Transmission
- USB-C Video Output for Mobile Devices
- Use One TX with up to Five RX
- L-Series Battery and DC Input Support
Specifications
Brand: ACCSOON
Model: CINEVIEW SE 4K
Max Resolution: 4K UHD (up to 30fps)
Video Codec: H.265 / H.264
Latency: <50ms (1080p) | <100ms (4K30)
Transmission Range: ≥ 400m (No obstacles, no interference)
Wireless Frequency: Dual-band 2.4GHz + 5GHz
Transmission Protocol: RTMS 4.0 (Accsoon proprietary)
Video Input (TX): HDMI In | 3G-SDI In
Video Output (TX): USB Video Out
Video Output (RX): HDMI Out | 3G SDI Out | USB Video Out
Camera Control: USB-C
Audio: HDMI embedded | SDI embedded
Battery: Compatible with NP-F550, NP-F750, NP-F970 battery
DC Voltage: 7.4~16.8V
Power Consumption: ~4.4W
Operating Temperature: −10~40℃
What's in the box?
TX + RX Set

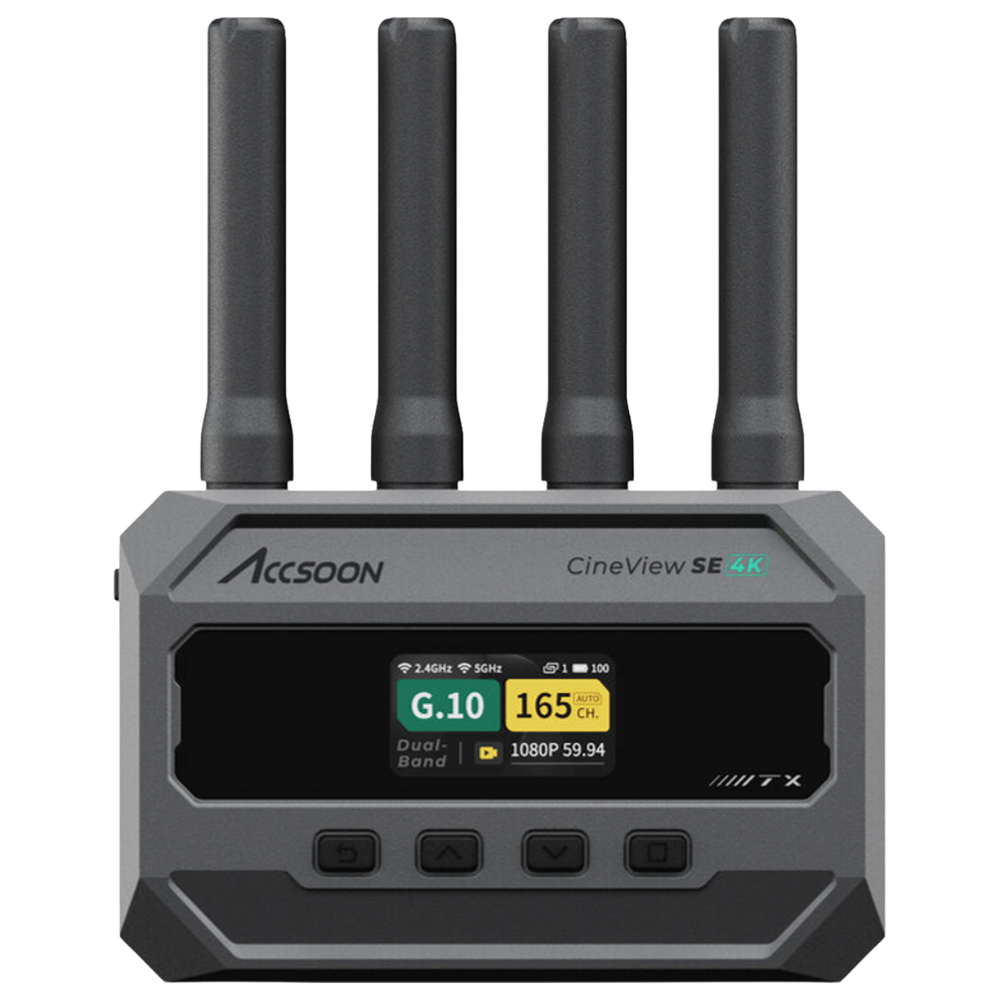

● 1x CineView SE 4K Transmitter

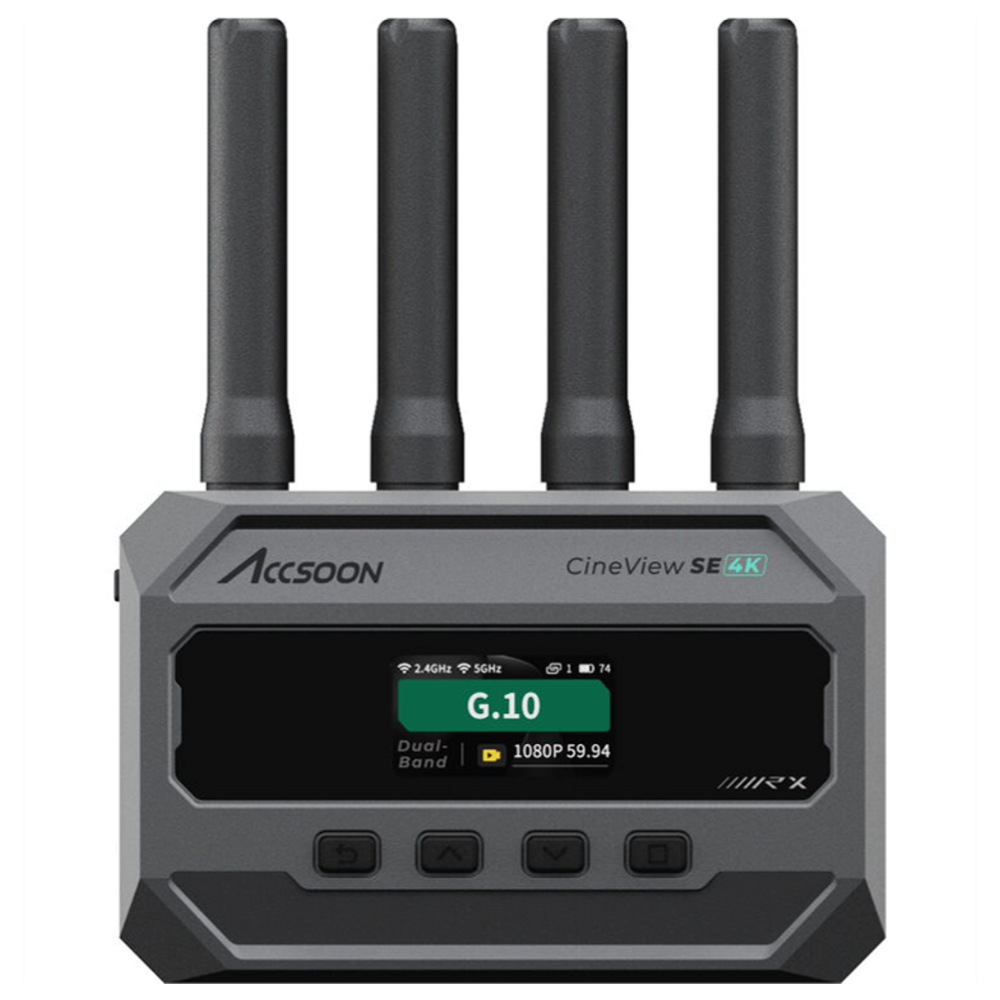

● 1x CineView SE 4K Receiver
● 8x 2.4/5 GHz Antenna
● 2x Cold Shoe Mount Adapter
● 1x User Manual
Receiver Only
● 1x CineView SE 4K Receiver
● 4x 2.4/5 GHz Antenna
● 1x Cold Shoe Mount Adapter
● 1x User Manual
Transmitter Only
● 1x CineView SE 4K Transmitter
● 4x 2.4/5 GHz Antenna
● 1x Cold Shoe Mount Adapter
● 1x User Manual
