Features:
• Fan speed controller 6 Channel computer fan cooling control 5.25 LCD touch screen water cooling pump control
• Super-big single bay LCD touch screen;
• Six channels for temperature & fan speed control. Usually it controls 6 fans. But you may use 1 to 2 cable (for 2 fans, but only one fan with FG signal) or 1 to 3 cable (for 3 fans, but only one fan with FG signal). So it may also control 12 fans or 18 fans depending on your additional cable type;
• 6x24 watt channels for liquid /water cooling pump control;
• Integrated short circuit protection;
• Be compatible with 3pin & 4pin fans.

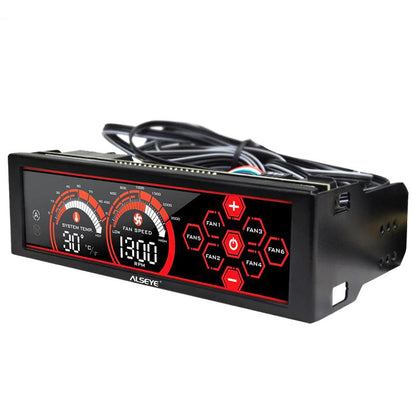

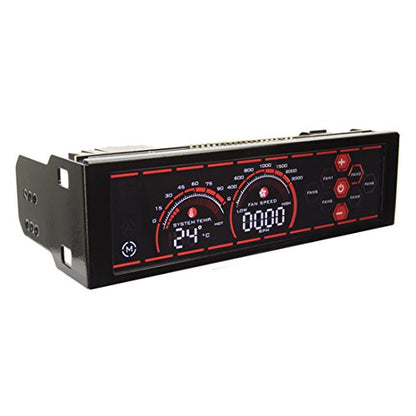

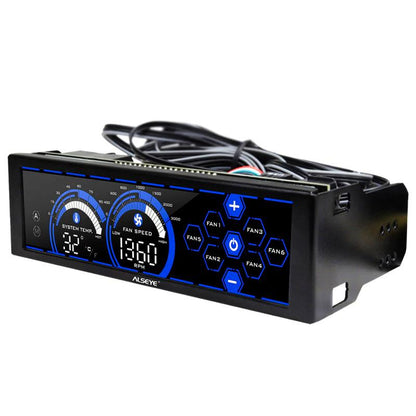

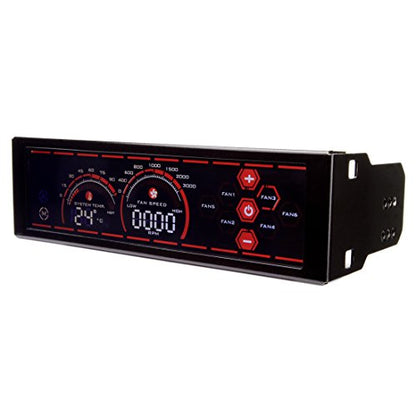

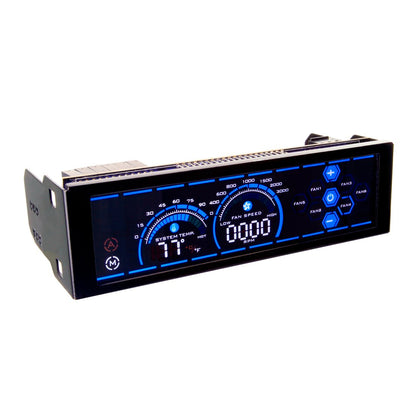

A: 5.25" Super big touch screen:
Simple and clear but fashionable display, players can easily grasp the computer's cooling system.
B: Automatic and Manual mode:
Automatic mode according to the temperature sensor, automatically set the appropriate fan speed, a unified system control multiple fans. While the manual mode according to the player preferences, adjusts the individual fan speed, in order to obtain the ideal temperature of the system.
C: Temperature monitoring display:
• Players can monitor the temperature through the temperature sensor at any time, and adjust the fan speed.
• In addition, you can adjust the required temperature monitoring preset, if there is more than the player preset temperature, there will be a "beep" alarm.
D: Degrees Celsius and Fahrenheit conversion:
Players can follow the preferences, touch the temperature symbol to convert degrees Celsius or Fahrenheit.
E: Fan speed monitoring display:
Players can always grasp the speed of each group of fans, combined with temperature display, adjust to the appropriate system temperature.
F: Independent fan channels:
The fan controller panel can support 6 groups of fans and has FAN1 - FAN6 independent channels, which can be set individually. The highest channel output up to 24W can completely provide the power required for the chassis fans.
G: Temperature and Fan speed adjustment:
In manual mode, keep press the temperature, or FAN1, FAN2 and FAN6 for about 3 seconds until the fan speed display flashing, and then use the plus or minus keys to adjust the temperature and fan speed.
H: Screen hibernation:
Keep press the "power" button for about 5 seconds, the screen into sleep. The temperature and the fan groups keep working in the status of the player's setting.
