Overview:

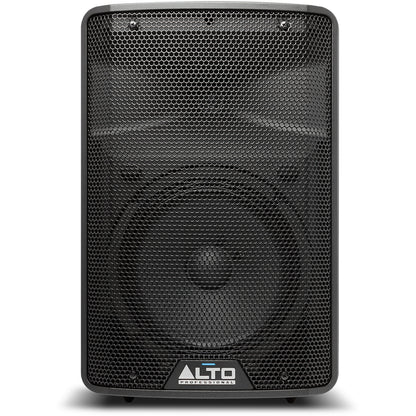

Introducing the Alto TX308, a 350-watt powered speaker perfect for a variety of live sound situations. With the TX3 Series, Alto Professional has created a family of powered loudspeakers suitable for your most demanding gigs, night after night. Utilizing much of the technology of our acclaimed TS3 series, the new TX3 Series delivers the power and clarity you need to sound your best..
The TX308 features a bi-amplified 2-way design, with a long-excursion woofer and a 1-inch titanium compression driver in a precision horn. The horn design of the TX3 Series improves high-frequency performance and produces a very precise 90˚H X 60˚V radiation pattern—ideal for optimal audience coverage..

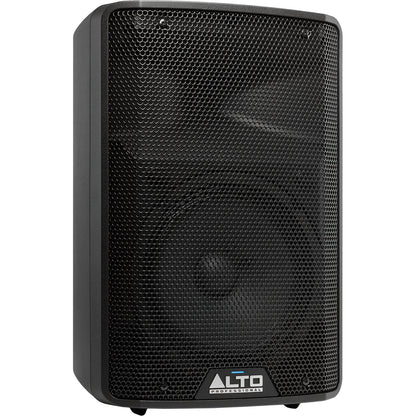

The TX308 Series are housed in rugged, lightweight, easily transportable cabinets. The trapezoidal shape enables either upright or wedge monitor positioning and the full-sized steel grille gives complete driver protection. These speakers are built for continuous heavy-duty use. Add to that a full complement of inputs/outputs and mounting options and it’s easy to see that the TX308 plays an indispensable role in your performance.
Specifications:
General:
- Configuration: Active 2-Way
- Enclosure Type: Bass-Reflex Loudspeaker/Floor Monitor
- Total Power Capacity: 350 W
- Amplifier Power Rating: 175 W RMS, 350 W Peak
- Amplifier Class: Class-D
Drivers:
- HF Driver: 1 x 1" / 25.4 mm Titanium Compression Driver
- MF Driver: None
- LF Driver: 1 x 8" / 20.32 cm Woofer
- LF Voice Coil: 1.4" / 35.6 mm
Performance:
- Frequency Response: 75 Hz to 20 kHz -3 dB
- Maximum SPL: 113 dB (Peak)
- Coverage Angle: 90° H x 60° V
- Protections: Crossover Overload, Output Limiter
Connectivity:

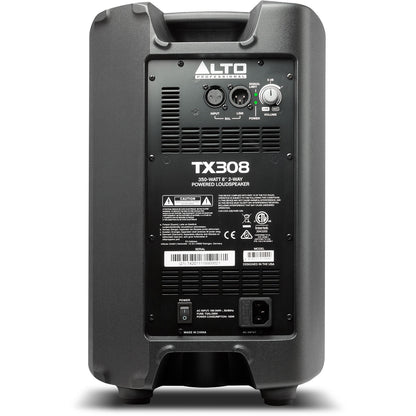

- Audio I/O: 1 x Combo XLR-1/4" TRS Female Balanced/Unbalanced Mic/Line Input, 1 x XLR 3-Pin Male Link Output
- Network I/O: None
- USB: None
- Wireless Connectivity: None
Signal Processing:
- Crossover: 2.5 kHz
- Parametric EQ: None
- Semi-Parametric EQ: None
- Filters: None
- Alignment Delay: None
- Phase Adjustment: None
Power:
- AC Input Power: Universal: 100 to 120 VAC, 50 / 60 Hz, 220 to 240 VAC, 50 / 60 Hz
- AC Power Connector: 1 x IEC Input
- Power Consumption: 150 W
Physical:
- Mounting: 1 x 1.4" / 36 mm Pole Socket (Bottom)
- Handles: 1 x Each Side
- Construction Material: Metal Grille, Polypropylene
- Dimensions: 16.6 x 10.7 x 9.9" / 421.6 x 271.8 x 251.5 mm
- Weight: 12.3 lb / 5.6 kg
