ARGOX HDVW12-C MULTI SCREEN

ArgoX 4-Out HDMI Splitter Multi-Screen Control Box with DisplayPort DP Input, Optical Fiber & 3.5mm Stereo Audio Ports for Televisions, Screen Displays, Monitors, Computers & Laptops

₱10,340.00
₱10,340.00 ₱12,555.00
Sale Sold out
Tax included. Shipping calculated at checkout.
View Product Details
  • Product Description

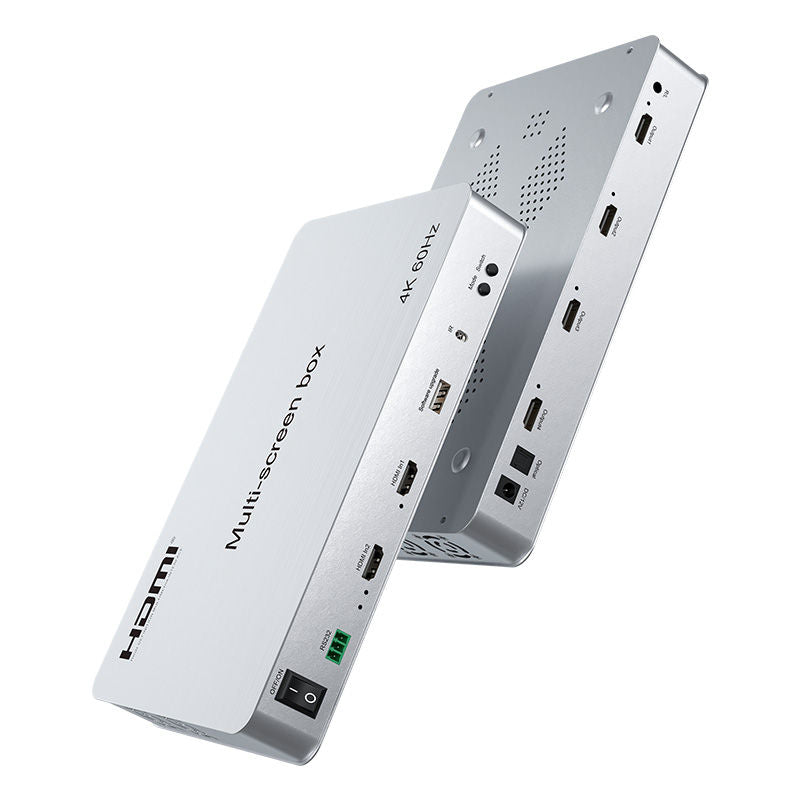

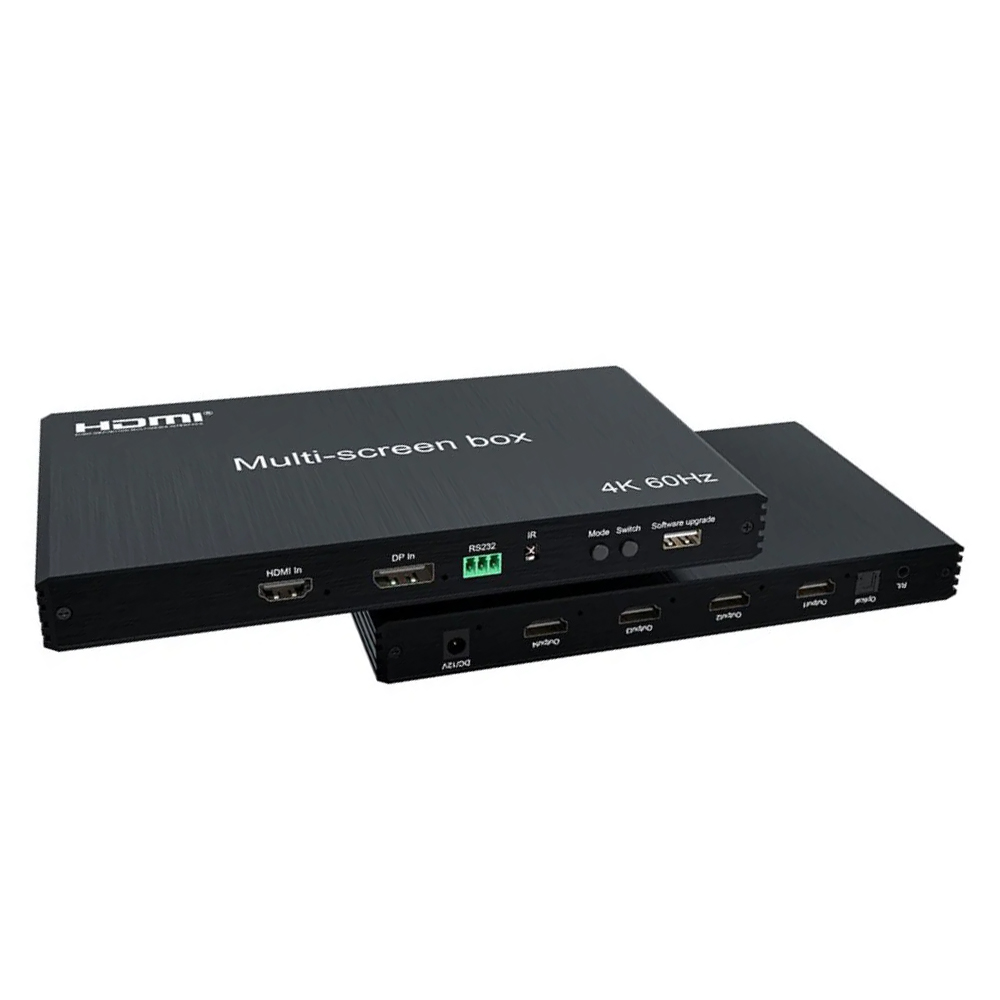

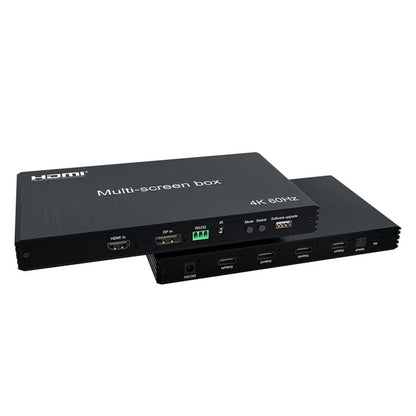

ArgoX 4-Out HDMI Splitter Multi-Screen Control Box

with DisplayPort DP Input, Optical Fiber & 3.5mm Stereo Audio Ports for Televisions, Screen Displays, Monitors, Computers & Laptops



Multi-screen system is an industural-grade high-performance product specially developed for small-scale LCD splicing screen, multi-channel projection fusion and other scenarios. With HDMI/DP input and the HDME output interface. Simple installation easy to debug, plug and play.


Features:

  • Super-high resolution, support 4 HDMI outputs with each resolution maximum 1920 x1200@60hz.
  • Point to point, no stretching, no deformation, no need to compress the input source, clear picture.
  • Support HDMI/DP inputs;
  • Support four HDMI outputs, one 3.5mm stereo output; and a fiber audio output.
  • Support RS232 protocol.
  • Support the power-off-memory function.
  • Support 2x2 splicing, easy to operate, plug and play.
  • Support cascading to achieve maximum resolution splicing, for example: 4x4 splicing wall, through four Multi-screen boxes to achieve 7682x4320, 8K display.



Specifications:

  • Input resolution: 3840x2400@60Hz/7680x1200@60Hz/1920x4800@60Hz
  • HDMI output resolution: 1920x1080P@60Hz/1920x1200P@60Hz
  • Support video format: YUV444 YUV422 YUV420 RGB444
  • Support audio format: LPCM
  • Max bandwidth: 600MHz
  • Max baud rate: 6x3Gbps
  • HDMI cable length: 10M AWG26 HDMI standard cable
  • Max working current: 0.75A
  • Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC12V/1A
  • Operating temperature range: (-15 to +45 C)
  • Operating humidity range: 5 to 90%RH (No Condensation)
  • Dimension (L x W x H): 226x129x25(mm)
  • Weight: 603g



What’s in the box?

1x 4K HDMI 8x2 Multi-Screen Box
1x Power Adapter
1x Remote Control
1x User Manual
