Features:

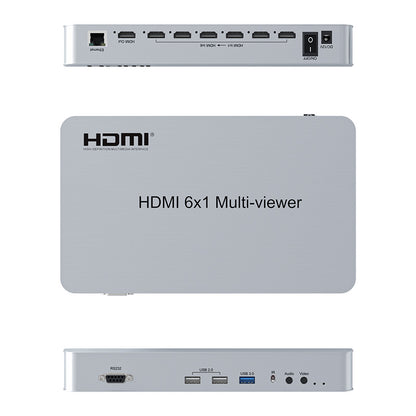

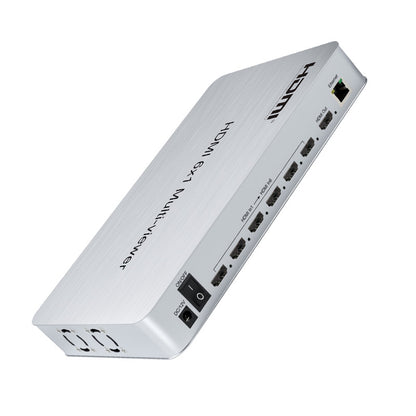

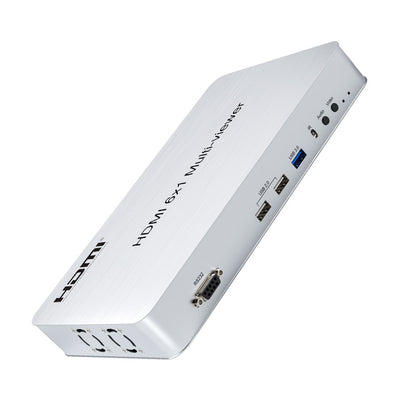

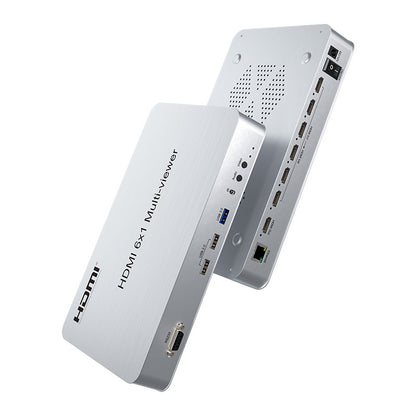

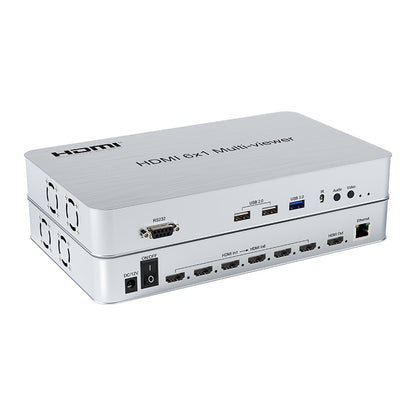

- Support 6 HDMI inputs, one HDMI output;
- Support 6 HDMI signal screen segmentation;
- Support 6 HDMI signal seamless switching;
- Support a variety of video segmentation (PIP/POP/PBP/Single image/ Dual image/Four image etc);
- Each screen segmentation can move freely/expand/shrink/rotate 180 degree
- (put mouse on the top left of image can expand or shrink;
- Click the top right of image can achieve rotate);
- Click the mouse on the bottom right corner of the screen to switch the sound ON/OFF;
- Support touch screen;
- Support IR /Button/RS232 control;
- Support audio and video superposition;
- More clearer subtitles;
Specifications:
- Brand: ArgoX
- Model(s): HDSW6-Q
- HDMI Input Resolution: Max 1080P/60Hz
- HDMI Output Resolution: Max 4K/60Hz
- Audio Format: Stereo
- Input Cable Distance: ≤8m AWG26 HDMI standard cable
- Output Cable Distance: ≤10m AWG26 HDMI standard cable
- Max Working Current: 1.4A
- Power Adapter Format: Input AC (50HZ, 60HZ) 100V-240V; Output: DC12V/2A
- Operating Temperature Range: (-10～+45℃)
- Dimension (L x W x H): 263x159x38(mm)
- Weight: 1272g
