Description:

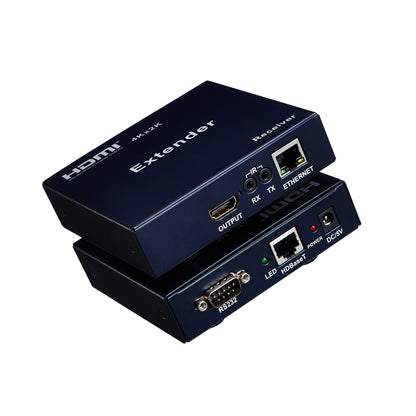

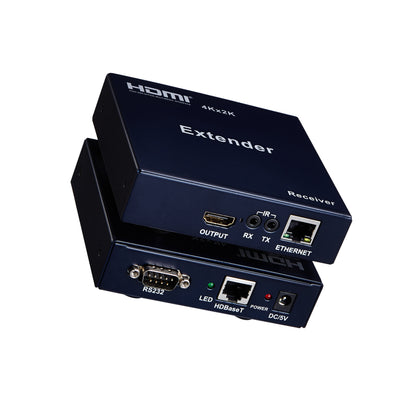

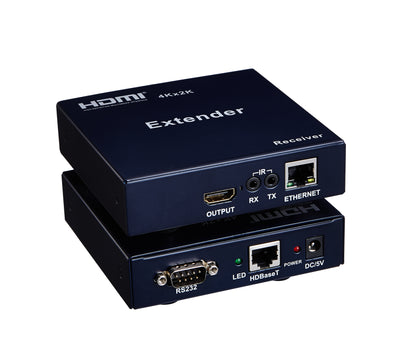

- HDMI RS232 CAT-6 Extender 100M is based on standard IEEE802.1Q Ethernet, transfer the HDMI signal via CAT-6 cable from the HD Audio & Video products (Blue-ray DVD ,PS3,PC, STB ) to HDTV/Projector;
- Support the highest resolution 4Kx2K (3840x2160)； the max transmitting distance is 100M; support HD BaseT, RS232 and LAN transmitting at the same.
Specification:
- Brand: ArgoX
- Model(s): HDES03
- Support HDMI 1.4 Version, HDCP 1.2
- Support 3D
- Support the Highest Resolution: 3840x2160/30Hz, (1080P/60Hz,1080i,720p..)
- Support the Max Transmitter distance:
- 1) When Input 1080P ,the Max Distance is 100M
- 2) When Input 4Kx2K ,the Nax Distance is 70M
- Support Voice Rate :44.1KHz ,48KHz
- Based on IEEE 802.1Q Ethernet Standard
- Support Bidirectional IR Control, control the input resources devices and output displayer.
- Support RS232 Sources
- Power Adaptor: DC5V/2A
- Power： HDMI Transmitter: 3.5W; HDMI Receiver: 5W
- Net Weight： 360g X 2PCS
- Dimension (LxWxH): 107mmx107mmx28mm
