Overview:

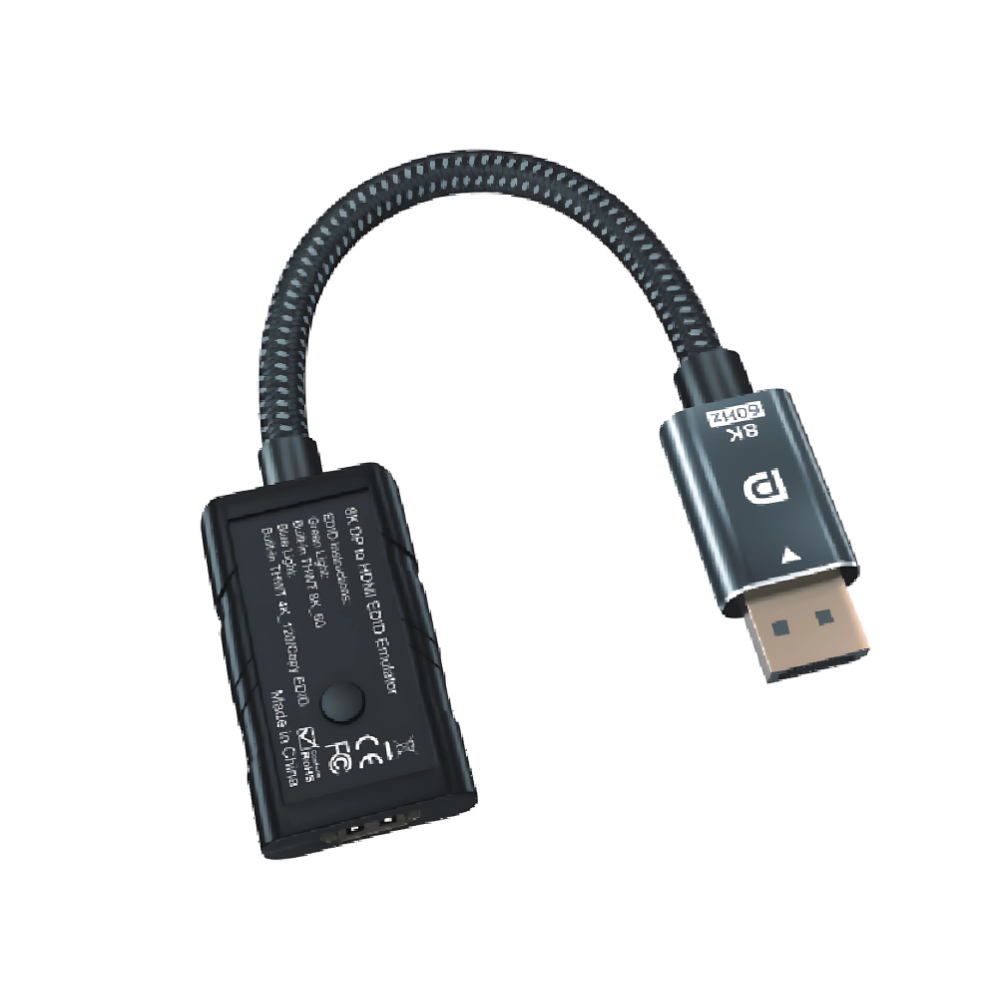

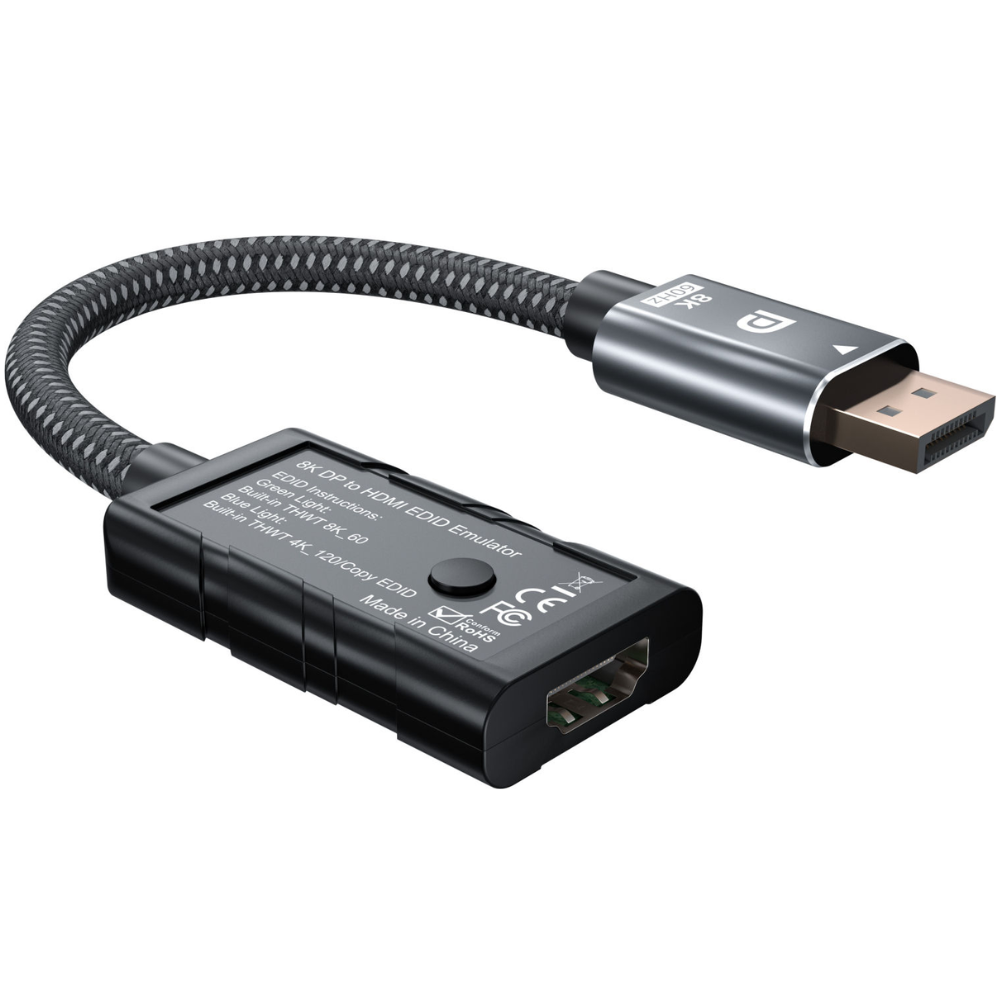

► 8K DP to HDMI EDID Emulator is a signal conversion and security control device specially designed for high-end display scenes.

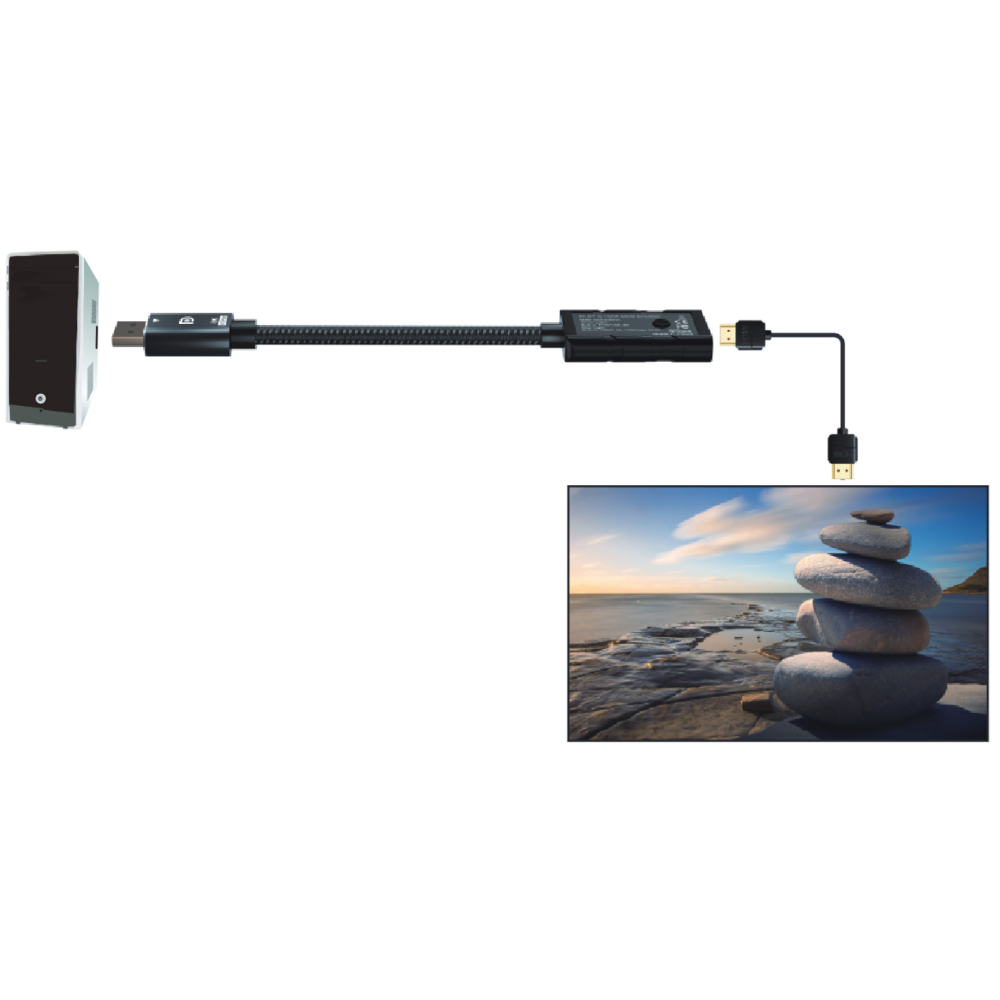

► It supports the seamless conversion of DisplayPort (DP) signal to HDMI signal, while integrating a physical lock screen function to ensure that the display content is not accidentally disturbed.
► It is suitable for conference room, classroom, digital advertising screen and other scenarios that need stable output and security control.
► Also it supports to switch 8k 60hz, 4k 120hz resolution, and EDID copy function through the button.
Features:
• Ultra HD 8K resolution, support 7680x4320@60Hz resolution, support HDR10, Dolby Vision (Dolby vision™) variable refresh rate (VRR) presents exquisite picture quality and smooth dynamics. Downward compatible with 4K@120hz, adapted to a variety of display devices.
• One-key lock screen: Press the device button to lock the current signal, preventing unauthorized input source switching for secure operation.
• Extensive compatibility. Input port: DP 1.4a, support for mainstream graphics cards, workstations, and ultra HD playback equipment. Output port: HDMI 2.1 FRL mode maximum bandwidth up to 48Gbps, suitable for TV, projector, monitor and other devices. Operating system: Windows/
macOS/Linux drive-free plug and play.
• Lossless sound and picture synchronization, transmission of high bandwidth video, synchronization support 7.1 channel, Dolby Atmos, DTS: X and other audio formats.
• Durable design, all metal shell heat dissipation, gold-plated interfaces to prevent oxidation, support long stable operation.

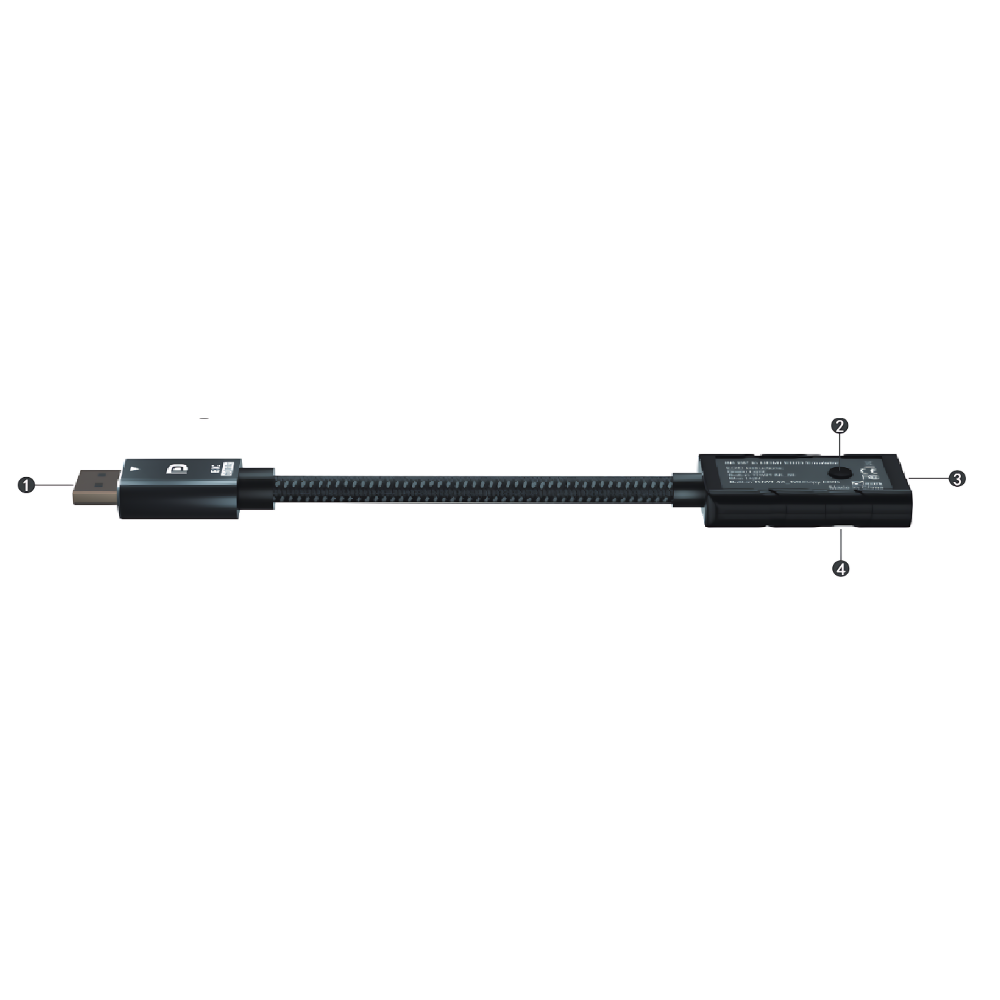

Interface diagram:
1: DP connect computer.
2: Button, switch EDID.
3: HDMI OUT connect the display.
4: Indicator light, blue and green color(Represents different EDID).
Specifications:
• Brand: Argox
• Model: HDP03
• Product Type: Emulator
• Input max resolution: 8K@60Hz
• Output max resolution: 8K@60Hz
• Max baud rate: 48Gbps
• Operating Temperature range: (0 to +45℃)
• Operating Humidity range: 5 to 90%RH (No Condensation)
• Dimensions (L-W-H): 215*34*12mm
• Weight: 75g
WHAT'S IN THE BOX?
• 1 x DP to HDMI Cable
