Overview:

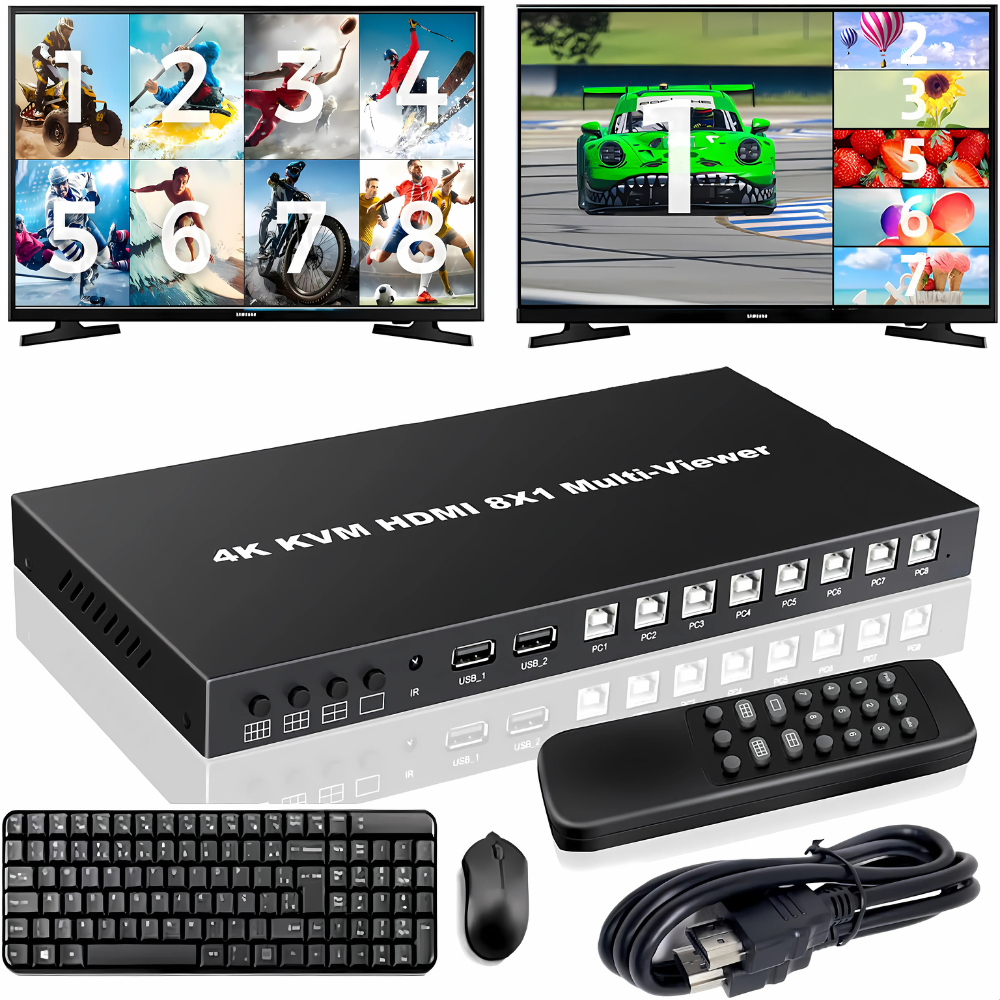

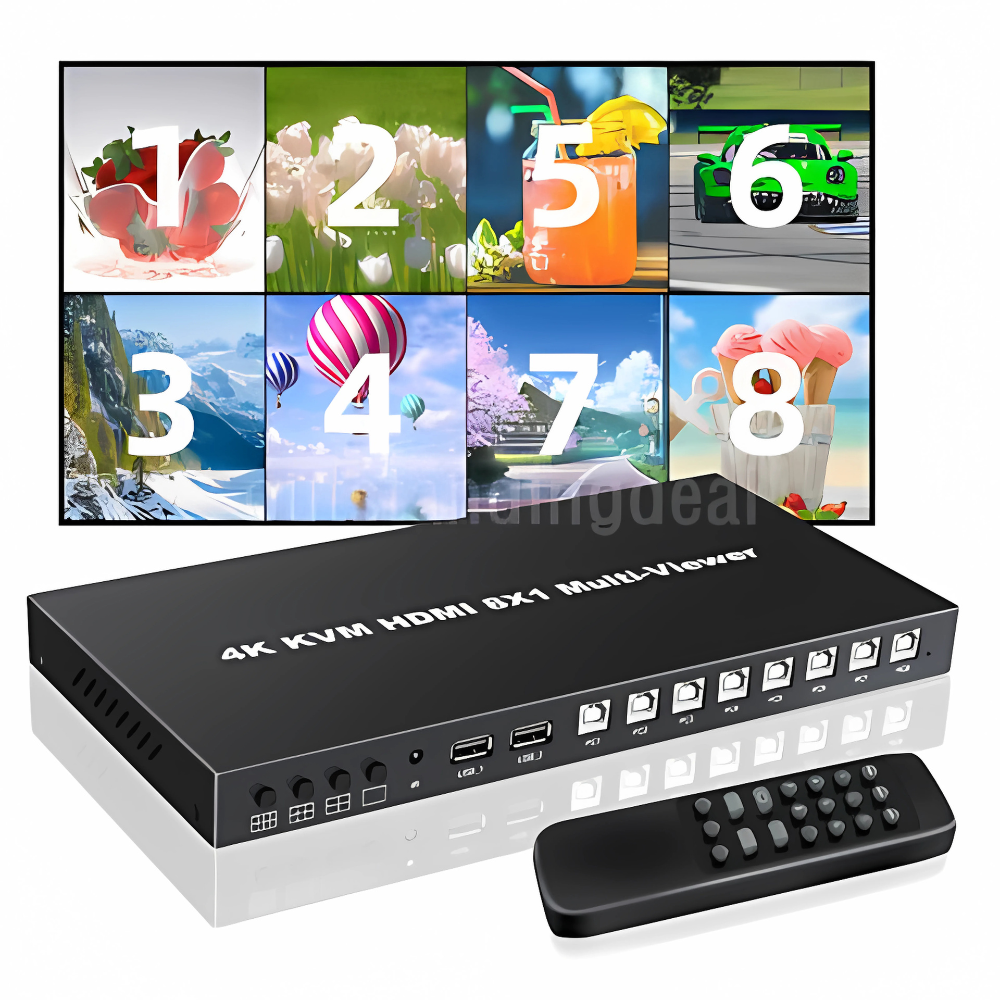

► This 4K KVM HDMI 8x1 Multi-viewer is a high performance product with 8 HD screens segmentation and seamless switching output.
► It can display 8 HD digital video signals on one screen, and has a variety of video segmentation, seamless switching 8 HD input signal synchronously.
► It’s a very practical and stable multi-viewer and easy to install, can be used in the major projects, meeting halls and other places.
Features:
• Support 8 HDMI inputs, 1 HDMI output;
• Support 8 channels HDMI signal screen segmentation;
• Support max output resolution 4K@30Hz;
• Support IR control;
• Supports 1 way mouse and keyboard to control 8 ways PC host;
• USB supports Windows, Linux, MAC OS and Android operation system, etc;
• Support RS232 control;
• Supports USB 1.1 low speed(1.5Mb/s); Full speed(12Mb/s).
Specifications:
• Brand: ARGOX
• Model: HDP03
• Product Type: Multi-viewer
• Input resolution: 1080P,720P,1024x768,1360x768 etc.
• Output resolution: 1080P/2560x1440/2560x1600/4K@30Hz
• Audio format: PCM
• Input cable distance: 1080P/60Hz≤15M AWG26 HDMI standard cable
• output cable distance: 4K/30Hz≤10M AWG26 HDMI standard cable
• Max bandwidth: 340MHz
• Max baud rate: 3.4x3Gbps
• Max working current: 600mA
• Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC12V/1A
• Operating temperature range: (-10℃to +55℃)
• Dimension (L x W x H): 226x103x25 (mm)
• Weight: 533g
WHAT'S IN THE BOX?
• 1 x KVM HDMI 8x1 Multi-Viewer
• 1 x Power Adapter
• 1 x RS232 Cable
• 8 x USB-A to USB-A Cable
• 1 x Remote Control
• 1 x Manual
