ATOMOS ATOMCON003
Overview

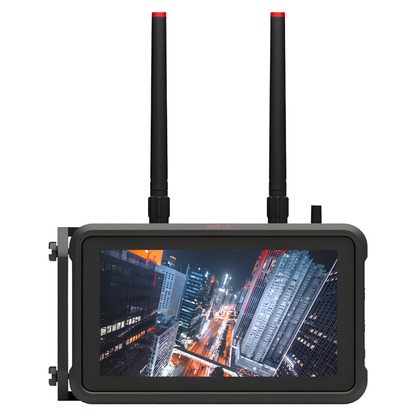

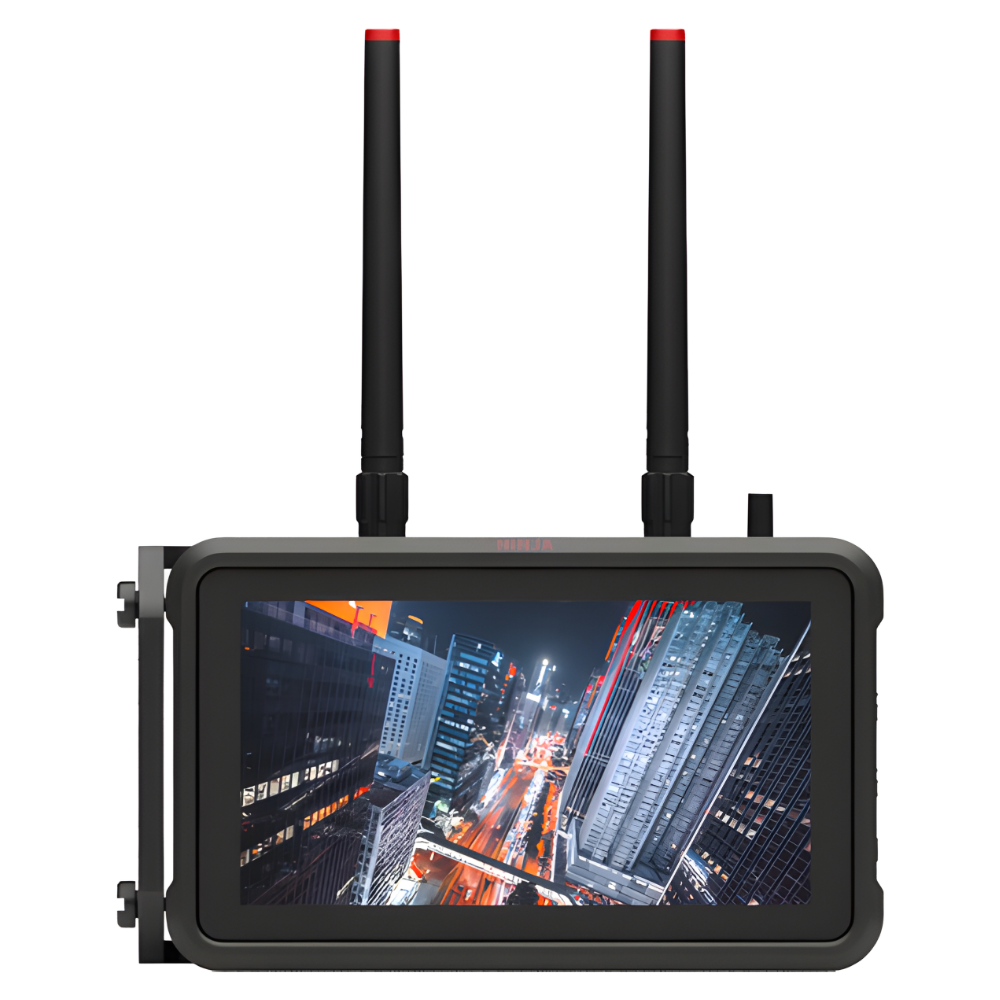

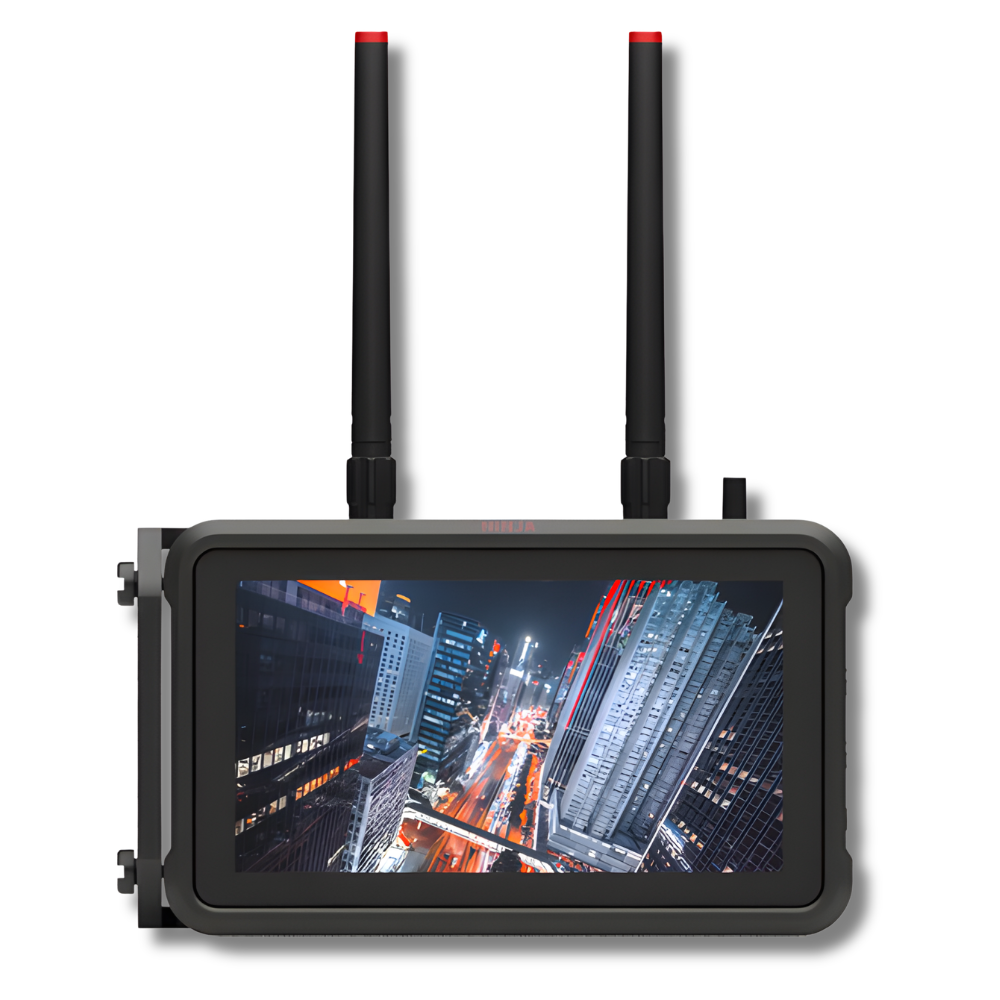

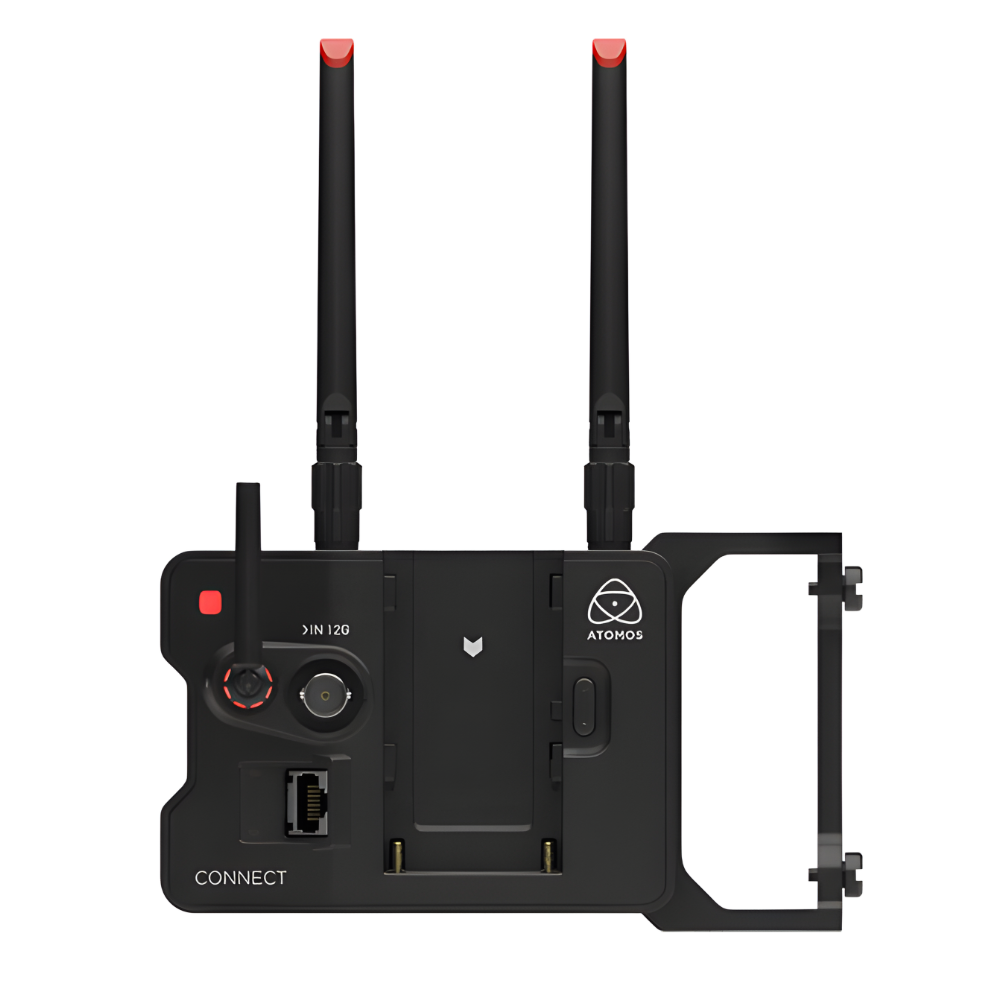

Expand the video and network capabilities of your Ninja V or Ninja V+ monitor with the Atomos CONNECT. Designed to fit flush to the back of your compatible monitor and secured via two screws, the CONNECT features a 12G-SDI input and antennas for Wi-Fi 6 capabilities. The CONNECT supports Bluetooth LE and Gigabit Ethernet with the integrated LAN input so you can stream to networked video switches, additional monitors, or destinations like YouTube, Facebook, and Twitch.
Key Features
● For Ninja V/Ninja V+ Recording Monitor
● 12G-SDI Input
● Atomos Sync Wireless Timecode
● Wi-Fi 6, Bluetooth LE, Ethernet
● L-Series Battery Slot
● Mounts on Monitor via Two Screws
Specification
● Brand: ATOMOS
● Model: ATOMCON003
● Product Type: SDI Expansion Module
● Compatibility: Atomos Ninja V / Ninja V+
● Video Input: 1 x 12G-SDI (BNC)
● Wireless Connectivity: Wi-Fi 6 (802.11ax), Bluetooth LE
● Networking: Ethernet
● Timecode Support: Atomos Sync
● Battery Type: 1 x Sony L-Series
● Battery Included: No
● Mounting: 2-Screw Monitor Attachment
● Color: Black
● Length: 5"" / 12.7 cm
What's in the box?
● Atomos CONNECT
● AtomX SSDmini Handle
● MasterCaddy III with Screws
● Wi-Fi Antenna with Black Caps
● RF Antenna
● Antenna Storage Pouch
● 3.5mm Audio Jack to Jack Cable
● Antenna Colored Caps
● Antenna Mount Covers
