ATOMOS ATOMSHG701

Overview

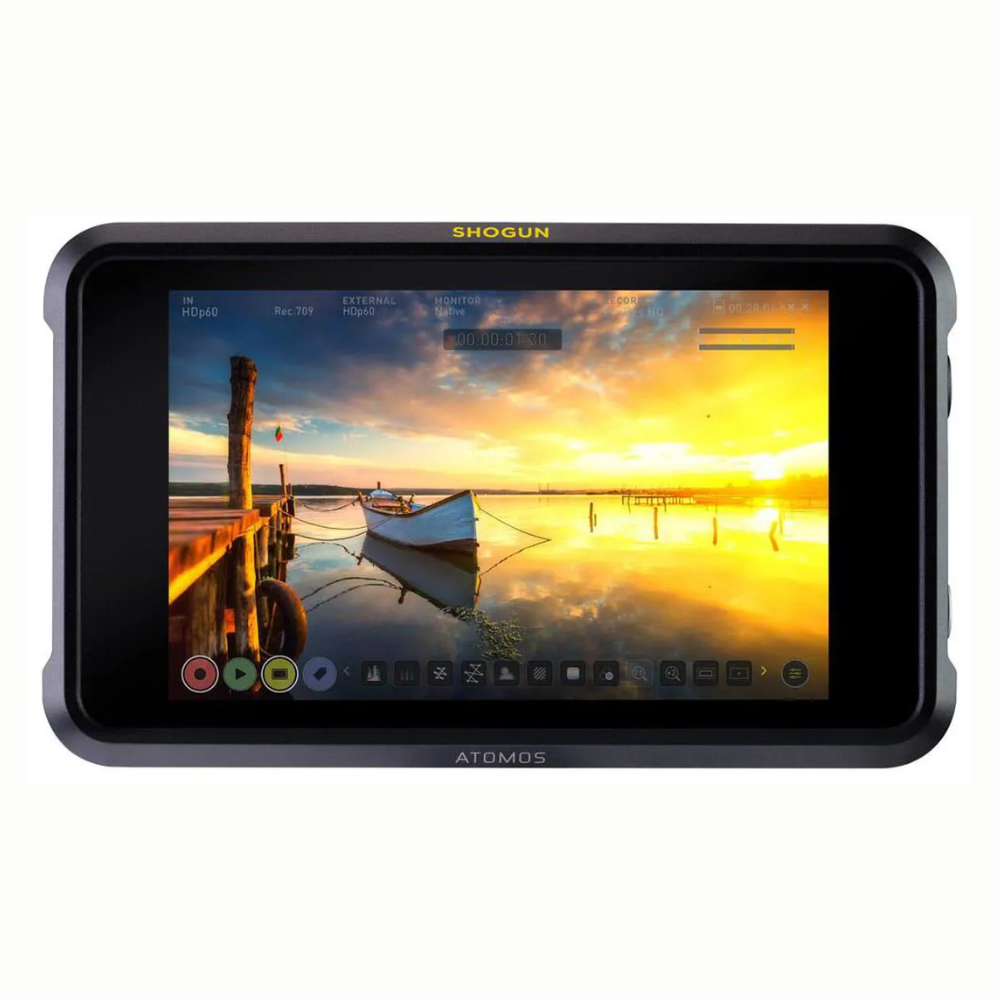

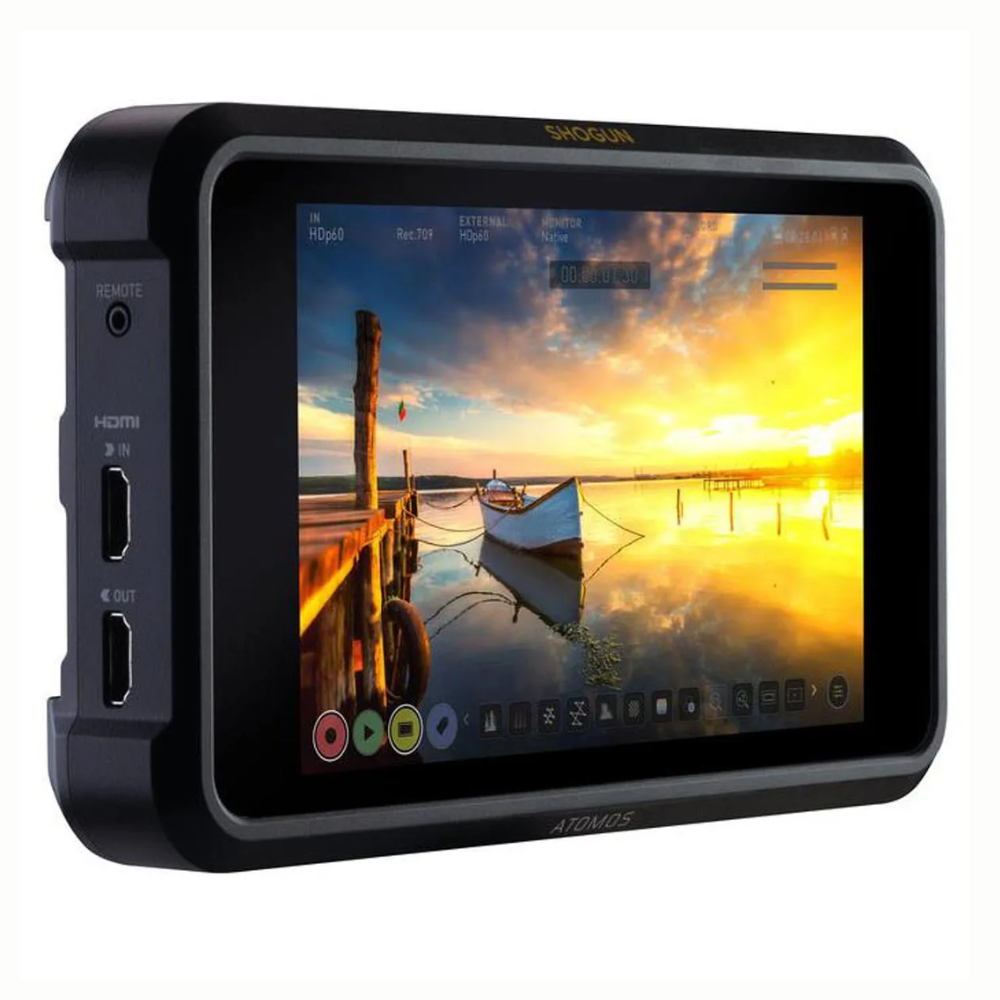

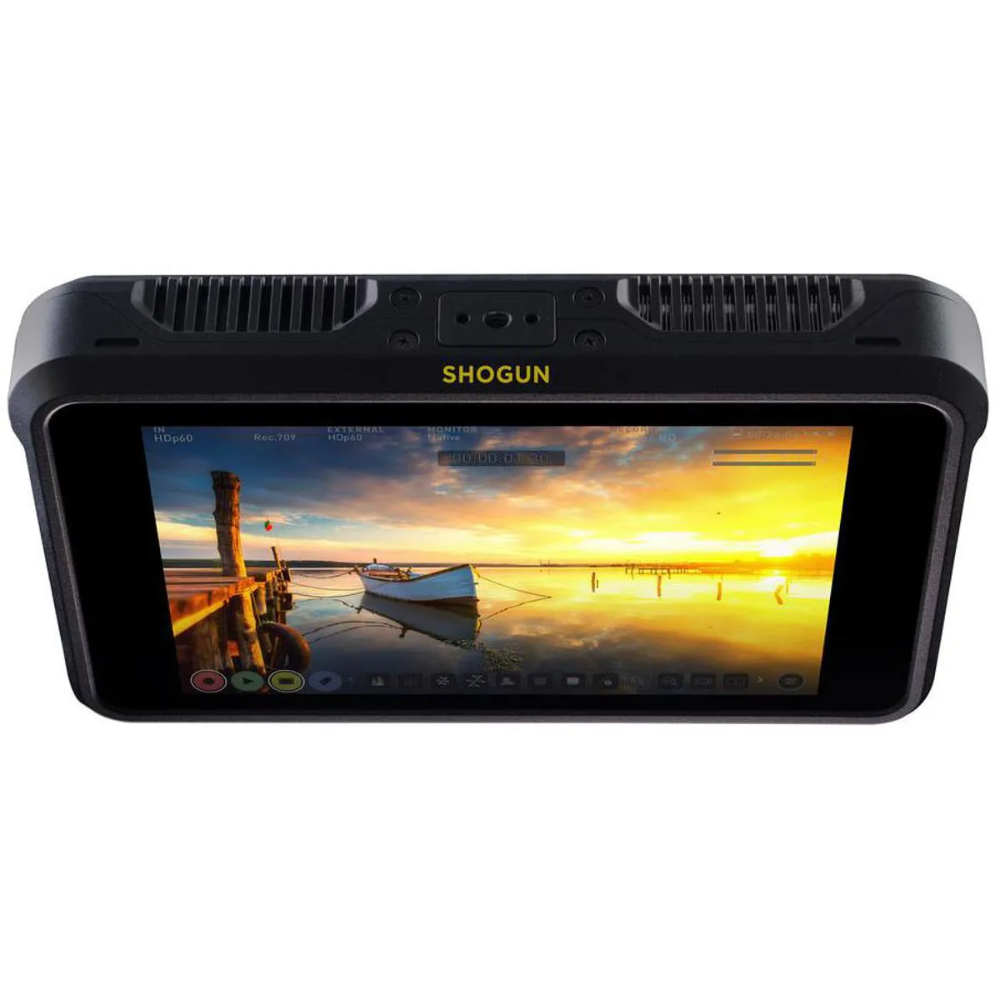

The 7" Shogun HDR Classic Cinema Monitor-Recorder-Switcher, one of the latest workhorses in the Atomos line of Shogun onboard camera video monitor-recorders, provides monitoring, recording, and switching in a single, compact tool. The ultra-bright 3000 cd/m² display can input up to DCI/UHD 4K60 video and features HDMI and SDI input and output, so it's perfect for cinema capture, live events, and broadcast productions.

Key Features

• 1 x HDMI and 4 x SDI I/O
• 7.2" 1920 x 1200 Capacitive Touchscreen
• 1,000,000:1 Contrast Ratio, 10-Bit HDR
• Up to 3000 cd/m² Brightness
• Real-Time 4K ProRes, DNG, DNx
• 4 x ISO Recording, 2-Channel XLR I/O
• Up to DCI/UHD 4K60 I/O, Custom 3D LUTs
• Dual L-Series Battery Plate
• Professional Built-In Monitoring Tools

Specification

• Brand: Atomos
• Model: Shogun Ultra
• Type: 7"" Monitor Recorder
• Panel Type: IPS-Type LCD
• Display Size: 7.0"" / 17.8 cm
• Native Resolution: 1920 x 1200
• Aspect Ratio: 16:9
• Touchscreen: Yes
• Maximum Brightness: 2000 nits / cd/m2
• Color Support: 1.07 Billion Colors (10-Bit)
• HDR Support: Yes: HDR10

Color Gamut:

- 100% DCI-P3

- 100% Rec. 2020

• LUT Support: Yes

Image Controls: Anamorphic De-Squeeze, False Color, Focus Peaking, OSD Flip, RGB Parade, Vectorscope, Waveform, Zebra

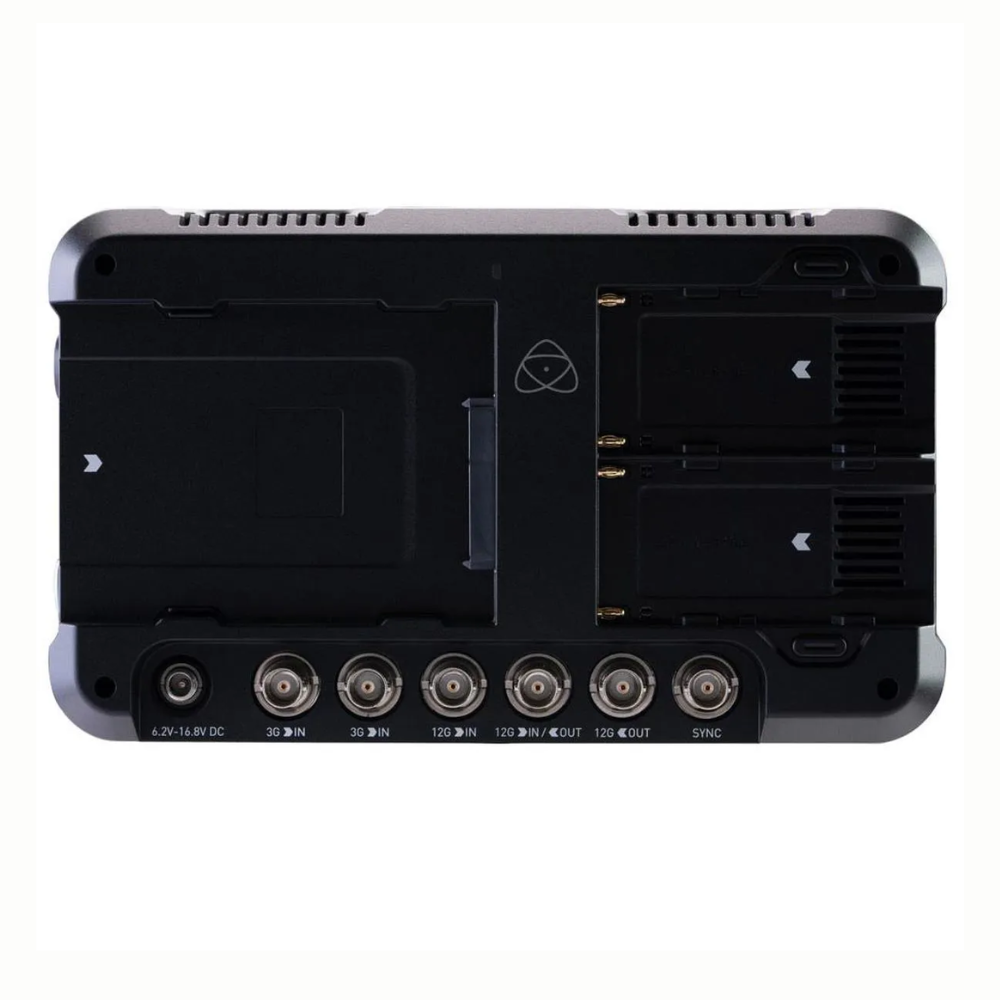

Video I/O:

- 1x HDMI 2.0 Input

- 1x BNC (12G-SDI) Input

- 1x HDMI 2.0 Output

- 1x BNC (12G-SDI) Output

Embedded Audio:

- HDMI: 8-Channel

- SDI: 24-Channel

Audio I/O:

- 1x 1/8"" / 3.5 mm Headphone Output

- 1x 1/8"" / 3.5 mm Input

- 1x 1/8"" / 3.5 mm Output

• Built-In Speaker: No
• Power I/O: 1x Barrel Input

Other I/O:

- 1x 2.5 mm (LANC)

- 1x USB-C (Serial) Input

- 1x RJ45 (Gigabit Ethernet) Input

• Media/Memory Card Slot: Single Slot: SSDmini/SSD with Master Caddy II/III [Supports Recording]
• Wi-Fi: Wi-Fi 6E (802.11ax); Dual-Band (2.4 & 5 GHz)
• Bluetooth: Yes

Mobile App Compatible:

- Yes: Android & iOS

- App Name: AtomRemote

- Functionality: Adjust Settings, Setup

Video Format:

• HDMI/SDI (8/10-Bit 4:2:2/4:2:0 YCC)
• 8K Raw: 30
• 6K Raw: 60/30
• 4K Raw: 120
• DCI 4K: 60
• UHD 4K: 60
• DCI 2K: 60
• 1080p: 120
• 1080i: 60/50
• 720p: 60

Video Signal Conversion:

- HDMI to SDI

- SDI to HDMI

• Timecode Support: Yes
• Camera Trigger: SDI, HDMI
• Pre-Roll Record: No

Encoding Formats

- x

- DNxHD

- H.265

- ProRes

• Metadata Tagging: Yes
• Phantom Power: No
• Tripod/Accessory Mounting: Top/Bottom/Right: 3x Anti-Twist 3/8""-16 Female
• Input Power: 6.2 to 16.8 VDC

What's in the box?

• "7"" Monitor
• Master Caddy II
• 12V Power Supply
• Carry Case
• User ManuaL
