The 7" Shogun Ultra Monitor-Recorder, the latest in the ATOMOS line of Shogun onboard camera video monitor-recorders, brings built-in network connectivity to your mirrorless, DSLR, and cine-style capture, enabling fast and productive workflows. Efficient cloud-based workflow options include dual ProRes RAW/H.265 recording for Camera to Cloud, automated matching file names with popular cine-style cameras, and 4K H.265 capture for instant publishing from the cloud. Partnering with industry-leading camera manufacturers ensures that the Shogun Ultra will work seamlessly with an increasingly wide range of cameras.
Key Features:
• AtomOS 11, 12G-SDI/HDMI Conversion
• 7" 1920 x 1080 Touchscreen
• Records up to 8K Apple ProRes Raw
• ProRes Raw + H.265 Dual Recording
• AirGlu RF Wireless Sync, GigE, 6E Wi-Fi
• 2000 cd/m² Brightness
• ARRI/Canon/RED/Sony Camera SDI Support
• AVID DNX QuickTime
• Atomos RemoteView via Subscription
• Optional NDI 4K TX Pro Mode 1-Off

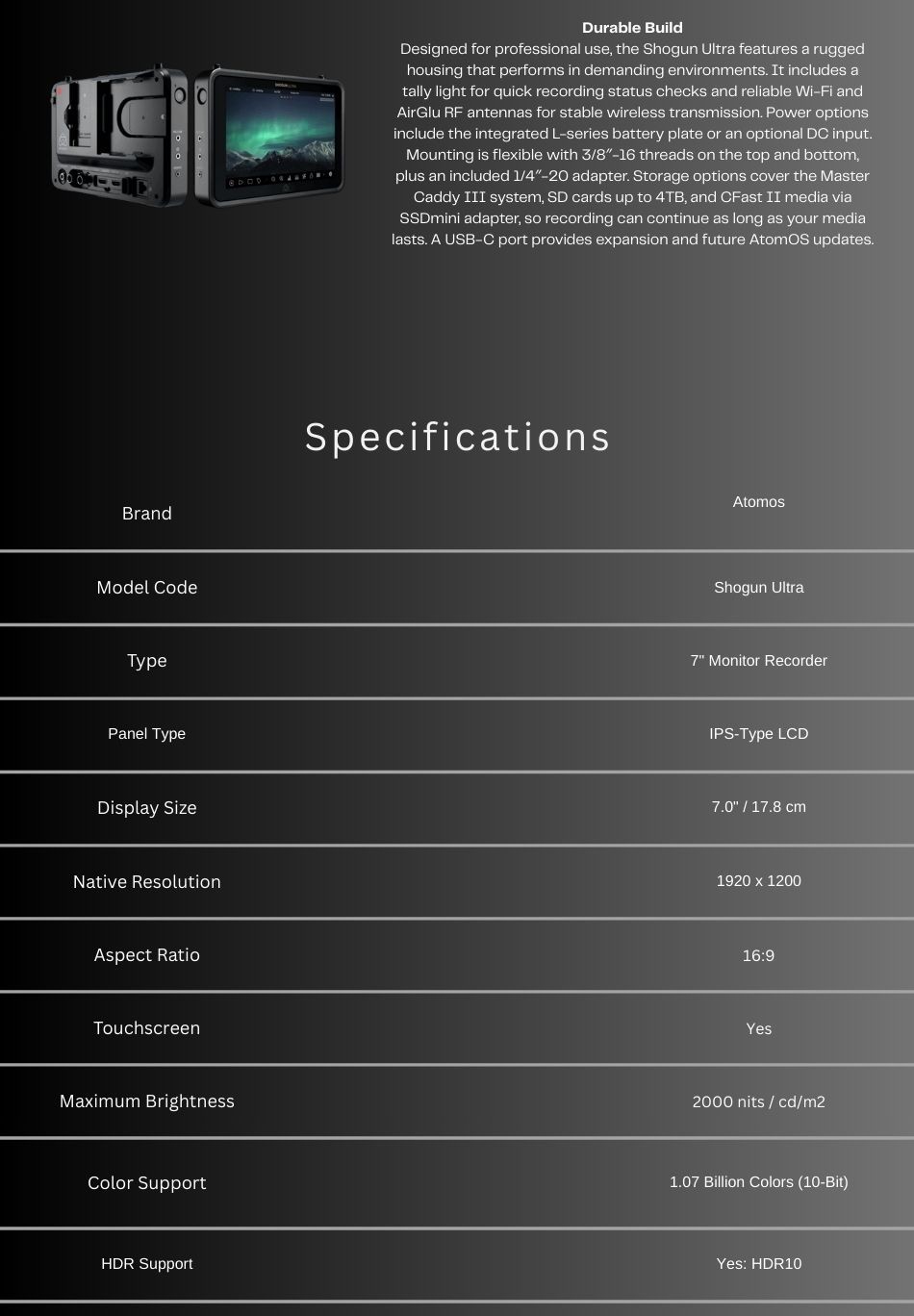

Specifications:
• Brand: Atomos
• Model: Shogun Ultra
• Type: 7" Monitor Recorder
• Panel Type: IPS-Type LCD
• Display Size: 7.0" / 17.8 cm
• Native Resolution: 1920 x 1200
• Aspect Ratio: 16:9
• Touchscreen: Yes
• Maximum Brightness: 2000 nits / cd/m2
• Color Support: 1.07 Billion Colors (10-Bit)
• HDR Support: Yes: HDR10
• Color Gamut:
- 100% DCI-P3
- 100% Rec. 2020
• LUT Support: Yes
• Image Controls: Anamorphic De-Squeeze, False Color, Focus Peaking, OSD Flip, RGB Parade, Vectorscope, Waveform, Zebra

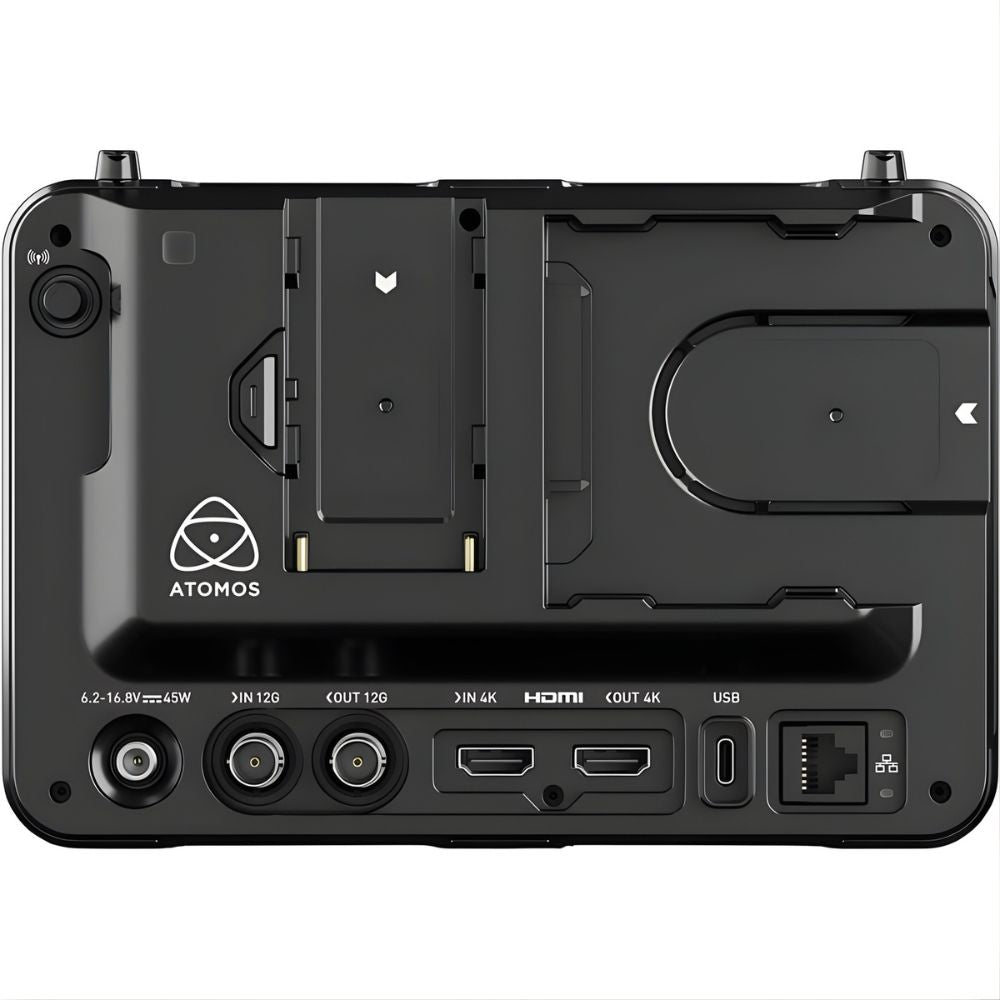

• Video I/O:
- 1x HDMI 2.0 Input
- 1x BNC (12G-SDI) Input
- 1x HDMI 2.0 Output
- 1x BNC (12G-SDI) Output
• Embedded Audio:
- HDMI: 8-Channel
- SDI: 24-Channel

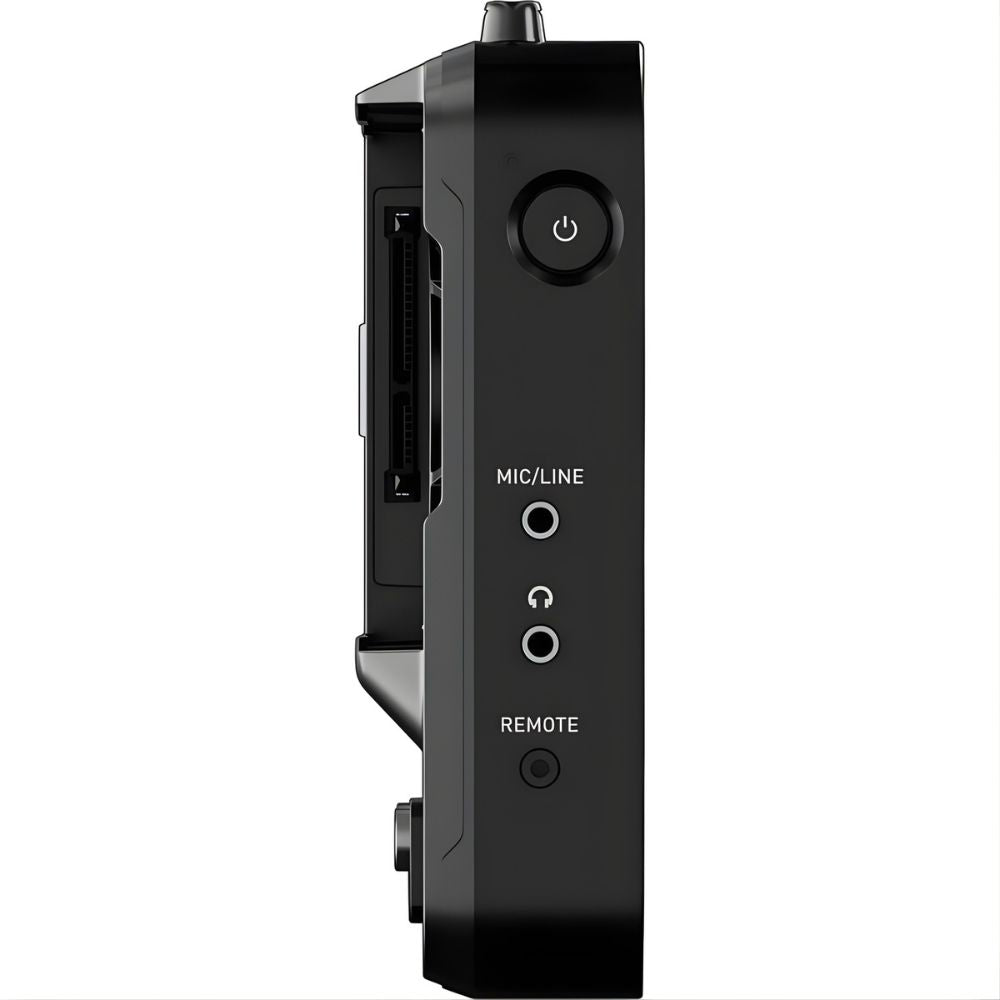

• Audio I/O:
- 1x 1/8" / 3.5 mm Headphone Output
- 1x 1/8" / 3.5 mm Input
- 1x 1/8" / 3.5 mm Output
• Built-In Speaker: No
• Power I/O: 1x Barrel Input
• Other I/O:
- 1x 2.5 mm (LANC)
- 1x USB-C (Serial) Input
- 1x RJ45 (Gigabit Ethernet) Input
• Media/Memory Card Slot: Single Slot: SSDmini/SSD with Master Caddy II/III [Supports Recording]
• Wi-Fi: Wi-Fi 6E (802.11ax); Dual-Band (2.4 & 5 GHz)
Bluetooth: Yes
• Mobile App Compatible:
- Yes: Android & iOS
- App Name: AtomRemote
- Functionality: Adjust Settings, Setup
• Video Format:
HDMI/SDI (8/10-Bit 4:2:2/4:2:0 YCC)
8K Raw: 30
6K Raw: 60/30
4K Raw: 120
DCI 4K: 60
UHD 4K: 60
DCI 2K: 60
1080p: 120
1080i: 60/50
720p: 60
• Video Signal Conversion:
- HDMI to SDI
- SDI to HDMI
• Timecode Support: Yes
• Camera Trigger: SDI, HDMI
• Pre-Roll Record: No
• Encoding Formats
- x
- DNxHD
- H.265
- ProRes
• Metadata Tagging: Yes
• Phantom Power: No
•Tripod/Accessory Mounting: Top/Bottom/Right: 3x Anti-Twist 3/8"-16 Female
• Input Power: 6.2 to 16.8 VDC
• Battery: 1x L-Series Mount on Fixed Plate
What's in the box?
• Camera Monitor Recorder
• USB C PD to 2.1mm DC power lead

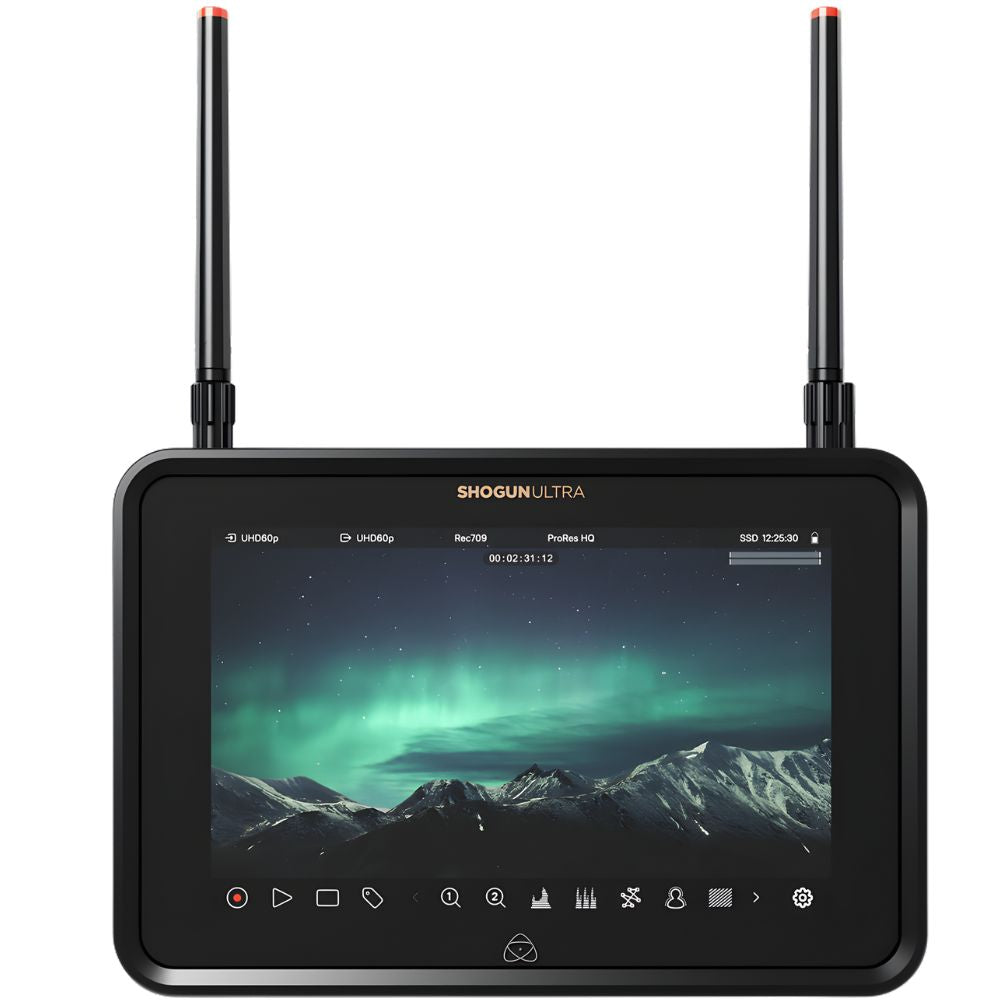

• Master Caddy III, 2 x Wi-Fi antennas
• AirGlu antenna
• Antenna tips
• 3.5mm to 3.5mm audio sync cable
• QuickStart Guide
