AVMATRIX HVS0403U

AVMatrix HVS0403U Micro 4-Channel SDI & HDMI Video Switcher with USB Capture for Computer and Android Phone, Multiview & PGM, PiP / PoP, Audio Interface, Transition Effects, and Logo Overlay for Live Streaming, Broadcast, and Production

₱29,000.00
₱29,000.00 ₱46,440.00
Sale Sold out
Tax included. Shipping calculated at checkout.
View Product Details
  • Product Description

AVMATRIX HVS0403U

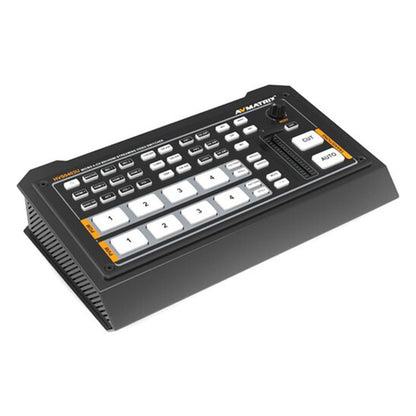

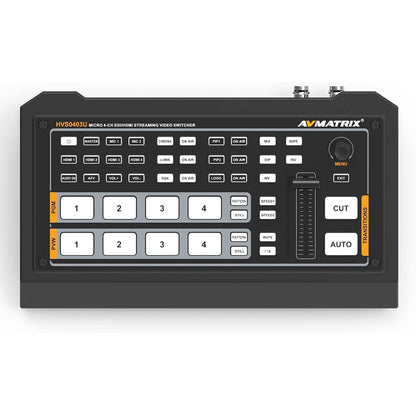

Micro 4-Channel SDI & HDMI Video Switcher



Add professional video switching and audio mixing flexibility to your concert productions, house of worship, educational forum, or live sports programming with this HVS0403U Micro 4-Channel SDI & HDMI Video Switcher from AVMATRIX. Boasting two HDMI and two SDI autodetected inputs, the HVS0403U is a compact and user-friendly video switcher loaded with powerful features, including luma and chroma keying, mix/fade/wipe effects, audio mixing, and a picture-in-picture (PiP) or picture-on-picture (PoP) layout, using tactile functions such as auto and cut transitions or with the T-bar.

Bring in four separate sources for switching up to 1080p60 video with embedded audio, or mix in additional audio originating from two analog stereo 3.5mm mic/line inputs. An HDMI output with Multiview support provides ideal previewing functions, and two HDMI program outputs with scaling features give you flexibility for sending simultaneous signals to a display for live events and a recording terminal for editorial consideration. There is also a USB-C video output to connect to a computer for video capture and livestreaming, while a LAN port enables you to control the switcher using software via IP. Logo overlays are supported from a variety of different image file formats, including PNG, JPG, and BMP, and you have the option of capturing up to 16 screenshots and storing up to 16 images using the USB-A input with 39 default patterns and two color generators. A tally interface supports GPIO, still frame, mute, and fade-to-black (FTB) functionality.




Specifications:

Available M/E Layers: 2 M/E

Effect Types: 1x Graphic, Transition, Chroma Key, Alpha Key, Luma Key

Graphics Memory: 32 Images

Downstream Keys: 1x Chroma, Luma, DVE

Generators:

• 2x Color

• 1x Pattern

Audio Mixing: 2-Channel Mixing

Switching Type: Pushbutton, Software, T-Bar

Processing Resolution: 1080p

Color Processing:

• YUV

• RGB

Number of Video Input Sources: 4

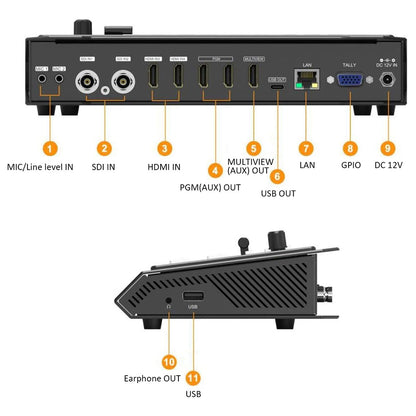

Video Inputs:

• 2x HDMI Female

• 2x BNC (3G-SDI) Female

Input Video Format: HDMI

Video Output Channels: 2

Video Outputs:

• 2x HDMI Female (Program)

• 1x HDMI Female (Preview)

• 1x USB-C (USB Video) Female

Output Video Format:

• HDMI

• USB-C

Other I/O:

• 1x DE-15/DB-15 Tally Input

• 1x RJ45 LAN Input/Output

• 1x USB-A Firmware, Service Input

Video Standard Compliance: SMPTE 259M/292M/424M

Recording Media: 1x USB-A 2.0 (External Drives)

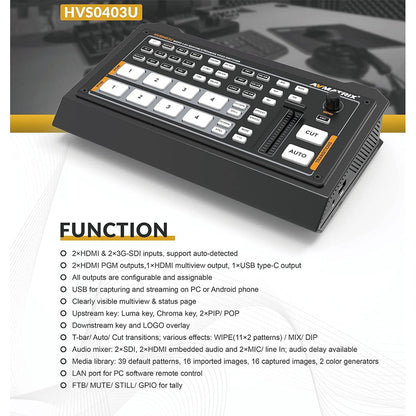

Features:

  • 2×HDMI & 2×3G-SDI inputs, support auto-detected
  • 2×HDMI PGM outputs, 1×HDMI multiview output, 1×USB type-C output
  • All outputs are configurable and assignable
  • USB for capturing and streaming on PC or Android phone
  • Clearly visible multiview & status page
  • Upstream key: Luma key, Chroma key, 2×PIP/ POP
  • Downstream key and LOGO overlay
  • T-bar/ Auto/ Cut transitions; various effects: WIPE(11×2 patterns)/ MIX/ DIP
  • Audio mixer: 2×SDI, 2×HDMI embedded audio and 2×MIC/ line In; audio delay available
  • Media library: 39 default patterns, 16 imported images, 16 captured images, 2 color generators
  • LAN port for PC software remote control
  • FTB/ MUTE/ STILL/ GPIO for tally



Compatibility:

  • Facebook Live
  • Livestream
  • Skype
  • Twitch
  • YouTube Live



What's in the box:

  • AVMATRIX HVS0403U Micro 4-Channel SDI & HDMI Video Switcher
  • Power Supply
  • USB-A to USB-C Cable
  • Tally Connector
