Description:
This unit consist of Optics, Temperature Sensor Signal amplifier, Processing circuit and LCD Display. The Optics
collected the infrared energy emitted by object and focus onto the Sensor. Then the sensor translates the energy into an electricity signal. This signal will be turned out to be digital shown on the LCD after the signal amplifier and processing circuit.
Non-Contact Infrared Thermometer possesses the following features:
- ℃ / ℉ temperature unit conversion
- Max / Min / Difference / Average display
- Positioning laser
- Data retention
- High / low temperature alarm settings
- Measurement data storage
- Automatic shut-down
Specifications:
-
BRAND: BENETECH
-

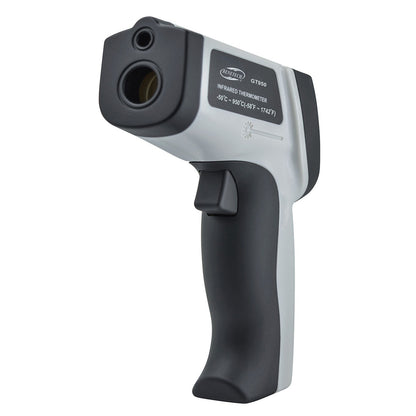

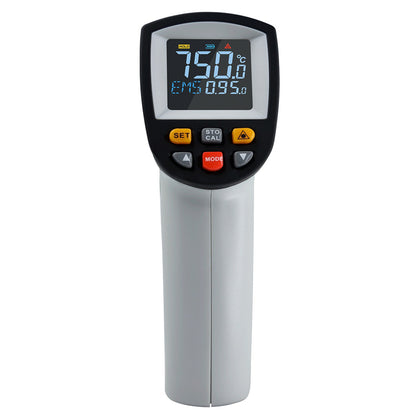

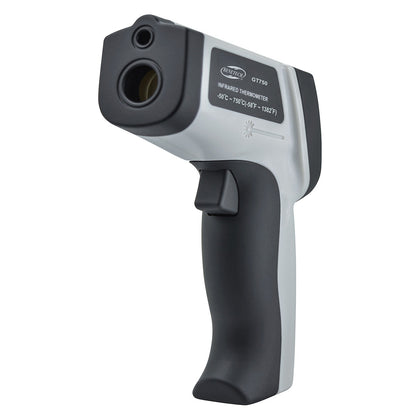

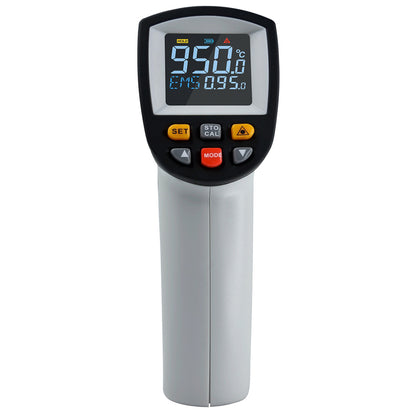

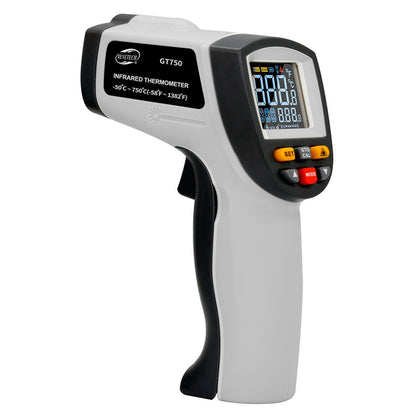

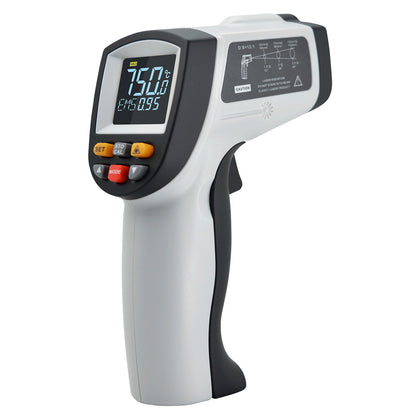

MODEL: GT750 (-50°C-780°C) / GT950 (-50°C-950°C) Non-Contact Infrared Thermometer
-
Temperature range: -50℃~750℃ (-58℉~1382℉)
-
Accuracy: 0℃~750℃(32℉~1382℉) :±1.5℃(±2.7℉) or ±1.5% -50℃~0℃(-58℉~32℉):±3℃ (±5℉)
-
Whichever is greater
-
Resolution: 0.1℃ or 0.1℉
-
Repeatability: 1% of reading or 1℃
-
Response time: 500 mSec, 95% response
-
Spectral response: 8um~14 um
-
Emissivity: 0.10~1.00 Adjustable (0.95 Preset)
-
Distance to Spot size: 12:01
-
Operating Temperature: 0℃ ~40℃ (32℉ ~ 104℉)
-
Operating Humidity: 10%RH~95%RH non-condensing， up to 30℃(86℉)
-
Storage Temperature: -20℃ ~ 60℃ (-4℉~140℉)
-
Power: 9V Alkaline or NiCd battery
-
Typical battery life (Alkaline): Non-laser mode: 22 hrs; Laser Models:12 hrs
-
Weight: 222g
-
Dimension: 111*50*172mm
What's in the box:
- GT750 (-50°C-780°C) / GT950 (-50°C-950°C) Non-Contact Infrared Thermometer x 1
