Desview / Bestview R7III 7" IPS LCD HDR Touchscreen Camera Field Video Monitor with HB 2800nits, 4K60 HDMI Resolution and Custom 3D LUTs for DSLR Mirrorless Camera

Desview R7III Camera Field Monitor 7 inch

Overview:
Ultra-High Brightness

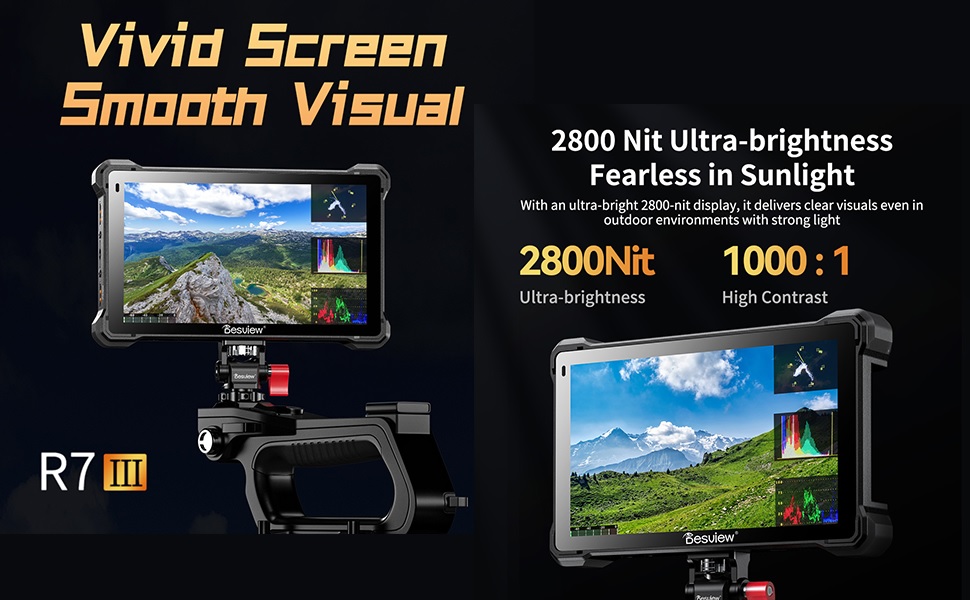

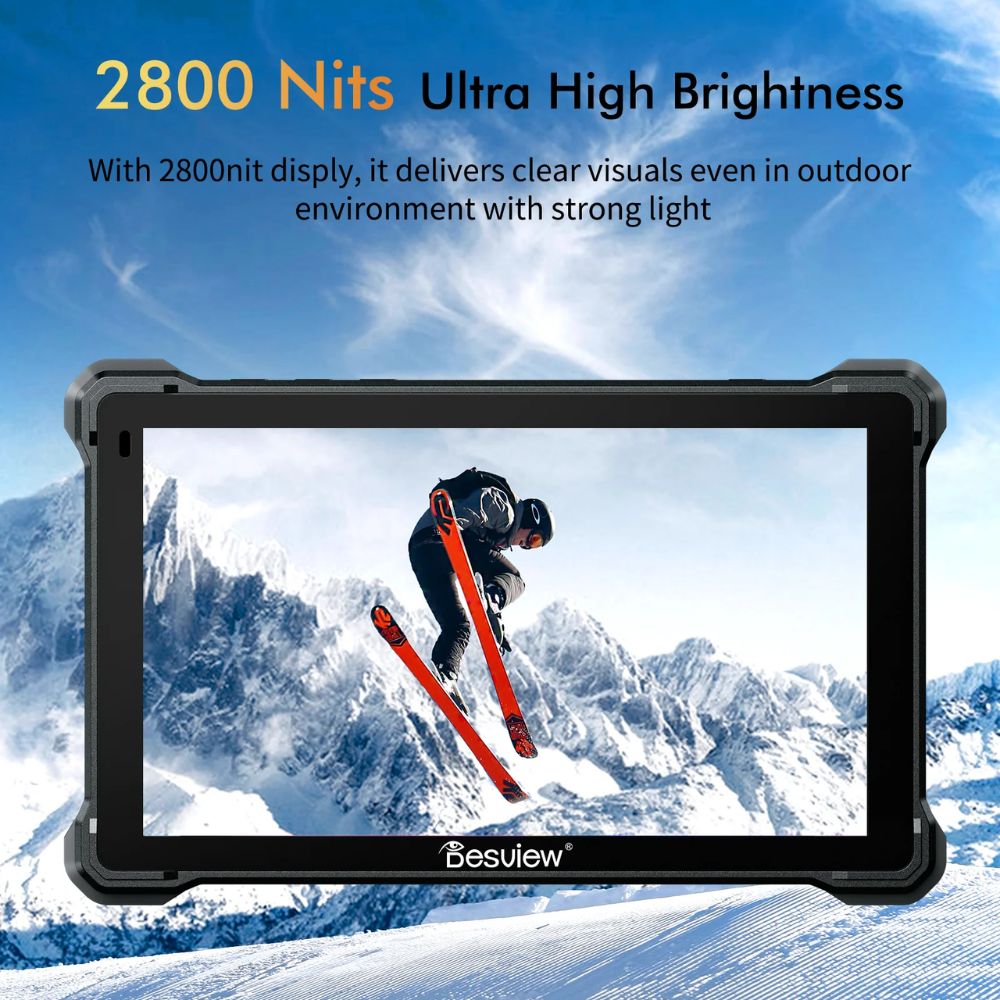

► The R7III features a 2800 cd/m² ultra-high brightness LCD for clear visuals in darkness or direct sunlight.

High-Resolution Display
► The upgraded display supports up to UHD 4K60 input and loop output for accurately viewing HDR imagery with high frame rates.

Professional Interfaces

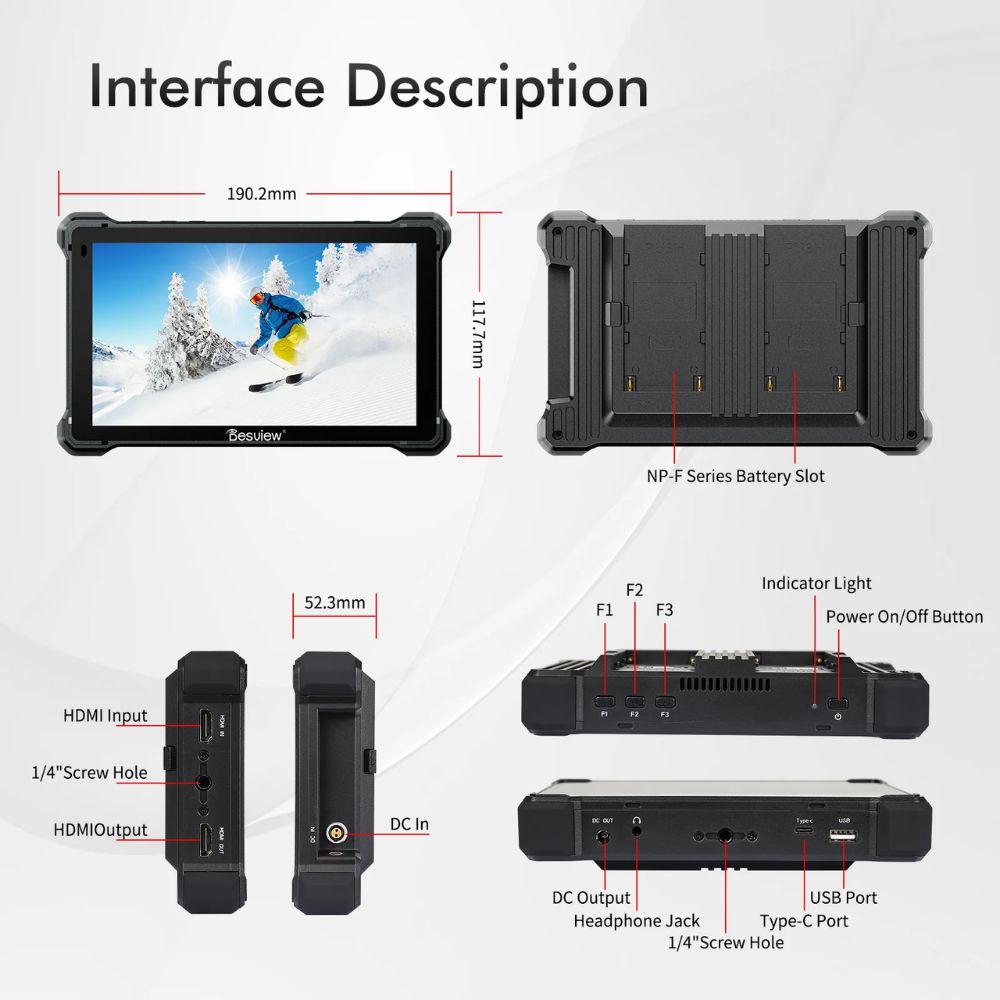

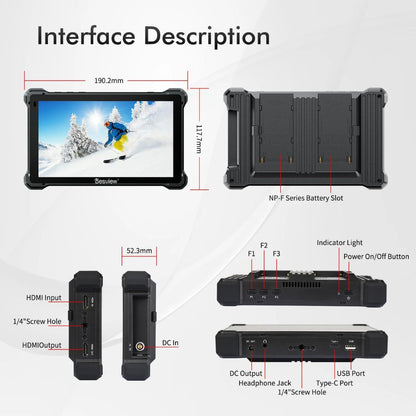

► The monitor features HDMI 2.0 inputs and outputs, 3.5mm headphone output, USB-C power, and USB-A firmware and LUT import.

Dynamic Monitoring

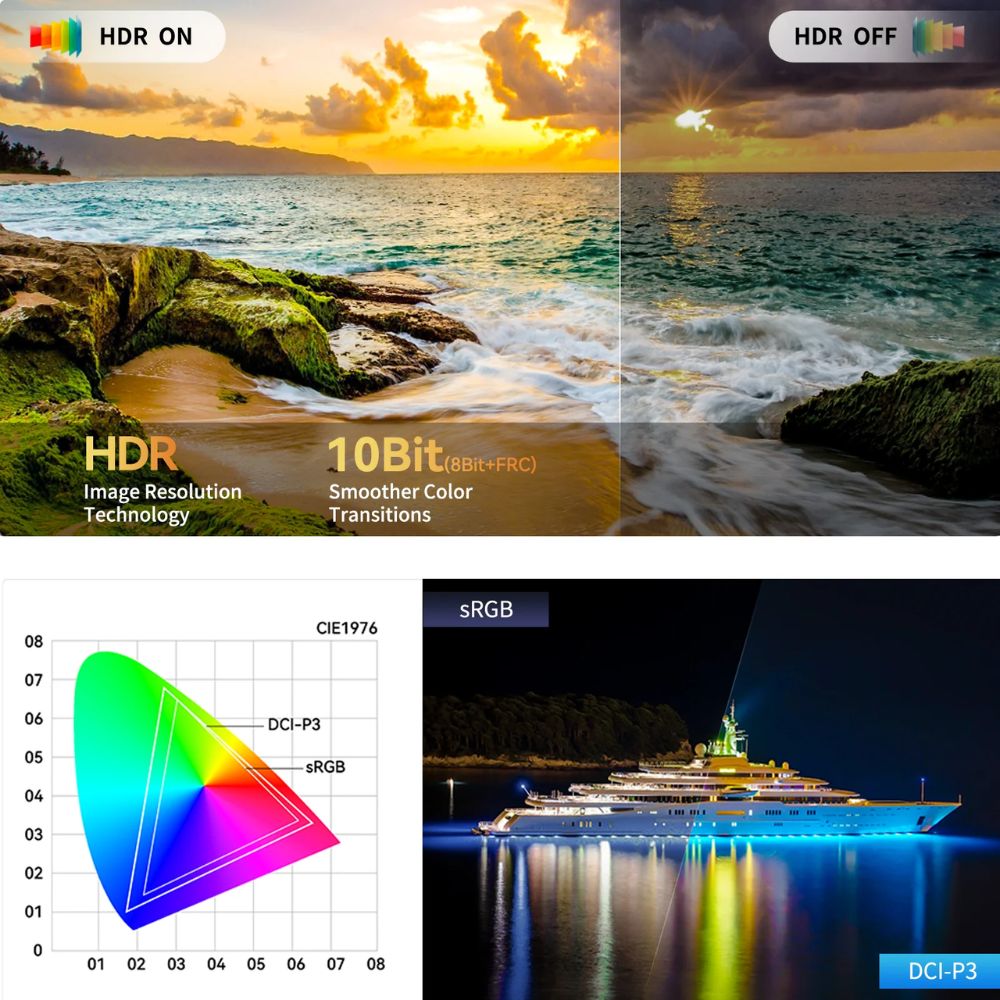

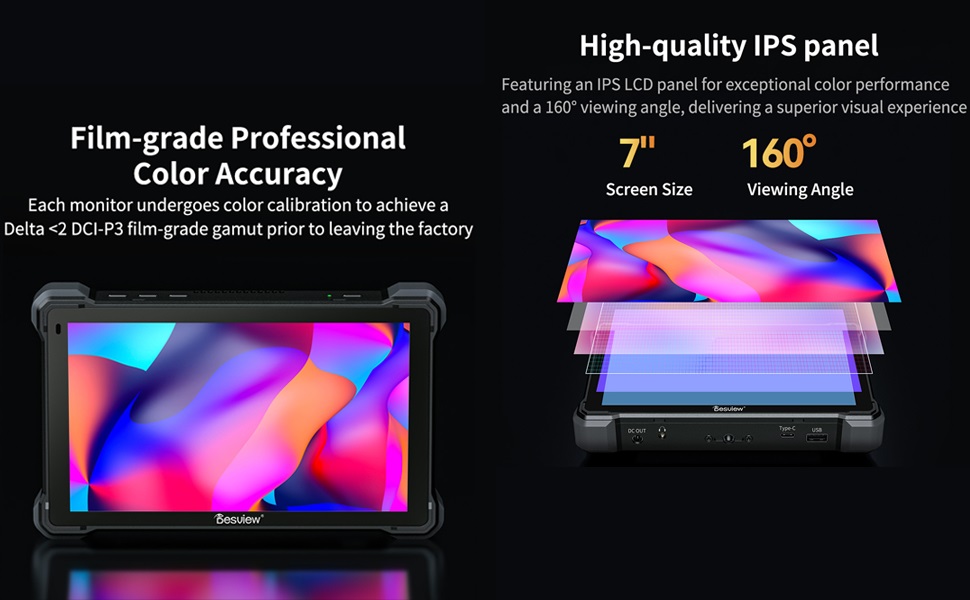

► The latest HDR PQ and HLG curves are supported for displaying rich colors and smooth transitions. It also features a film-grade color gamut with 100% DCI-P3 coverage, supporting true-to-life color with 10-bit color depth.

3D LUTs

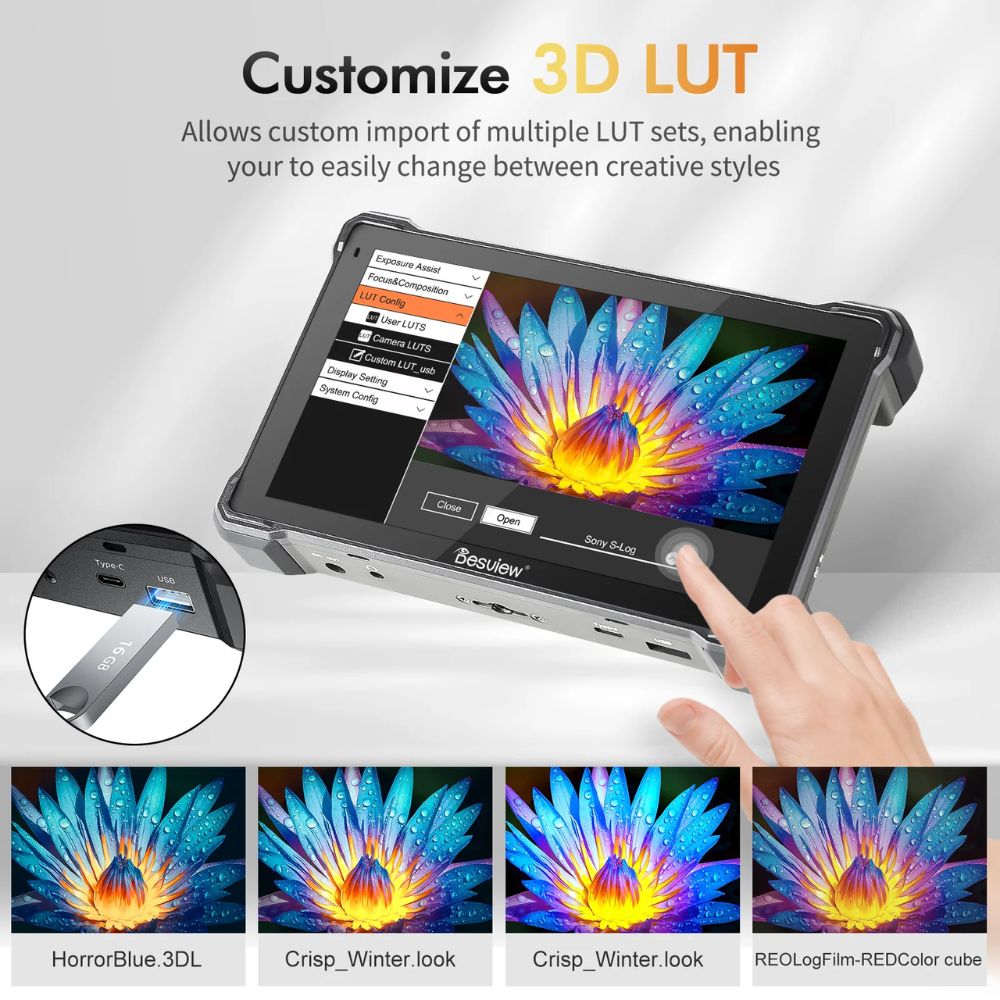

► The monitor includes built-in 3D LUTs for you to apply looks to your footage, and it also allows you to import your own custom 3D LUTs using the USB-A port.

Power Options

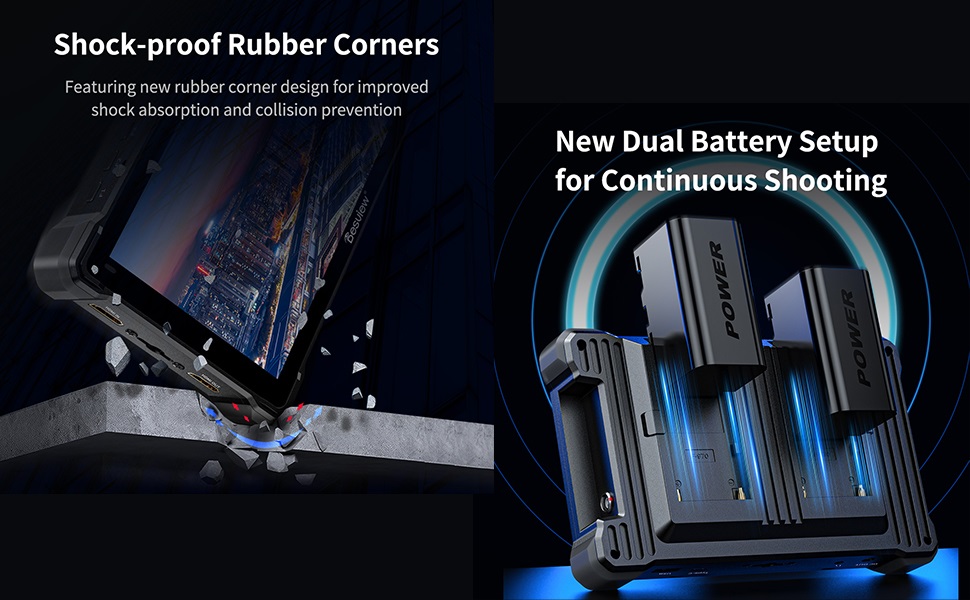

► The dual L-series battery plate allows you to power the monitor using up to two L-series batteries, and it also supports USB-C power input, 2-pin LEMO-type input, and it features an 8 VDC barrel output to also power your camera or other accessories.

Intelligent Touch Control

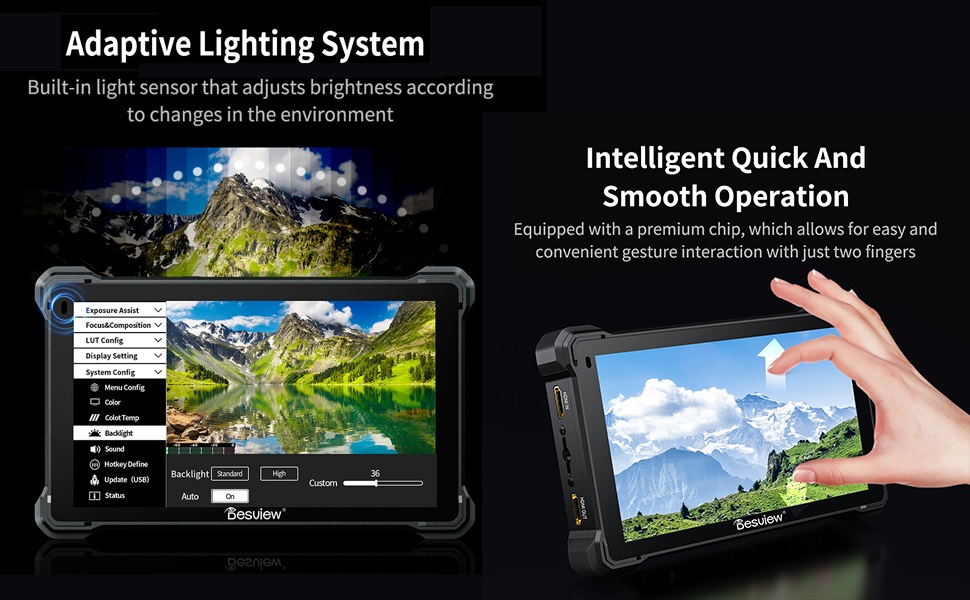

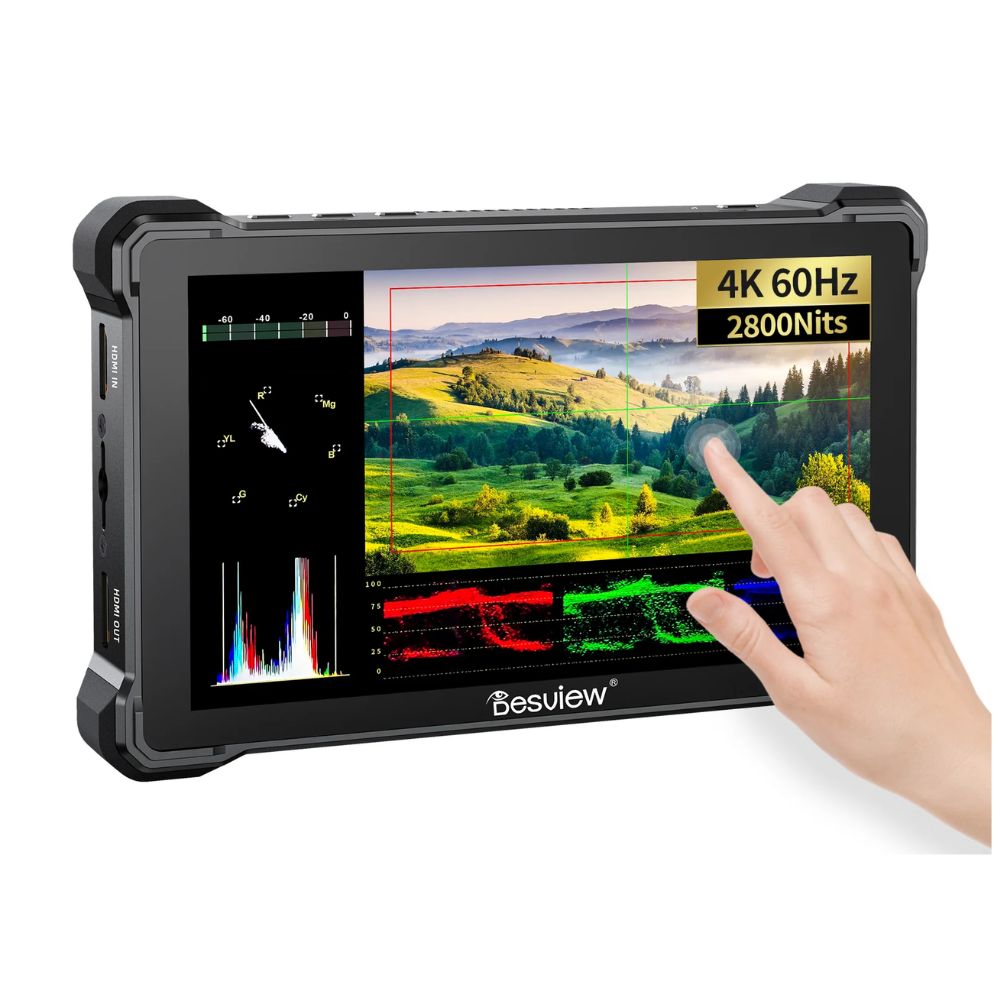

► You can control settings on the monitor using the touchscreen, and it supports multi-finger zoom and touch sliders for adjustments.

Numerous Image-Assist Functions

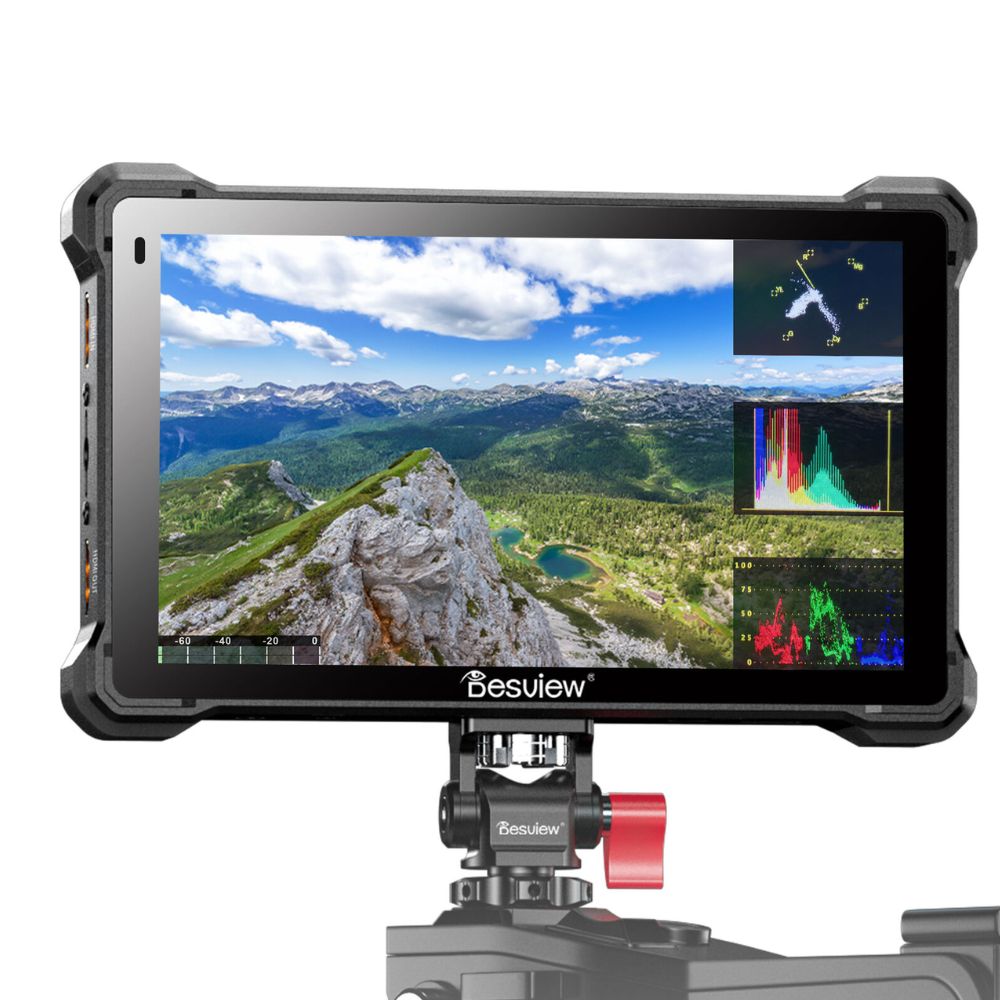

► The firmware includes a set of image assist functions such as waveform, vectorscope, audio meters, HDR, aspect ratio, histogram, color temperature, peak focus, false color, distortion, zebra, freeze frame, and more.

Features:
► 7" 1920 x 1080 Touchscreen Display
► 2800 cd/m² Brightness, 1000:1 Contrast
► HDMI 2.0 Input & Output
► Supports up to UHD 4K60 Video Input
► HDR & LUT Support via USB-A
► Pixel Zoom, Focus Assist, Peaking Tools
► Vectorscope, Waveform & Zebra Tools
► USB-C & DC Power Input/DC Output
► 3.5mm Headphone Output, 1/4"-20 Threads
► Dual L-Series Battery Plate

Specifications:
● Brand: Desview
● Model: R7III
● Item Type: On-Camera Video Monitor
● Panel Type: IPS-Type LCD
● Display Size: 7" / 17.8cm
● Resolution: 1920 x 1080
● Aspect Ratio: 16:9
● Viewing Angle: Horizontal / Vertical: 178°
● Touchscreen Control: Yes
● Maximum Brightness: 2800 nits / cd/m2
● Contrast Ratio: 1000:1
● Pixels Per Inch (ppi): 314 ppi
● Real-Time LUT Monitoring: SDR, HDR
● Video I/O: 1x HDMI 2.0 Input / 1x HDMI 2.0 Output
● Embedded Audio: HDMI
● Input Power: 7 to 30 VDC
● Battery Type: 2x L-Series
● Mounting: 2x 1/4"-20 Female

● Power I/O
● 1x LEMO 2-Pin (30 VDC) Input
● 1x Barrel 2.1 mm (8 VDC) Output
● 1x USB-C Input

● Other I/O
● 1x USB-A (Firmware/LUT Upload) Input

● Video Format
● HDMI
● UHD 4K: 60/50/30/25/24
● 1080p: 60/59.94/50/30/29.97/25/24/23.98
● 720p: 60/59.94/50

● Image Controls: Customizable Aspect Ratios, False Color, Focus Peaking, Histogram, Image Flip, Image Rotate, Pixel Zoom, Pixel-to-Pixel Zoom, Screen Markers, Vectorscope, Waveform, Zebra
