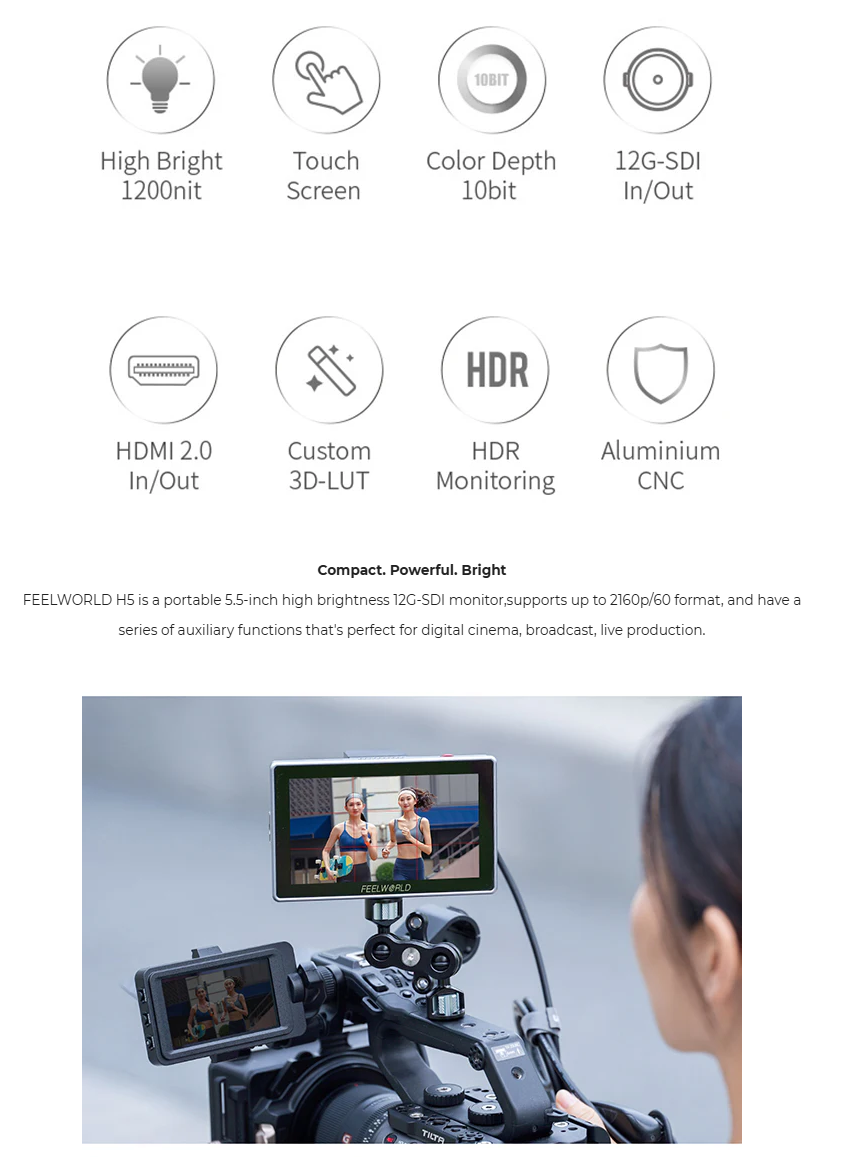

Features

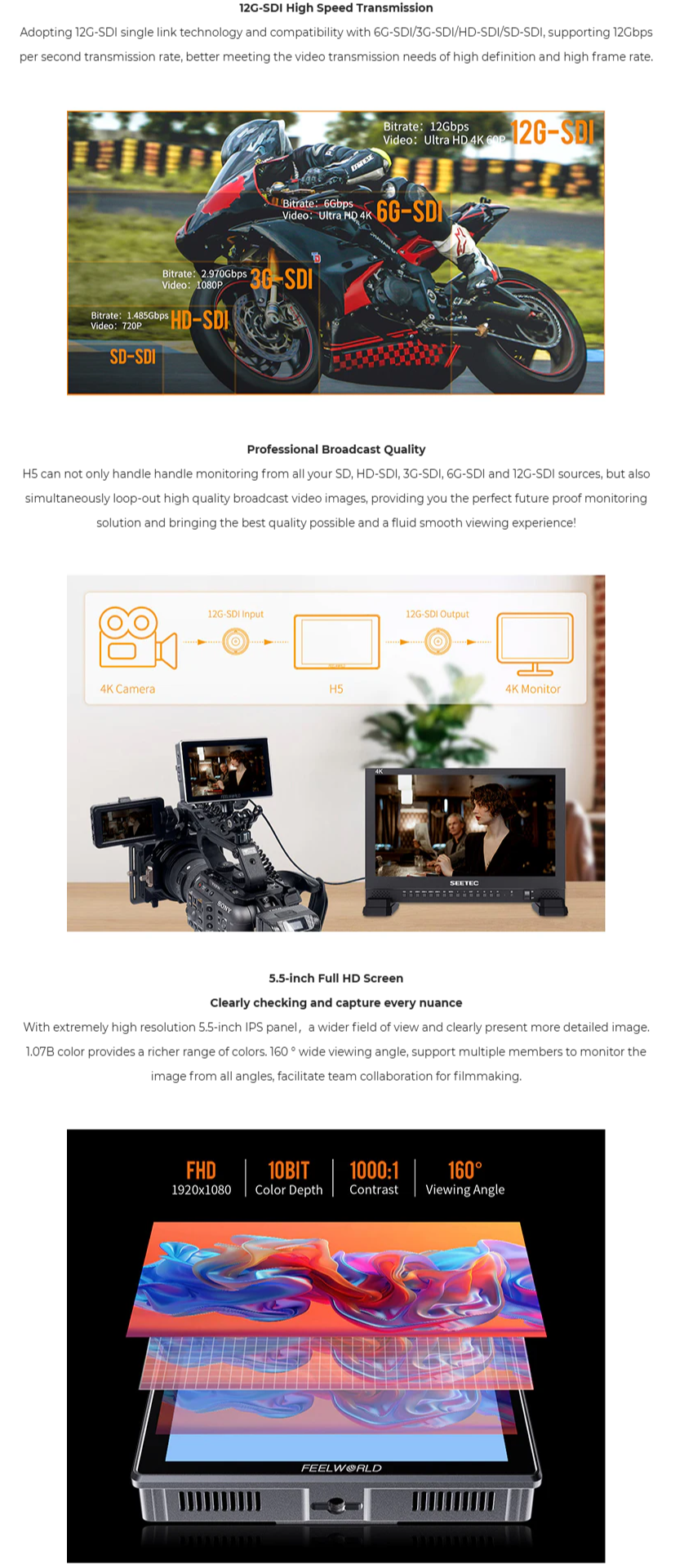

● 12G-SDI with 4K support
● 1200-nit ultra-bright display
● HDR monitoring with HLG support

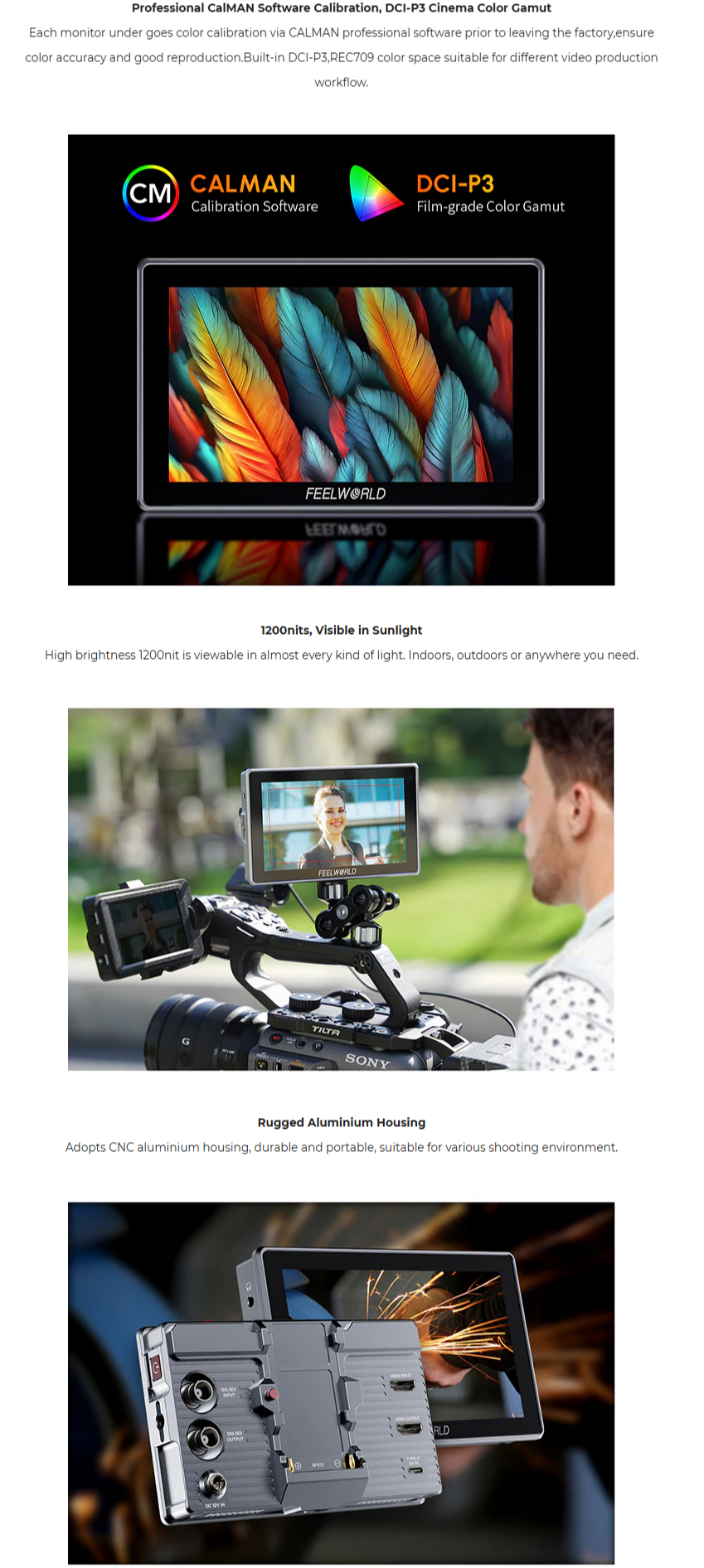

● Factory-calibrated for color accuracy
● Real-time 3D LUT preview

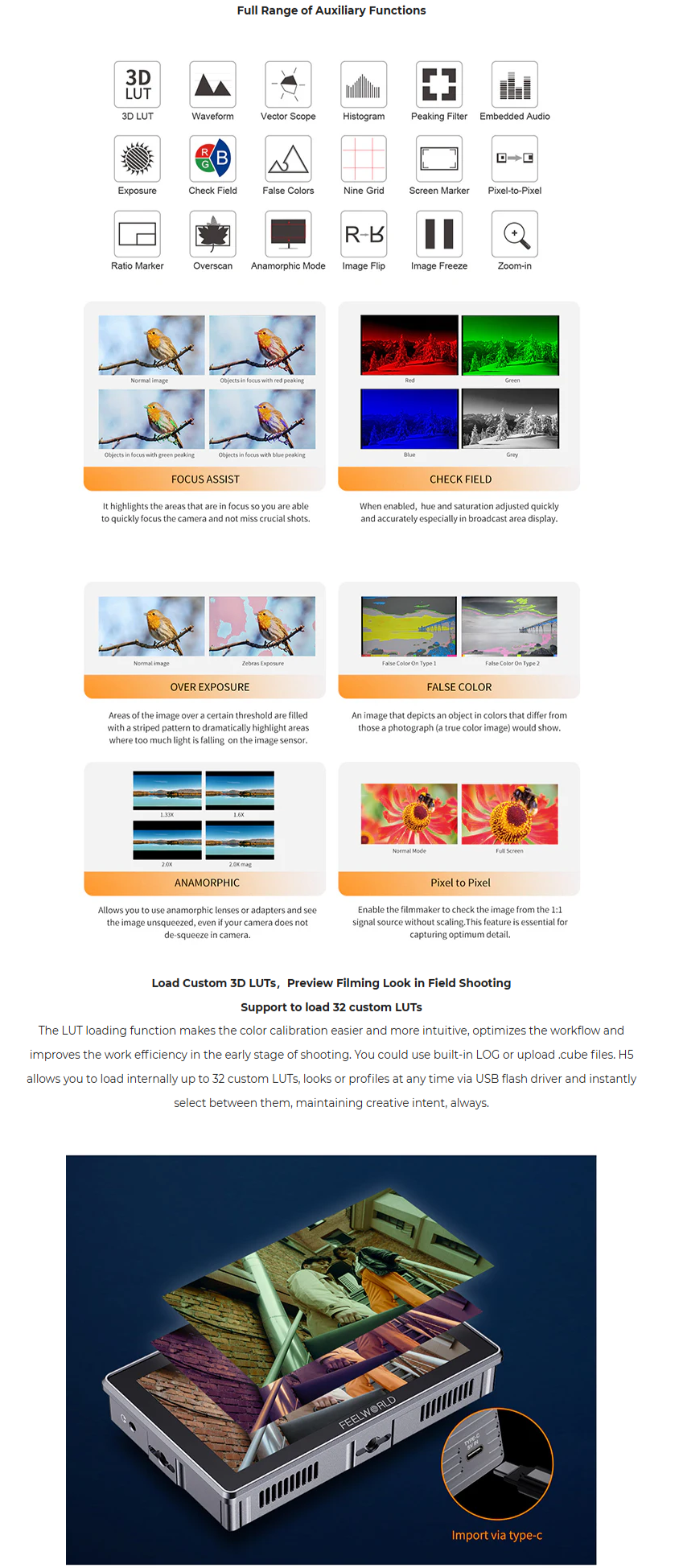

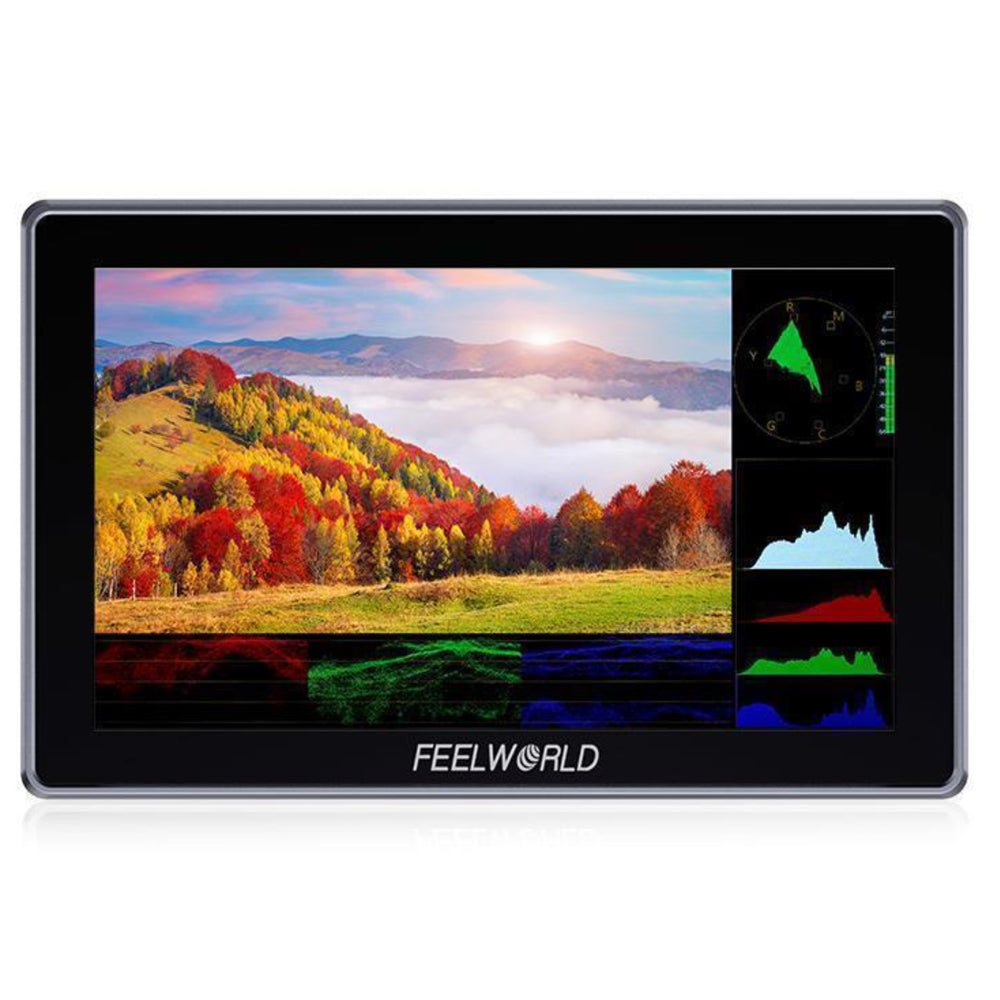

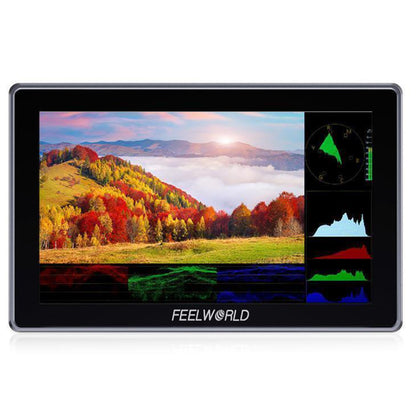

● Comprehensive waveform monitoring tools
● Rugged CNC aluminum housing

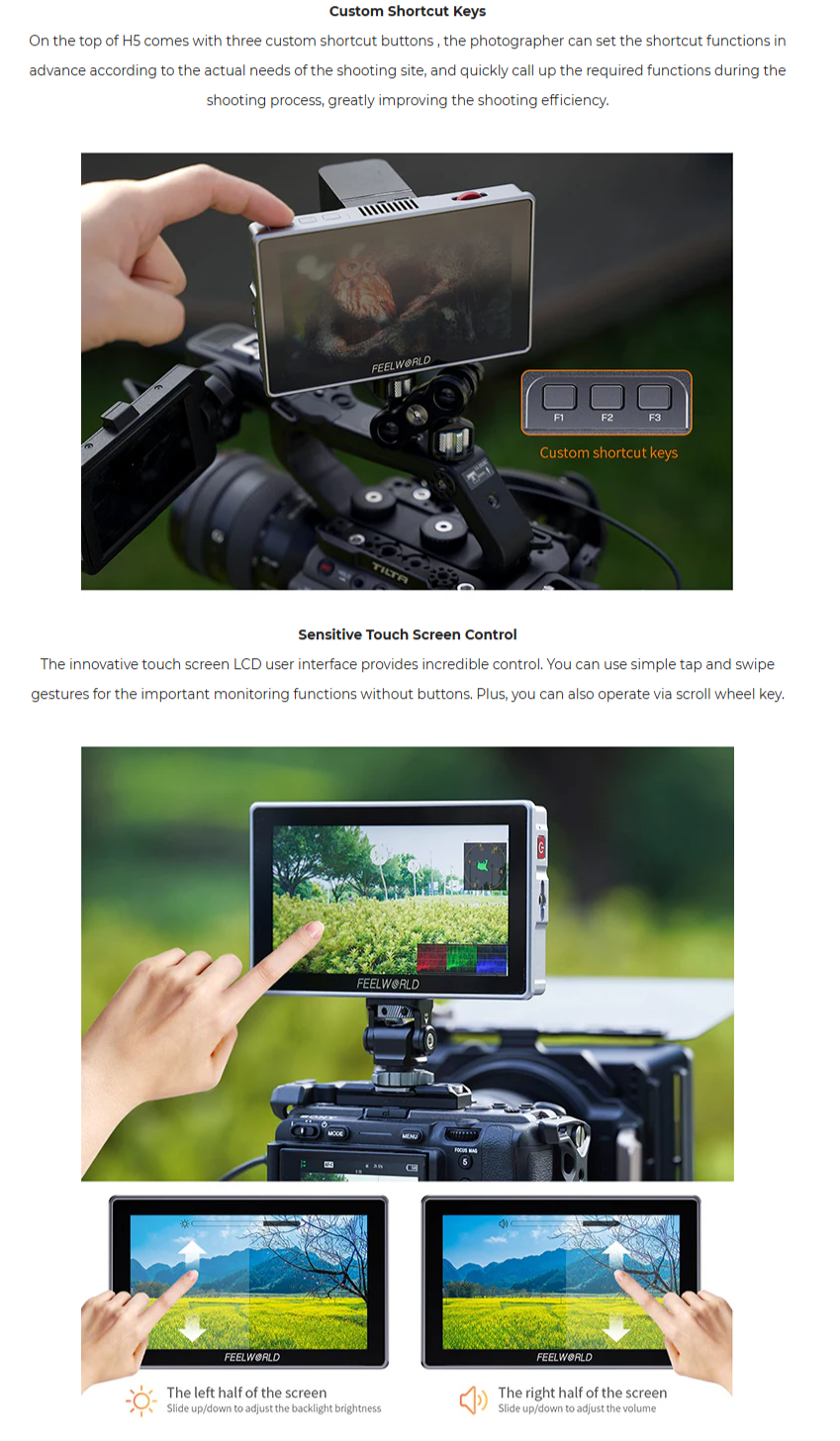

● Customizable touchscreen interface
Specifications

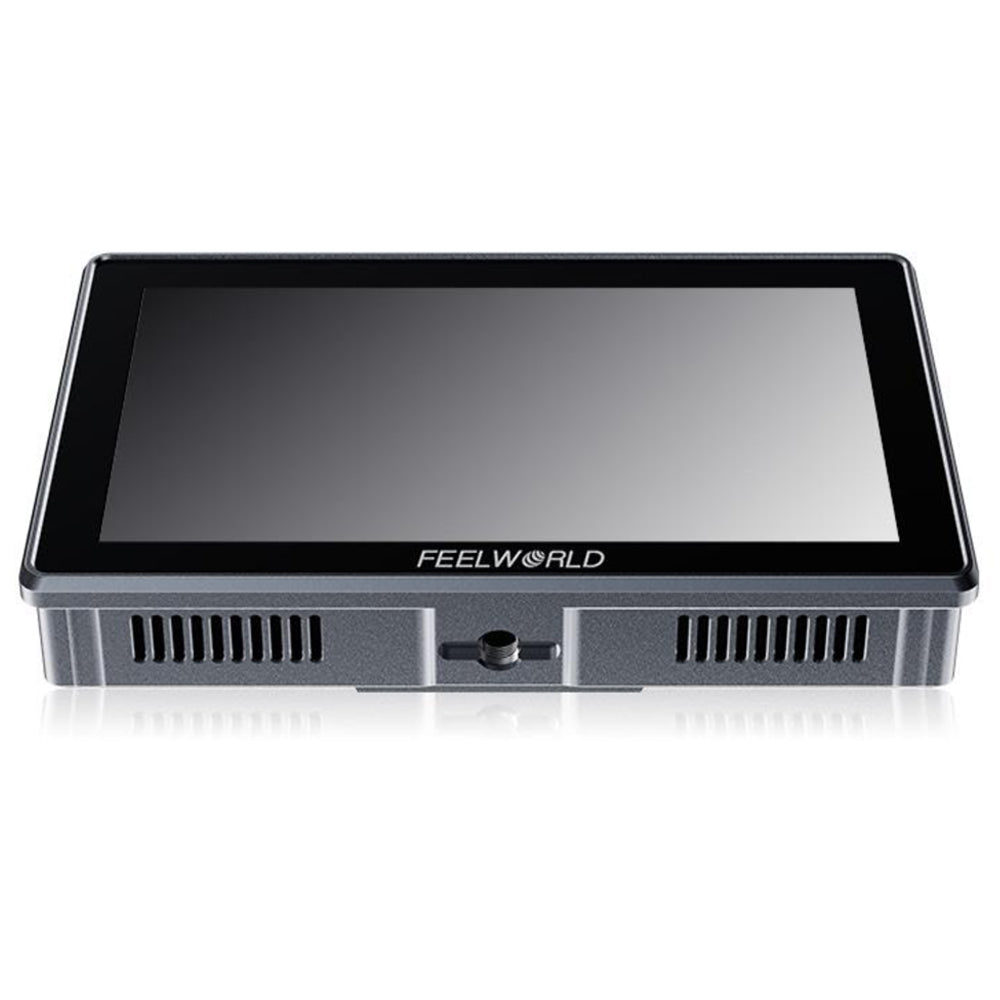

● Model: H5
● Screen Size: 5.5"" IPS
● Resolution: 1920x1080 pixels
● Pixel Pitch: 0.063(H) x 0.063 (V) (mm)
● Color Depth: 10bit (8+2bit)
● Aspect Ratio: 16:9
● Brightness: 1200cd/m²
● Contrast Ratio: 1000:1
● Backlight: LED
● Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)

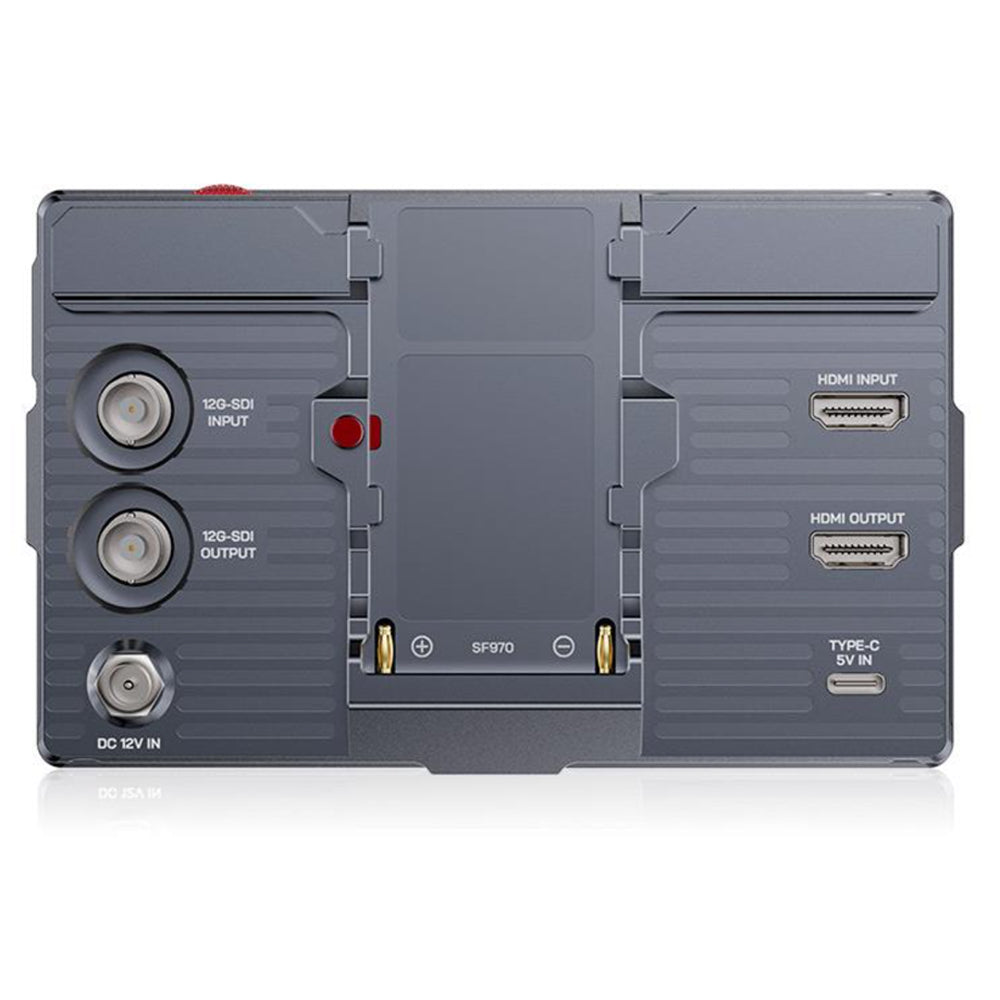

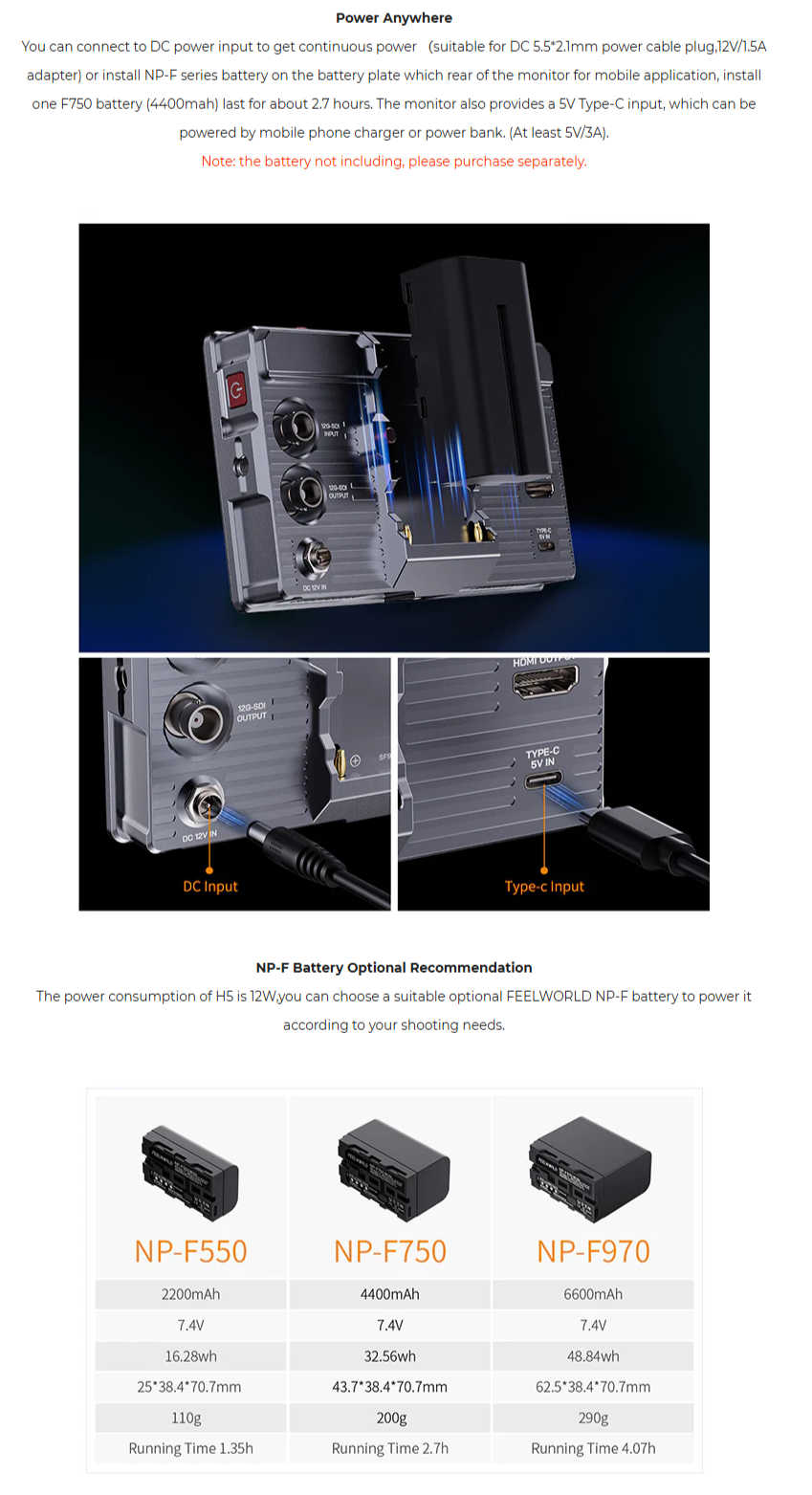

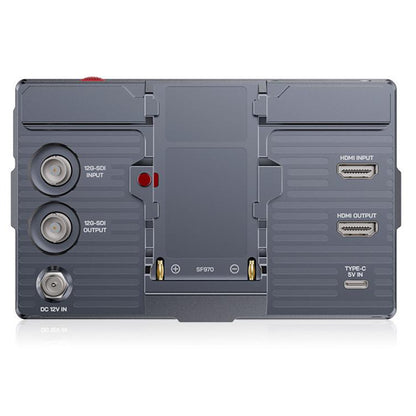

● Input: 1 X 12G-SDI, 1 X HDMI 2.0, 1 X 5V Type-C 1.LUT file or firmware update port; 2. power input(please use 5V/3A or above Type-C power supply), 1 X DC IN 12V (suitbale for Barrel DC5.5*21mm power cable plug)
● Output: 1 X 12G-SDI, 1 X HDMI2.0
● Audio: 3.5mm Stereo Headphone
● 12G-SDI Input and Output Support Format: 720p (60/59.94/50/30/29.97/25/24/23.98), 1080i (60/59.94/50), 1080p (60/59.94/50/30/29.97/25/24/23.98), 2048×1080(30p/30PsF/29.97p/29.97PsF/25p/25PsF/24p/24PsF/23.98p/23.98PsF), 4K 3840×2160p(60/59.94/50/48/47.95/30/29.97/25/24/23.98), 4K 4096×2160p(60/59.94/50/48/47.95/30/29.97/25/24/23.98)
● HDMI Input and Output Support Format: 720p (60/59.94/50/30/29.97/25/24/23.98), 1080i (60/59.94/50), 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF), 4K 3840×2160p (60/50/30/29.97/25/24/23.98), 4K 4096×2160p(60/50/30/29.97/25/24/23.98)
● Input Voltage: DC7～24V
● Power Consumption: ≤12W
● Working Temperature: -20°C~70°C
● Storage Temperature: -30°C~80°C

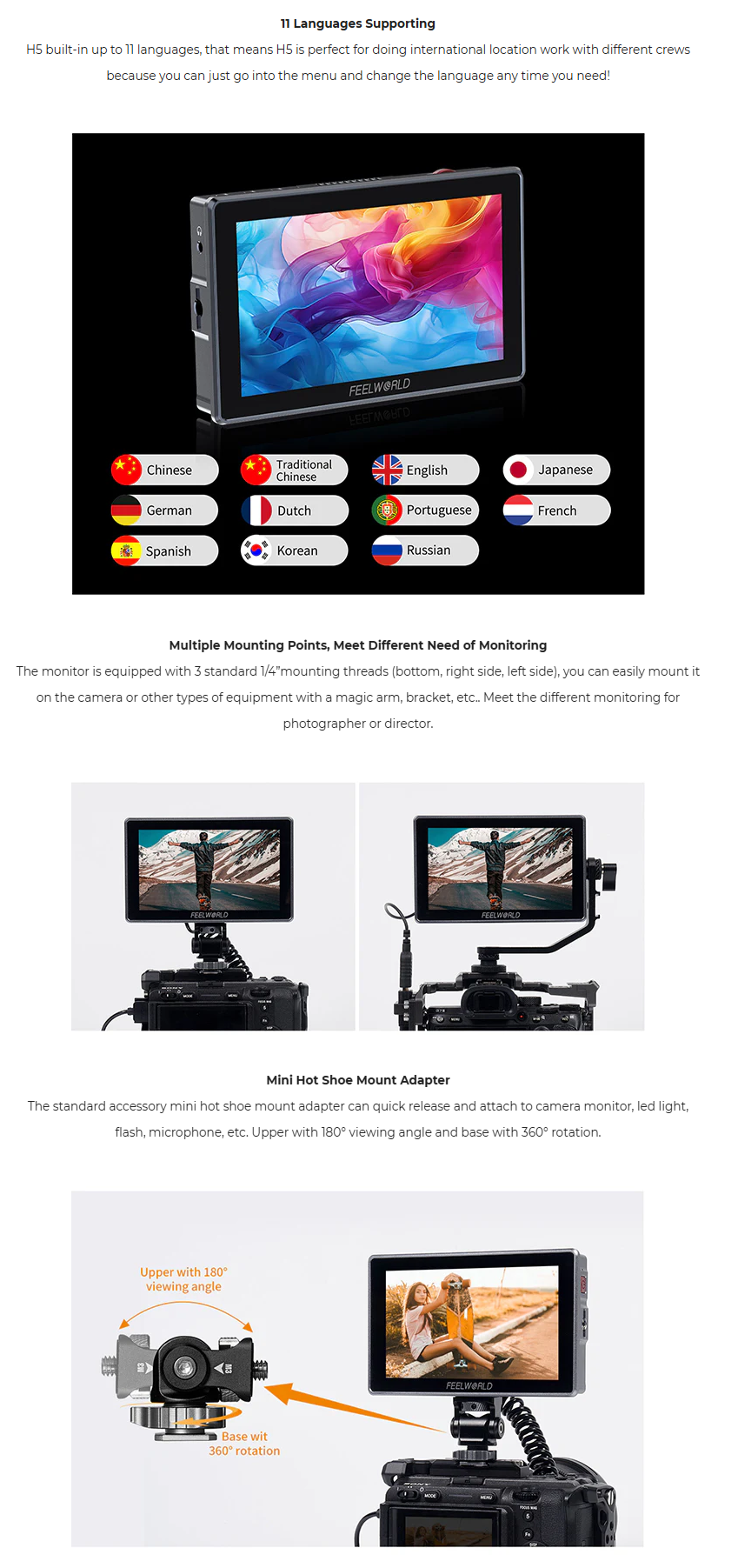

● Install Way: 1/4""-20 Thread (Left,Right,Bottom)
● Unit Size:145.25x90.3x30.85(mm)
● Unit Weight: 306g
What's inside the box?
● 1× Monitor
● 1× Micro HDMI Cable
● 1× HDMI Cable
● 1× Mini Hot Shoe Mount
● 1× USB-A to USB-C Adapter
● 1× Cable Management Tie
● 1× Manual
