FEATURES
* 5.5-inch full HD IPS screen, provides a real picture
* Touch screen operation, easy to use

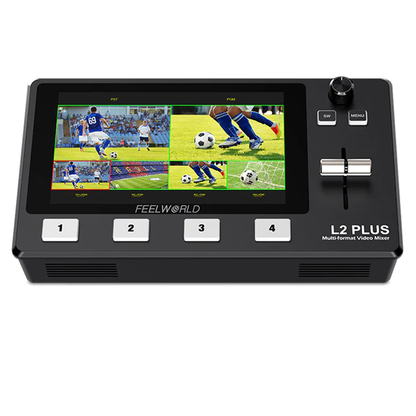

* Real-time 6-picture preview ( 4 inputs sources + PST preview + PGM output picture)
* USB 3.0 fast to live streaming
* PTZ camera control (Up to 8 cameras)
* Chroma key, LOGO overlay
* T-Bar easily switch the transition effects and signal sources
* 15 transition effects and 9 PIP modes, the live picture more vivid
* Audio offers AFV or Line In mode
* Remote control via PC/smartphone APP
Input Solution
HDMI
SMPTE 720p@50/60 | 1080i@50/60 | 1080p@23/24/30/50/60
VESA 1024X768@60 | 1280X720@60 | 1280X768@60 | 1280X800@60 | 1280X1024@60 | 1360X768@60 | 1366X768@60 | 1440X900@60 | 1600X1200@60 | 1680X1050@60 | 1920X1080@60 | 1920X1200@60
Output Solution
HDMI
SMPTE 720p@50/60|1080p@24/25/30/50/60
VESA 1024X768@60 | 1280X720@60 | 1280X768@60 | 1280X1024@60 | 1360X768@60
USB Streaming
1280X720@50/60 | 1280X1024@60 | 1360X768@60 | 1920X1080@24/25/30/50/60
HDMI
SMPTE 720p@50/60 | 1080i@50/60 | 1080p@23/24/30/50/60
VESA 1024X768@60 | 1280X720@60 | 1280X768@60 | 1280X800@60 | 1280X1024@60 | 1360X768@60 | 1366X768@60 | 1440X900@60 | 1600X1200@60 | 1680X1050@60 | 1920X1080@60 | 1920X1200@60
Output Solution
HDMI
SMPTE 720p@50/60|1080p@24/25/30/50/60
VESA 1024X768@60 | 1280X720@60 | 1280X768@60 | 1280X1024@60 | 1360X768@60
USB Streaming
1280X720@50/60 | 1280X1024@60 | 1360X768@60 | 1920X1080@24/25/30/50/60
Note: Please refer connected computer for applicable resolution support
SPECIFICATIONS
- Display Spec.

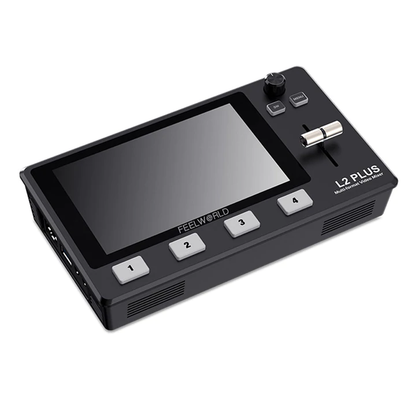

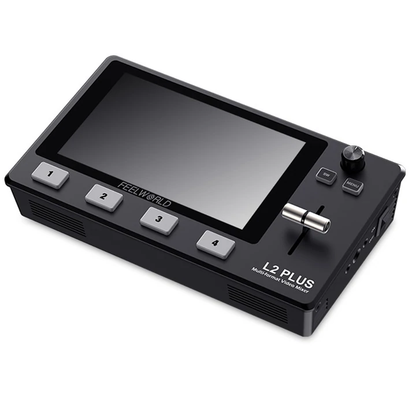

- Model: L2 PLUS
- Screen Size: 5.5" Touch screen
- Backlight: LED
Input

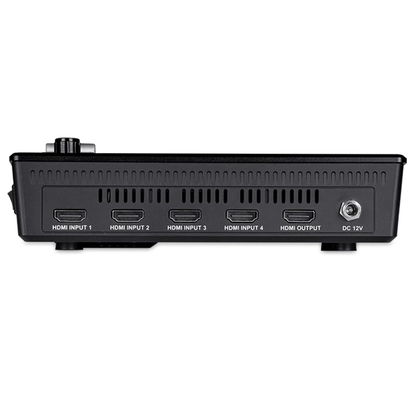

- 4 X HDMI: HDMI-A
Output
- 1 X HDMI: HDMI-A
- 1×USB TypeA: USB 3.0
Audio
- Audio In: 1×3.5mm (can be connect to microphone)
- Audio Out: 1×3.5mm Stereo Jack
General
- Input Voltage: DC 12V / 2A
- Max Power: 21W
- Working Temperature: 0℃～50℃
- Humidity: 5%~85%
- Unit Size: 191(L) x 110(W) x 43(H)mm
- Unit Weight: 610g
