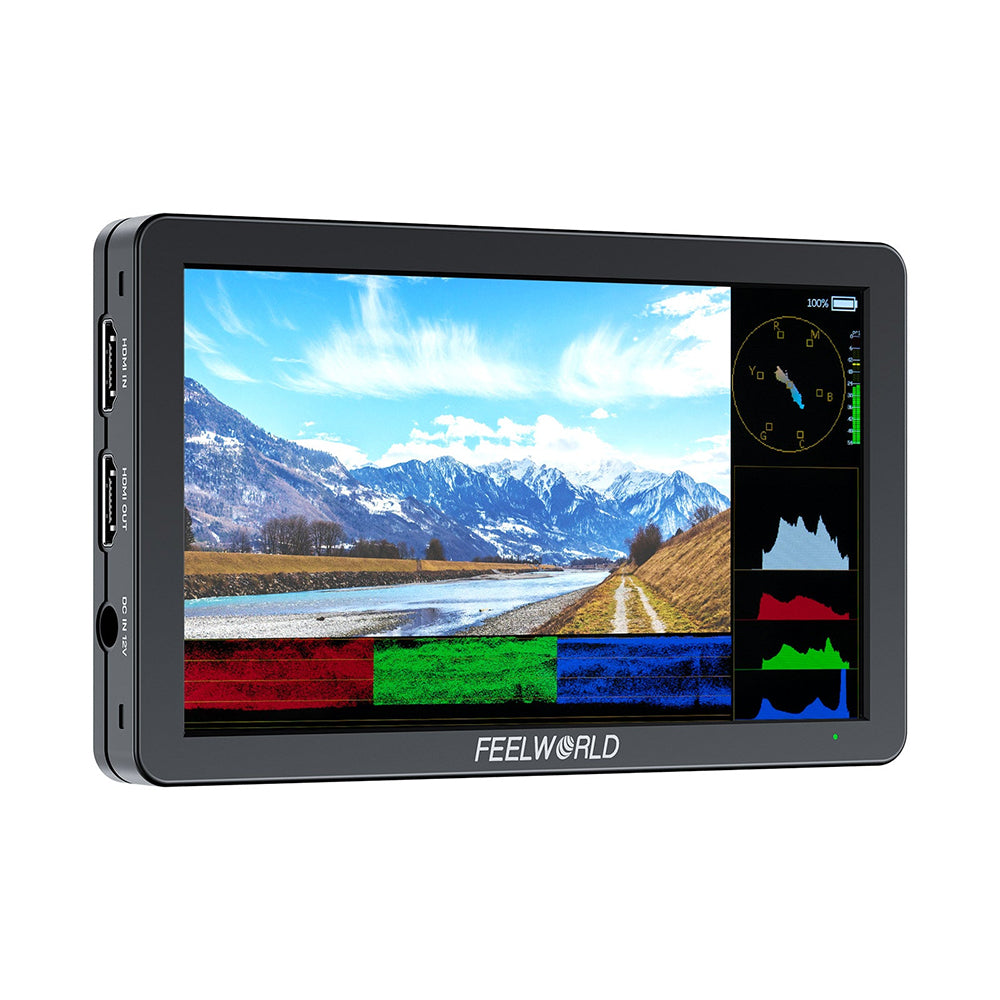

The T6 On-Camera 4K HDMI Monitor from FeelWorld features a 1920 x 1080 resolution display with a maximum brightness of 450 cd/m². It supports HDMI input signals with resolutions up to DCI/UHD 4K60 and provides an HDMI output for connecting to wireless transmitters, larger on-set monitors, and other devices.
Features:
• Touchscreen 1920 x 1080 Display
• Up to DCI 4K HDMI Input & Output

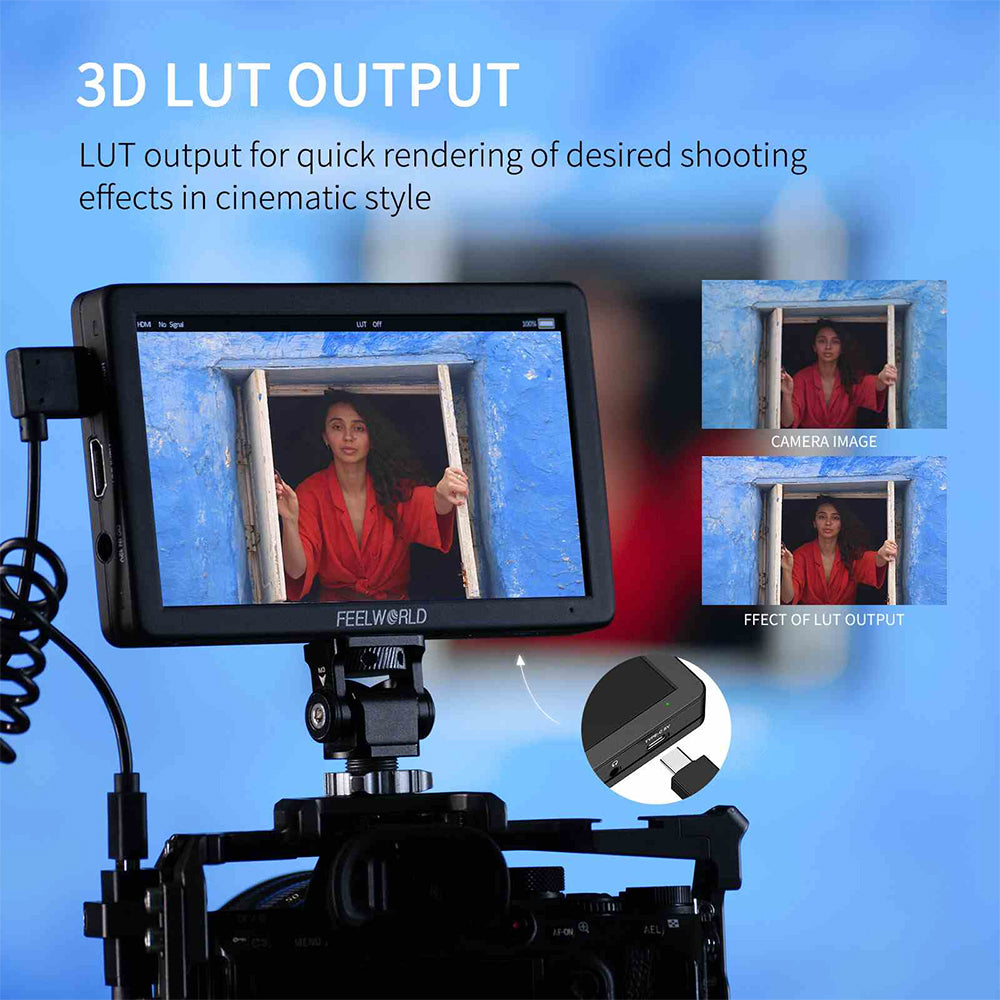

• Custom 3D LUT Import via USB-C Port
• 450 cd/m² Brightness

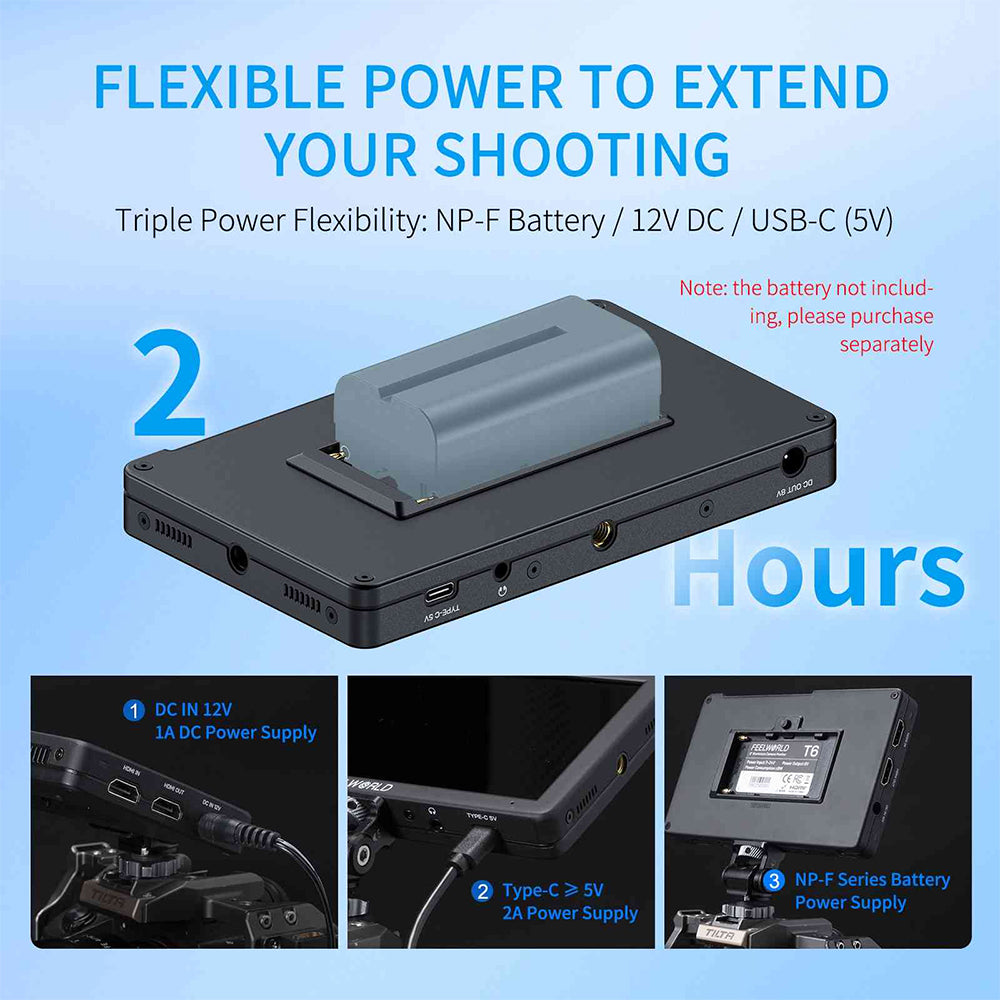

• Barrel, USB-C, L-Series/NP-F Power Input
• 8 VDC 2.1mm Barrel Power Output

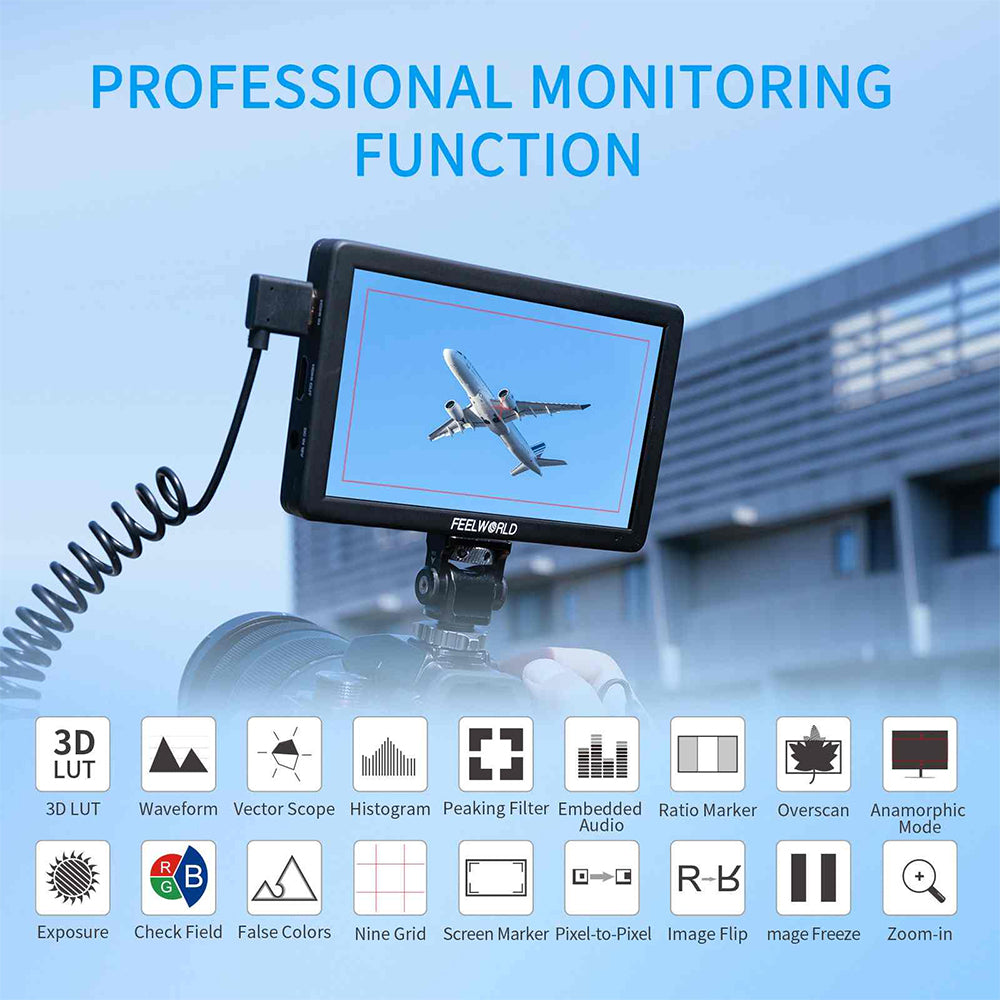

• Waveform, Vectorscope, Histogram & More
• 12-Language Support
• Durable Aluminum Housing
• Includes Tilting 1/4"-20 to Shoe Adapter
Specifications:

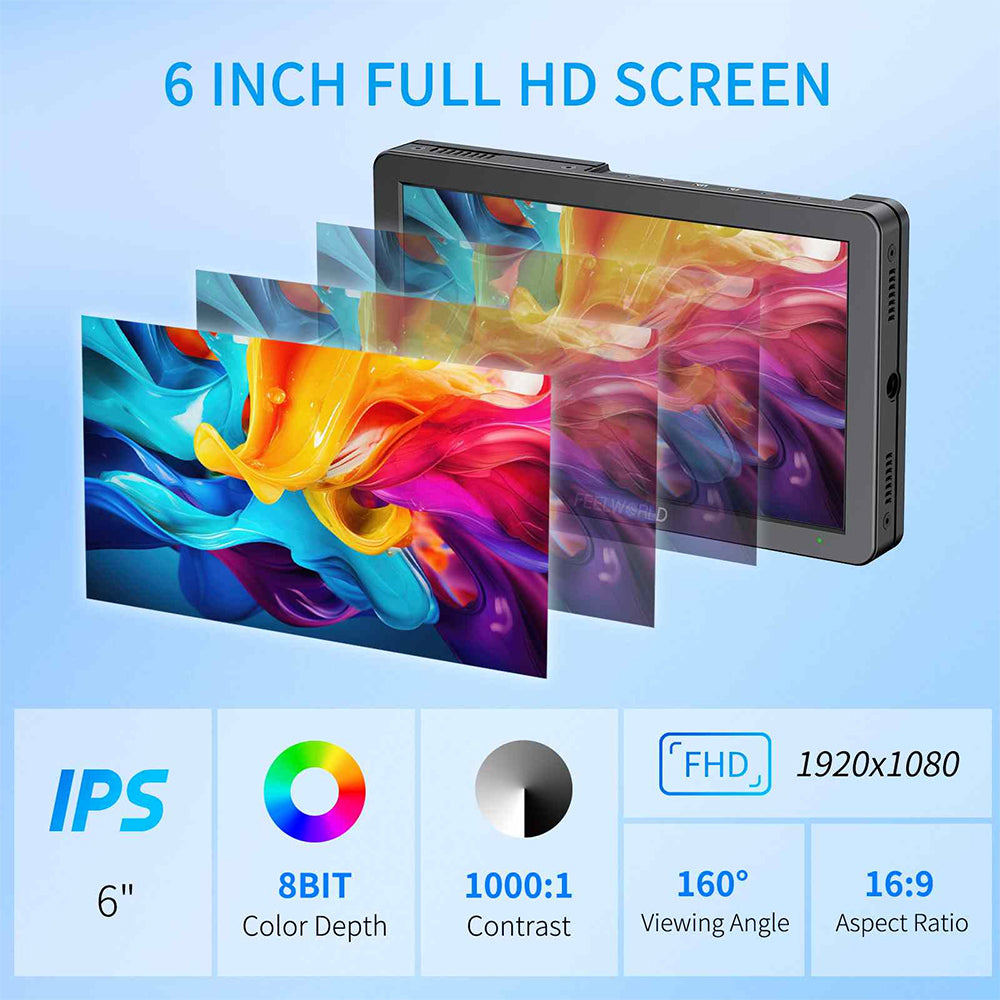

► Display Spec.
• Screen Size: 6"IPS
• Resolution: 1920X1080 pixels
• Pixel Pitch: 0.069 (H) × 0.069 (V) (mm)
• Color Depth: 8bit
• Aspect Ratio: 16:9
• Brightness: 450cd/m²
• Contrast Ratio: 1000:1
• Backlight: LED
• Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)
• Signal Input: HDMI 2.0
• Signal Output: HDMI2.0
• Audio: 3.5mm Stereo Headphone

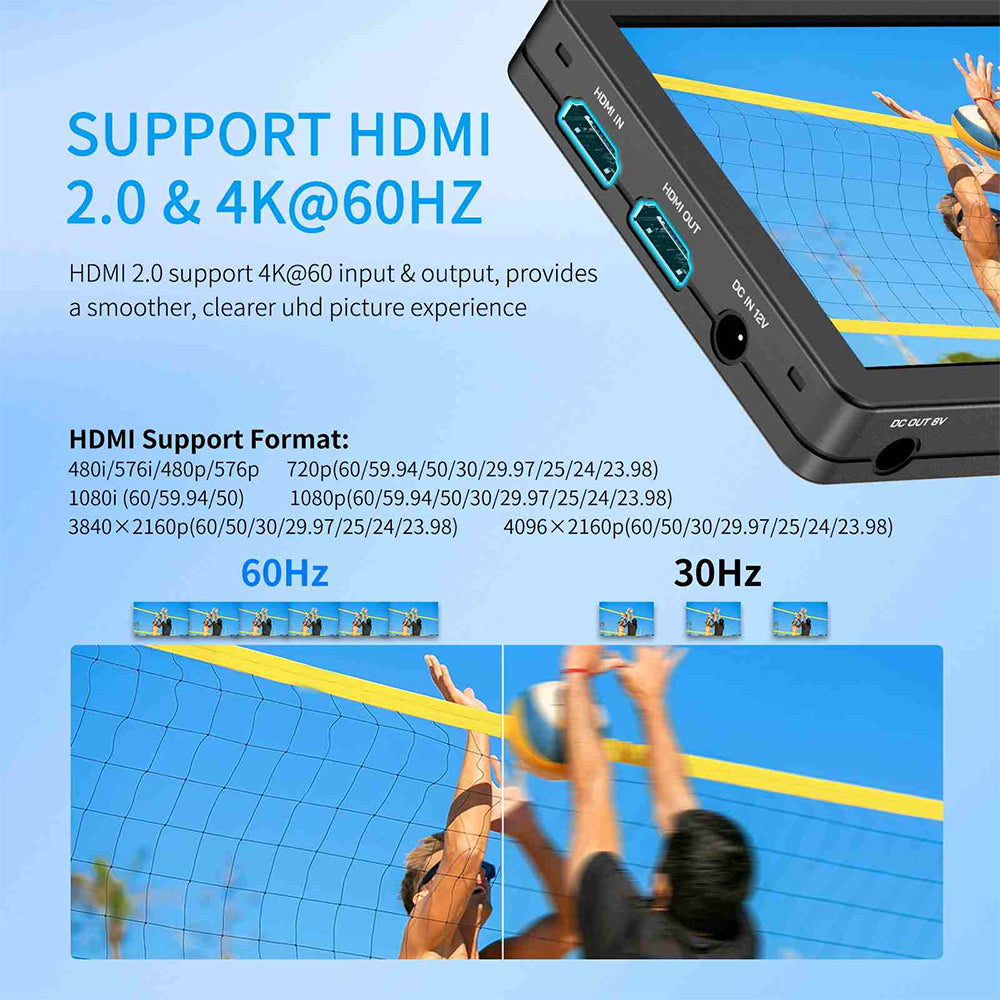

► HDMI Input and Output Support Format:
• 720p (60/59.94/50/30/29.97/25/24/23.98)
• 1080i (60/59.94/50)
• 1080p (60/59.94/50/30/29.97/25/24/23.98)
• 4K 3840×2160p (60/50/30/29.97/25/24/23.98)
• 4K 4096×2160p(60/50/30/29.97/25/24/23.98)
• Power Consumption: ≤9W
• Working Temperature: -20°C~50°C
• Storage Temperature: -30°C~60°C
• Install Way: 1/4"-20 Thread Point (right side, bottom)

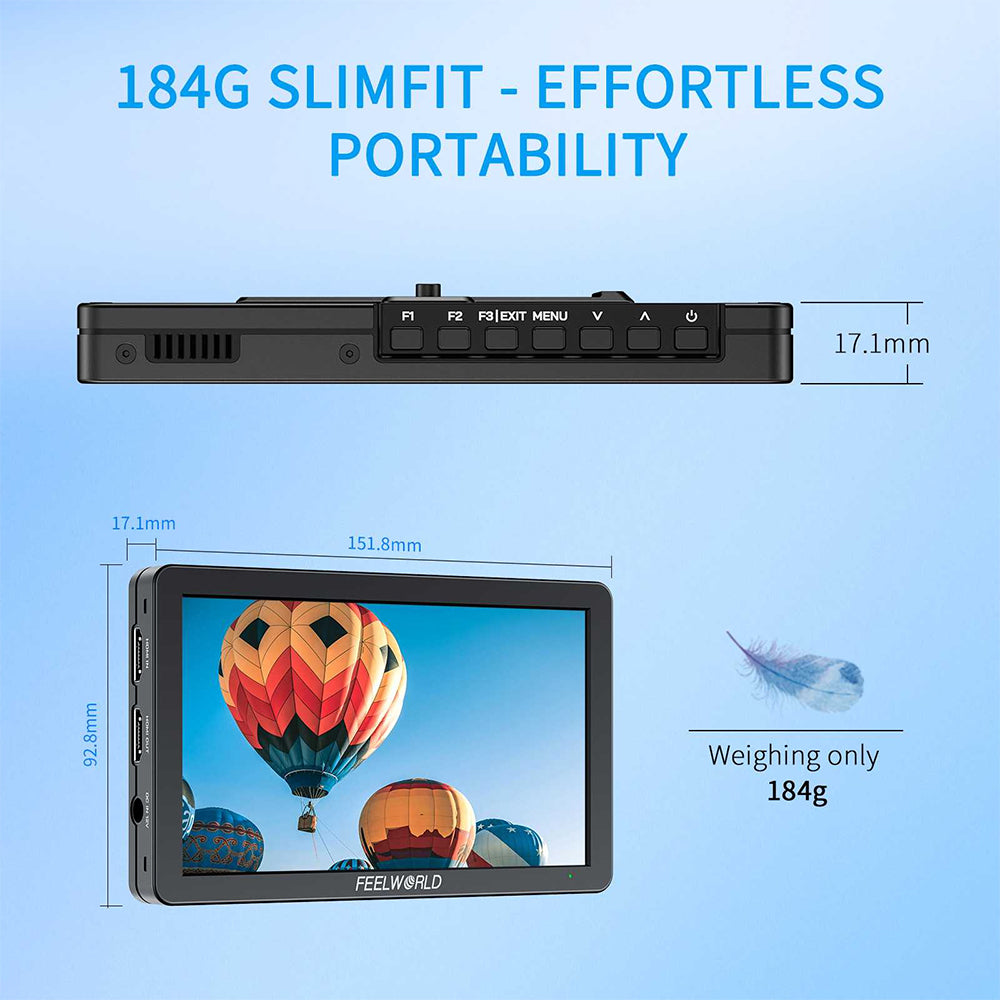

• Unit Size: 151.8*92.8*17.1 (mm)
• Unit Weight: 184g
What's inside the box?
• 1x T6 6"" 4K HDMI Touchscreen HD
• 1x Micro-HDMI Cable (19.7"")
• 1x Tilting Shoe Mount
• 1x Hex Key
• 1x 0.5m Micro HDMI Cable
• 1x Sunshade
• 1x USB-A to C Adapter
