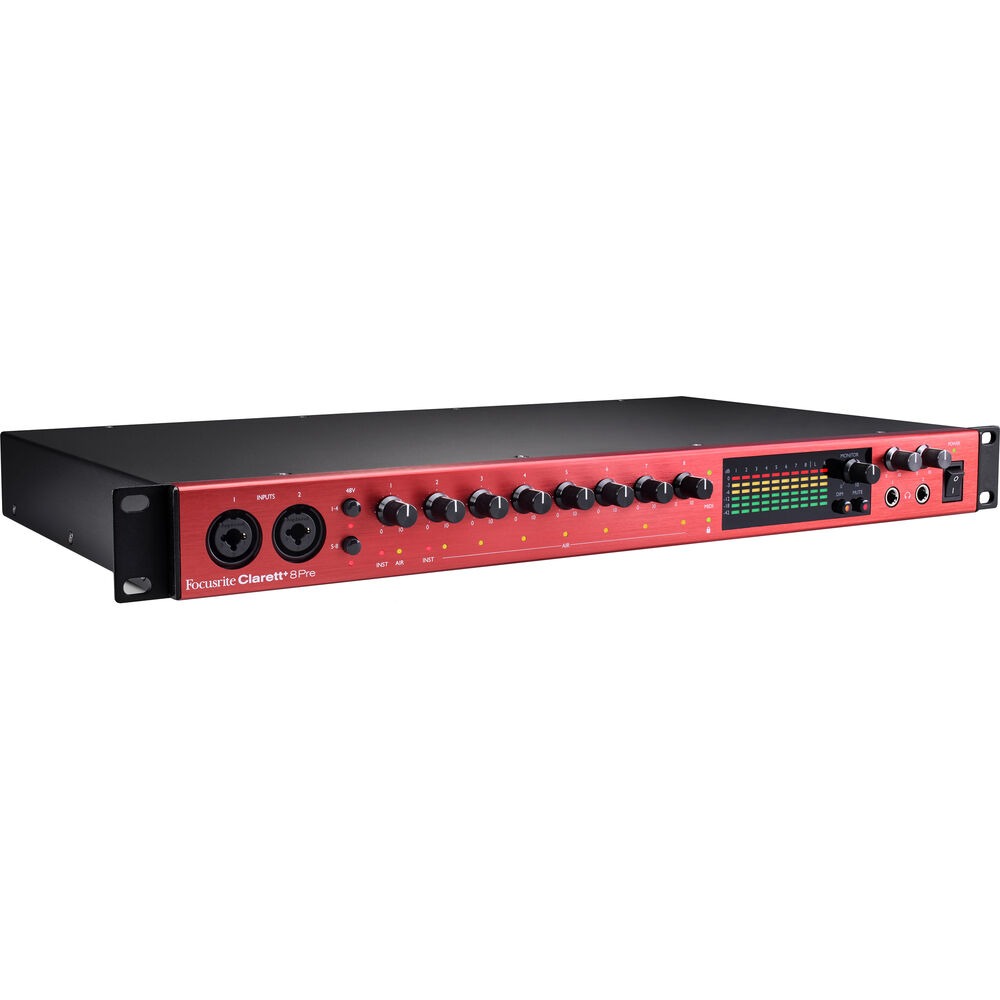

Clarett+ 8Pre

Clarett+ 8Pre is the complete interface designed to bring pure analogue sound to your studio.

The eight Clarett preamps have been meticulously engineered to bring authentic large-format studio sound to any recording session. All-analogue Air mode, with impedance switching, recreates the legendary effect of Focusrite's ISA mic pres, adding clarity and presence to drums, guitars and vocals.

Two high-impedance JFET instrument inputs preserve your guitar’s true character and feel just like an amp. Independent A-D and D-A converters offer ultra-low distortion and up to 124dB dynamic range. Ten balanced outputs are hum-free for pristine monitoring, mixing and mastering with studio monitors. Eight channels in and eight out over ADAT allow 8Pre to grow with your studio.

FEATURES:

• Bands, Project Studios, and Producers

• USB Type-C and Type-A Connectivity

• Inputs: 8 Mic/Line Preamps (2 with Hi-Z)

• Outputs: 2 Headphone, 2 Monitor, 4 Line

• Upgraded 24-Bit / 192 kHz Conversion

• Internal Power Supply / Mac and Windows

• Phantom Power, MIDI, S/PDIF, ADAT I/O

• Mic Air Mode, Multi-Segment Metering

• Wordclock Output

SPECIFICATIONS:

Mic Inputs

• Frequency Response 20-20kHz: ±<0.03dB

• Frequency Response 20-35kHz: ±<0.15dB

• Dynamic Range (min gain): 118dB

• THD+N (-1dBFS, +20dB gain): -110dB

• Noise EIN: -129dBu

• Max Input Level: 18dBu

• Gain Range: +57dB

Line & Monitor Outputs

• Frequency Response 20-20kHz: ±<0.02dB

• Frequency Response 20-35kHz: ±<0.02dB

• Dynamic Range: 124dB

• Max Output Level: 18dBu

• THD+N: -106dB

Line Inputs (variable)

• Frequency Response 20-20kHz: ±<0.05dB

• Frequency Response 20-35kHz: ±<0.15dB

• Dynamic Range (min gain): 118dB

• THD+N (-1dBFS, min gain): -100dB

• Max Input Level: 26dBu

• Gain Range: +57dB

Instrument Inputs

• Frequency Response 20-20kHz: ±<0.04dB

• Frequency Response 20-35kHz: ±<0.15dB

• Dynamic Range: 116dB

• THD+N (-1dBFS, min gain): -96.5dB

• Max Input Level: 15dBu

• Gain Range: +57dB

Headphone Outputs

• Frequency Response 20-20kHz: <0.06dB

• Frequency Response 20-35kHz: <0.07dB

• Dynamic Range: 118dB

• THD+N: -104dB

• Max Output level: 16dBu

What's inside the box?

1x Audio Interface
1x Type-C
1x Type-C to Type-A
