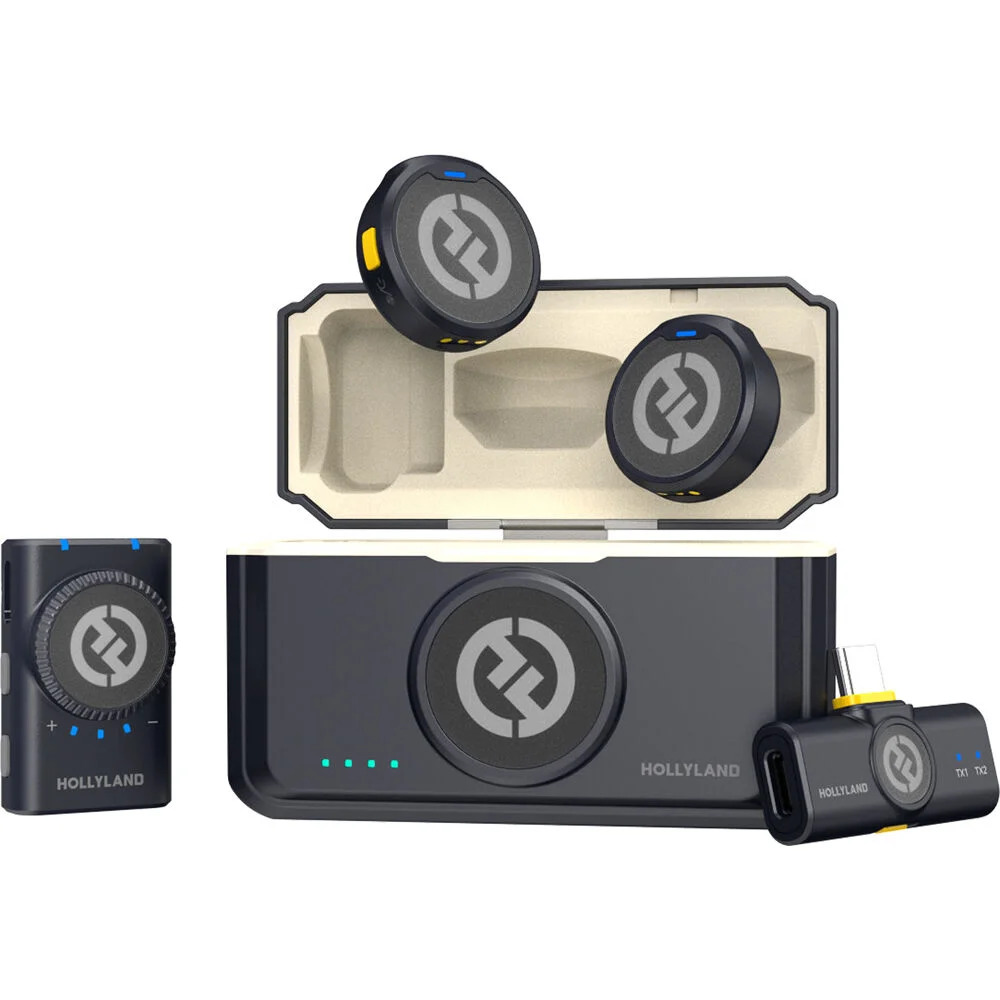

LARK M2 WIRELESS MICROPHONE
Product Specifications:
● Mic Sensitivity: -37 dBV ± 2dB @ 1 KHz, 94dB SPL
● Wireless Modulation Mode: GFSK 2 Mbps
● Transmission Range: Mobile Version: Up to 1000ft (300m) for LOS/200ft (60m) for NLOS Camera Version: Up to 1000ft (300m) for LOS/130ft (40m) for NLOS
● Mic Polar Pattern: Omnidirectional
● Frequency Response: 20 Hz–20 kHz
● Signal-to-Noise Ratio: > 70dB
● Sound Pressure Level: 115dB SPL
● Bit Depth: 24-bit
● Sample Rate: 48 kHz
Battery Voltage
● TX: 3.87V Camera Version
● RX: 3.87V Mobile Version
● Mobile Version Charging Case: 3.8V
● Camera Version Charging Case: 3.8V
Battery Capacity
● TX: 97 mAh
● Camera Version RX: 145 mAh
● Mobile Version Charging Case: 750 mAh
● Camera Version Charging Case: 1950 mAh
Operating Time
● TX: About 10 hours
● Camera Version RX: About 9 hours
● Mobile Version Charging Case: > 2 times charging for the whole set
● Camera Version Charging Case: > 3 times charging for the whole set
Charging Time
● TX: About 1.5 hours
● Camera Version RX: About 1.5 hours
● Mobile Version Charging Case: < 1.5 hours
● Camera Version Charging Case: < 2 hours
● Charging Temperature: 0° C to 45° C
● Operating Temperature: –10° C to 45° C
Dimensions
● TX: Approx. D26mm x 9.9mm (1.0” x 0.4”)
● Mobile Version RX: Approx. 40mm x 16.5mm x 9mm (1.6” x 0.6” x 0.4”)
● Camera Version RX: Approx. 40mm x 25.7mm x 20.5mm (1.6” x 1.0” x 0.8”)
● Mobile Version Charging Case: Approx. 75.8mm x 49.8mm x 35mm (3.0” x 2.0” x 1.4”)
● Camera Version Charging Case: Approx. 86mm x 54mm x 39mm (3.4” x 2.1” x 1.5”)
Weight
● TX: Approx. 9g (0.3oz)
● Mobile Version RX: Approx. 6g (0.2oz)
● Camera Version RX: Approx. 14.8g (0.5oz)
● Mobile Version Charging Case: Approx. 65.6g (2.3oz)
● Camera Version Charging Case: Approx. 111g (3.9oz)
Mini Combo
Key Features
- For Mobile Journalism, Content Creation
- 2x Transmitters with Built-In Omni Mics
- Camera-Mount and Plug-In Receiver
- Clip-On, Compact Form Factor
- Up to 1000ft Transmission Distance
- 48 kHz, 24-Bit Hi-Fi Sound
- Environmental Noise Cancellation
- LED Indicators, Built-In Batteries
- iOS/Android App Control
Specifications
Brand: HOLLYLAND
Model: LARK M2
Product Name: LARK M2 Mini Combo Wireless Microphone
Mic Sensitivity: -37 dBV ± 2dB @ 1 KHz, 94dB SPL
Wireless Modulation Mode: GFSK 2 Mbps
Wireless Transmission: 2.4 GHz Adaptive Frequency Hopping (AFH)
Transmission Range:
Mobile Version: Up to 1000 ft (300 m) LOS / 200 ft (60 m) NLOS
Camera Version: Up to 1000 ft (300 m) LOS / 130 ft (40 m) NLOS
Mic Polar Pattern: Omnidirectional
Frequency Response: 20 Hz – 20 kHz
Signal-to-Noise Ratio: > 70 dB
Sound Pressure Level: 115 dB SPL
Bit Depth: 24-bit
Sample Rate: 48 kHz
Battery Voltage:
TX: 3.87V
Camera Version RX: 3.87V
Mobile Version Charging Case: 3.8V
Camera Version Charging Case: 3.8V
Battery Capacity:
TX: 97 mAh
Camera Version RX: 145 mAh
Mobile Version Charging Case: 750 mAh
Camera Version Charging Case: 1950 mAh
Operating Time:
TX: About 10 hours
Camera Version RX: About 9 hours
Mobile Version Charging Case: > 2× charging (2 TX simultaneously)
Camera Version Charging Case: > 3× charging (TX + RX simultaneously)
Charging Time:
TX: About 1.5 hours
Camera Version RX: About 1.5 hours
Mobile Version Charging Case: < 1.5 hours
Camera Version Charging Case: < 2 hours
Charging Temperature: 0°C to 45°C
Operating Temperature: –10°C to 45°C
What's in the box?
- 2x Transmitter
- 1x Camera Version Receiver
- 1x USB-C Plug RX
- 1x Camera Version Charging Case
- 2x TX Windscreen
- 1x USB-A to USB-C Cable
- 1x 3.5mm TRS to 3.5mm TRS Cable (Camera)
- 4x Clip Magnet
- 2x LARK M2 Necklace Silicone case
- 1x TX Sticker
- 1x Drawstring Bag
- 1x Instruction Manual
