PYRO 7 (All in One)
Wireless Video Monitor System

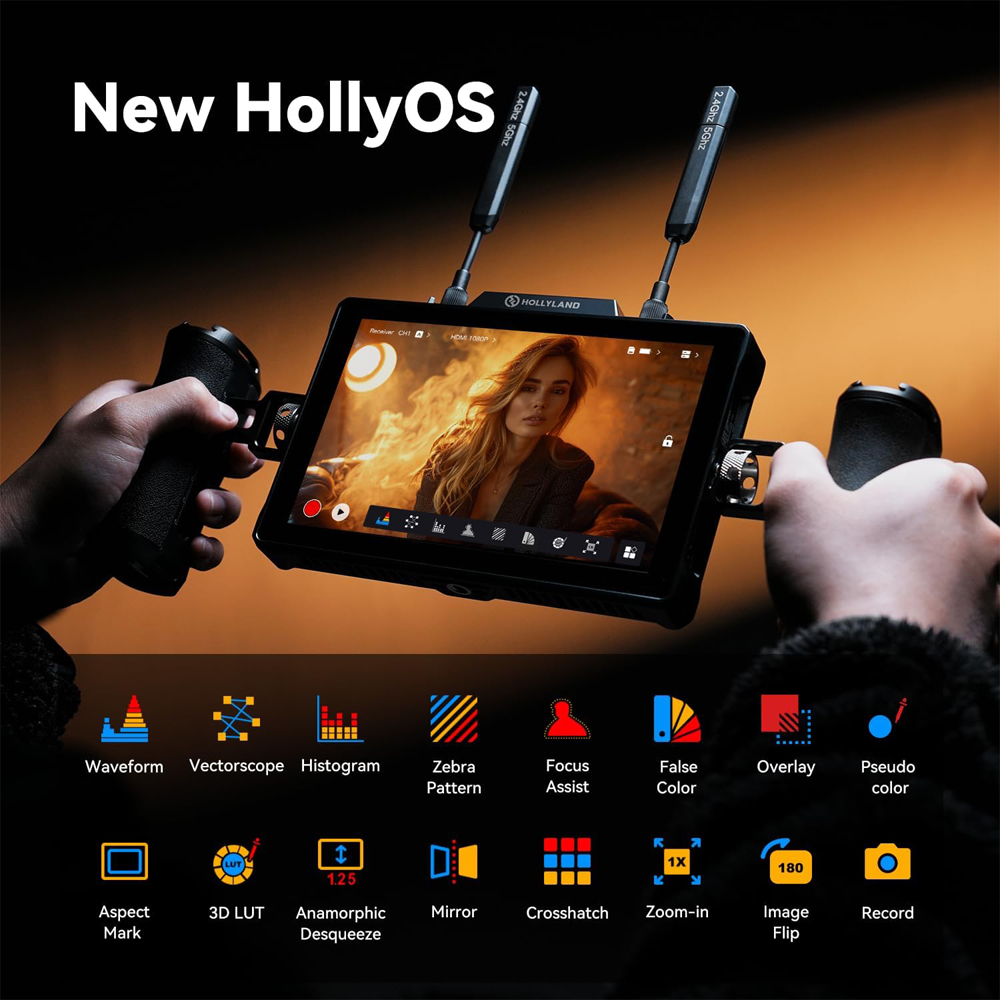

Transmit, receive, and monitor high-quality wireless video transmissions using the versatile Pyro 7 Wireless Transceiver Monitor from Hollyland. The Pyro 7 takes the previous M1 transceiver/monitor and makes everything bigger and better with a bright 7" touchscreen display, dual L-series battery plate, wireless transmission up to 1300' away, updated HollyOS imaging tools, SD card video recording, HDMI/SDI input/output, RTSP streaming, one Pyro 7 sends to up to four receivers, as well as auto dual-band 2.4/5 GHz hopping and auto-frequency hopping.
Features:
-

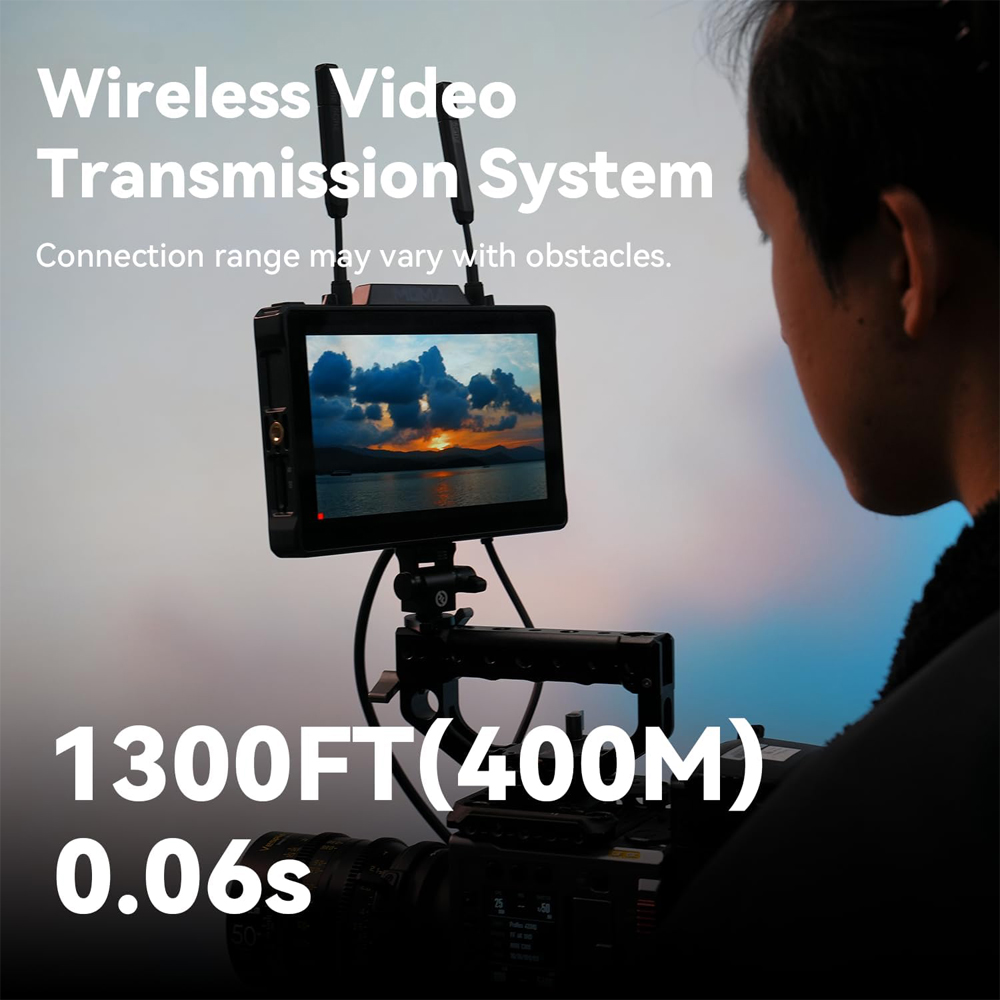

Monitor Wireless Video up to 1300' Away
-
7" Touchscreen 1920 x 1200 Display
-

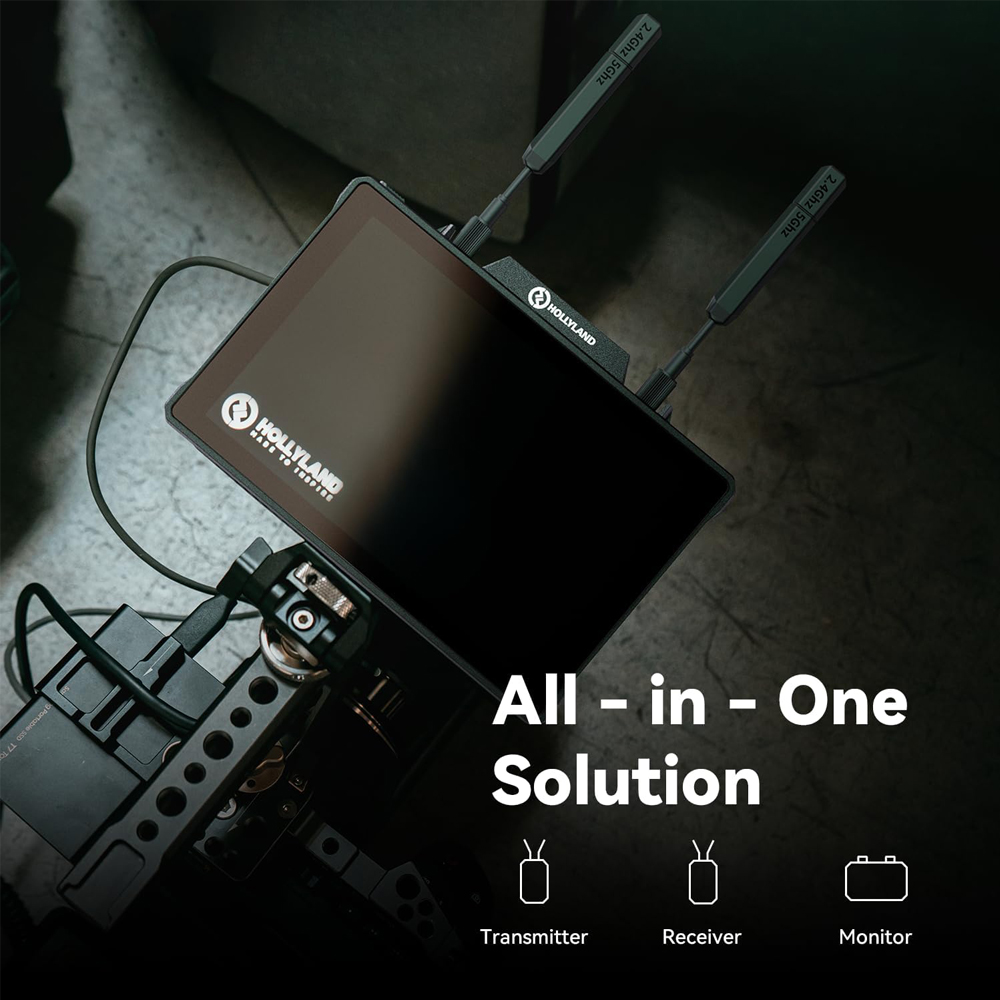

Transmitter & Receiver Mode Switching
-
New Capsule Antennas & Record/Playback
-
One Transmitter Can Send to 4 Receivers
-
1080p SDI Input; Up to UHD 4K30 via HDMI
-
High 1200 cd/m² Brightness
-

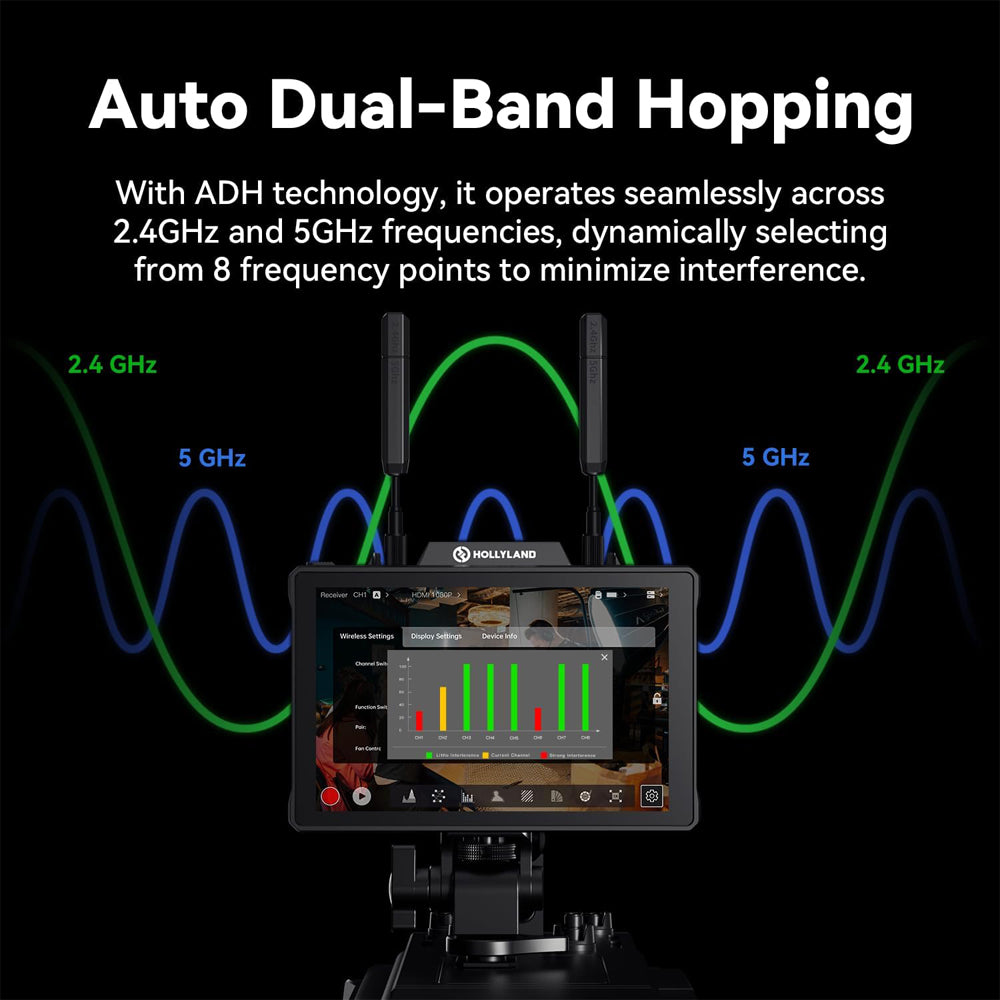

Auto Frequency Hopping, 2.4/5 GHz Bands
-
RTMP Streaming, USB/SD Card Import/Save
-
Built-In Dual L-Series Battery Plate
Specifications:
-
Brand: Hollyland
-
Model: Pyro 7
-
Display Size: 7 inches
-
Resolution: 1920 x 1200
-
Aspect Ratio: 16:10
-
Brightness: 1000 nits
-
Contrast Ratio: 1200:1
-
Input Connectors: 2 x HDMI, 1 x SDI
-
Output Connectors: 1 x HDMI, 1 x SDI
-
Signal Frequency: 5.8 GHz
-
Transmission Range: Up to 300 feet (100 meters) line-of-sight
-
Latency: 0.07 seconds
-
Power Supply: DC 8-16V, L-Series Battery (NP-F)
-
Operating Temperature: 32°F to 104°F (0°C to 40°C)
-
Operating Humidity: 10% to 90% non-condensing
Compatible with:
-
HDMI and SDI sources

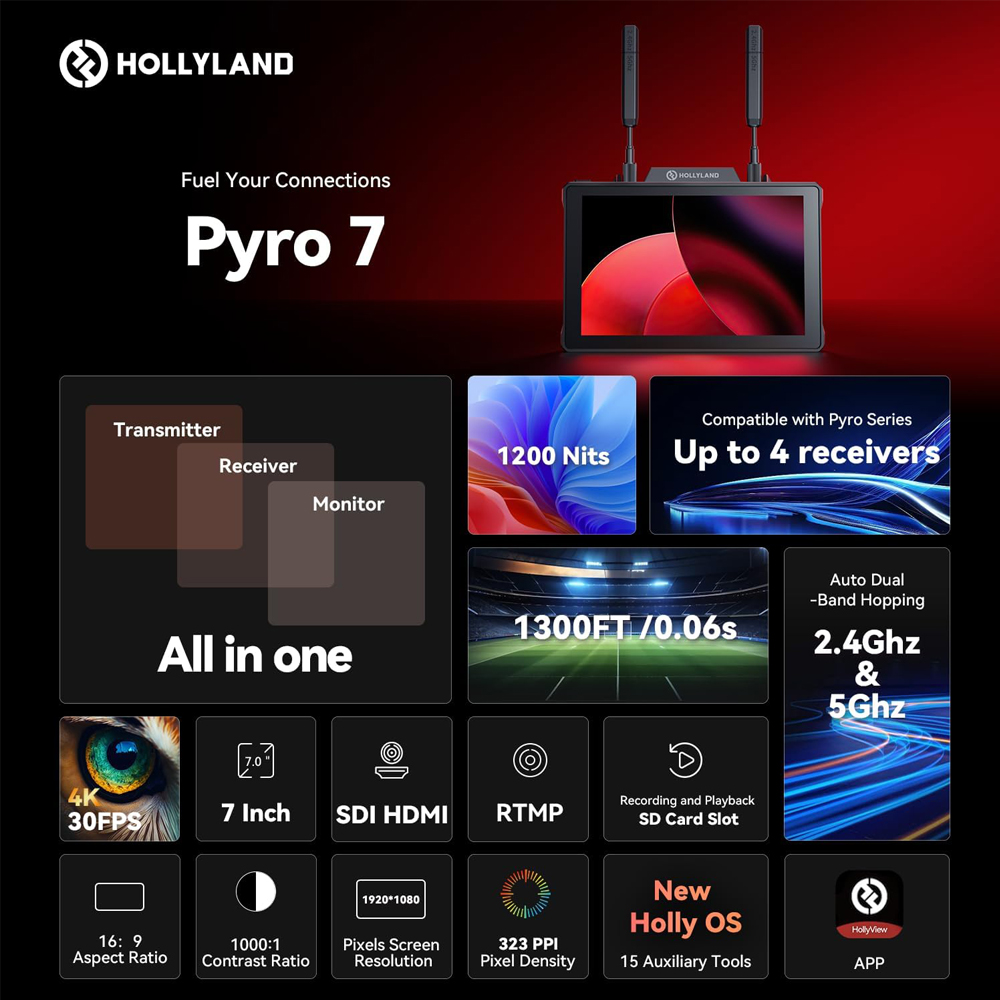

Pyro 7 is a 7-inch wireless monitor that integrates the functionalities of TX, RX, and monitor, all in one. It utilizes Auto Dual-Band Hopping (ADH) technology. With 1,300ft (400m) and an incredibly low latency of only 60ms, Pyro 7 supports 2.4GHz/5GHz dual-band transmission and automatic frequency hopping. Its exceptional hardware design enables Pyro 7 to simultaneously connect one transmitter to four receivers, and the convenience of dual-camera monitoring is achieved through customizable shortcut keys. Additionally, the upgraded HollyOS system provides enhanced image analysis capabilities and allows for video file export via an external SD card. Pyro 7 is compatible with Pyro H and Pyro S, which means you can easily pair Pyro 7 with either Pyro H or Pyro S. This provides you with greater flexibility and scalability to meet various monitoring needs.
What's inside the box?
-
1x Wireless Transceiving Monitor
-
2x Paddle Antenna (2.4 GHz & 5 GHz)
-
1x Secure Digital Memory Card (32G)
-
1x D-Tap to Locking DC Power Adapter Cable
-
1x USB-C OTG Adapter
-
1x Warranty Card
-
1x User Manual
