Overview:

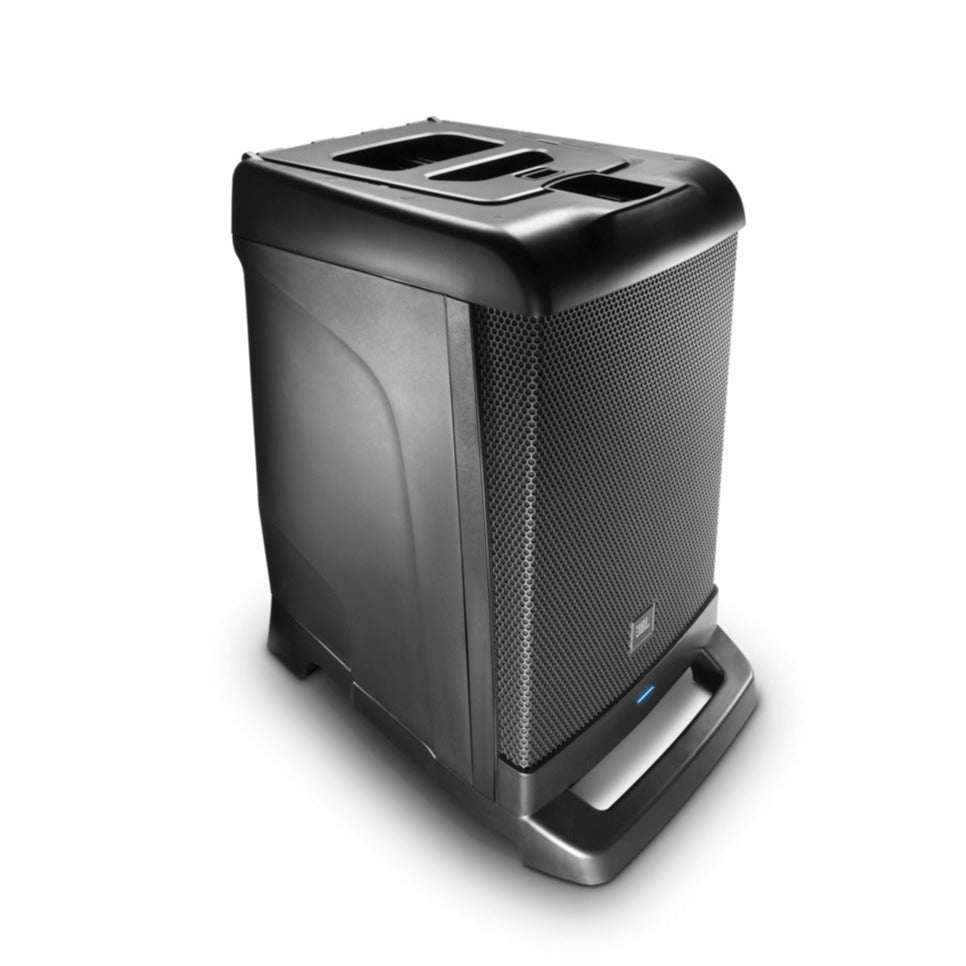

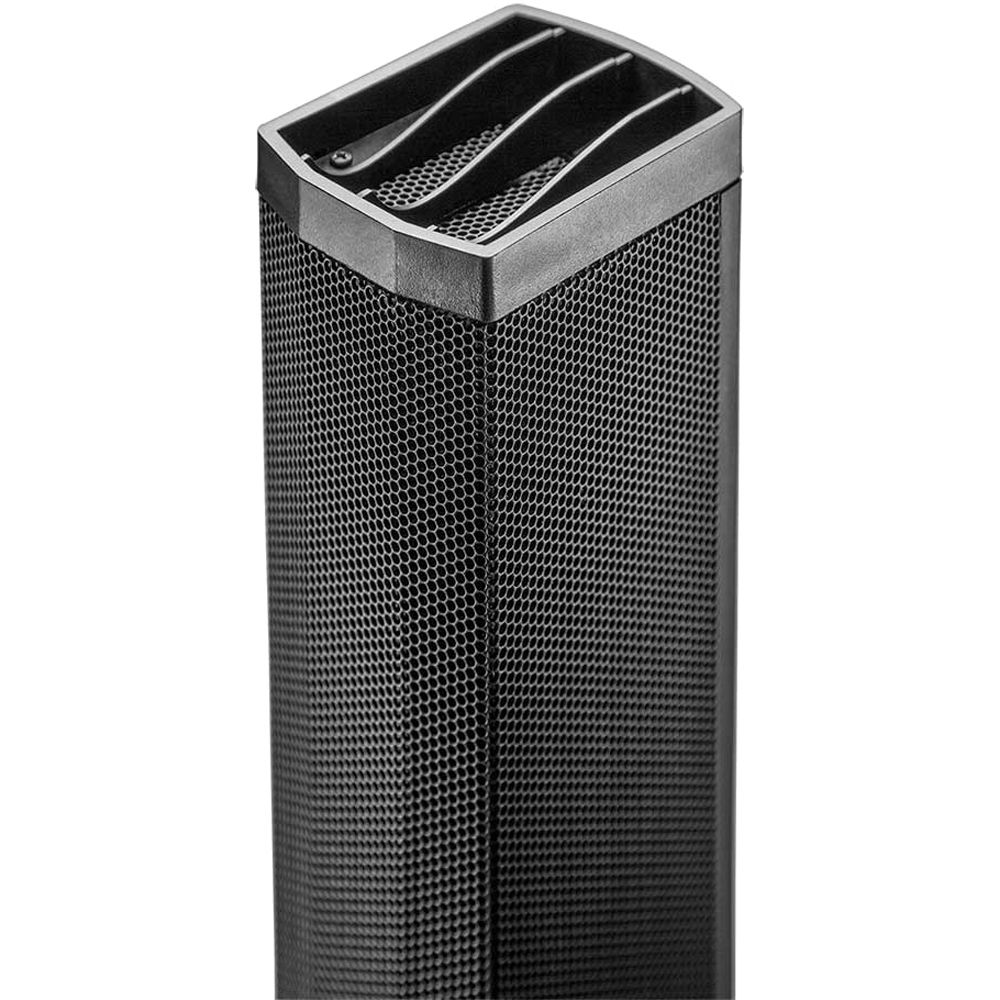

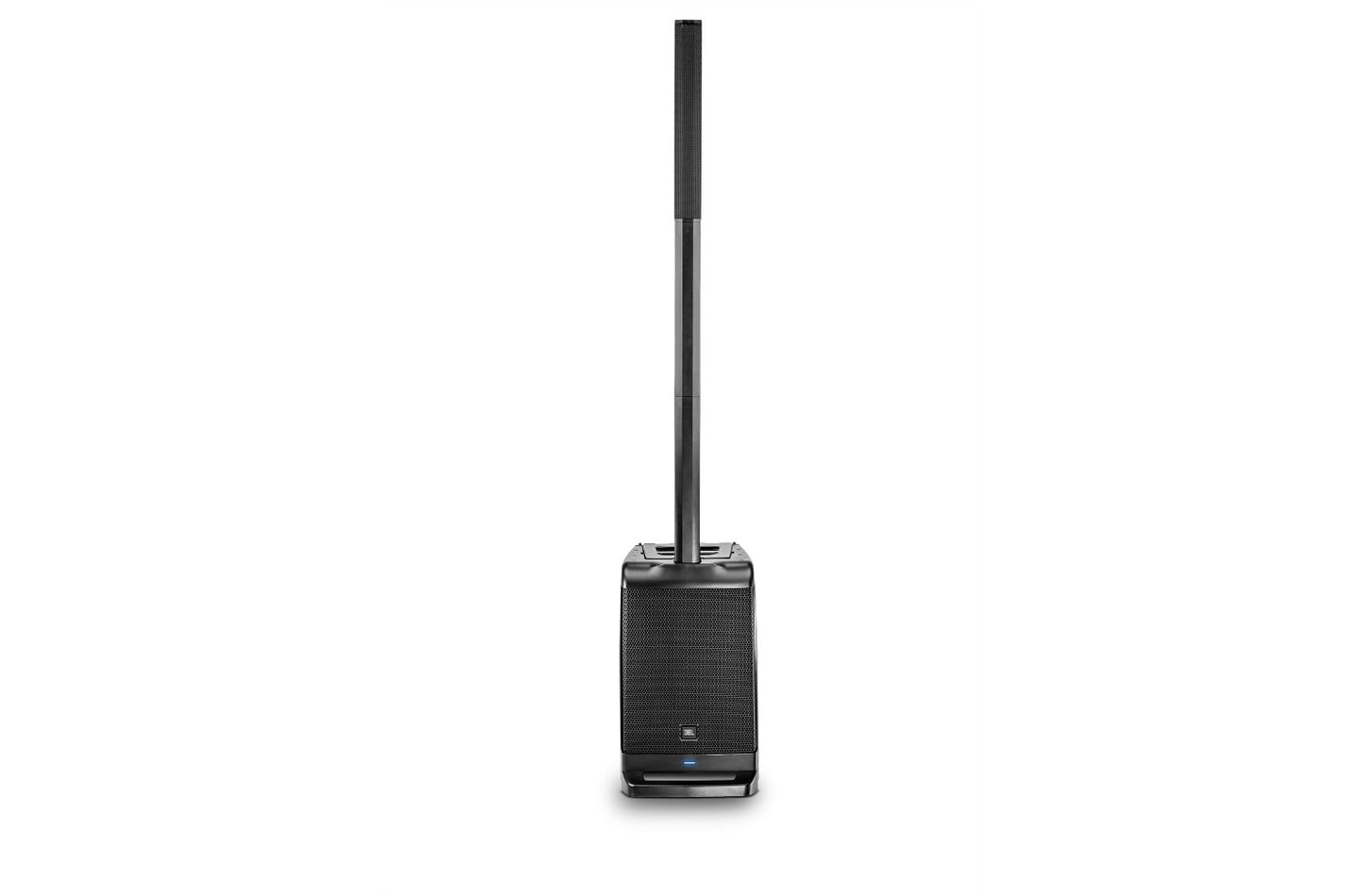

The EON ONE from JBL is an all-in-one compact PA system that delivers professional-quality audio for live performances, meetings, conferences, and more. The base unit houses the 380W amplifier, 10" unobstructed subwoofer, and the 6-channel mixer. The high-frequency element features patent-pending Directivity Control Geometry, which optimizes the spacing and angles of the six high-frequency drivers to create a remarkable front-to-back coverage.

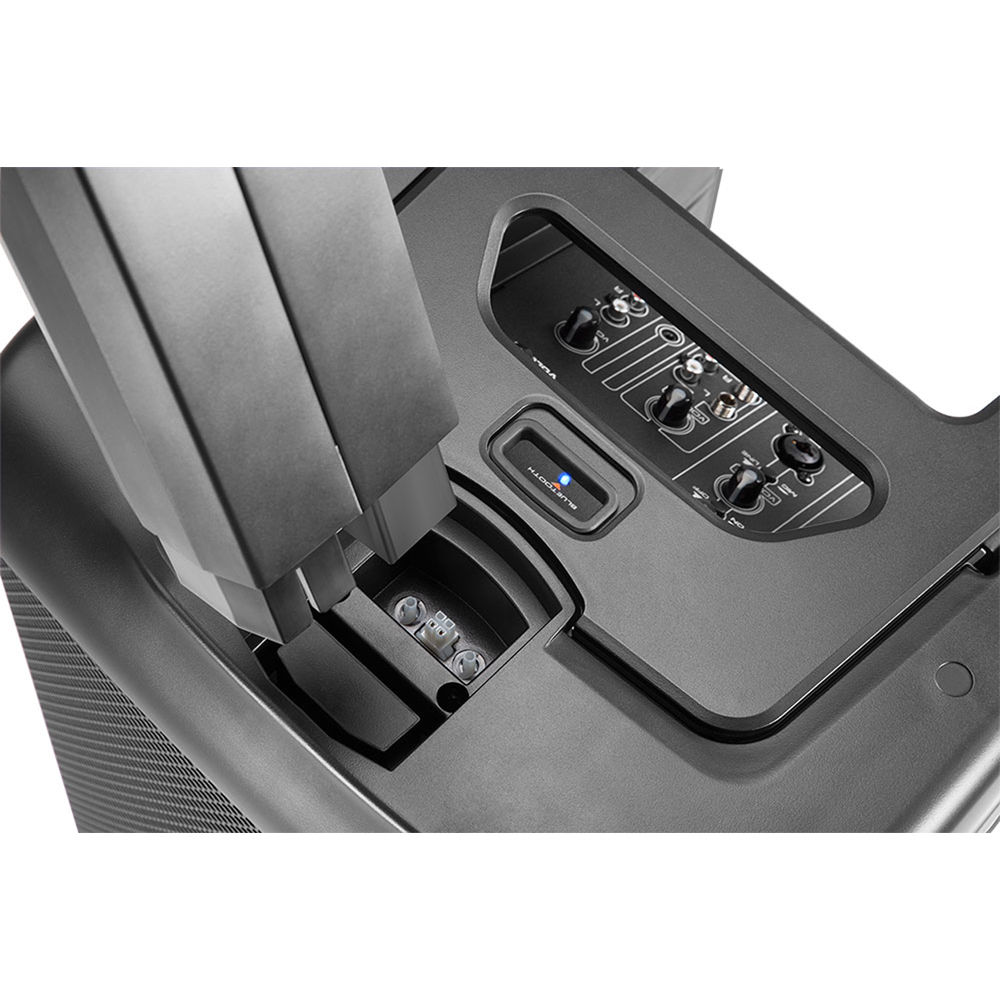

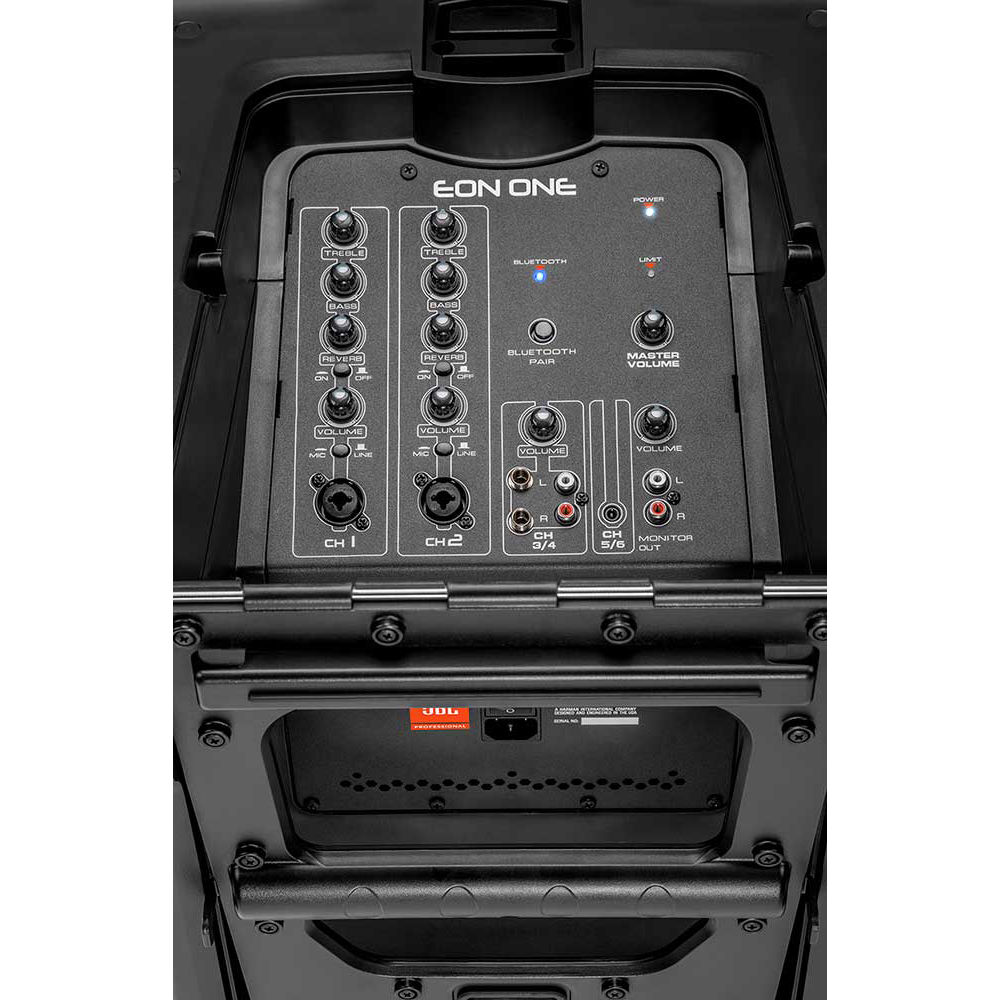

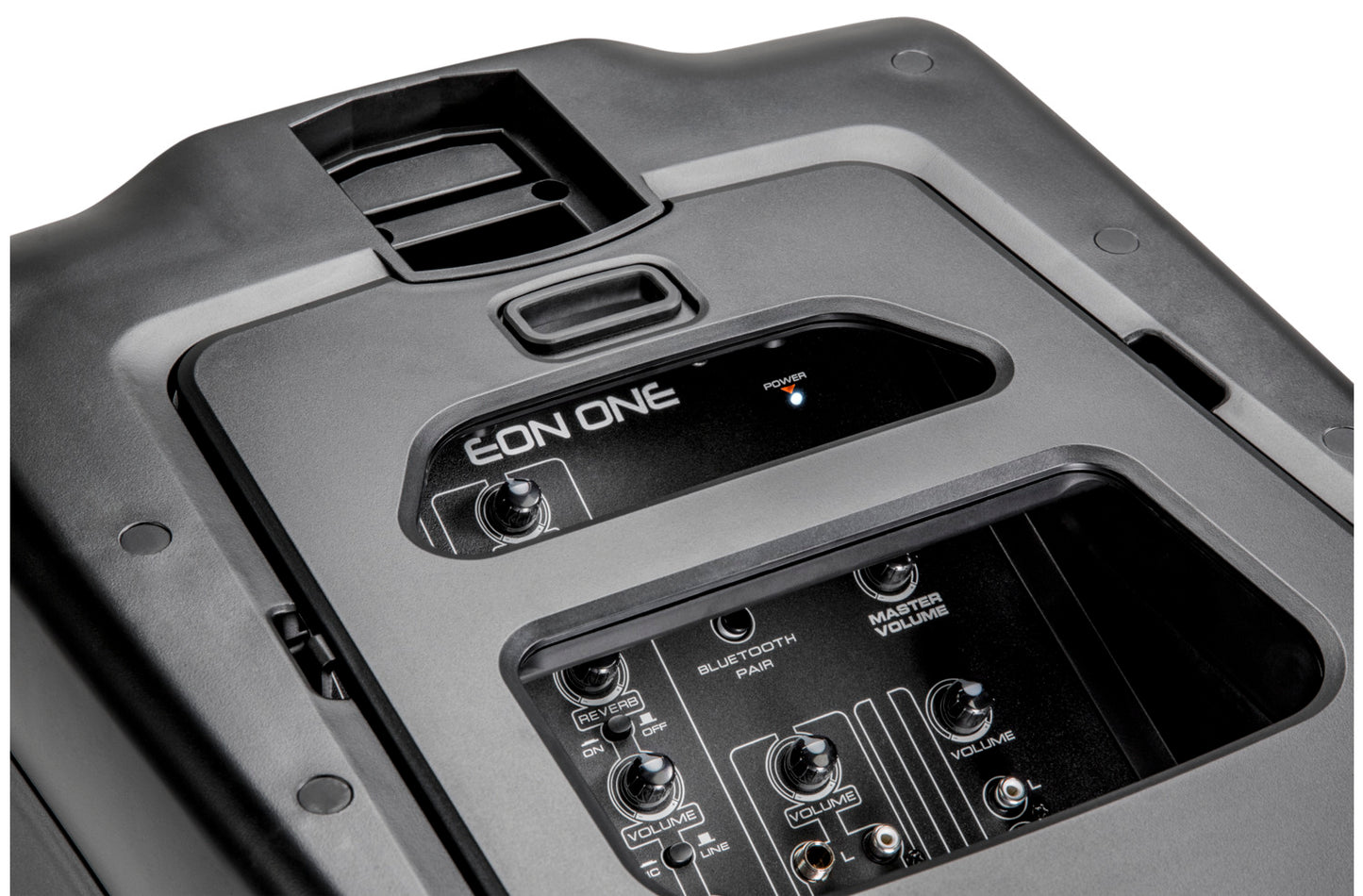

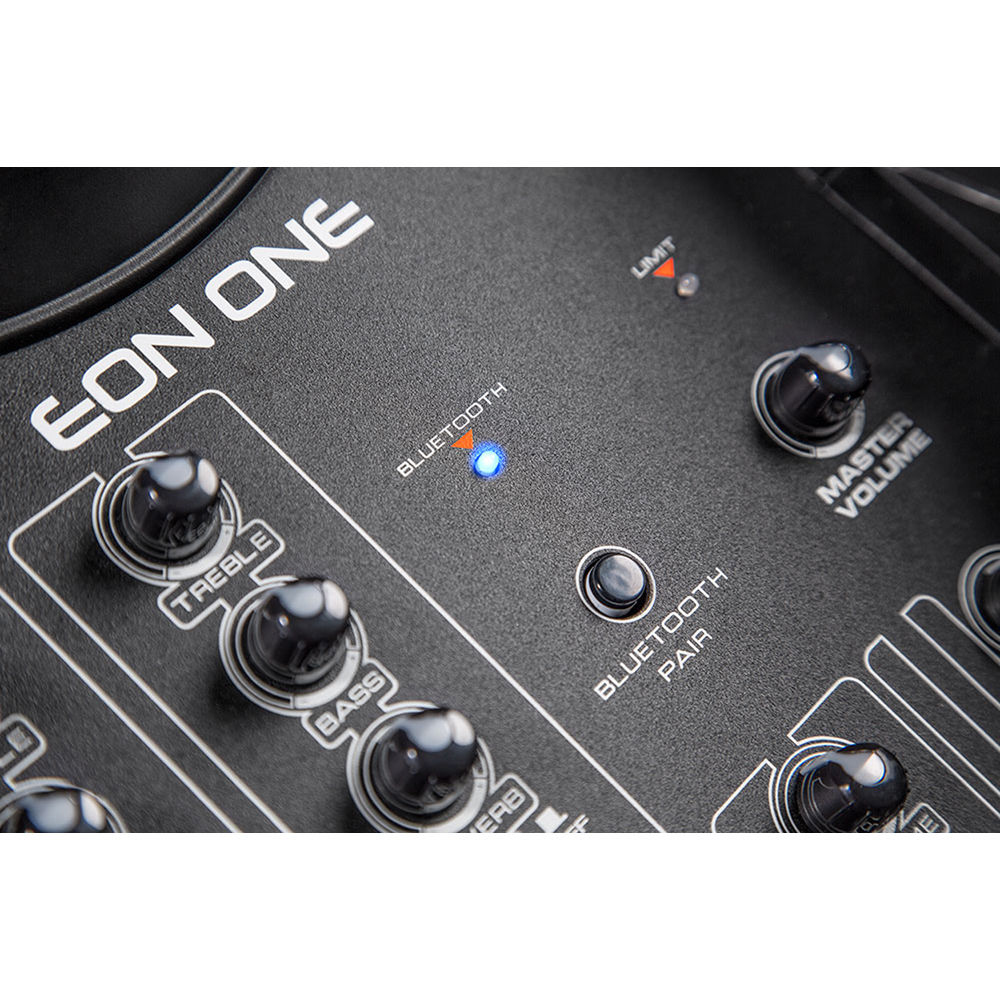

Channels 1 & 2 on the mixer offer XLR-1/4" connectors with dedicated treble, bass, and reverb controls. Channels 3 & 4 offer stereo 1/4" inputs or stereo RCA inputs while channels 5 & 6 offer a stereo 3.5mm input for connecting portable music players. Additionally, channels 5 & 6 offer Bluetooth audio streaming. The mixer also features a stereo RCA output monitor for connecting to additional speakers, recording devices, or other outboard gear.

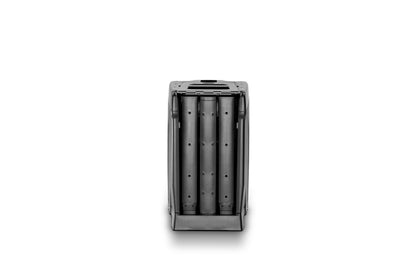

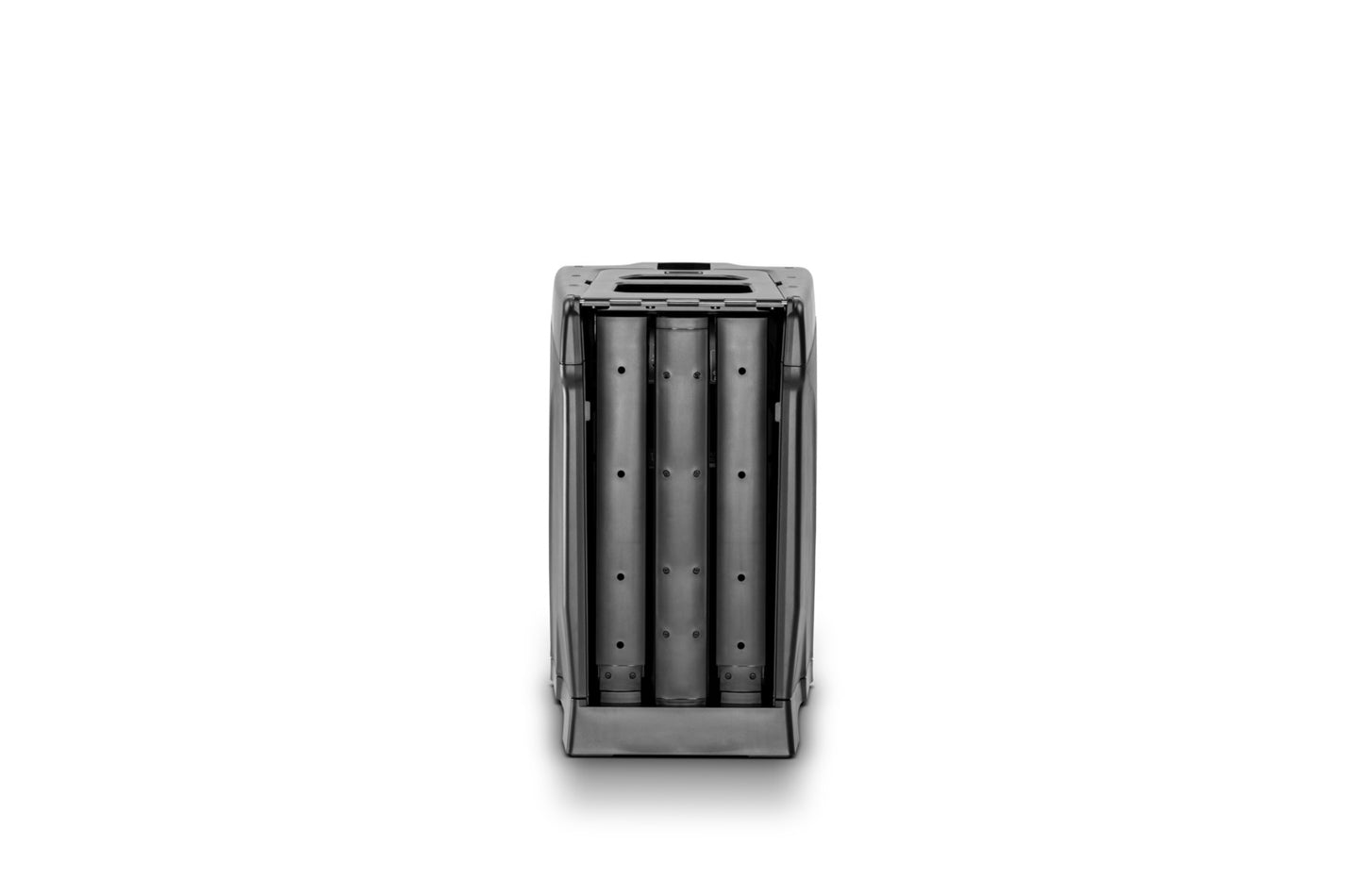

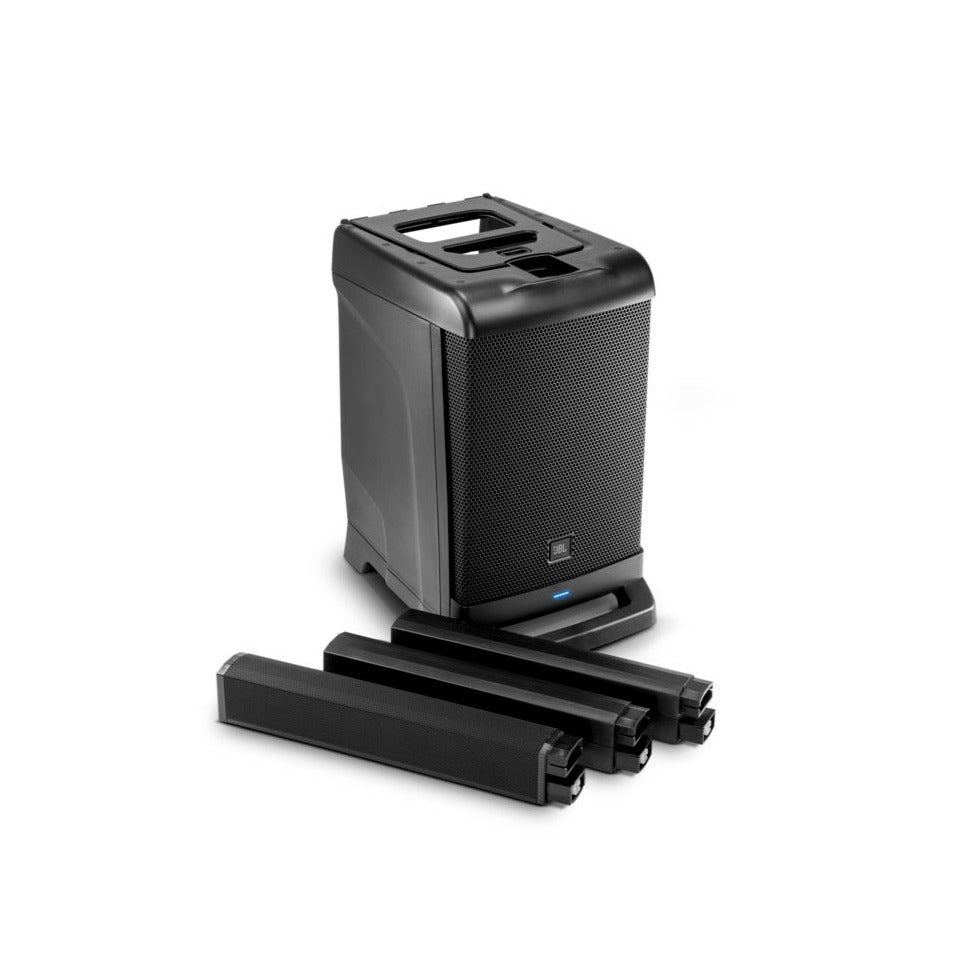

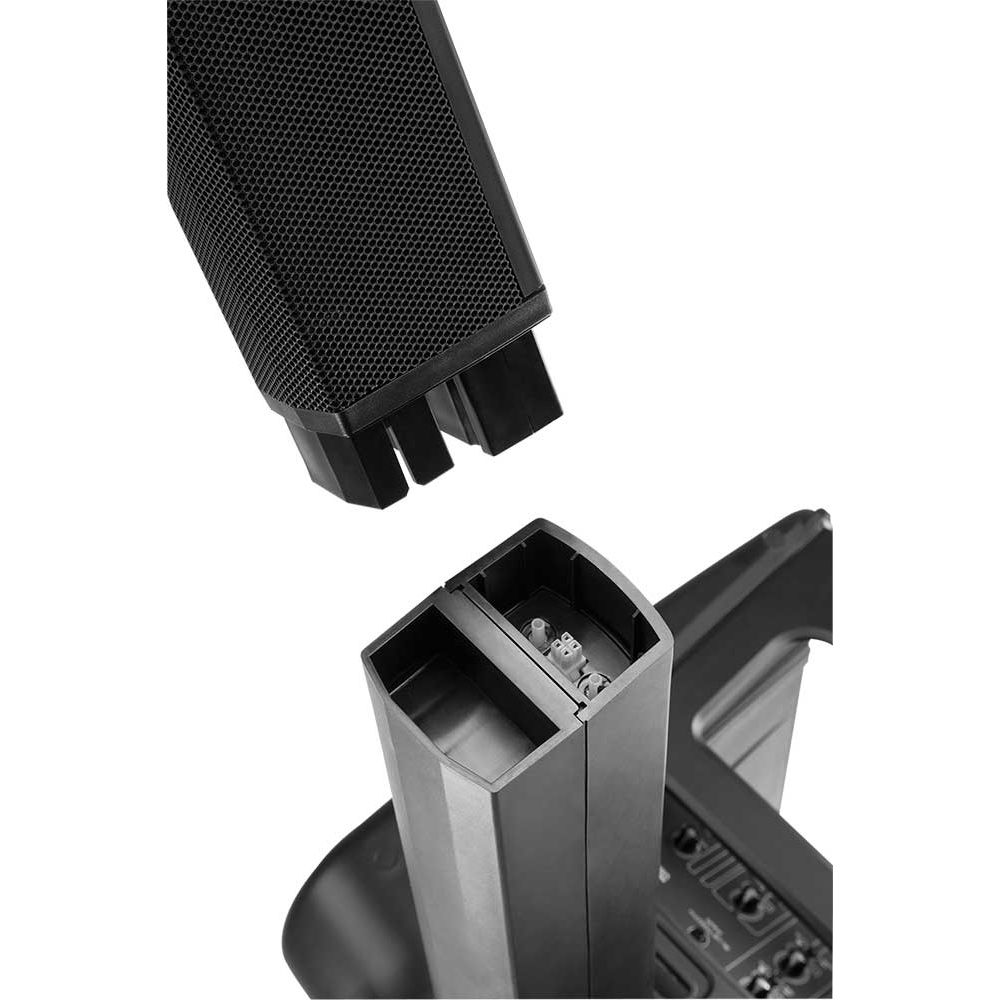

The EON ONE includes two spacers allowing for three position configurations and further expanding the systems flexibility. The HF element and two spacers conveniently pack away into the base unit, which can be carried by one hand. An optional EON ONE bag is available, which includes wheels to aid in transporting the unit and provides protection from bumps and scratches. The EON ONE ships with the two spacers and a power cord.
Specifications:
- Speaker Type: Unobstructed 10" woofer with 6x 2" Drivers
- Frequency Response: 45 Hz to 18 kHz
- Frequency Range: 37.5 Hz to 18.5 kHz
- Max SPL Output: 118 db (peak)
- Amplifier Design: Class D, 250W LF + 130W HF
- Mixer: 6-channel
- Channels 1-2 features: bass, treble, reverb, mic/line selector, and combo 1/4" phone and XLR input
- Channels 3-4 features: 1/4" balances TRS jacks (stereo) or pair of RCA jacks (stereo)
- Channels 5-6 features: 1/8" (3.5mm) input jack for portable electronics, or Bluetooth audio streaming
- Output Connectors: Stereo
- AC Input Power: 100 to 120 VAC, 50 / 60 Hz, 220 to 240 VAC, 50 / 60 Hz
- Weight: 40.8 lbs (18.5 kg)
- Dimensions (H x W x D): 593mm x 369mm x 434mm (23.3in x 14.5in x 17in)
- Mic Inputs: 2
- Phantom Power: No
- EQ: 2-band Channel EQ
- Effects: Reverb
- Inputs: 2 x XLR-1/4" combo, 2 x 1/4" (left, right), 2 x RCA stereo, 1 x 1/8" TRS (stereo channel)
- Outputs: 2 x RCA stereo
- Enclosure: Polypropylene
