Features
*8" glass aramid composite woofer
*Bass extension to 29Hz with a max SPL of 112.8 dB
*Footswitch control enables/disables sub and crossover filter (footswitch not included)
*Redesigned cabinet with a lower profile and front-firing bass port
*Powerful, lightweight Class D amplification
*Optimized four-position crossover control

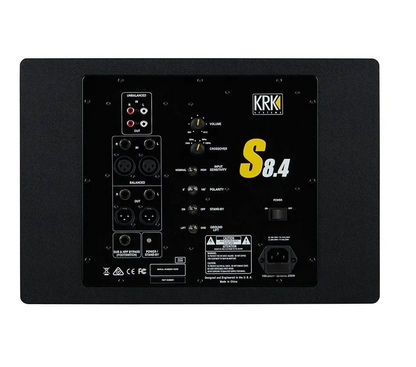

*Universal connectivity: XLR, 1/4" TRS, and RCA inputs and outputs
*Polarity and input sensitivity controls
*Ground lift switch prevents ground loops
Specifications
- Configuration: Front Loaded, Vented Subwoofer
- System Type: Active SubWoofer
- Frequency Response: 45.5hz - 133HZ
- Max Peak SPL: 112.8 DB
- Amplifier: Class D
- Power Output (Continous) : 109 Watts @ 1% THD+N @ 46Hz
- Signal to Noise Ratio 92 dB
- Amplifier Distortion (THD + N) ≤ 0.1% @-3dB Of Max Power Output 35Hz-133Hz
- Input Impedance 9.4 KΩ Balanced, 9.2 KΩ Unbalanced
- Ground Lift: On/Off
- HPF Bypass: With Footswitch Only
- Footswitch: Optional
- Indicators: Power/Standby
- Output Connectors XLR L/R, 1/4" TRS L/R, RCA L/R
- AC Power Input 100VAC-240VAC
- Controls: Volume , Four- Position Crossover Crossover Lpf/Hpf Control.
