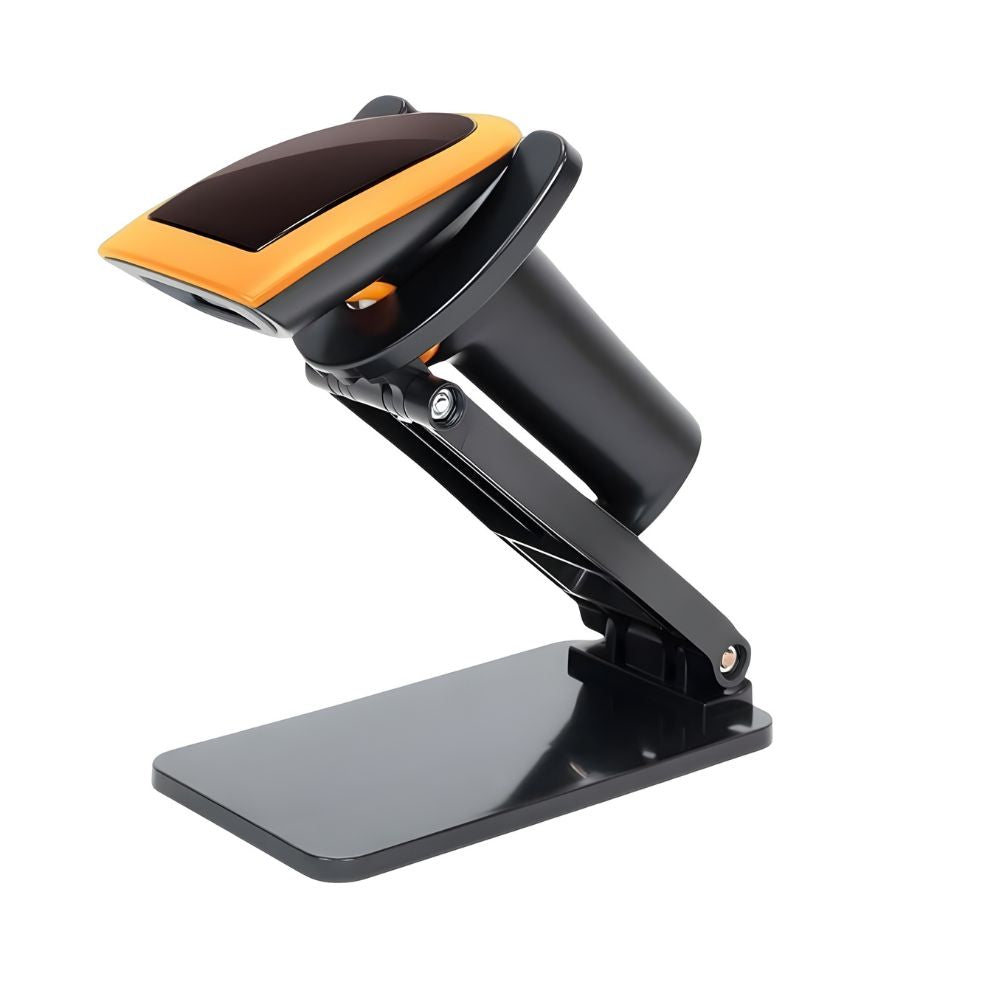

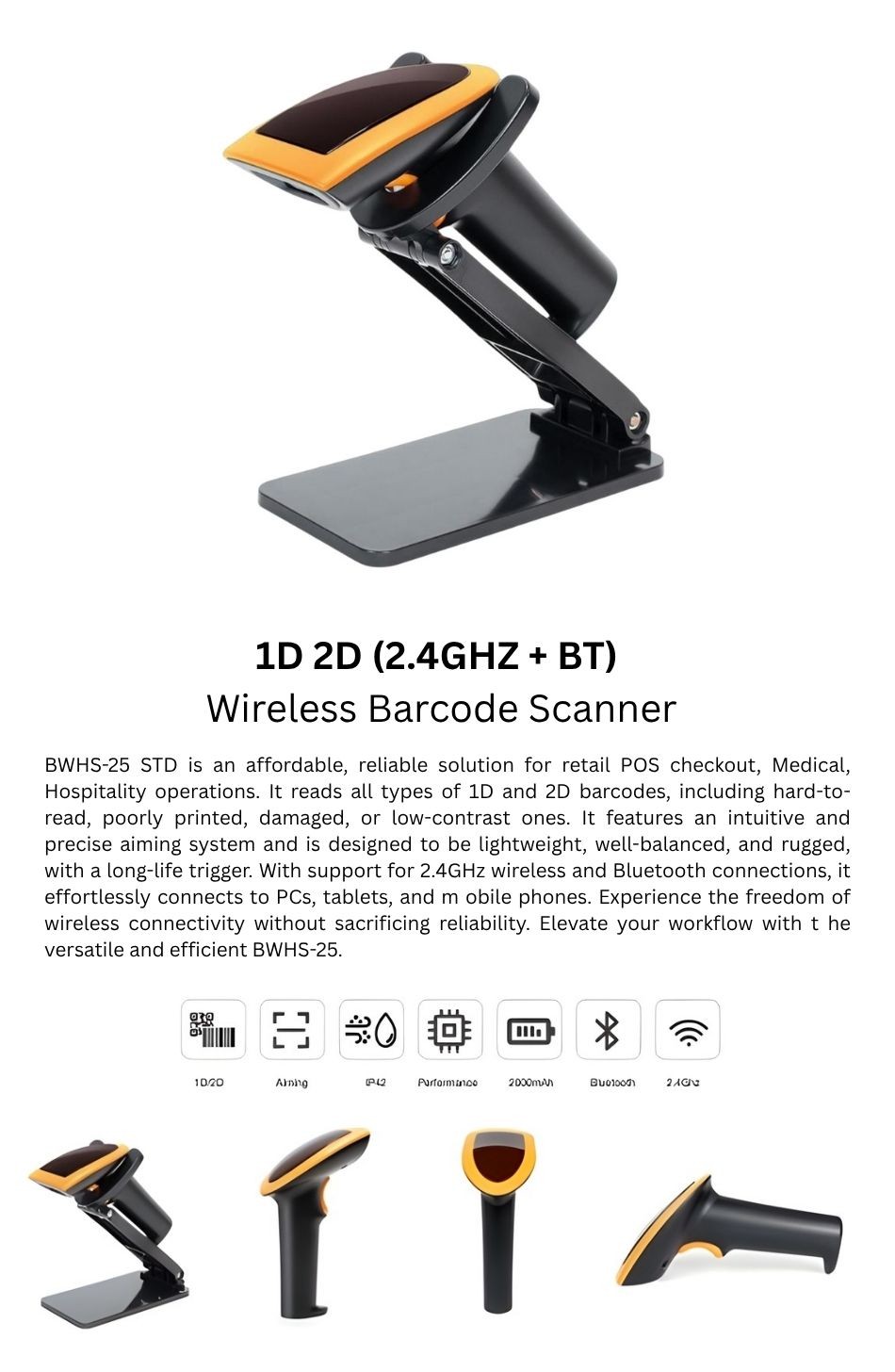

1D 2D (2.4GHz + BT)
Wireless Barcode Scanner
► Handsfree Scanning: This 1D 2D barcode scanner comes with a foldable stand for handsfree scanning, allowing for convenient and efficient operations.
► Fast and Accurate Reading: With 32 bit CPU and powerful decoding capability, this barcode scanner can achieve scanning speeds of up to 300 scans per second.
► 2 Working Modes: Instantly upload mode and storage mode. In offline storage mode, it can store up to 100,000 barcodes. Scan and store barcodes away from the receiver, then update the data to your device when back within wireless transmitting range.
► 2.4G BT Wireless Technology: Featuring 2.4G and connectivity, this wireless barcode scanner is convenient for users to connect with various terminals such PCs, compatible with multiple operating systems.
► Wide Range of Applications: Suitable for use in retail stores, supermarkets, libraries, warehouses, inventory management, logistics, and more.
Specification:
Long Range Scan
-
Brand: LogicOwl
-
Item Type: 1D 2D Barcode Scanner
-
Model: OJ-BWHS25L
-
Connection Type: 2.4G, BT, USB
-
Reading Distance: 2.5-600mm (100 Percent UPC EAN)
-
Light Source: Visible Light 650-670nm
-
Depth of Field: 0-600mm (0.33mm.PCS90%)
-
DC: 5V 500mA
-
Battery: Rechargeable Lithium Cell 2000 mAh x 1 (Built in)
-
Material: ABS
Key Features:
• 2D Wireless Barcode Scanner with CMOS 640×480 Sensor
• Supports 1D & 2D Codes including QR, PDF417, Data Matrix
• White & Red LED for Accurate Aiming and Scanning
• Wide Scan Angles: Skew ±70°, Pitch ±60°, Roll 360°
• High Precision ≥4 mil Resolution with ≥20% Contrast
• Wireless 2.4GHz & Bluetooth with up to 60m Range
• Real-Time & Batch Mode Data Transmission
• Long Battery Life up to 14 Hours, 2000mAh Capacity
• Fast Charging in Approx. 4 Hours
• Durable Build with 1m Drop Resistance & IP42 Rating
• LED Indicator and Beeper for Scan Feedback

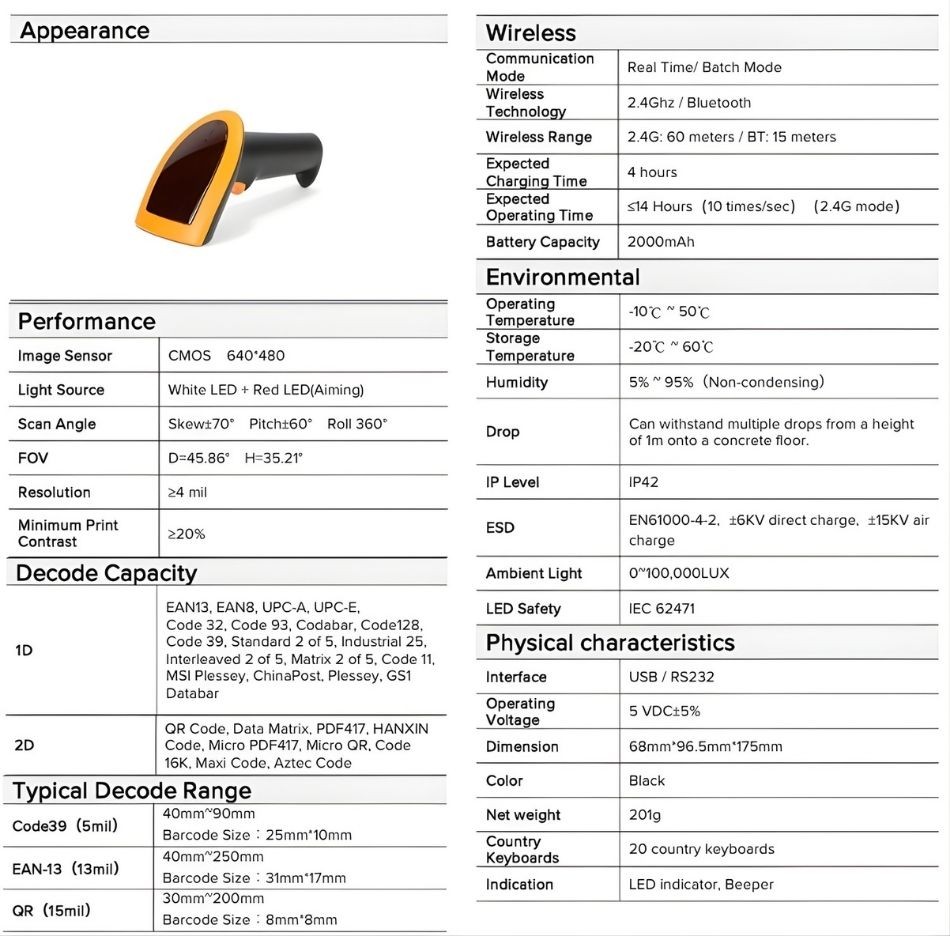

Specifications:
• Model: BWHS-25 STD
• Sensor: CMOS 640 × 480
• Light Source: White LED + Red LED (Aiming)
• Resolution: ≥4 mil
• Minimum Contrast: ≥20%
• Scan Angle: Skew ±70° / Pitch ±60° / Roll 360°
• FOV: D=45.86° / H=35.21°
• Interface: USB / RS232
• Operating Voltage: 5V DC ±5%
• Wireless: 2.4GHz / Bluetooth
• Wireless Range: 2.4G up to 60m / Bluetooth up to 15m
• Communication Mode: Real-Time / Batch
• Battery Capacity: 2000mAh
• Charging Time: Approx. 4 Hours
• Operating Time: Up to 14 Hours
• Dimensions (L×W×H): 6.8 × 9.65 × 17.5 cm
• Weight: 0.201 kg
• Color: Black
• Indicators: LED, Beeper
• Operating Temp: -10°C to 50°C
• Storage Temp: -20°C to 60°C
• Humidity: 5%–95% (Non-condensing)
• Drop Resistance: 1m
• IP Rating: IP42
• ESD Protection: ±6KV Contact / ±15KV Air
• Ambient Light: 0–100,000 Lux
• Safety: IEC 62471
What's in the box?
• Barcode Scanner
• Data Cable
• Stand
• Instruction Manual
