Overview:
-

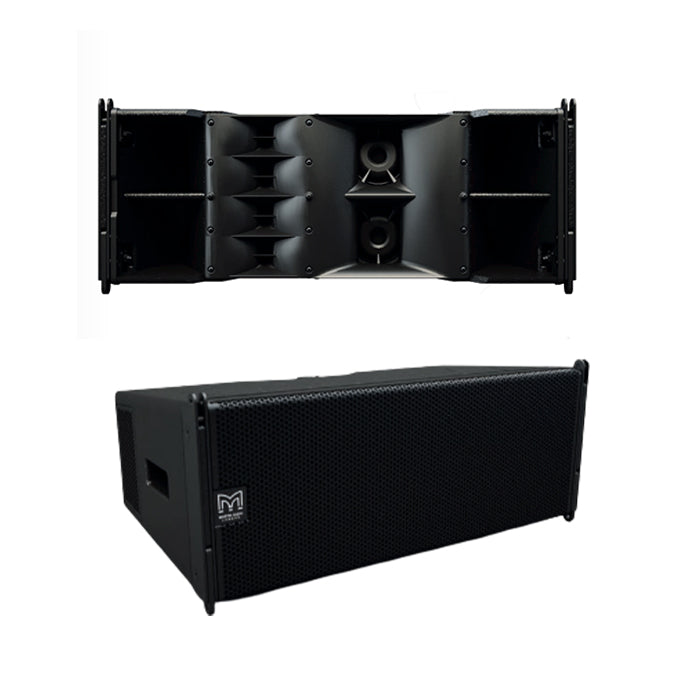

WPC is a 3-way bi-amp, 2x10” compact line array featuring scalable resolution optimization. This flexible approach to array optimization provides greatly improved coverage, consistency and control compared to a standard line array.
-
WPC is a new breed of medium-format optimized line array which brings innovative acoustic design, ultra-high performance and coverage consistency to a wider range of users, applications and budgets than previously possible. A three-way, bi-amp system, it features horn-loaded low frequency, mid and HF sections to raise efficiency and increase output. With a peak SPL of 135dB its high efficiency acoustic design can equal or outperform larger, direct radiator systems a 12-box array will throw beyond 60 meters (200ft) and deliver impressive rock levels to a 5000-seat venue, saving on truck space and weight.
-
WPC’s low frequency section consists of 2 x 10” (250mm) neodymium drivers in a Hybrid® configuration which marries the benefits of horn and reflex loading. Each driver is slot-loaded into a short horn to give a high sensitivity, while the rear of the driver is reflex-loaded to extend the LF output. The punch and low-frequency extension produced from such a small enclosure volume are remarkable.
-

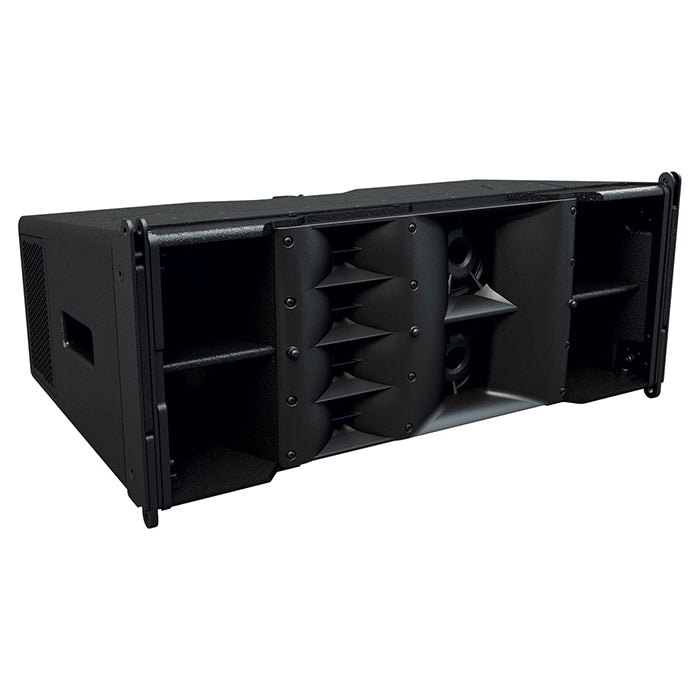

Mid and HF horns are physically separate a key factor in the WPC’s exemplary 100° horizontal constant directivity dispersion pattern. The midrange horn design utilizes 2 x 5” (125mm) neodymium drivers to produce a high output while the HF section employs 4 x 0.7” (19mm) exit neodymium compression drivers which feed 4 individual horns. Use of multiple small HF drivers instead of a more traditionally-used large format compression driver results in less distortion and a more extended HF response.
Benefits:
-
Consistent coverage achieved ‘straight-out-of-the-box’
-
DISPLAY intelligent software reduces set-up time and eliminates trial-and-error
-
Improved audience coverage with reduced sound-spill
Applications:
-
Touring sound reinforcement for small and medium-size venues
-
Fixed installations in concert halls, theatres, ballrooms and HoW
-
Sports stadium, arena installations & corporate AV events
Specification:
-
TYPE: Three-way, bi-amp line array element
-
FREQUENCY RESPONSE: 65Hz-18kHz ± 3dB
-
DRIVERS
-
LF: 2 x10” (250mm)/2.5” (63mm) voice coil, long excursion, vented pole, neodymium magnet drivers, Hybrid® slot-horn loaded
-
MF: 2 x 5” (125mm)/1.5” (38mm) coil, neodymium magnet drivers, horn loaded
-
HF: 4 x 0.7” (19mm) exit neodymium magnet compression drivers, horn loaded
-
SYSTEM RESOLUTION: 1 to 3 enclosures per pair of amplifier channels (Bi-amp)
-
MAXIMUM SPL: 135dB peak
-
NOMINAL IMPEDANCE
-
LF: 8Ω
-
MF + HF: 8Ω
-
DISPERSION (-6DB): 100º horizontal (-6dB), 130º horizontal (-10dB), 10° vertical
-
CROSSOVER: 440Hz active, 4.4kHz internal passive
-
ENCLOSURE: Vertical trapezoid with 5º wall angle, multi-laminate birch and poplar-ply construction
-
FINISH: Black textured paint
-
PROTECTIVE GRILLE: Black HEX perforated steel
-
CONNECTORS: 2 x NL4 type
-
INPUT CONNECTIONS
-
LF: 1+/1-
-
MF + HF: 2+/2-
-
FITTINGS
-
3-point rigging system
-
2 x side pocket handles
-
2 x rear grip handles
-
FLOWN ARRAY MAXIMUM: 16 enclosures in single array
-
DIMENSIONS: (W) 772mm x (H) 319mm x (D) 421mm
-
WEIGHT:35kg (77.1lbs)
