Features:

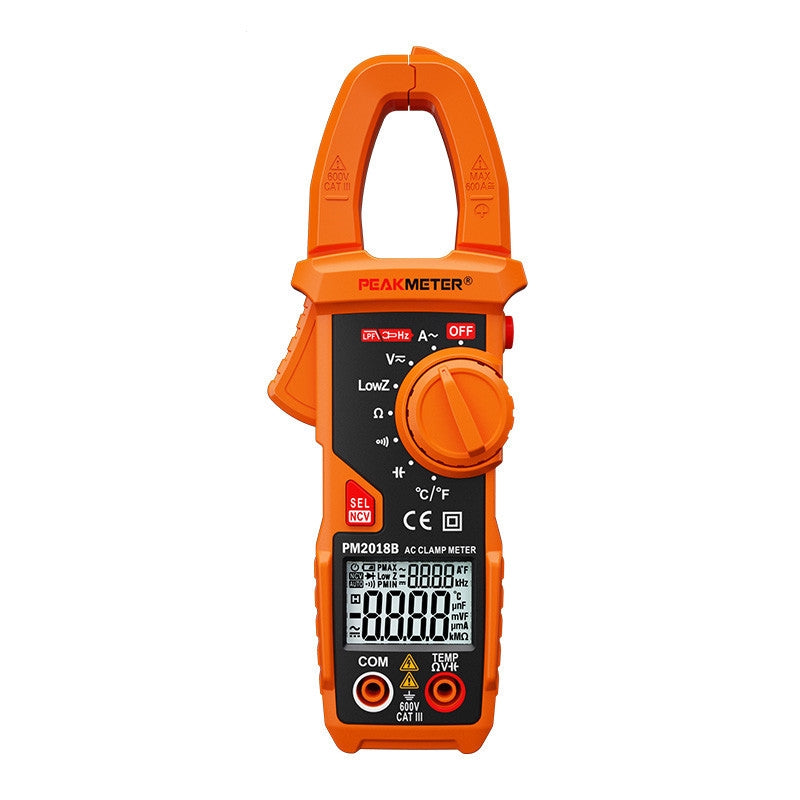

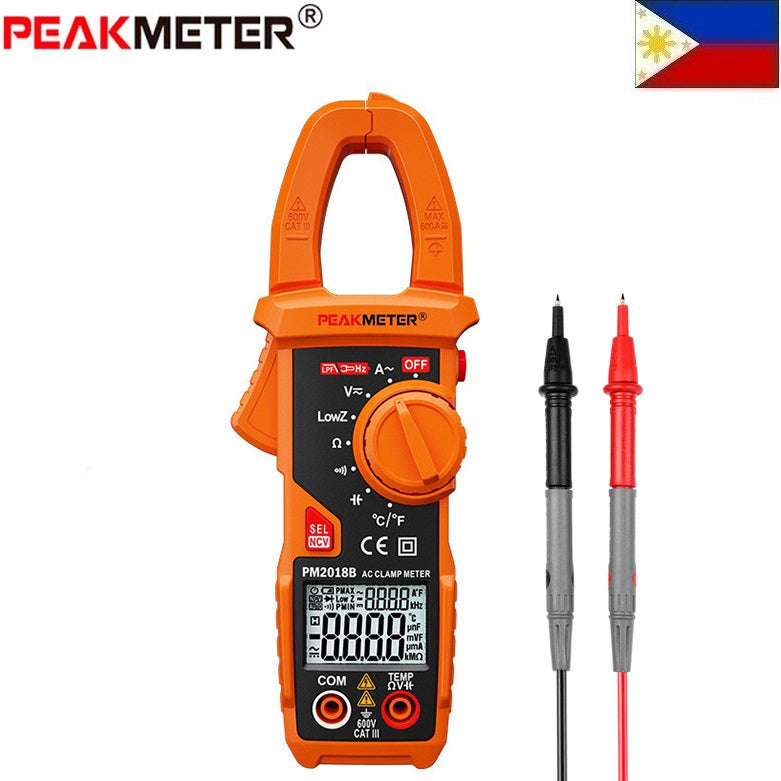

- PM2018B is a Consise version AC
- Digital Clamp Meter, it has high resolution with Max Counts 6000;
- AC Curent 1mA to 600A to apply in different occasions ；
- LPF fuction can filter high frequency interference while measuring AC singal , so to enhance the accuracy of signal measurement
- Meanwhile,This Clamp Meter has AC/DC Voltage,Continuity ,Max resistance 60kOHm etc
- With Safty Standard：EN61010-1,-2-030, EN61010,-2-032 600V CAT III ，Meet with ROHS/REACH Environmental Standard.
|
Specifications |
Range |
Accuracy |
||
|
PM2018A |
PM2018B |
|||
|
DC Voltage |
0~600V |
+/- (0.5% + 3) |
+/- (0.5% + 3) |
|
|
ACV(40~65Hz) Voltage |
1.0~600V |
+/- (0.8% + 5) |
|
|
|
0.01~600V |
+/- (0.8% + 5) |
|||
|
ACA(40~65Hz) |
10mA~400A |
+/- (2.5% + 5) |
+/- (2.5% + 5) |
|
|
400A~600A |
+/- (3% + 5) |
+/- (3% + 5) |
||
|
Resistance |
0~60KOHm |
+/- (0.8% + 3) |
|
|
|
0~60MΩ |
+/- (0.8% + 3) |
|||
|
Capacitance |
0.1uF~6000uF |
+/-(3%+5) |
||
|
Frequency |
40Hz~1000Hz |
1%rdg |
||
|
LowZ |
1.0~600V |
+/-(0.8%+3) |
||
|
Temperature |
-20 Deg. C ~ 1000 Deg. C |
+/-(1%+2) |
||
|
-4 Deg. F ~ 1832 Deg. F |
+/-(1%+2) |
|||
|
Features |
PM2018A |
PM2018B |
||
|
Counts |
6000Counts |
6000Counts |
||
|
Range |
Manual |
Auto |
||
|
ACA(AC+DC) |
6A/60A/600A |
6A/60A/600A |
||
|
DCV |
600V |
600mV/6V/60V/600V |
||
|
ACV(AC+DC) |
600V |
6V/60V/600V |
||
|
Continuity |
Yes |
Yes |
||
|
Deg. C / Deg. F |
yes |
|||
|
Frequency(clamp) |
1KHz |
|||
|
Frequency(Voltage) |
1KHz |
|||
|
LPF(1KHz-3dB) |
Yes |
Yes |
||
|
Diode Test |
Yes |
|
||
|
MAX/MIN/AVG |
yes |
|
||
|
LowZ |
yes |
|||
|
USB/Bluetooth( optinal) |
Yes |
|
||
|
VFD |
Yes |
|
||
|
REL |
Yes |
|
||
|
Low battery Indication |
yes |
Yes |
||
|
|
||||
