Key Features
- 8"" HDMI & 3G-SDI 1920 x 1200 Monitor
- Supports up to DCI 4K24 Input
- 1100 cd/m² Bright, 1000:1 Contrast Ratio
- 10-Bit Color, 3D LUT Out on HDMI & SDI
- 4K HDMI/3G-SDI Input & Loop-Out
- HDMI to SDI & SDI to HDMI Conversion
- Heat-Dissipating Aluminum Housing
- Peaking, Histogram, Waveform, Zebra
- Mount for Select Video Transmitters
- Dual L-Series Battery Plates & DC Port
View your video capture with 3D LUT output using the HS8 8" 3G-SDI 4K HDMI/3G-SDI High-Bright Monitor with 3D LUT Support from PORTKEYS. This monitor features support for up to DCI 4K24 video, 1920 x 1200 resolution, 10-bit color, and 3D LUT output on both the 4K HDMI and 3G/HD/SD-SDI outputs. Its 1100 cd/m² brightness is high enough for exterior viewing, and the wide viewing angles of 178° make it easy for multiple crew members to watch the footage simultaneously. The rear of the monitor sports a detachable cover for a video transmitter and dual Sony L-series/NP-F battery plates.
Specifications:
Panel Type: LCD
Display Size: 8.0"" / 20.3 cm
Native Resolution: 1920 x 1200
Aspect Ratio: 16:9
Viewing Angle Horizontal: 178°
Viewing Angle Vertical: 178°
Touchscreen: No
Maximum Brightness: 1100 nits / cd/m2
Contrast Ratio: 1000:1
Color Support: 1.07 Billion Colors (8-Bit+FRC)
HDR Support: Yes
Color Gamut: 100% Rec. 709
LUT Support: Yes
Image Controls: Anamorphic De-Squeeze, Blue Only, Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, Green Only, Histogram, Image Flip, OSD Flip, Red Only, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra

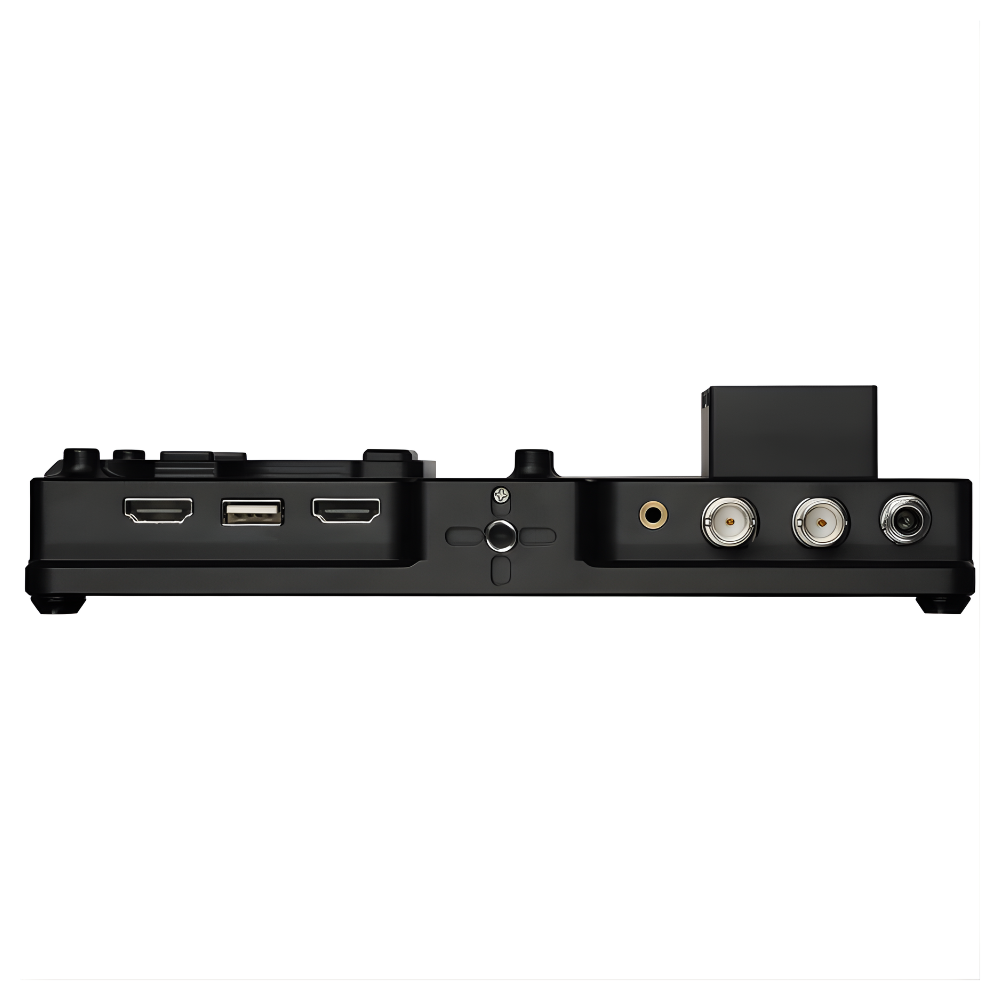

Video I/O: 1x BNC (3G-SDI) Input, 1x HDMI Input, 1x BNC (3G-SDI) Output, 1x HDMI Output
Embedded Audio: HDMI, SDI
Audio I/O: 1x 1/8"" / 3.5 mm Headphone Output
Power I/O: 1x Barrel (20 VDC) Input
Other I/O: 1x USB-A (LUT Upload)
Media/Memory Card Slot: No
What's in the box?
- Monitor with 3D LUT Support
- D-Tap to DC Barrel Power Cable
- Screen Cleaning Cloth
- M2 Allen Key
- 4 x M3 Allen Screw
- 4 x Cup Head Gasket
- Micro-USB Flash Drive
