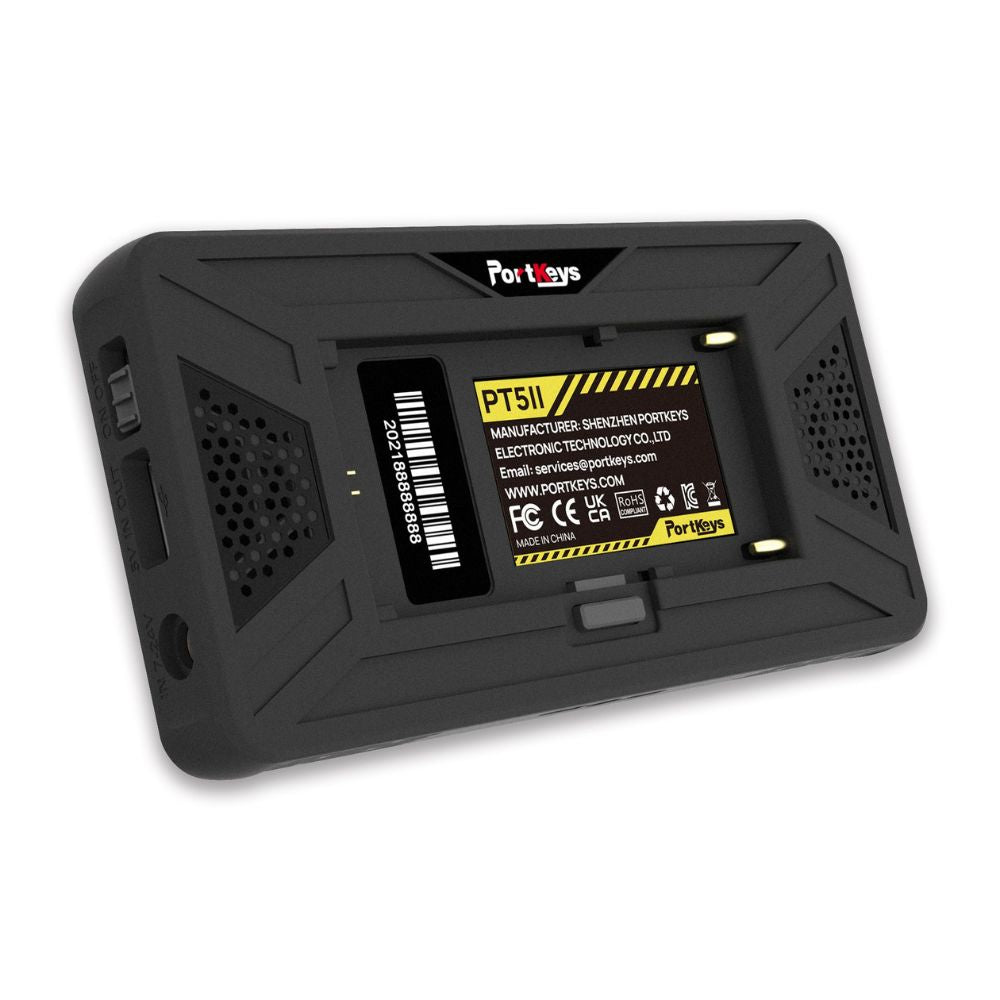

The PT5 II 5" 4K HDMI Touchscreen Monitor from PORTKEYS is a compact, 5" touchscreen monitor offering bright on-camera monitoring. It features HDMI input and output, 3D LUT input via a USB Type-A port, and support for up to DCI 4K24 video signals. The PT5 II has been updated with improved heat dissipation with added holes on its enclosure to keep the monitor cool.
Redesigned Enclosure
The PT5 II enclosure has been redesigned for better cooling with additional vents
Up to 4K HDMI Input
Supports up to DCI 4K24 input via HDMI
Touchscreen
Bright, compact, 5" touchscreen for on-camera monitoring

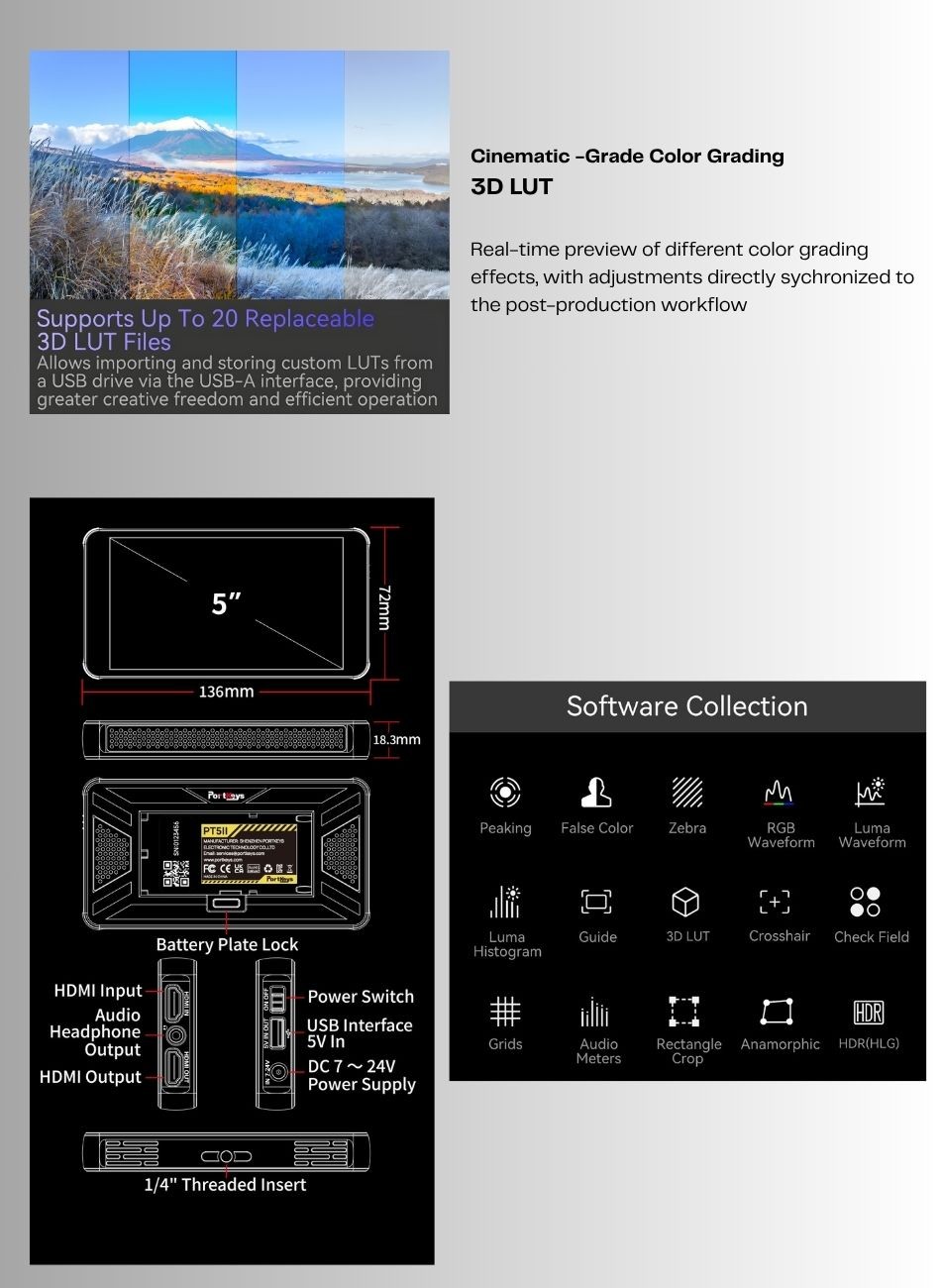

3D LUT Input
Upload your 3D LUT via the USB Type-A port for customized viewing
Imaging Tools
Exposure: RGB and luma waveforms, zebra, false color, and histogram
Focus: Peaking and zoom functions
Framing: Check field, grids, image flip, and crosshair marks
Display: Anamorphic, color temperature, contrast, and sharpness
Display: Brightness, tint, backlight, and underscan
Battery: Remaining power
Audio: Metering
Key Features:
• 5" 1920 x 1080 Touchscreen Display
• 4K HDMI I/O, 3D LUT Import via USB Port
• 500 cd/m² Bright/1000:1 Contrast Ratio
• Updated with Heat Vents for Cooling
• Focus Peaking, RGB & Luma Waveforms
• False Color, Histogram & Audio Metering
• 3.5mm Headphone Jack, On/Off Switch
• DC Input, USB Type-A Output Port
• Sunshade & Tilting Shoe Bracket
• Optional L-Series & LP-E6 Plates
► Specifications
• Panel Type: IPS-Type LCD
• Display Size: 5.0" / 12.7 cm
• Native Resolution: 1920 x 1080
• Aspect Ratio: 16:9
• Viewing Angle Horizontal: 178°
• Viewing Angle Vertical: 178°
• Touchscreen: Yes
• Maximum Brightness: 500 nits / cd/m2
• Contrast Ratio: 1000:1
• Color Support: 1.07 Billion Colors (8-Bit+FRC)
• HDR Support: No
• LUT Support: Yes
• Image Controls: Anamorphic De-Squeeze, Check Field, Color •Temperature Selection, False Color, Focus Peaking, Histogram, •Image Flip, Pixel Zoom, R/G/B/Chroma Only, Screen Markers, •Underscan, Vectorscope, Waveform, Zebra
•Video I/O: 1x HDMI Input, 1x HDMI Output
•Embedded Audio: HDMI
•Audio I/O: 1x 1/8" / 3.5 mm Headphone Output
•Built-In Speaker: No
•Power I/O: 1x Barrel (24 VDC) Input
•Other I/O: 1x USB-A Input/Output
•Media/Memory Card Slot: No
•Wi-Fi: No
•Bluetooth: Yes
•Mobile App Compatible: No
•Video Format: HDMI — DCI 4K: 24; UHD 4K: 30/29.97/25/24/23.98; 1080p: 60/59.94/50/30/29.97/25/24/23.98; 1080PsF: 30/29.97/25/24/23.98; 1080i: 60/59.94/50; 720p: 60/59.94/50; 576p: 50; 576i: 50; 480p: 60/59.94/50; 480i: 60/59.94/50
•Input Power: 7 to 24 VDC
• Battery: 1x L-Series/LP-E6 Combination Mount on Fixed Plate
• Power Consumption: 7 W
• Material of Construction: Plastic
► What's inside the box?
• Monitor
• Sun Hood Kit
• Tilting Shoe Mount
• HDMI Type-A Cable
• Micro-HDMI Cable
• Safety Case
