Overview

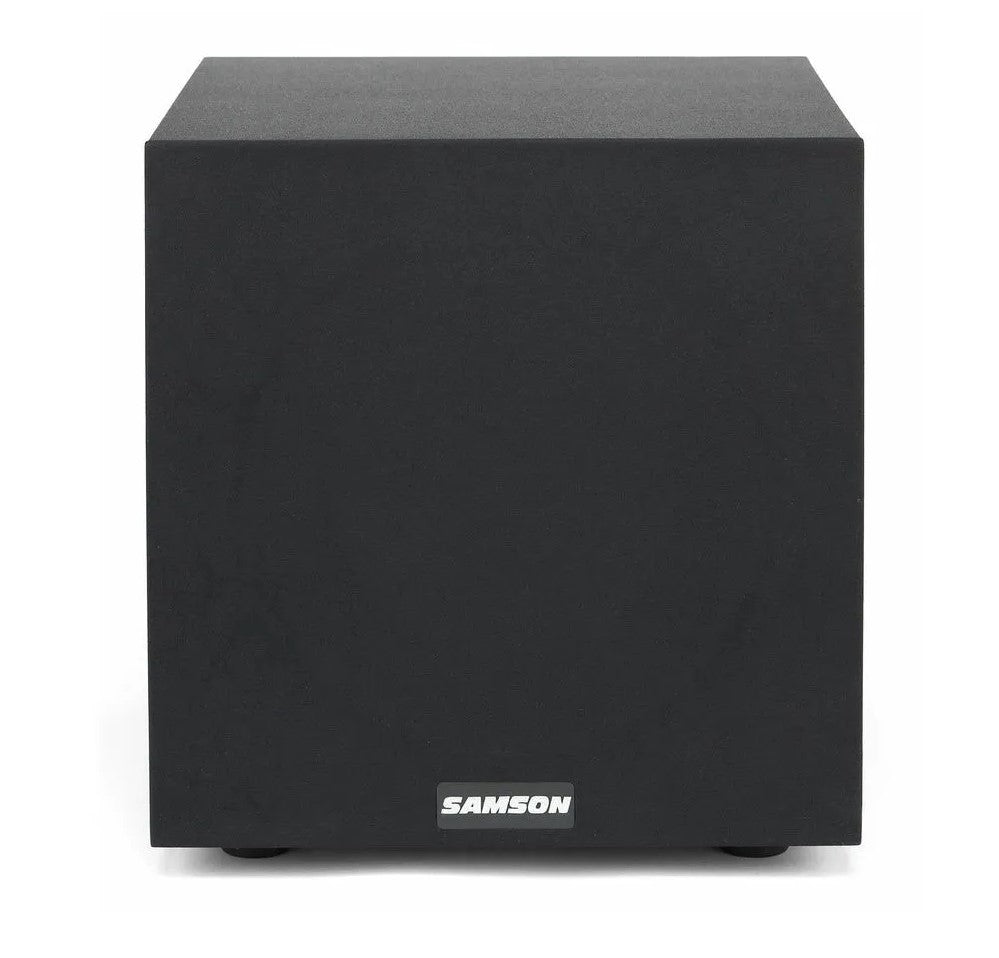

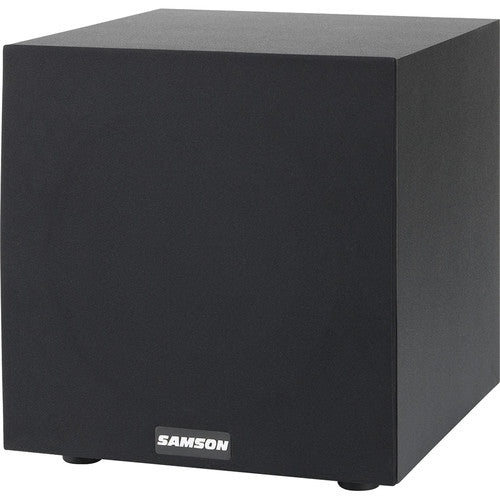

- The Samson MediaOne 10S Active Studio Subwoofer is designed to deliver low frequency sound reinforcement in a wide range of multimedia applications from listening to music, producing tracks, watching movies, or playing video games. A single down-firing 10.0" (25.4 cm) copolymer woofer with a tuned bass reflex port is driven by a 100W plate amplifier within a vinyl wrapped MDF cabinet to deliver an adjustable frequency response of 35 to 300 Hz ±3 dB. A protective mesh grill protects the woofer from damage while making the overall enclosure aesthetically pleasing for the studio, living room, or den..

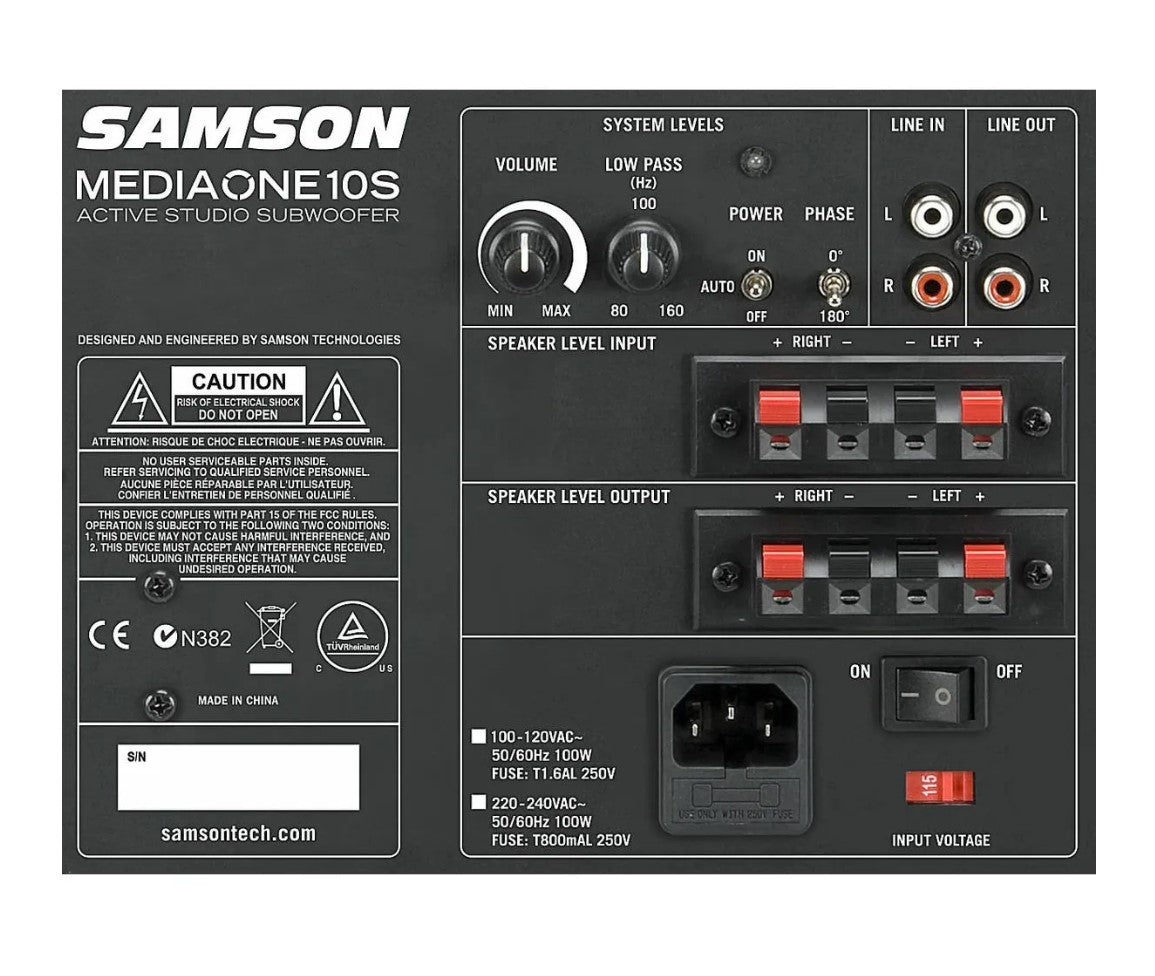

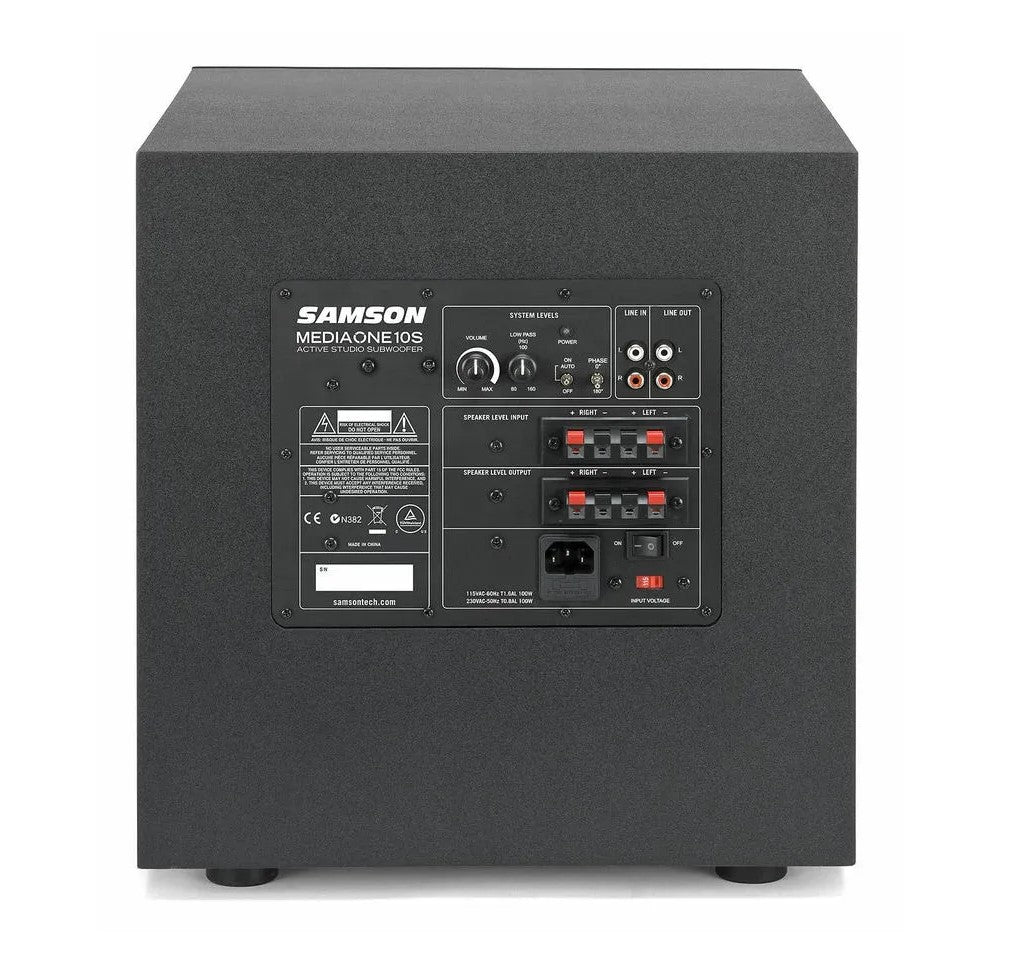

- The back panel of the subwoofer features RCA inputs for directly connecting to a music source as well as RCA outputs to connect to your main monitors. Speaker level input and output terminals allow you to connect A/V receivers and/or additional speakers to expand your home theater setups. A variable low pass frequency control allows you to fine tune the response of the subwoofer to suit your listening room. Additional controls include a phase switch and subwoofer volume control. A sleep mode can be engaged to conserve electricity when the subwoofer is not in use.
Features
- 10" Down-Firing Copolymer Woofer
- Bass Reflex Design
- 100W Power
- Vinyl Wrapped MDF Cabinet
- Protective Mesh Grill
- Variable Low Pass Frequency Control
- RCA Inputs and Outputs
- Speaker Level Inputs and Outputs
- Phase Switch and Volume Control
- Selectable Auto Sleep Mode
Specifications
- Brand: Samson
- Color: Black
Studio Monitor
- Monitor Type: Active Subwoofer
- Enclosure: Bass-Reflex, Shielded
- Power Rating: 100 W RMS
- Drivers LF Driver: 1 x 10" / 25.4 cm Copolymer Woofer
Performance
- Frequency Response: 35 Hz to 300 Hz ± 3 dB
- Phase Adjustment: Phase Inversion 0 / 180°
- Protections and Limiting: Fuse
Signal Processing
- Filters: Low-Pass at160 Hz
Crossover
- Crossover Frequency:100 Hz, 12 dB/Octave Slope
- Crossover Type: Linkwitz-Riley
Power
Power Consumption: 200W
