SmallRig 3021 Overview:

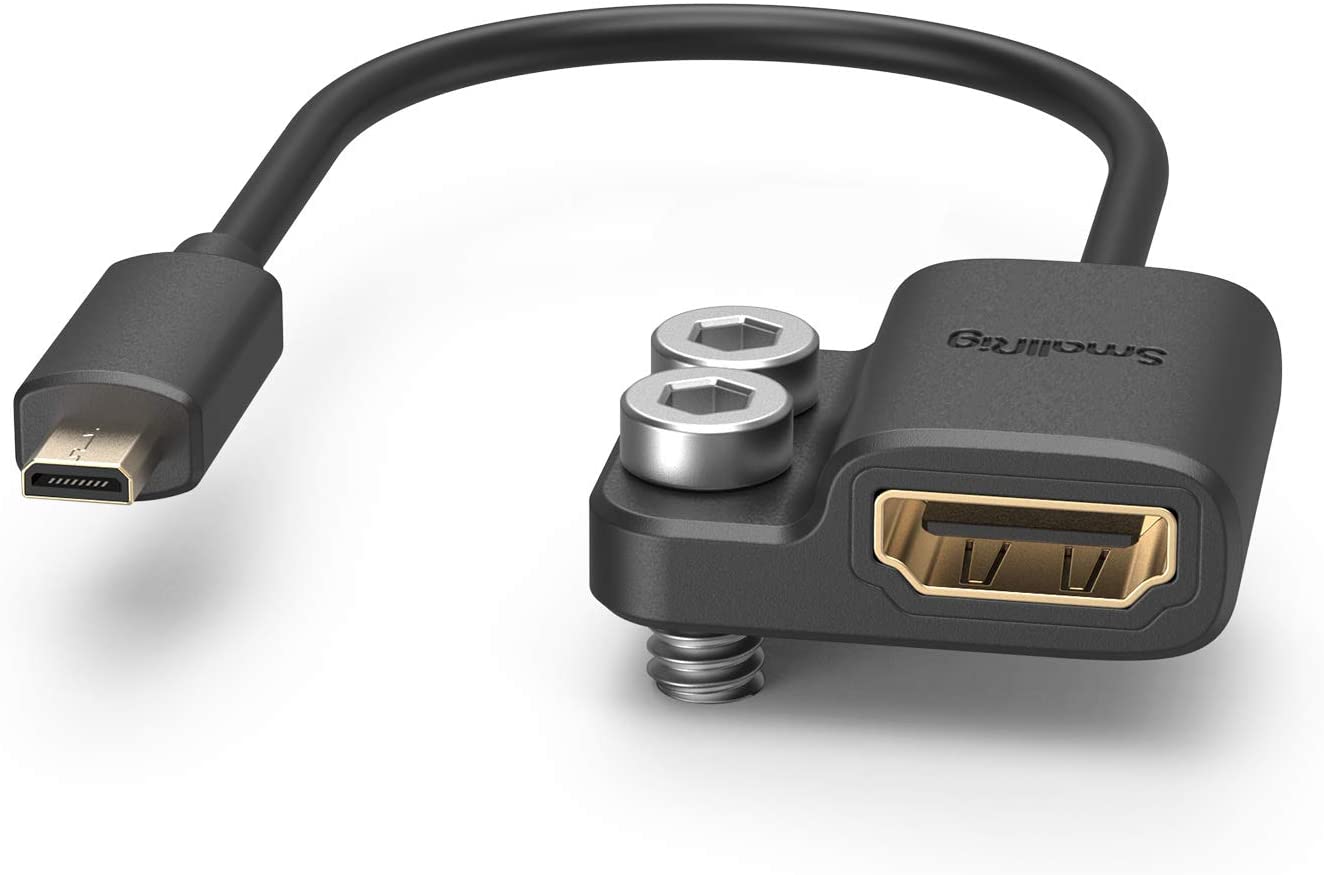

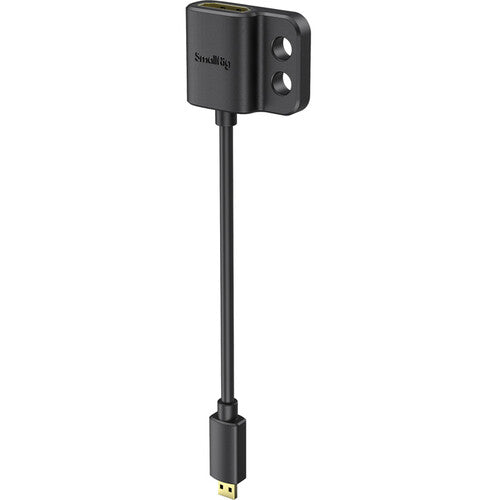

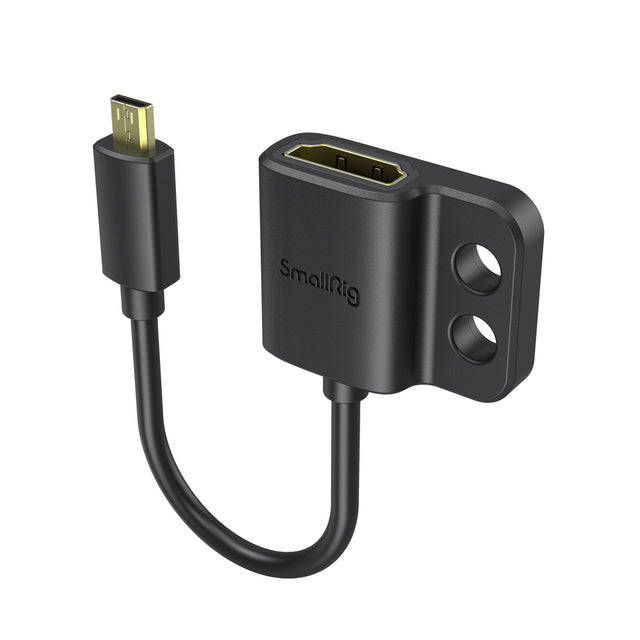

Use an HDMI Type A cable with your camera cage or rig with this Ultra-Slim Female HDMI Type A to Male Micro-HDMI Type D Adapter Cable from SmallRig. The adapter cable features a female HDMI Type A connector on one end and a male Micro-HDMI Type D connector on the other end to fit a variety of cameras.
The female end of the adapter cable features two 1/4"-20 threads to attach to a cage, bracket, or rig, and the threads measure 0.35" apart from center-to-center. Two screws are included to mount the adapter onto your rig. This flexible, ultra-slim PVC cable measures only 0.1" in diameter and measures 5.6" in length. Read more below about compatibility options.
Key Features:
- Female HDMI Type A on One End
- Male Micro-HDMI Type D on Other End
- 2 x 1/4"-20 Threads on Female End
- Ultra-Slim Cable for up to 4K60 Video
- Cable Measures 5.6" in Length
- 3.5mm Outer Diameter, Flexible PVC Cable
Compatibility:

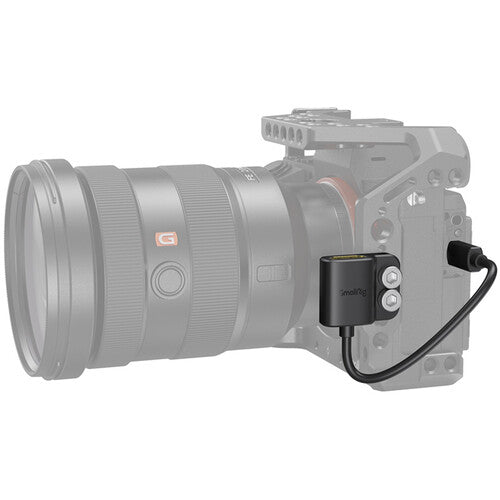

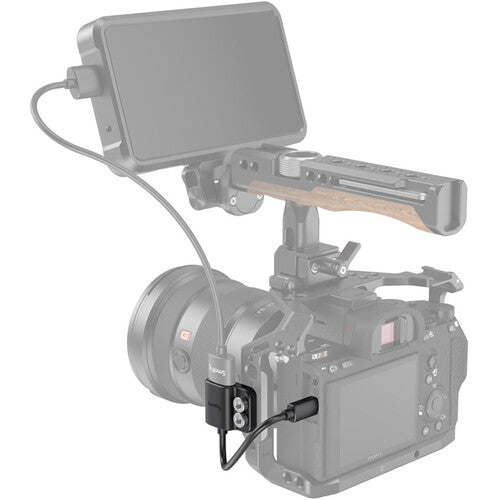

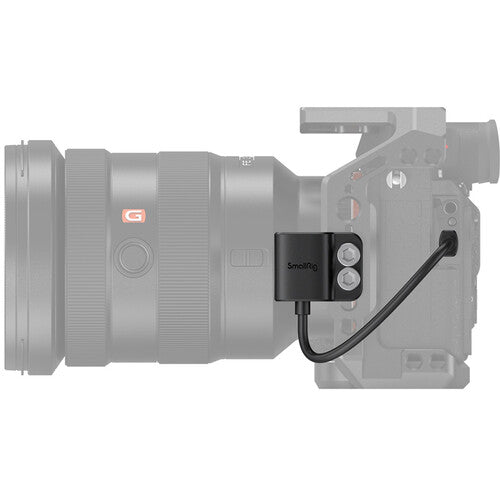

Cameras with Micro-HDMI ports, such as Sony a7R IV, a7R III, a7 III, a7 II, a7R II, Fujifilm X-T2, X-T3, and others
Camera cages or L-brackets with two 1/4-20" threads that measure 0.35" (9mm) from center-to-center on the left side, such as SmallRig CCS2416, 2238, 2228, 2229, and others
SmallRig 3021 Specs:
- Material of Construction: PVC
- Connector 1: Female HDMI Type A
- Connector 2: Male Micro-HDMI Type D
Mounting:
- 2 x 1/4"-20 Threads
- Thread Spacing, Center-to-Center: 0.35" / 9 mm

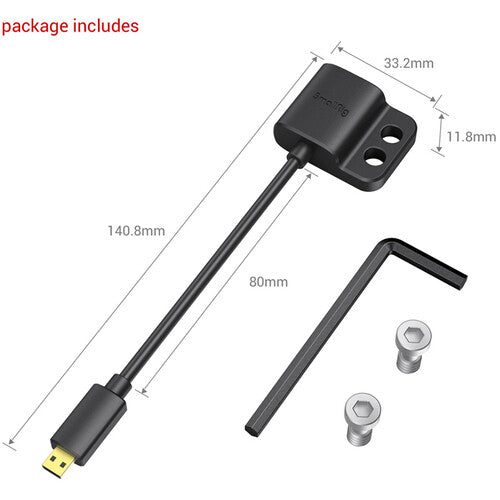

- Dimensions: 5.6 x 1.3 x 0.5" / 141.1 x 33.2 x 11.8 mm
- Weight: 1.1 oz / 31 g
