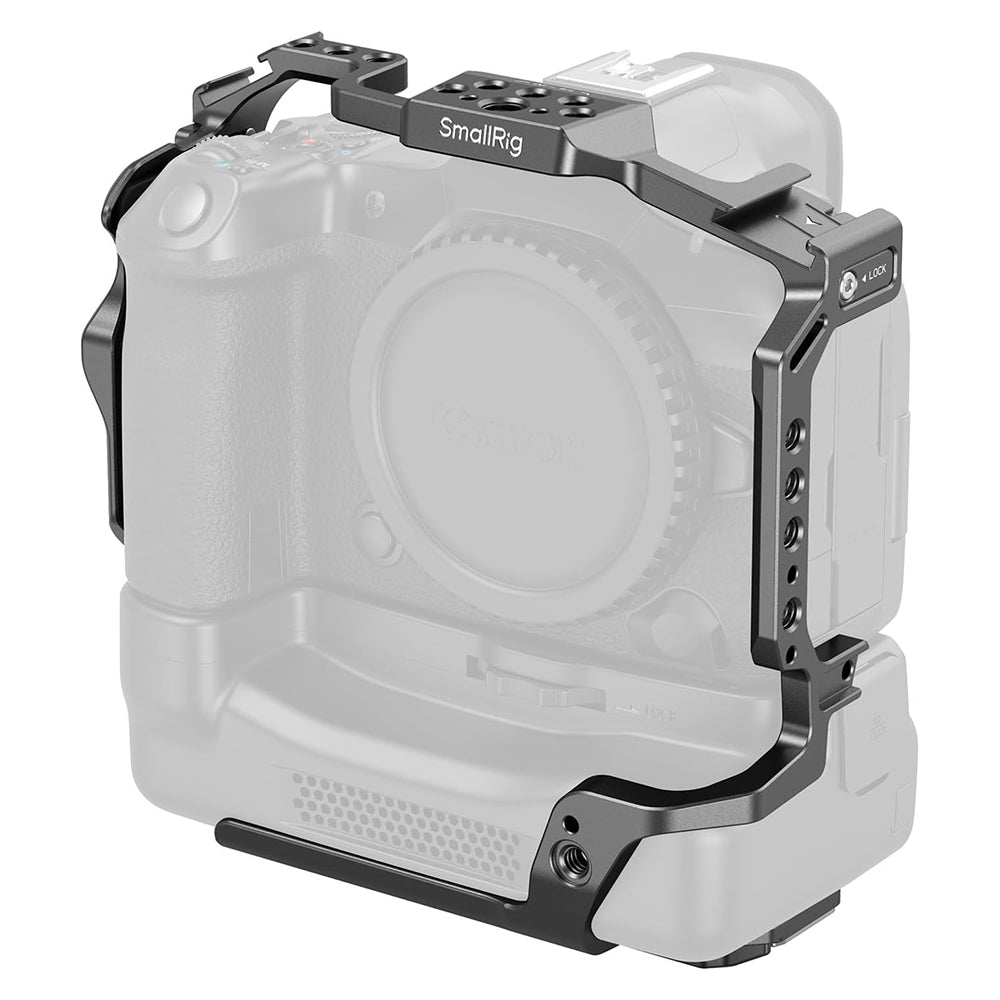

The SmallRig 5092 is a formfitting aluminum camera cage designed for the Canon R5 Mark II, offering full-body protection without obstructing access to controls. It features multiple 1/4"-20 and 3/8"-16 threads, ARRI locating holes, and three cold shoe mounts for versatile accessory expansion. The integrated Arca-type base supports quick transitions between handheld, tripod, and stabilizer setups, while its three-point locking system ensures rock-solid camera stability. Ideal for professional videographers needing robust protection and flexible mounting options.

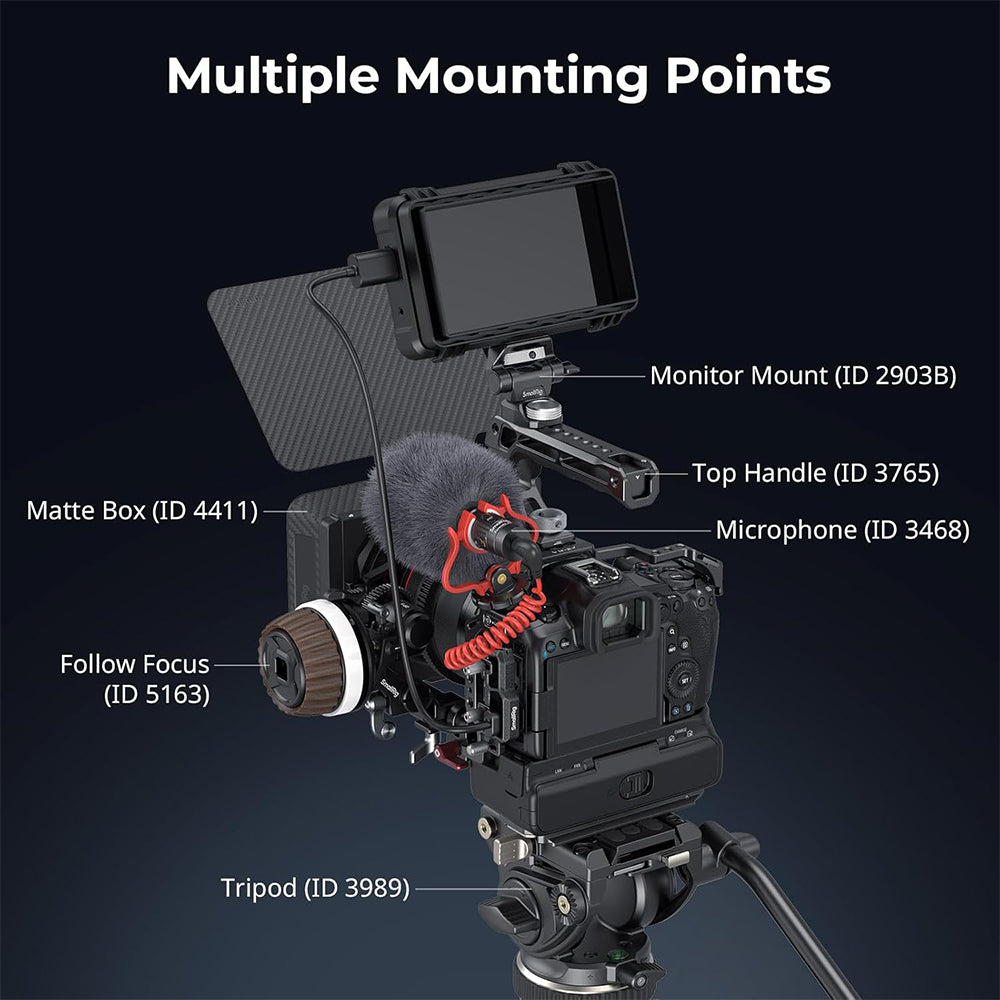

Built-in Expansion Function: The cage has multiple built-in 1/4"-20 threaded holes, 3/8"-16 threaded holes, and for ARRI 3/8" -16 locating hole, which can be expanded to carry the top handle (ID 4757, 3765), side handle (ID 4015, 4346), monitor mount (ID 2903B, 2904B), magic arm (ID 3873). Built-in wrist strap and QD socket, can be used with wrist strap (ID 3848, 2456), QD quick-release shoulder strap (ID 4118). and 3 cold shoe mounts, can be expanded with microphone (3468), led lights (ID 4660), etc.

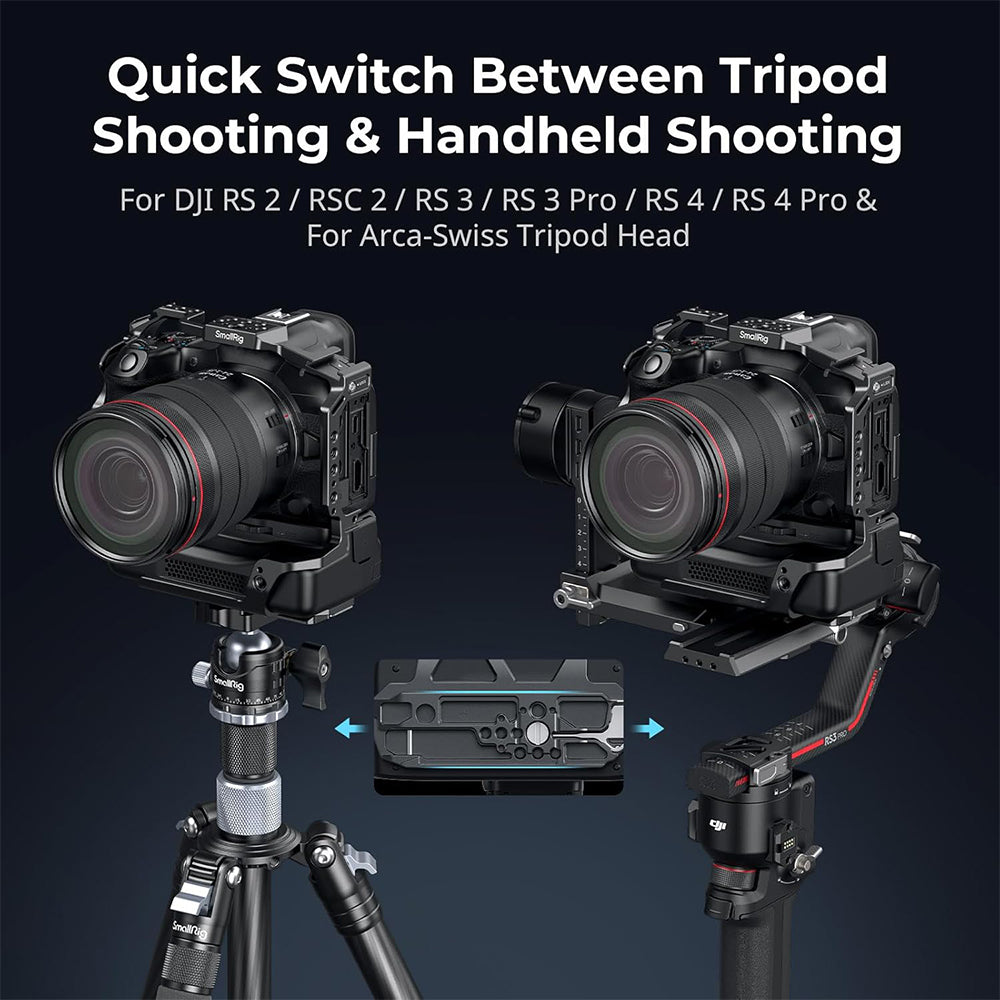

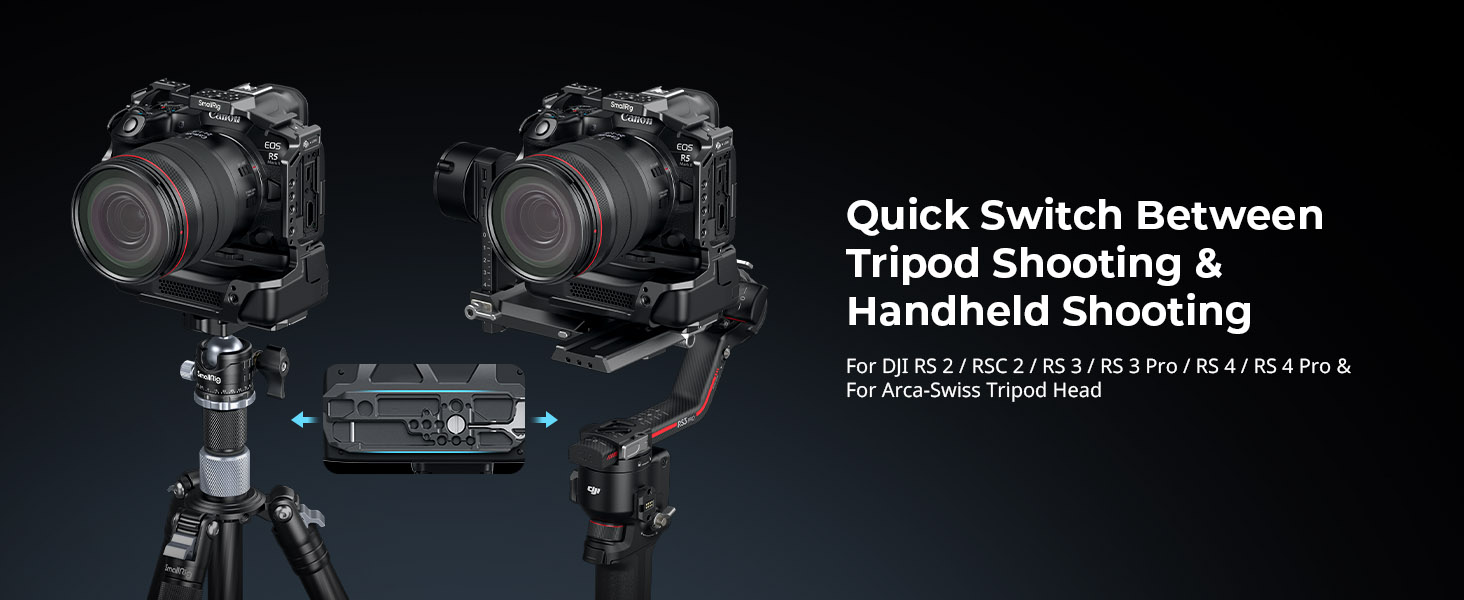

External Expansion Function: The bottom of the cage has an for Arca-Swiss quick release plate built in, which is compatible with for DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro / RS 4 / RS 4 Pro stabilizers, and can achieve quick switching between handheld, stabilizer, and tripod scenes. A 1/4"-20 locating hole is built in the front to expand the 15mm single rod to connect accessories such as follow focus.

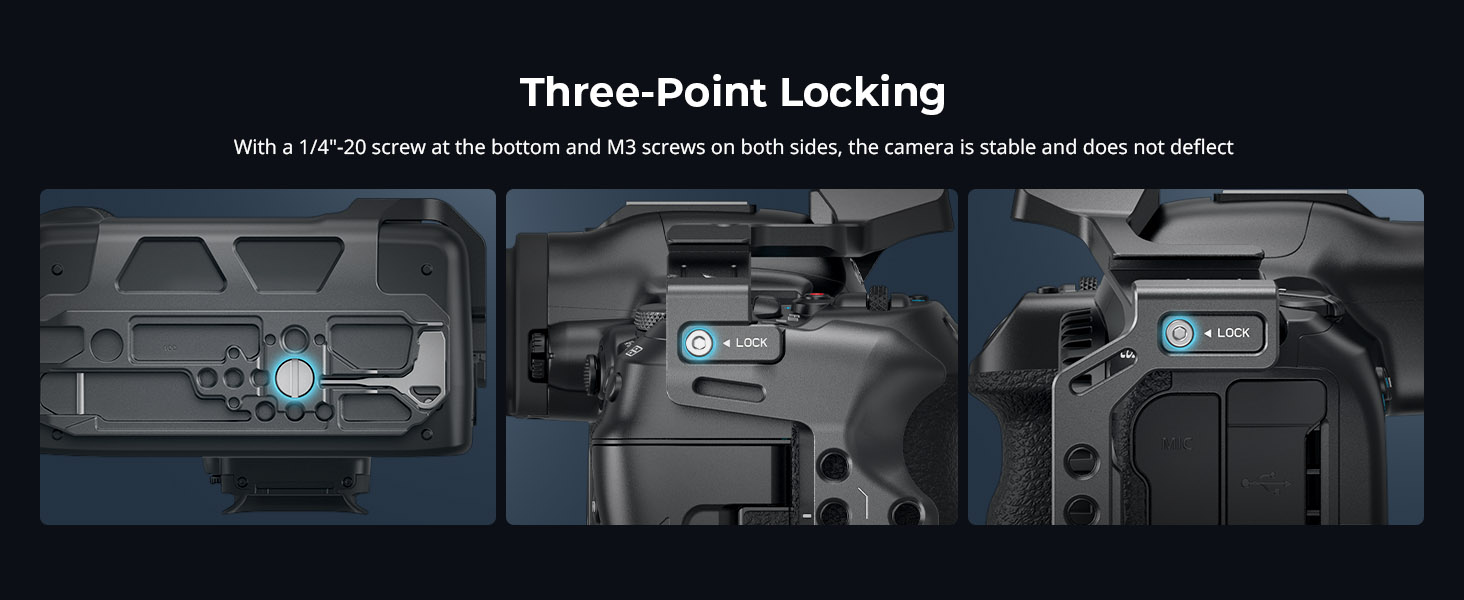

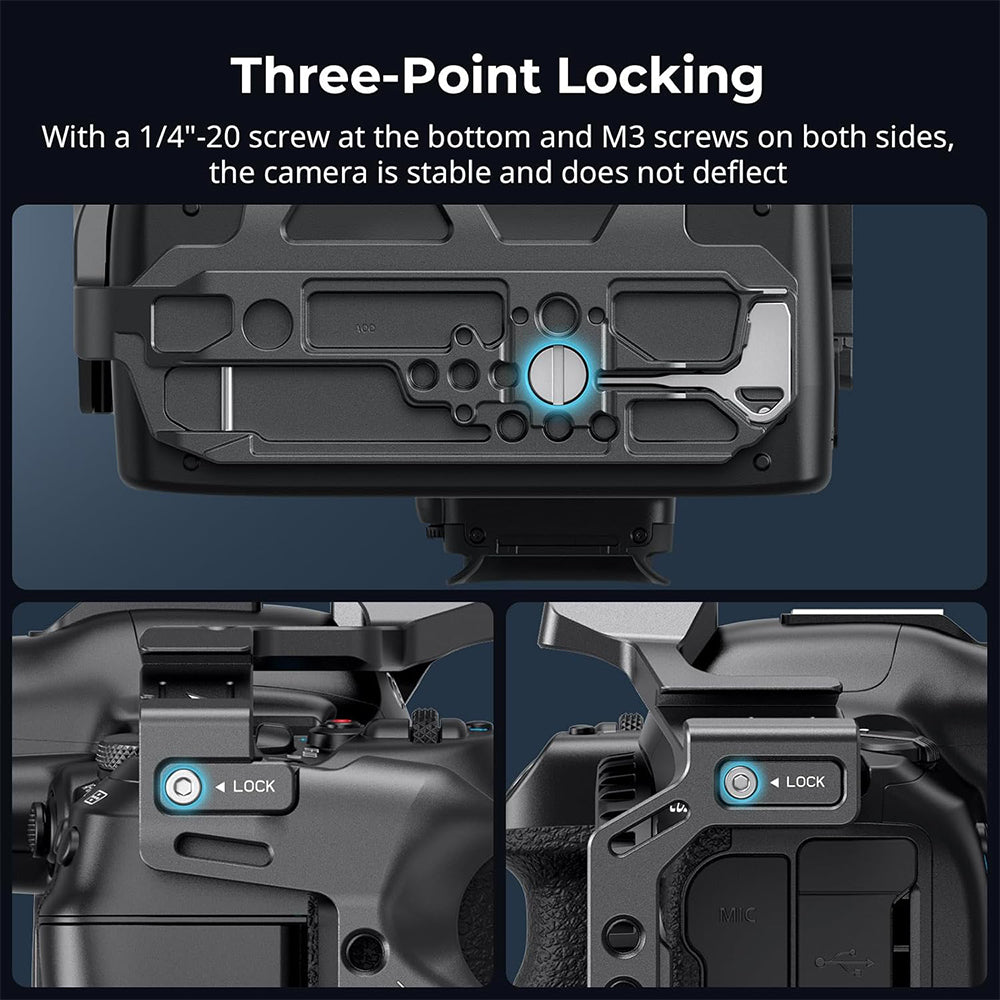

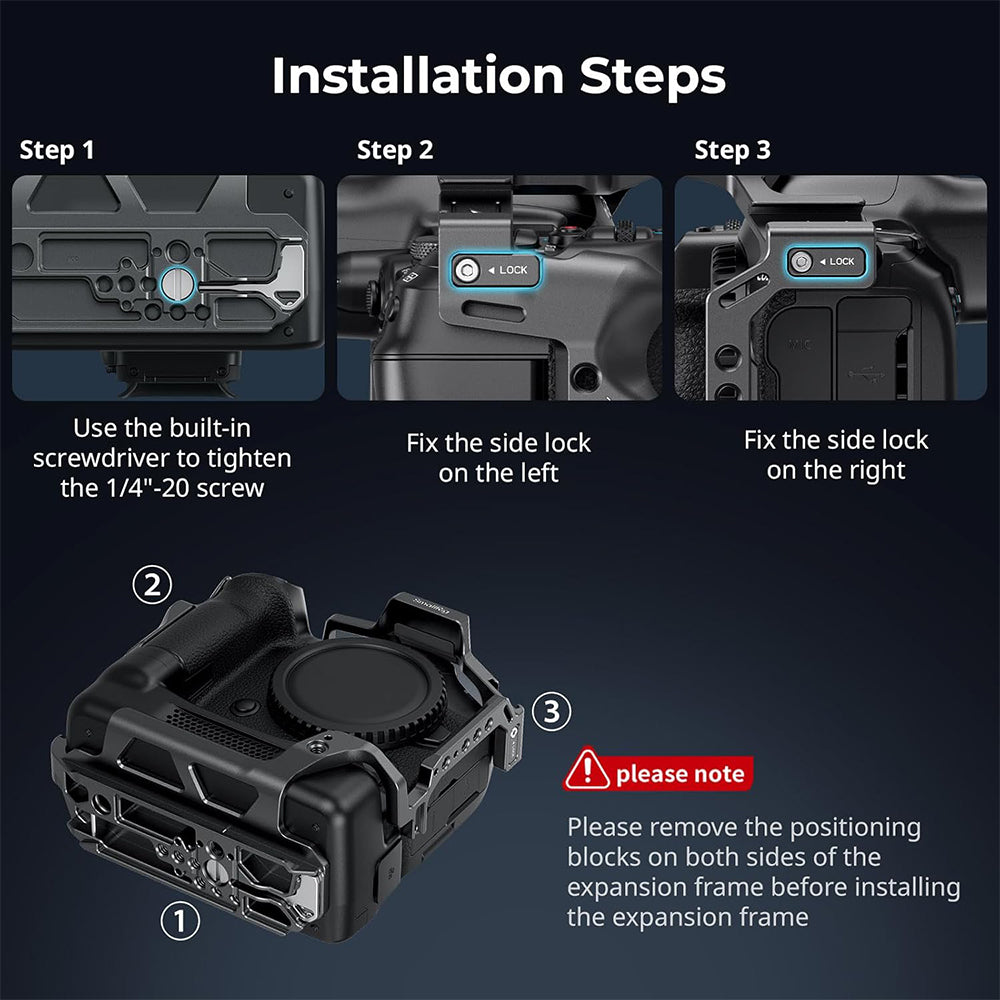

Three-Point Locking: With a 1/4"-20 screw at the bottom and M3 screws on both sides, the camera is stable and does not deflect, making shooting more stable.
Integrated Full-Cover Design: This cage provides comprehensive protection for the Canon R5 Mark II without interfering with the use of the body buttons, card slots, battery compartment, and other interfaces.
Anti-Scratch Design: Built-in silicone pads effectively prevents scratches on the camera and ensures the safety of the device.
Features:
-
Formfitting Camera Cage
-
Integrated Arca-Type Base, NATO Rail
-
Shoe Mount, Strap Slots, QD Socket
-
1/4""-20 and 3/8""-16 Accessory Threads
-
Maintains Access to Camera Controls
-
Durable Aluminum Construction

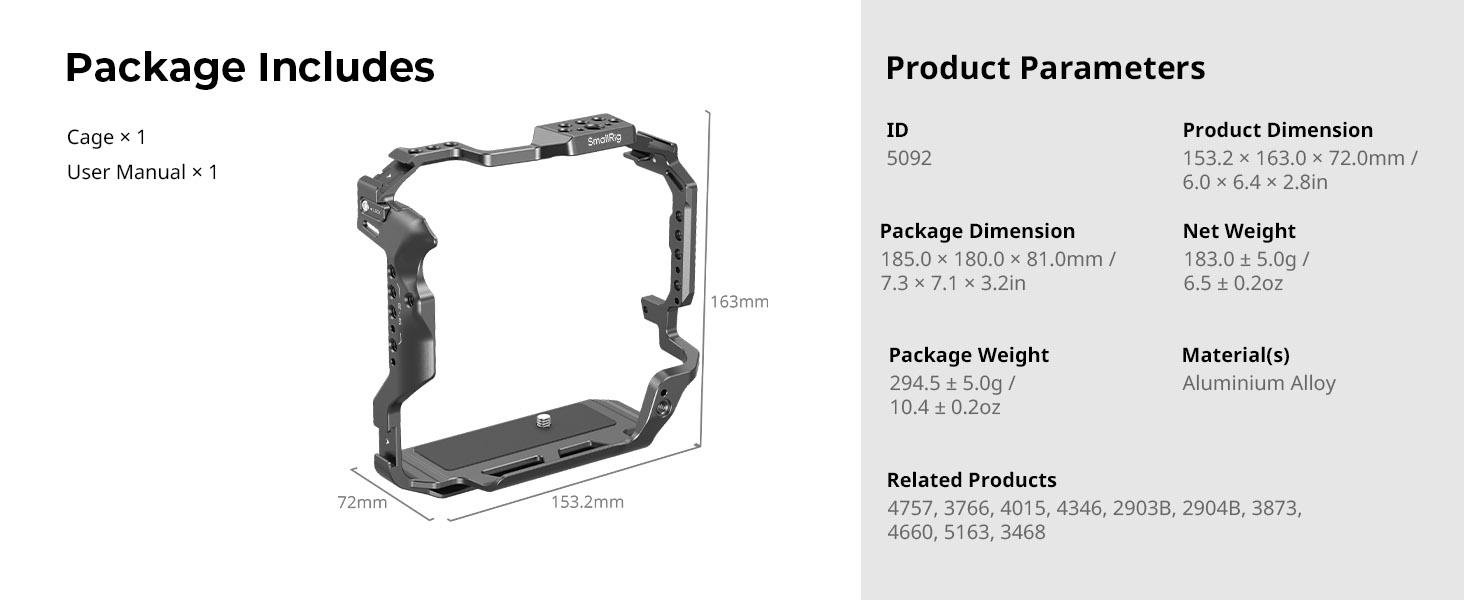

Specifications:
-
Brand: SmallRig
-
Model: 5092
-
Type: Camera Cage
-
Materials: Aluminum Alloy
-

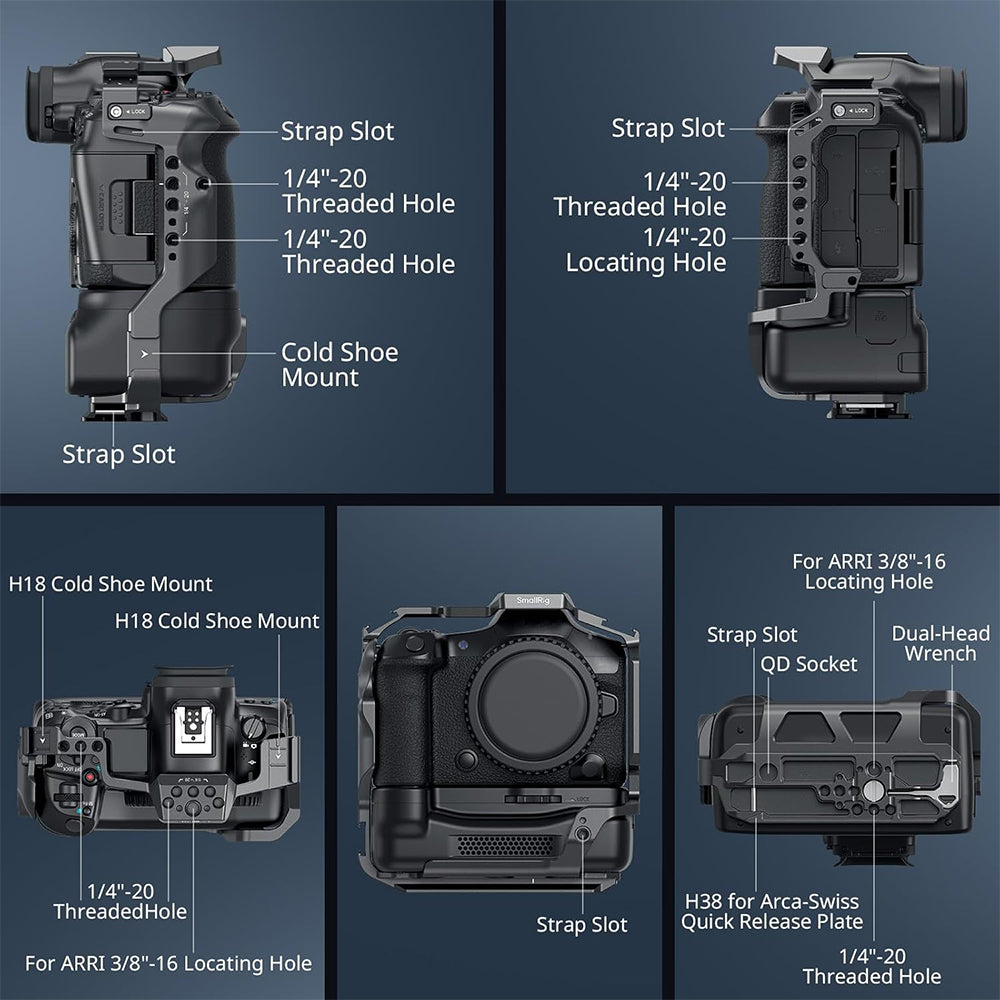

Accessory Mounting:
-
Top
-
- 1x Anti-Twist 3/8""-16 Female Thread
-
- 8x 1/4""-20 Female Thread
-
Sides
-
- 6x 1/4""-20 Female Thread
-
- 2x Anti-Twist 1/4""-20 Female Thread
-
Front
-
- 1x Anti-Twist 1/4""-20 Female Thread
-
• Camera Mounting: 1/4""-20 Male Screw
-
Tripod Mounting:
-
- 1/4""-20 Female Thread
-
- 3/8""-16 Female Thread
-
- Built-In Arca-Type Plate
-
Shoe Mounting: 3x Cold Shoe
What's inside the box?
-
1x Camera Cage
