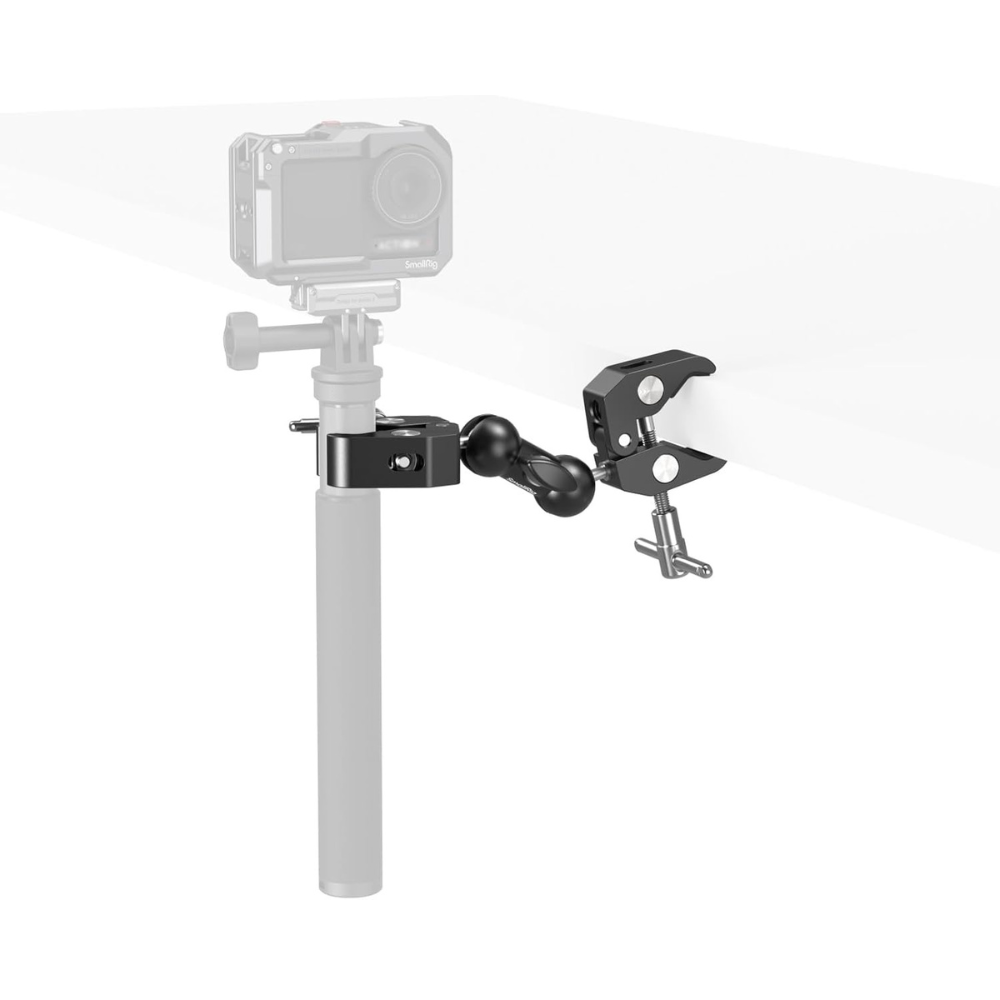

SmallRig Double Head Crab-Shaped Clamp 5331 consists of a universal magic arm and two crab-shaped clamps for versatile mounting solutions. Each clamp features a 15-40mm (0.6-1.6in) clamping range with non-slip rubber pads, enabling secure mounting of various accessories such as reflective umbrellas, selfie sticks or microphones onto tubes, tables, tripod legs, or railings.

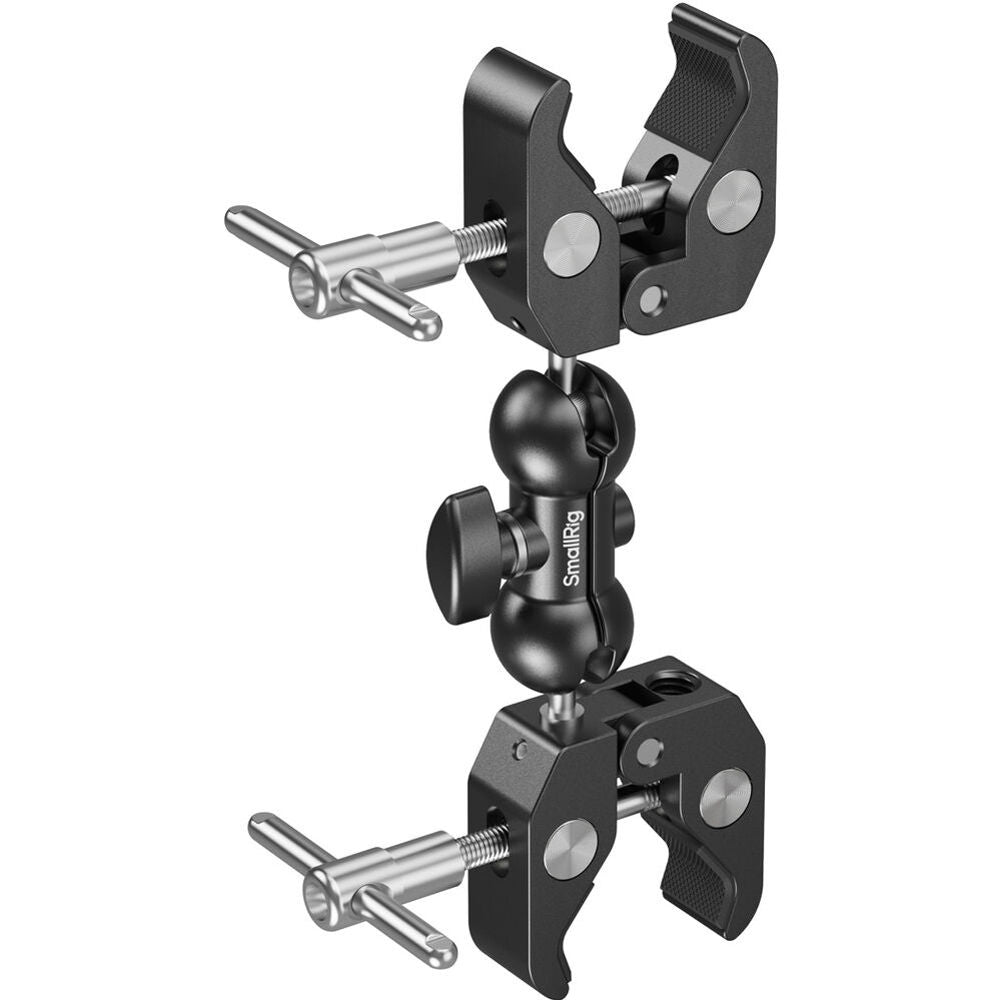

The product consists of one magic arm and two 360° ball heads with helical groove for anti-slip and secure attachment. The joint between the magic arm and super clamp adopts an anti-deflection design to ensure stability and prevent loosening or detachment during movement.
Constructed from CNC-machined aerospace-grade aluminum and stainless steel, this tool supports a maximum payload of up to 1.5kg (3.3lb), offering exceptional durability.
Precautions: Do not disassemble the universal magic arm and crab-shaped clamp, as it may compromise functions such as the anti-twist design.
SmallRig Magic Arm with Double Clamp Overview
- Connect rods, pipes, and surfaces with this Dual-Head Crab-Style Clamp from SmallRig. This mount features a crab-style clamp on each end of a magic arm with dual ball heads. The durable aluminum and stainless steel clamp assembly can support an accessory or gear weighing up to 3.3 lb.
- The magic arm features ball heads on either side that tilt and pan 360°, and there are 1/4"-20 screws on each end to mount the clamps. Each clamp can fit around a surface, rod, pipe, stand, or stick with a thickness or diameter of 0.6 to 2.6", and it secures using a large thumb lever. The inside of each clamp is lined with silicone for a solid grip.
Features:
- 15-40mm (0.6-1.6in) clamping range with non-slip pads for enhanced stability;
- Aerospace-grade aluminum alloy and stainless steel construction ensures durability;
- 1.5kg (3.3lb) load capacity makes it compatible with various photography accessories.
Key Features
- Dual Ball Head Magic Arm
- 2 Crab-Style Clamp Mounts
- Large Thumb-Lever Fasteners
- 3.3 lb Load Capacity, Rubber Padding
- Aluminum & Stainless Steel Construction
- Clamps Mount on Surface 0.6 to 1.6" Wide
Specifications:
- Top Mount: Jaw Clamp
- Depth: 0.8" / 20 mm
- Width: 3.6" / 91.8 mm
- Bottom Mount: Jaw Clamp
- Weight: 0.7 lb / 326.7 g
- Points of Articulation: 2
- Material(s): Aluminum Alloy
- Maximum Length: 7.0" / 178 mm
- Load Capacity: 3.3 lb / 1.5 kg
- Jaw Opening: 0.6 to 1.6" / 15 to 40 mm
- Net Weight: 326.7 ± 5.0g / 11.5 ± 0.2oz
- Package Weight: 380.3 ± 5.0g / 13.4 ± 0.2oz
- Accessory Mounting: 1x 3/8"-16 Female Thread

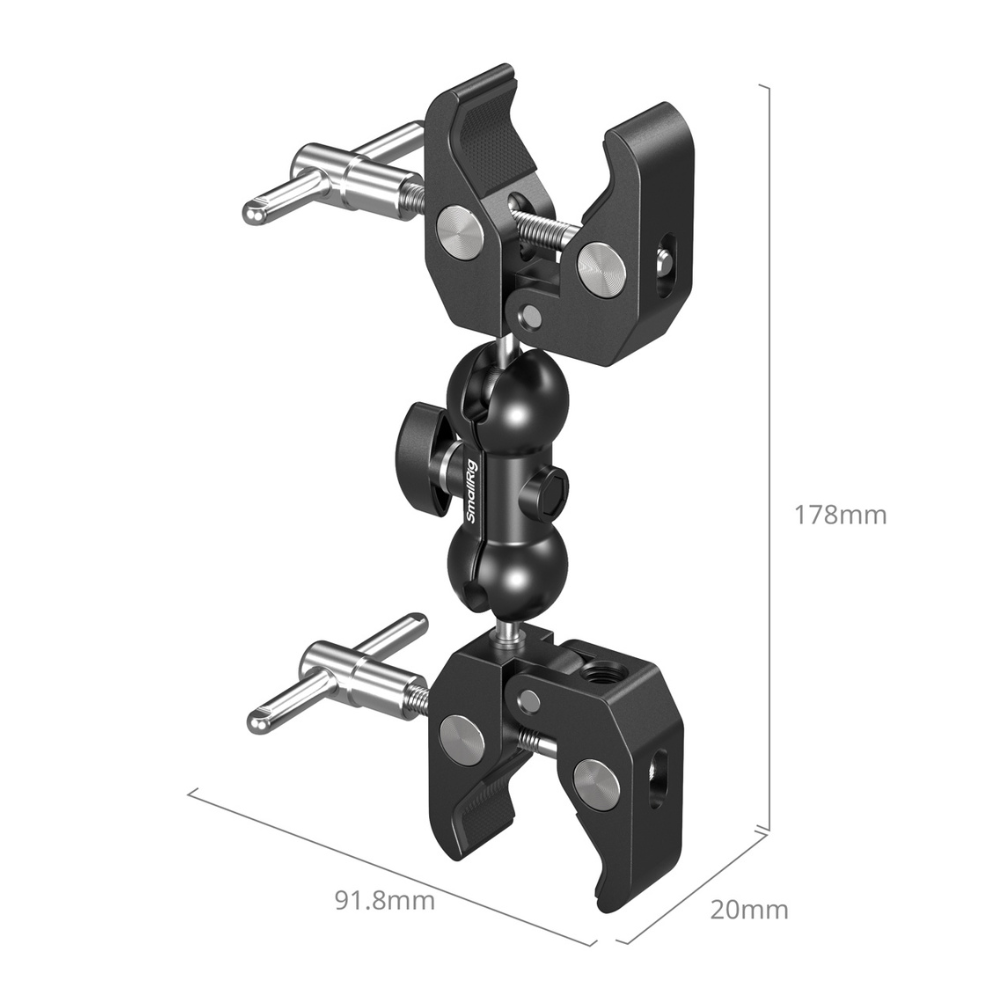

- Product Dimensions: 178.0 x 91.8 x 20.0mm / 7.0 x 3.6 x 0.8in
