SmallRig USB-C Data Cable (Male to Female) 5078 delivers fast data transfer speeds up to 20Gbps and supports 240W power delivery. The female connector can be fastened using two screws to cages or L-shaped mount plates with standard 1/4"-20 threaded holes. When paired with a cage or L-shaped mount plate, it allows flexible repositioning of the USB-C port to prevent accidental disconnections.
SmallRig 5078 Overview

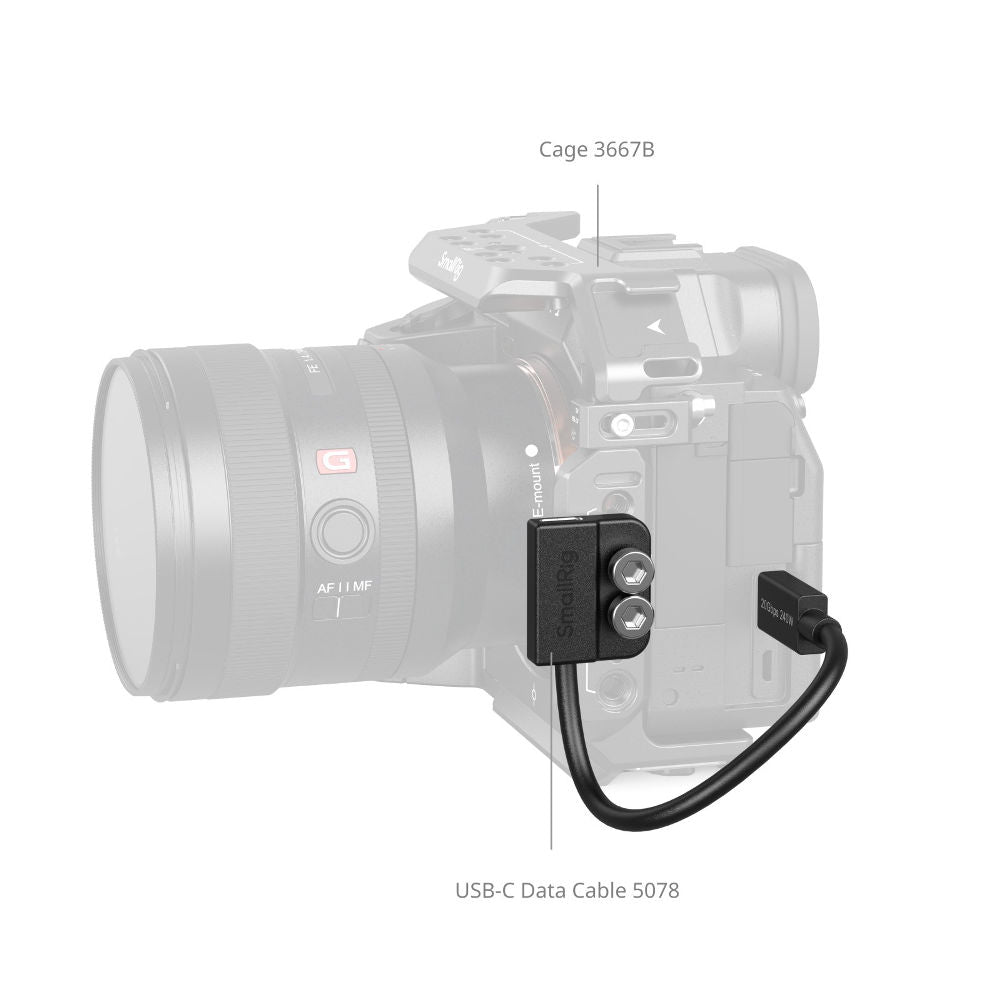

Take advantage of this short 5078 USB-C Data Cable Male to Female from SmallRig to extend the USB-C port of your camera. Just plug this cable into your camera's port and then mount the other end on your cage using the two included 1/4"-20 screws. Save wear and tear on your camera's port and position the USB-C extension port where it is most advantageous for you. This cable supports USB 3.2 Gen 2x2 and is backwards compatible all the way to USB 2.0. It also supports PD 3.1 charging as well as being backwards compatible with PD 3.0 and PD 2.0 standards. The mounting bracket is made of steel, while the cable jacket is PVC, for a long life of on-set use.
Key Features
- Includes Allen Wrench
- Reposition USB Port onto Cage
- Compatible with USB PD 3.1, 30, 2.0
- Supports USB3.2 Gen 2x2, 3.1, 3.0 & 2.0
Features
- Flexible Port Positioning: Compatible with cages / L-shaped mount plates to reposition USB-C port to reduce accidental disconnections.
- Secure Female Connector: The female connector can be fastened to protect the camera’s port.
- High-Speed Charging & Data Transfer: Supports 20Gbps data transfer and 240W fast charging.
Compatibility
1.Supports USB3.2 Gen 2x2, 3.1, 3.0, and 2.0 standards
2.Compatible with USB PD 3.1, backward compatible with PD 3.0 / 2.0
Specifications
- Color: Black
- Connector 1: 1x USB-C Male
- Connector 2: 1x USB-C Female
- Material(s): PVC, Stainless Steel,
Jacket: Polyvinyl Chloride (PVC)
- Interface: USB 3.2 Gen 2x2 (20 Gb/s)
- Product Weight: 37.0 ± 5.0g / 1.3 ± 0.2oz
- Package Weight: 52.0 ± 5.0g / 1.8 ± 0.2oz
- Product Dimensions: 200.0 x 24.6 x 6.0mm / 7.9 x 1.0 x 0.2in
- Package Dimensions: 135.0 x 110.0 x 10.0mm / 5.3 x 4.3 x 0.4in
