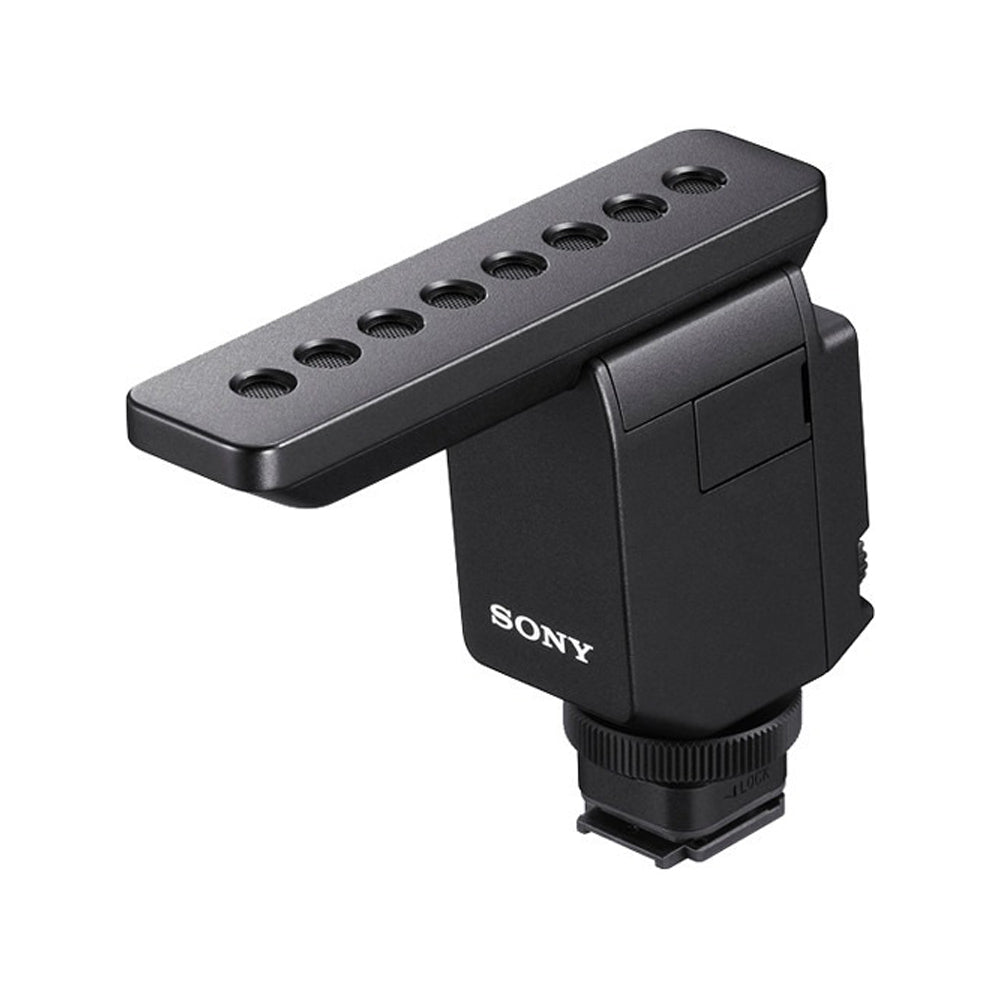

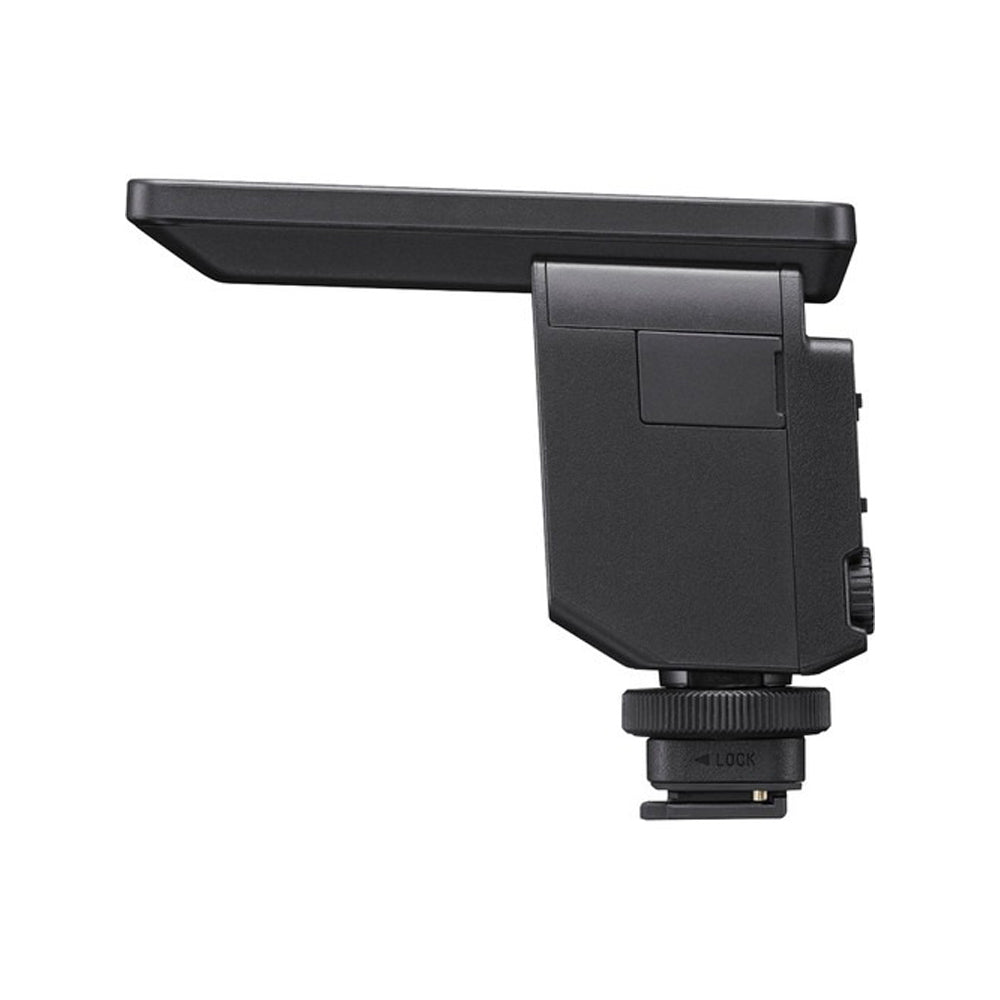

ECM-B1M Shotgun Microphone
Eight high-performance mic capsules and advanced digital signal processing provide three selectable directivity patterns in one compact microphone of approximately 99.3mm (4 inches) in length with Super-directional pick up. When connected to the Alpha 7R IV via its Multi Interface Shoe with digital audio interface support, audio is directly transferred to the camera in digital form so that the highest possible quality is achieved without noise or degradation.
Features:
-
Designed for Sony a7R IV
-
Mounts via Sony Multi Interface Shoe
-
3 x Selectable Directivity Patterns
-
Selectable Digital/Analog Output
-
4"" Ultra-Compact Design
-
Auto-Level Function
-
Low-Cut Filter
-
Cable-Free Connection
-
Vibration-Resistant Design
Specifications:
- Microphone: Primary Applications
- ENG (Electronic News Gathering), Audio for Video, Location Sound, Field Recording
- Form Factor:Camera-Mount
- Intended Sound Sources:
- Vocals, Speech/Voice-Over, Room Ambiance
- Sound Field: Mono
- Operating Principle:
- Pressure Gradient
- Pressure Operated
- Element Type: 8 x Electret Condenser
- Polar Pattern: Cardioid, Omnidirectional, Supercardioid
- Pattern Selection: Switched
- Orientation: End Address
- Circuitry: Solid-State
- Pad:
- -10 dB
- -20 dB
- High-Pass Filter: Yes
- Tone Adjustment :No
- Gain Adjustment :Yes
- Indicators:No

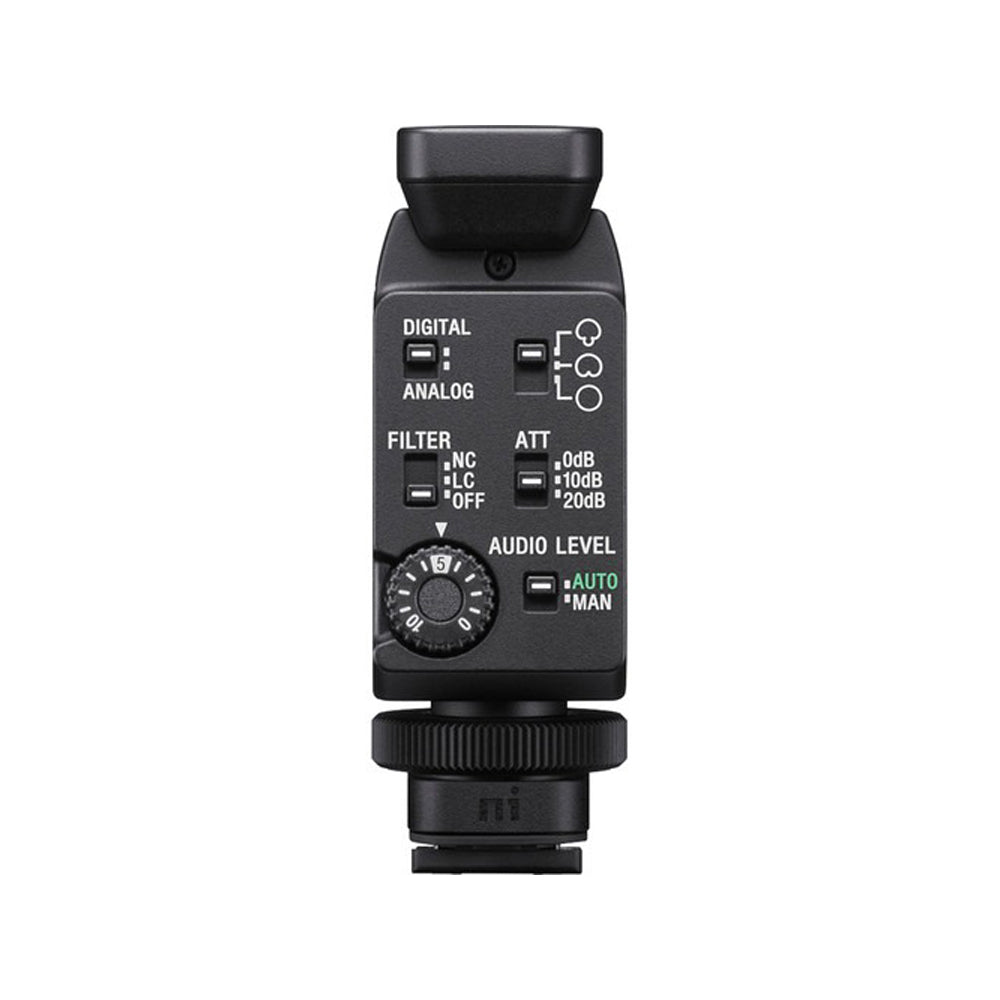

- On-Board Controls:
- Gain/Sensitivity, High-Pass Filter, Pad, Polar Pattern
- Compact, lightweight design, 99.3 mm (4 in) long and 77.3 g (2.8 oz)
- Pickup pattern: Super-directional/Unidirectional/Omnidirectional (selectable)
- Digital-interface compatible Multi Interface Shoe for clear sound
- Comprehensive manual control for optimal sound capture

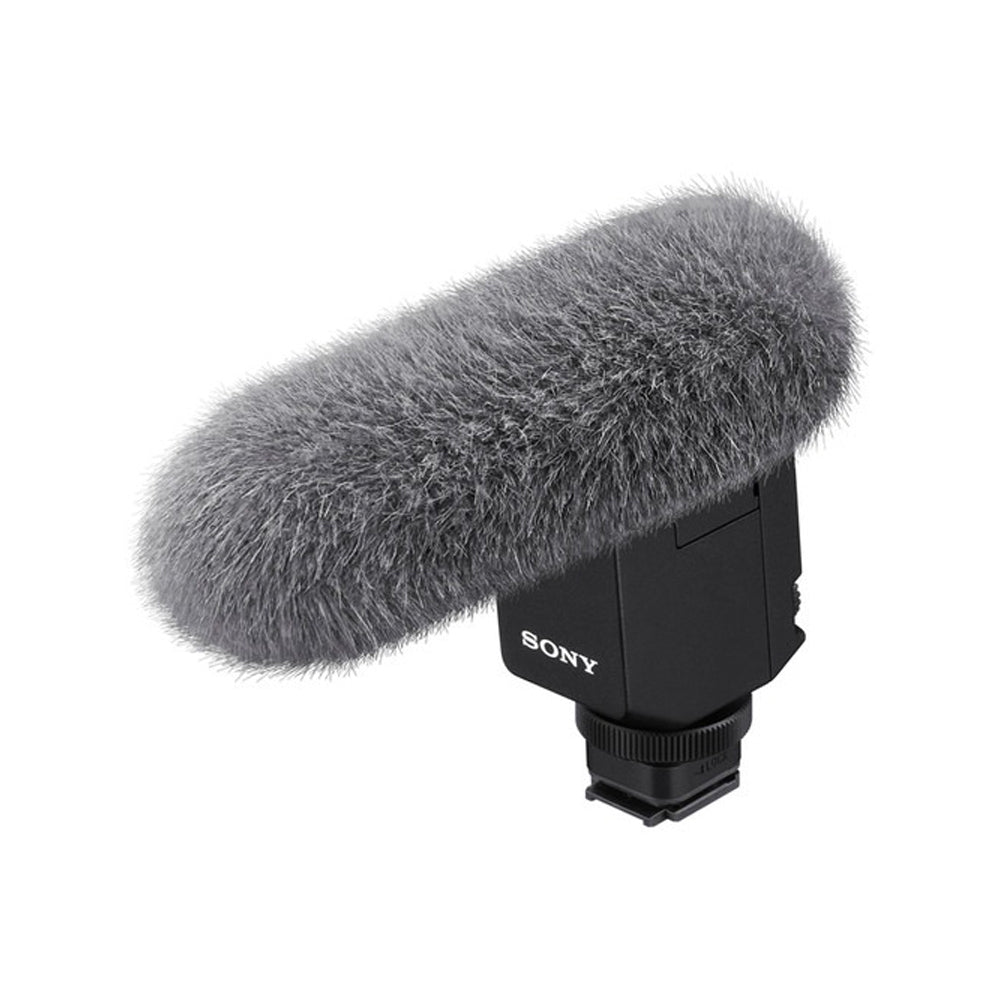

- Wind screen supplied
Compatibility:
- Digital Audio

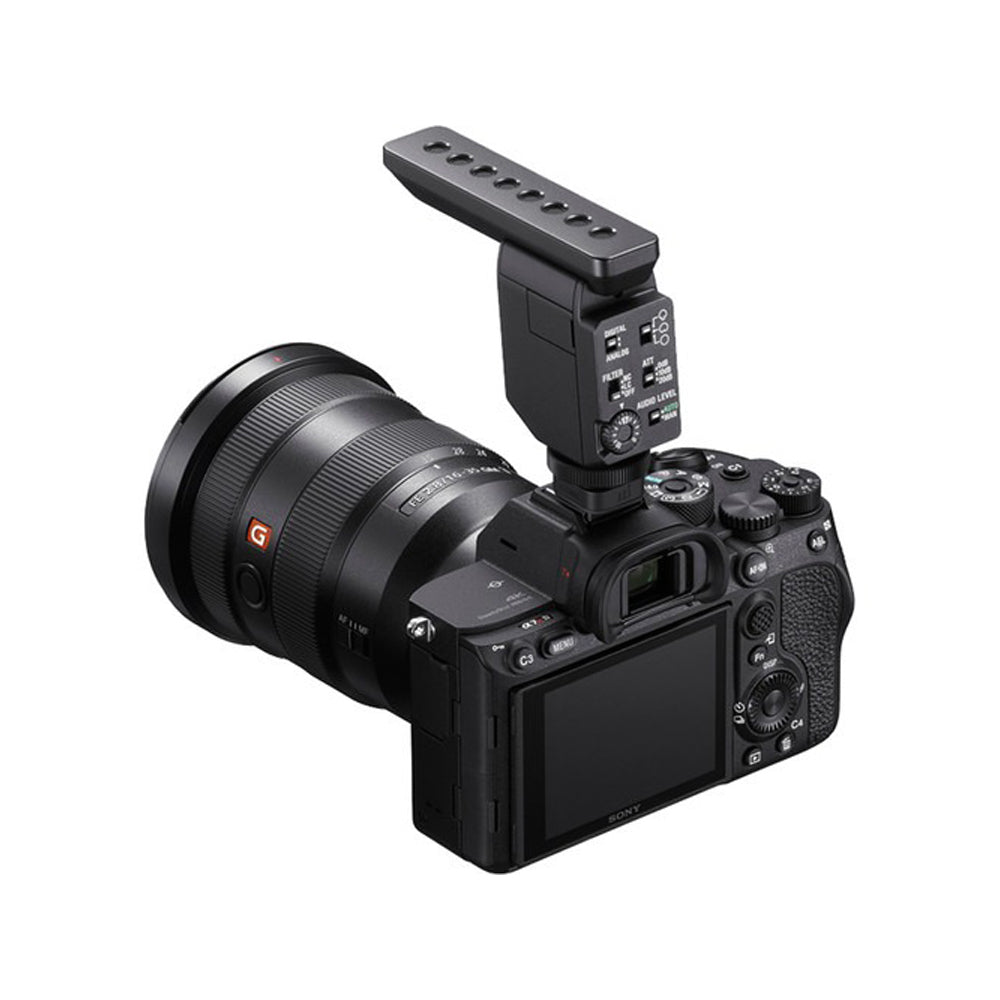

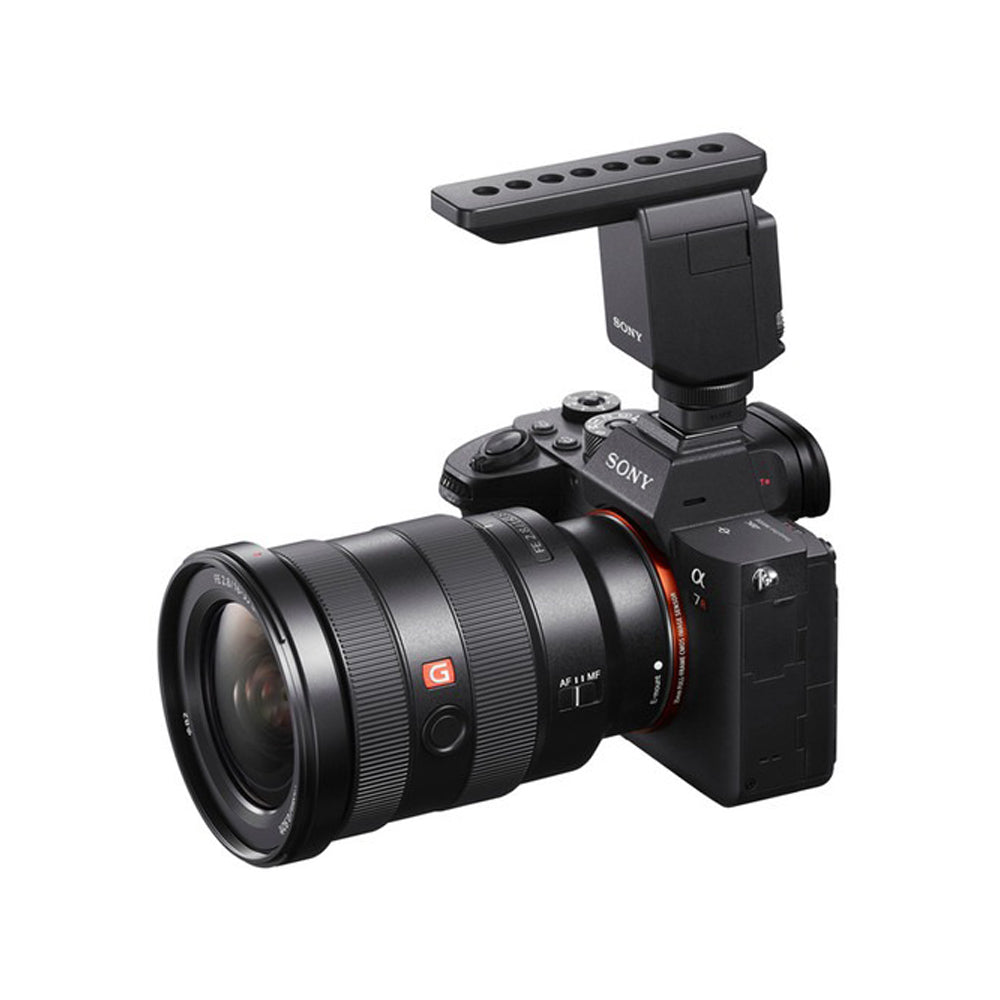

- Sony Alpha a7R IV
- Analog Audio
- Sony cameras equipped with Multi Interface Shoe
Compatible Models
FDR-AX700/FDR-AX40/FDR-AX53/FDR-AXP55/FDR-AX33/FDR-AXP35/HDR-PJ790VE/DSC-RX10M4/DSC-RX10M3/DSC-RX10M2/DSC-RX10/ILCA-99M2/SLT-A99/SLT-A99V/ILCE-6100/ILCE-6100L/ILCE-6100Y/ILCE-6600/ILCE-6600M/ILCE-7RM4/ILCE-6400/ILCE-6400L/ILCE-6400M/ILCE-7M3/ILCE-7M3K/ILCE-7RM3/ILCE-9/ILCE-6500/ILCE-6500M/ILCE-6300/ILCE-6300L/ILCE-6300M/ILCE-7SM2/ILCE-7RM2/ILCE-7M2/ILCE-7M2K/ILCE-7S/ILCE-7/ILCE-7K/ILCE-7R
* Depending on the model, the operation may be restricted or additional accessory products may be required. Please refer the manufacture site for details.
What's inside the box?
- ECM-B1M Shotgun Microphone
