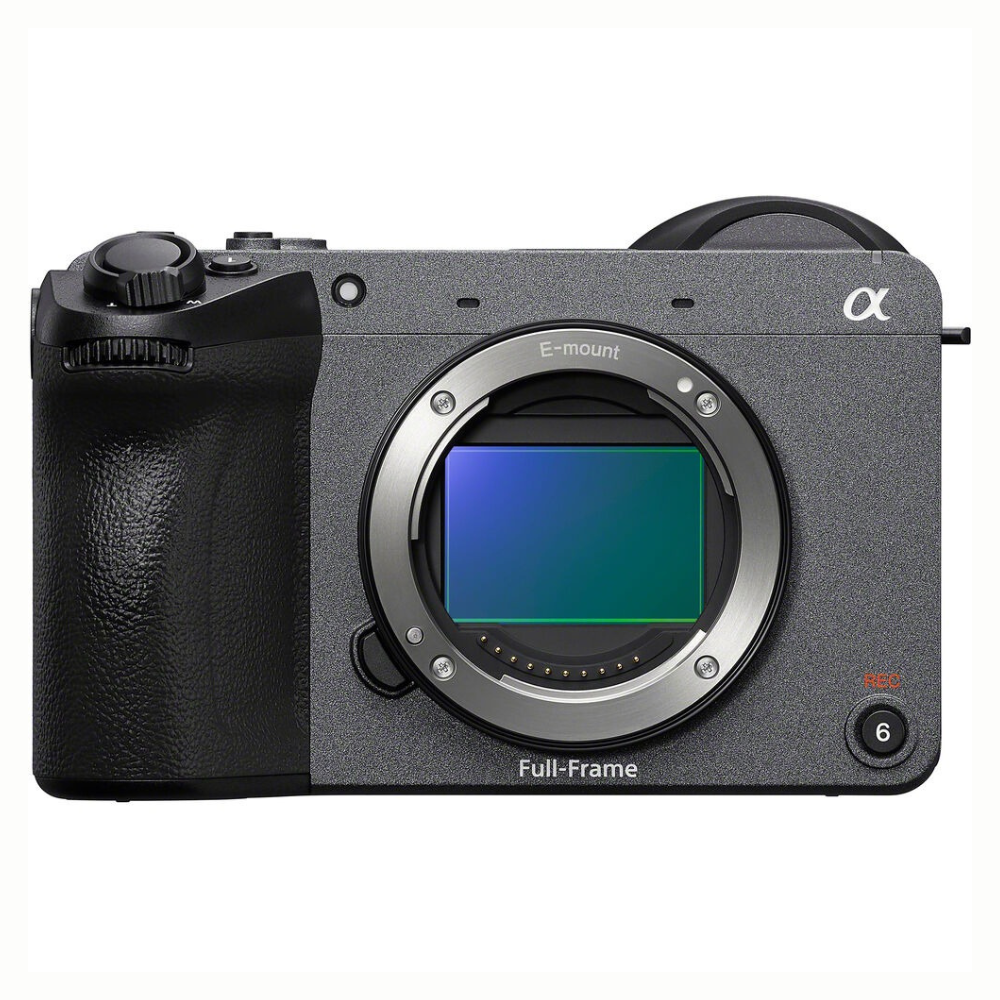

SONY ILME-FX2 BODY & SONY ILME-FX2
Overview
Sony FX2 Digital Cinema Camera
Cinematic Video Meets Advanced Photo Capture
Equipped with a 33MP full-frame sensor, the AI-powered Sony FX2 combines the comprehensive video capabilities of the Cinema Line with enhanced still image capturing in a compact, travel-friendly form factor. Ideal for on-the-go filmmakers and content creators, the FX2 features an S-Log3 photo mode with optional LUT application, and it sports a 3.68m-dot OLED viewfinder that tilts from 0 to 90°. Its AI processing unit provides active image stabilization and real-time subject recognition, allowing for maximizing the accuracy of autofocus and framing.
33MP Exmor R BSI CMOS Sensor
Pairing its 33MP back-illuminated Exmor R sensor with a BIONZ XR processor, the FX2 captures vivid 4K video with natural gradations, realistic color, and low noise in both full-frame and Super 35 modes, providing wide lens compatibility without sacrificing resolution. In full-frame mode, the FX2 records 4K30 video with 7K oversampling and full pixel readout for exceptional sharpness and realism. Maximum frame rate at 4K resolution increases to 60 fps when shooting in Super 35 mode. Designed to tackle diverse lighting scenarios, the FX2 features a dynamic range greater than 15 stops, an ISO expandable up to 204800, and updated dual-base ISO technology for capturing footage in S-log3 at 800 or 4000 ISO.
Designed for flexibility, the FX2 shoots DCI 4K footage internally with 10-bit 4:2:2 sampling or outputs 16-bit raw video via an HDMI connection. Capture video in XAVS S, S-I, and HS recording formats in Long GOP, All-Intra, H.264, and H.265 codecs. Color and tone reproduction can be tailored with precision using up to 16 user-imported LUTs or S-Cinematone mode for matching VENICE, FX9, FX6, FX3, and other camera sources. The FX2 features an intuitive Variable FPS setting for creating time-lapses and slow-motion video, and it can de-squeeze 1.3 and 2.0x anamorphic footage, all in-camera.
Key Features
- 33MP Full-Frame CMOS Exmor R Sensor
- 4K up to 60 fps | 1080p up to 120 fps
- 33MP Stills in S-Log3 at 800/4000 ISO
- AI-Powered Auto Focus & Framing
- Dynamic Active AI-Based Stabilization
- 10-Bit 4:2:2 XAVC S-I, 16-Bit Raw Output
- S-Cinetone/S-Log3/HLG, 15+ Stops DR

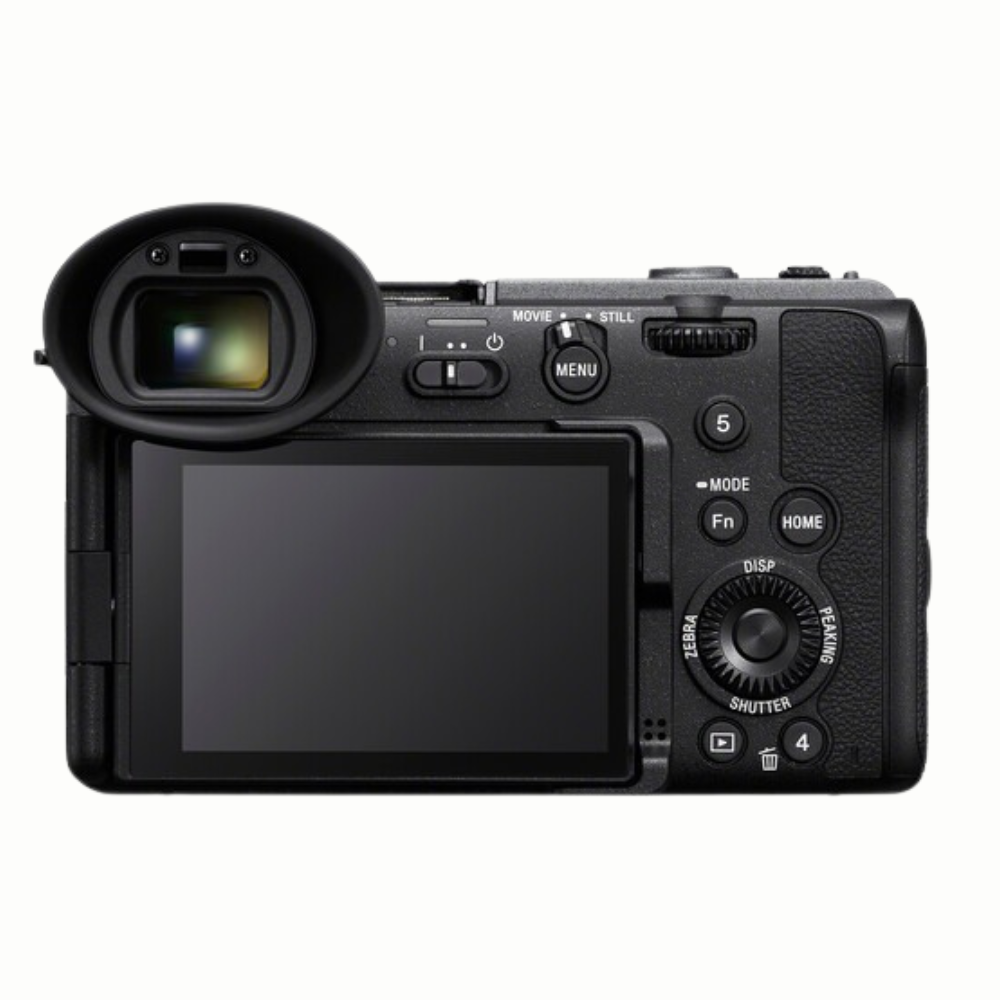

- 3.68m-Dot 0.7x OLED EVF with 90° Tilt
- CFexpress Type A & SD Card Slots
- 2.4/5 GHz Wi-Fi for 4K Live Streaming
- Sony FX2 Digital Cinema Camera
Image Sensor: 35.9 x 23.9 mm (Full-Frame) CMOS
- Sensor Resolution
Actual: 34.1 Megapixel
Effective: 33 Megapixel
Image Stabilization: Sensor-Shift, 5-Axis
- ISO/Gain Sensitivity
- Dual Base: 800 / 4000
- Native: 100 to 51,200 (50 to 204,800 Extended)
Video
- Dual Base: 800 / 4000
- Native: 100 to 51,200 (100 to 102,400 Extended)
- Internal Recording
H.264 ALL-Intra/H.264 Long GOP/MPEG-4 AVC/XAVC S 4:2:2 10-Bit
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps [100 to 200 Mb/s]
1920 x 1920 at 23.98/25/29.97/50/59.94 fps [50 Mb/s]
- H.264 ALL-Intra/H.264 Long GOP/MPEG-4 AVC/XAVC S-I 4:2:2 10-Bit
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps [240 to 600 Mb/s]
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps [240 to 600 Mb/s]
1920 x 1920 at 23.98/25/29.97/50/59.94 fps [89 to 222 Mb/s]
- H.264 ALL-Intra/H.264 Long GOP/MPEG-4 AVC/XAVC S 4:2:0 8-Bit
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps [60 to 150 Mb/s]
1920 x 1080 at 23.98/25/29.97/50/59.94/100/120 fps [16 to 100 Mb/s]
- H.265 ALL-Intra/H.265 Long GOP/XAVC HS 4:2:2 10-Bit
UHD 4K (3840 x 2160) at 23.98/50/59.94 fps [50 to 200 Mb/s]
H.265 ALL-Intra/H.265 Long GOP/XAVC HS 4:2:0 8-Bit
UHD 4K (3840 x 2160) at 23.98/50/59.94 fps [30 to 150 Mb/s]
- Video Output
4:2:2 8/10-Bit via HDMI
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps
HD (1920 x 1080) at 29.97/50/59.94 fps
Raw 16-Bit via HDMI
4672 x 2628 at 23.98/24.00/25/29.97/50/59.94 fps

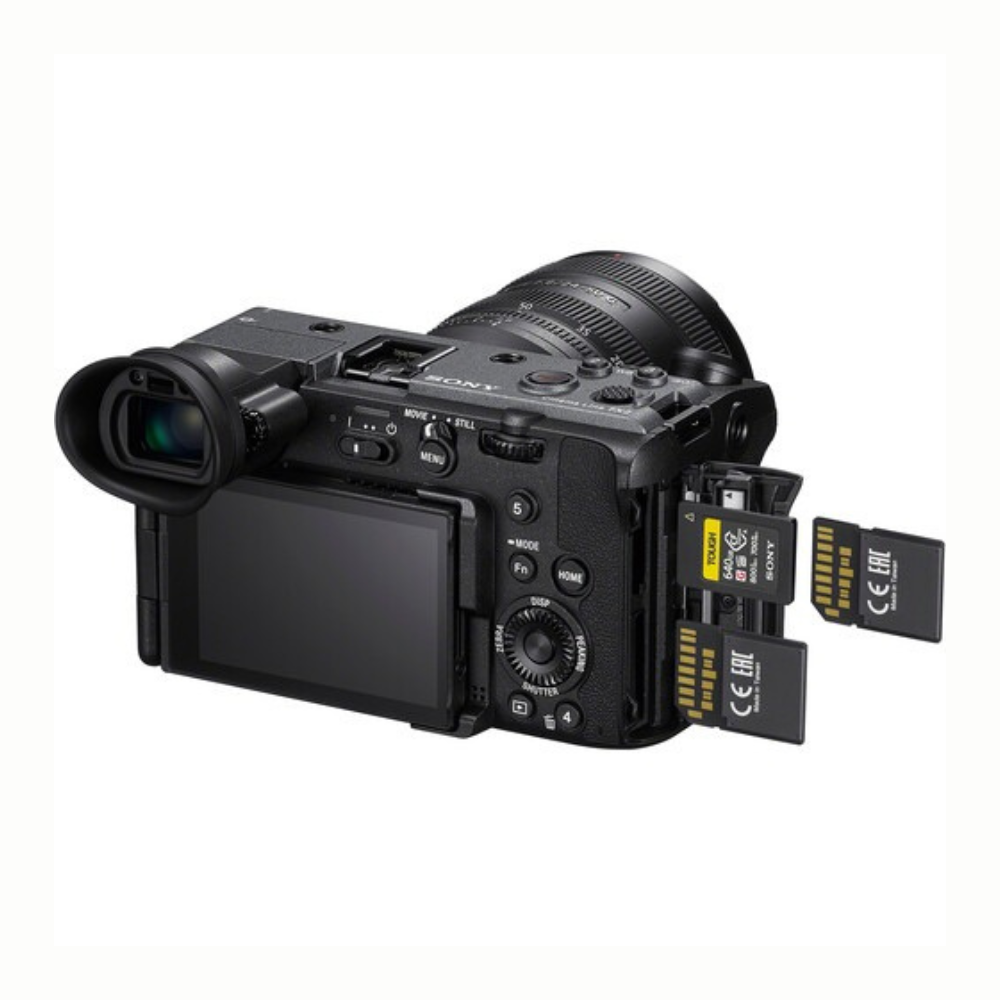

- Media/Memory Card Slot
Slot 1: CFexpress Type A / SD (UHS-II)
Slot 2: SD/SDHC/SDXC (UHS-II)
Video I/O
- 1 x HDMI (Unspecified Signal) Output
- 1 x USB-C 3.0 / 3.1/3.2 Gen 1 Output
Mobile App Compatible:
- App Name: Sony | Creators' App
Battery Type: NP-FZ100
Interface
Media/Memory Card Slot
- Slot 1: CFexpress Type A / SD (UHS-II)
- Slot 2: SD/SDHC/SDXC (UHS-II)
Video I/O
- 1 x HDMI (Unspecified Signal) Output
- 1 x USB-C 3.0 / 3.1/3.2 Gen 1 Output
Audio I/O
- 1 x 1/8" / 3.5 mm TRS Stereo Microphone Input
- 1 x 1/8" / 3.5 mm TRS Stereo Headphone Output
- Power I/O: 1 x USB-C Input
- Other I/O: 1 x Micro-USB
- Mobile App Compatible: App Name: Sony | Creators' App
General
- Shoe Mount: 1x Intelligent Hot Shoe
- Tripod Mount: 2x 1/4"-20 Female (Bottom)
- Accessory Mounting Thread: 3x 1/4"-20 on Camera Body
- Material of Construction: Magnesium Alloy
Dimensions (W x H x D)
- 5.1 x 4.1 x 3.1" / 129.7 x 103.7 x 77.8 mm

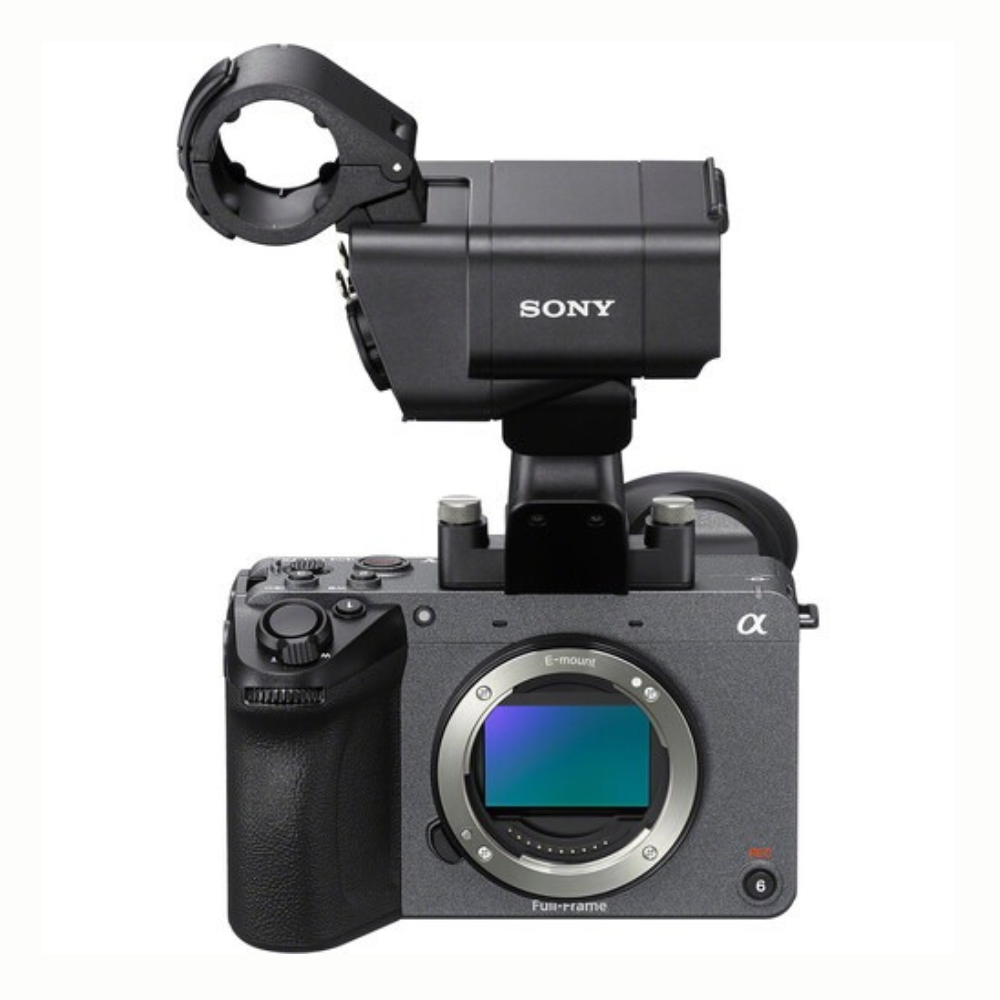

SONY ILME-FX2
General
Compatibility
- Sony FX3
- Sony FX30
Inputs / Outputs
Connector 1
- 2x Combo XLR-1/4" Female
Connector 2
- 1x 3.5mm Female
Environmental
- Operating Temperature: 32 to 104°F / 0 to 40°C
Physical
- Color: Black
Dimensions
- 6.8 x 5.5 x 4.5" / 172 x 140.8 x 113.2 mm
