SPECIFICATIONS:

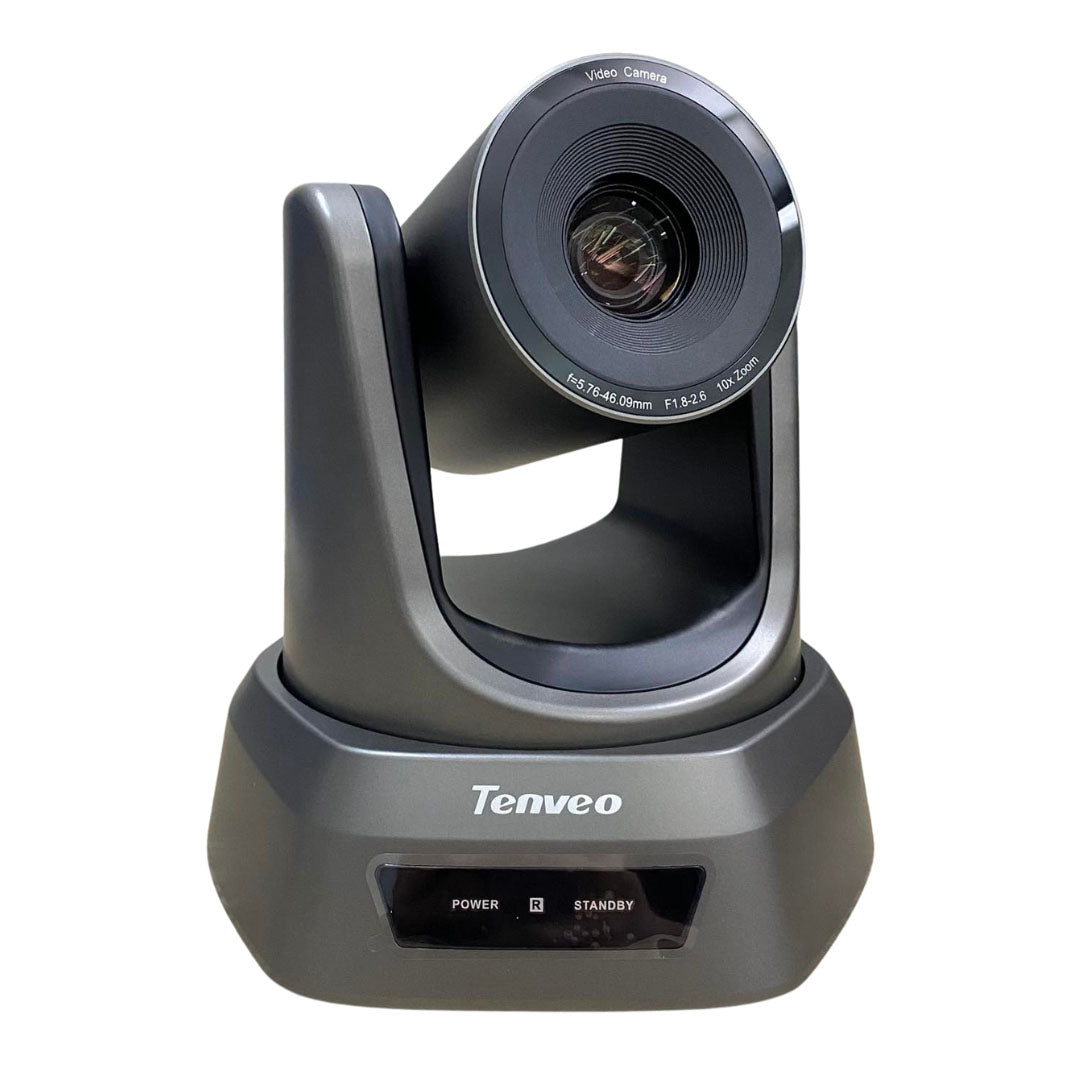

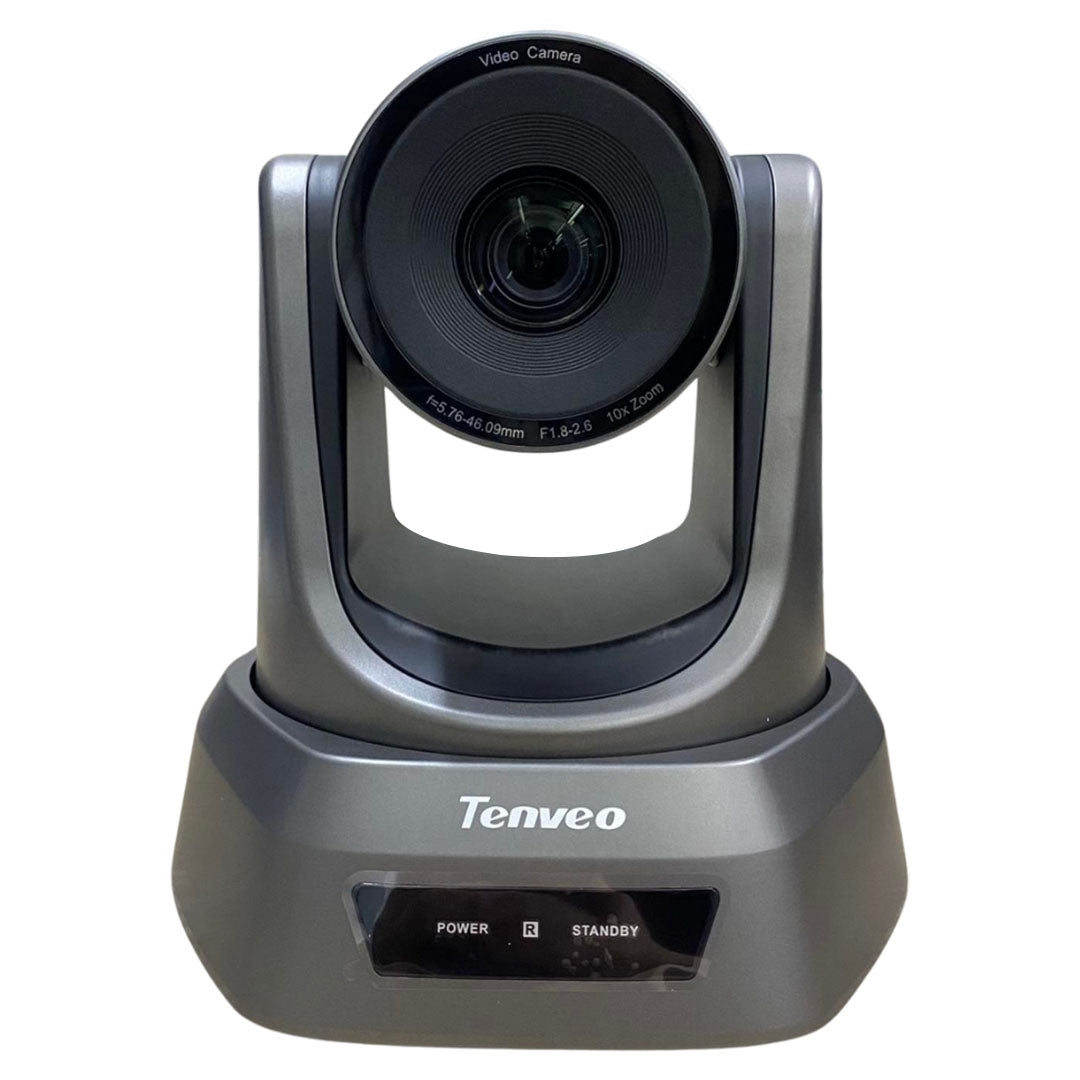

Model: NV10H
- Sensor: 1/2.8" Sony CMOS
- Megapixel: 2.38MP
- Video Signals:
- 1080p @ 60 / 50 / 30 / 25fps
- 720p @ 60 / 50 / 30 / 25fps

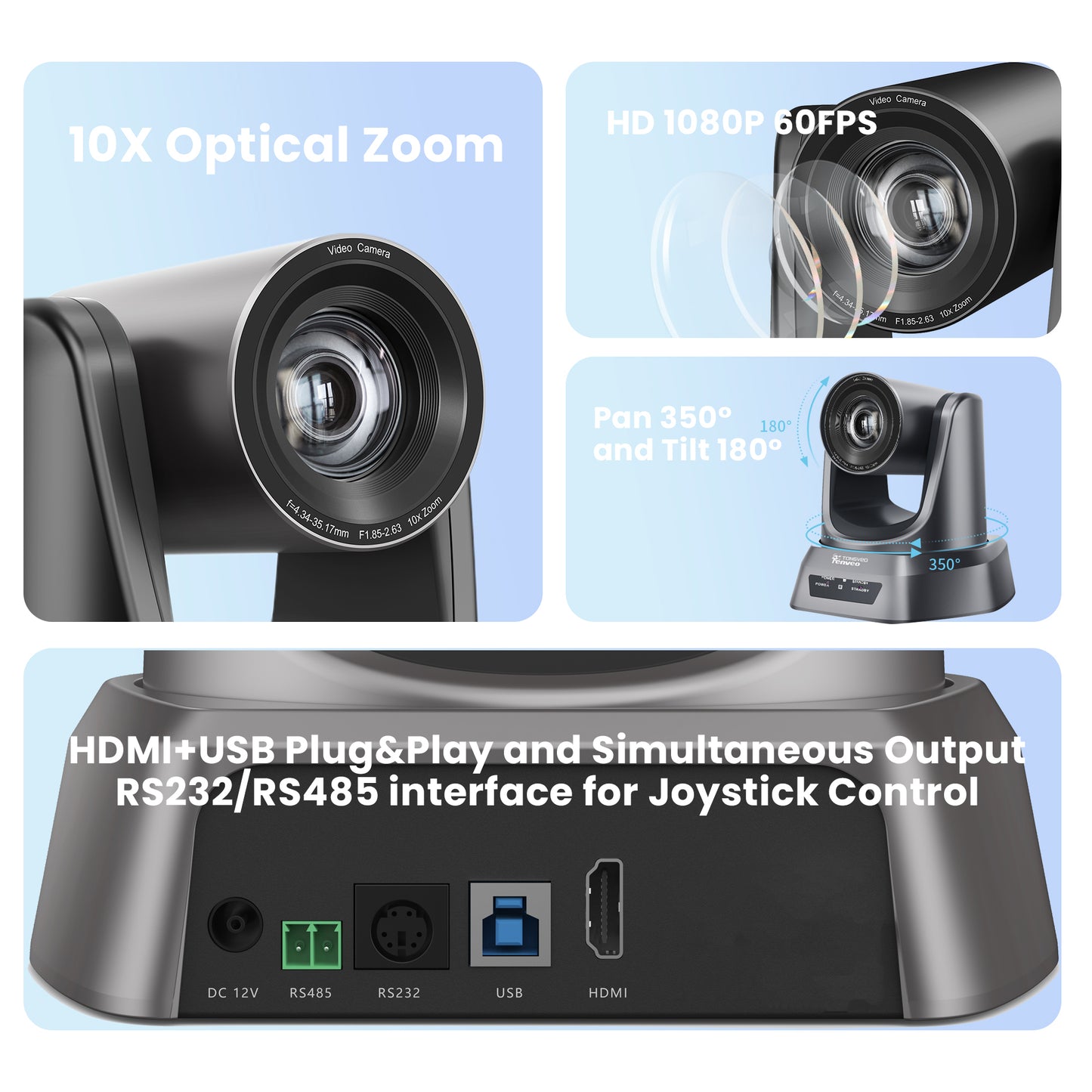

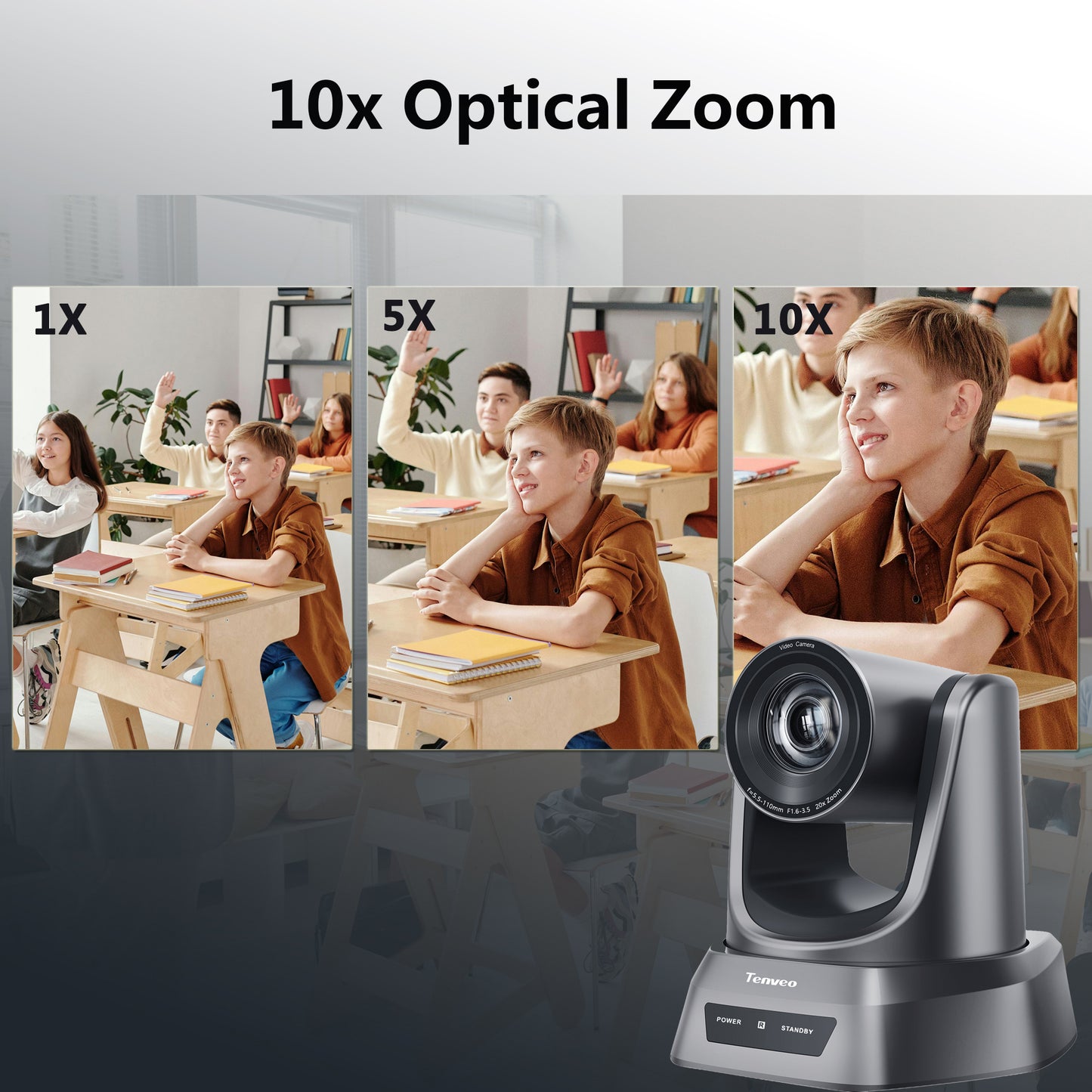

- Zoom: 10x Optical Zoom
- Lens: f = 5.76 -46.09mm
- Aperture: f/1.8 - 2.6
- Horizontal Angle: 54.7° (W) - 6.8° (Tilt)
- Vertical Angle: 30.8° (W) - 3.8° (T)
- Diagonal Angle: 62.8° (W) - 7.8° (T)

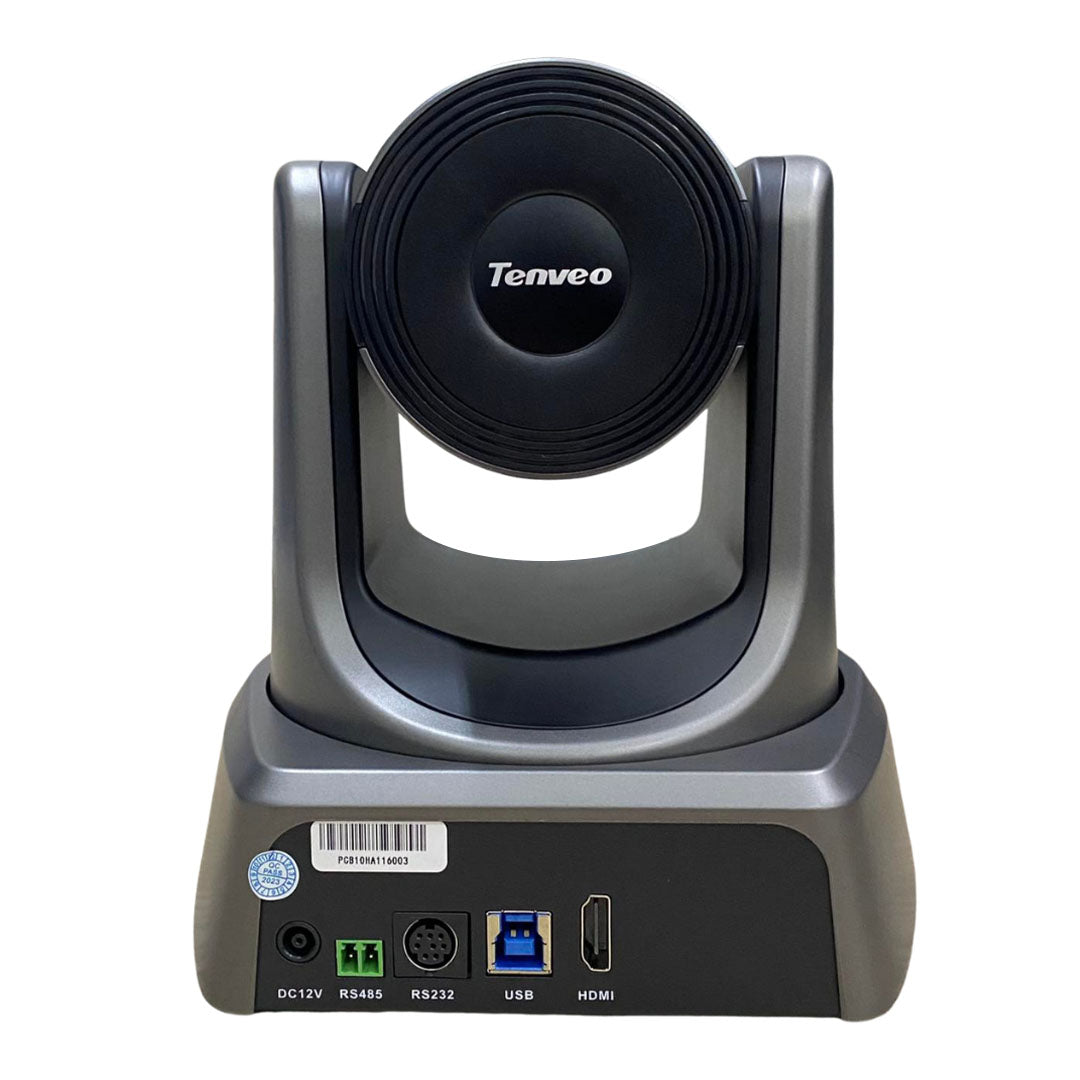

- Video Output: USB 3.0, HDMI
- Video Encoding Format: H.264, H.265, MJPG, YUY2
- Video Resolution: 1080p (1920*1080)
- Signal Standard: NTSC / PAL
- Preset Position: User can set up to 255 presets (10 presets by IR Remote)

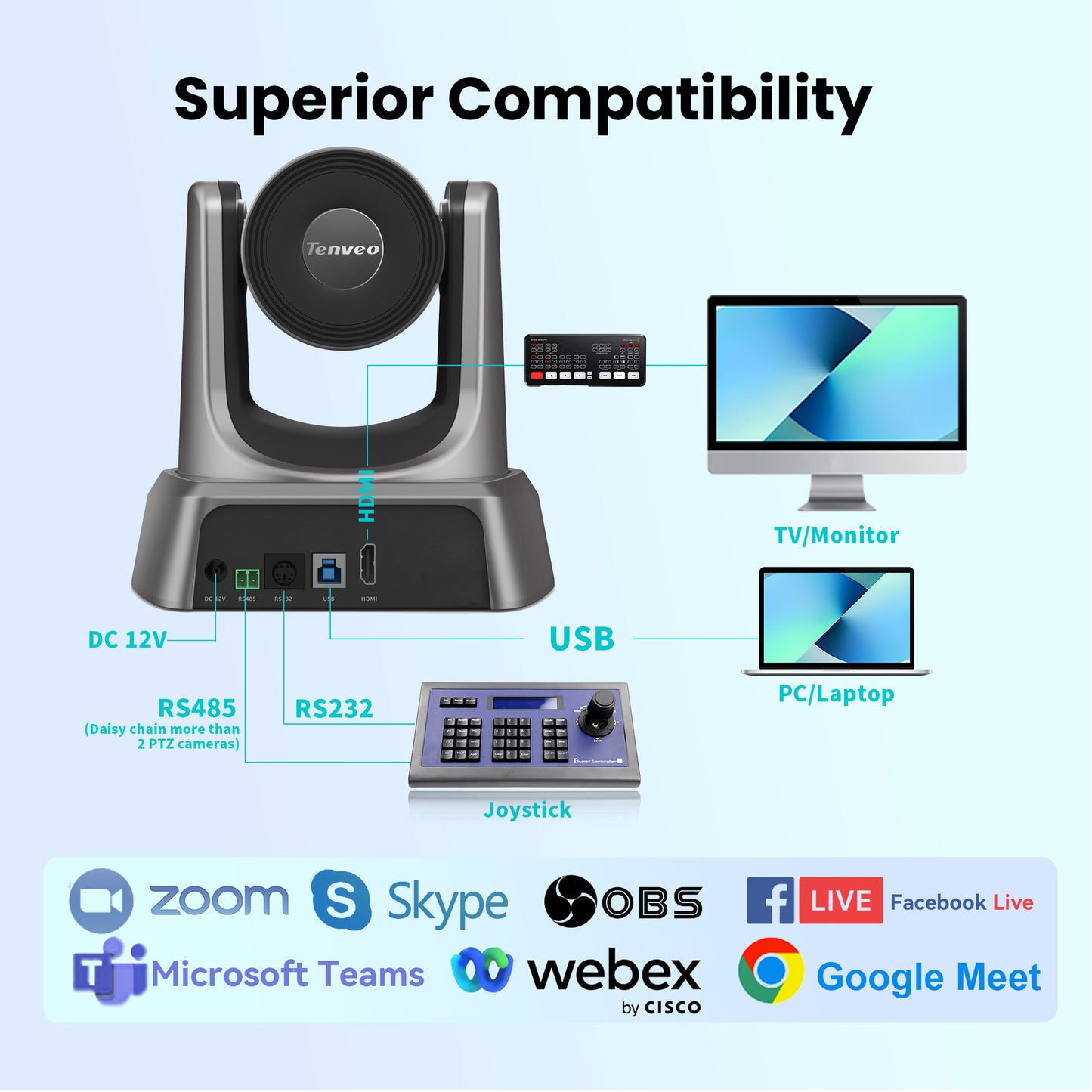

- Control Interface: RS-232 (input only), RS-485, USB
- Shutter: 1/30s-1/10000s, Auto
- Baud Rate: 2400 / 4800 / 9600 / 38400bps
- Control Protocol: VISCA, PELCO-D, PELCO-P (RS-232, RS-485)
- USB Protocol: UVC1.1
- Minimal Illumination: 0.1Lux
- SNR: 50dB
- Horizontal Rotation: 350° (175°) 0.1 /s ~ 100°/s
- Vertical Rotation: 180° (90°) 0.1°/s ~ 80°s
- Power Supply: DC 12V/2A
- Power Consumption: 12W

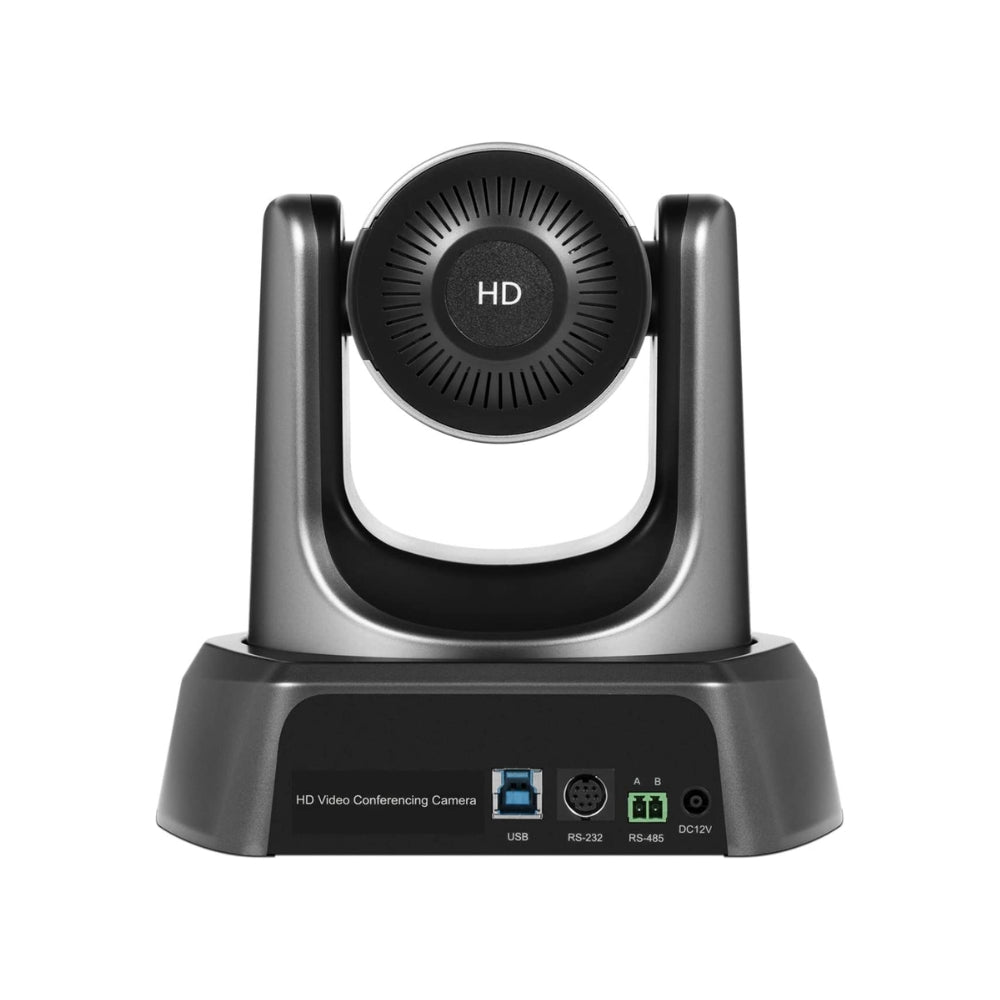

Model: NV10U
- Connectivity technology: USB
- Memory type: Memory stick
- Special features: low light
- Screen size: 3 inches
- Optical zoom: 10x
- Camcorder Type: Video camera
- Video Capture Resolution: 1080P
- Lens type: Zoom
- USB 2.0 video output
- 1/3" HD CMOS
- 2.1 megapixels
- Pan:350° Tilt :90 °

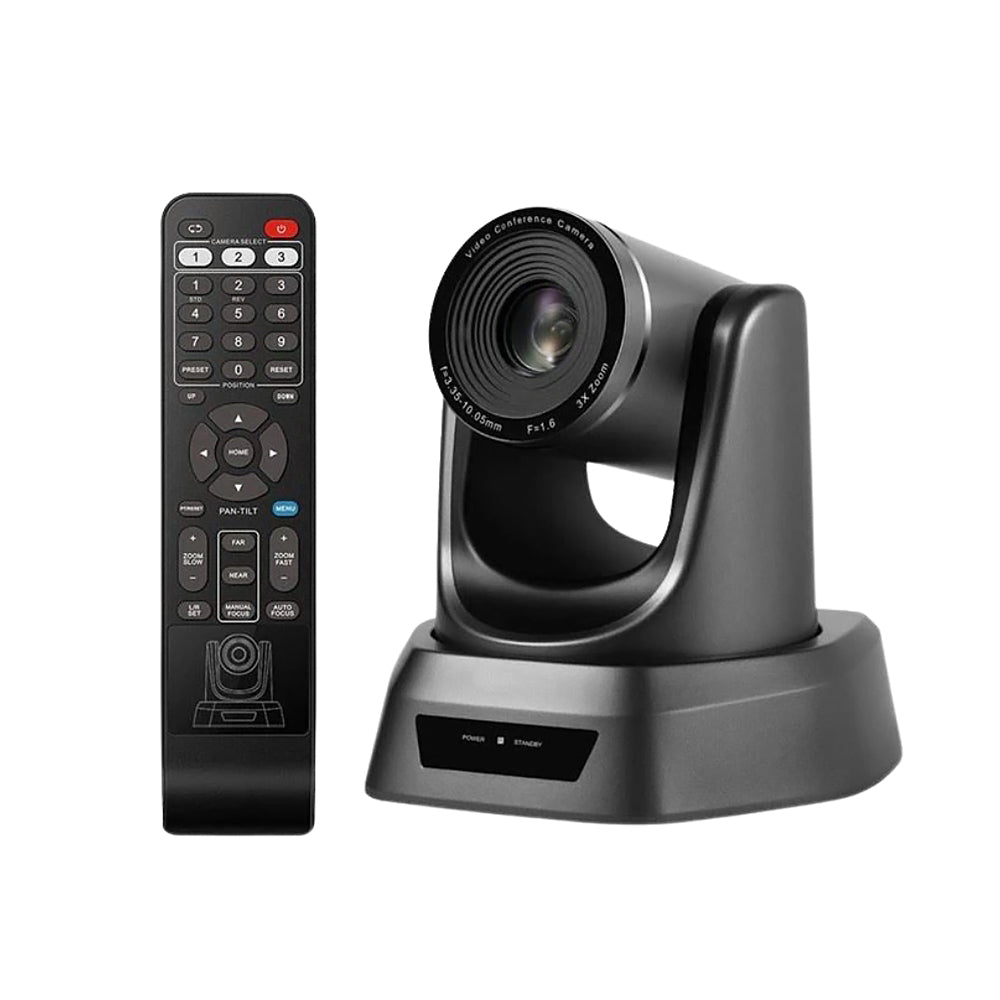

- RS-232, RS-485, IR remote control
