Key Features:
Standard 4K
• 12X optical zoom for clear close-up capture
• Smart AI auto tracking with auto framing
• Presenter tracking for active speakers
• Crystal clear 4K video up to 30fps
• 78.36° wide field of view without distortion
• 1/2.8" 8.29MP CMOS image sensor
• Full glass lens for sharper image quality

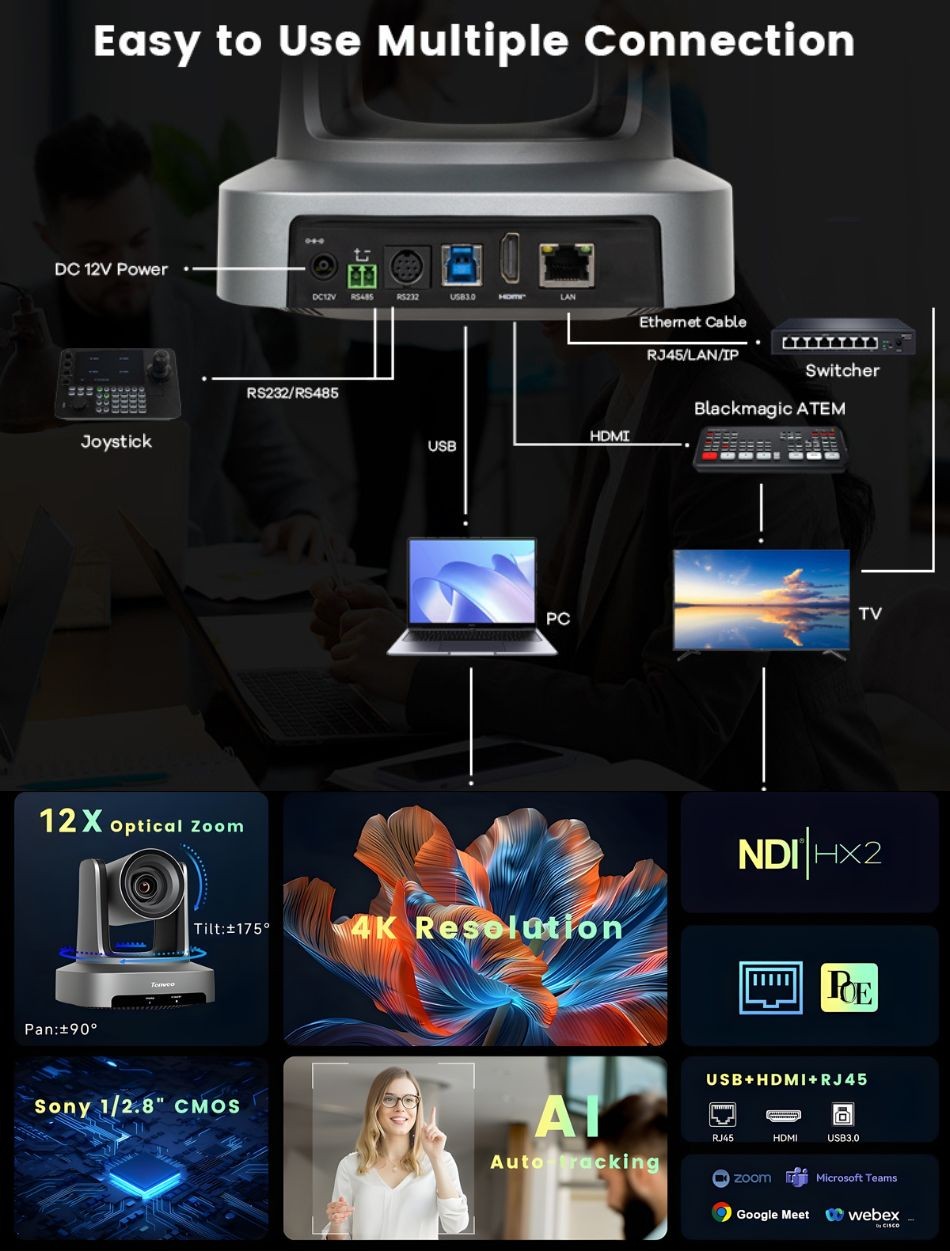

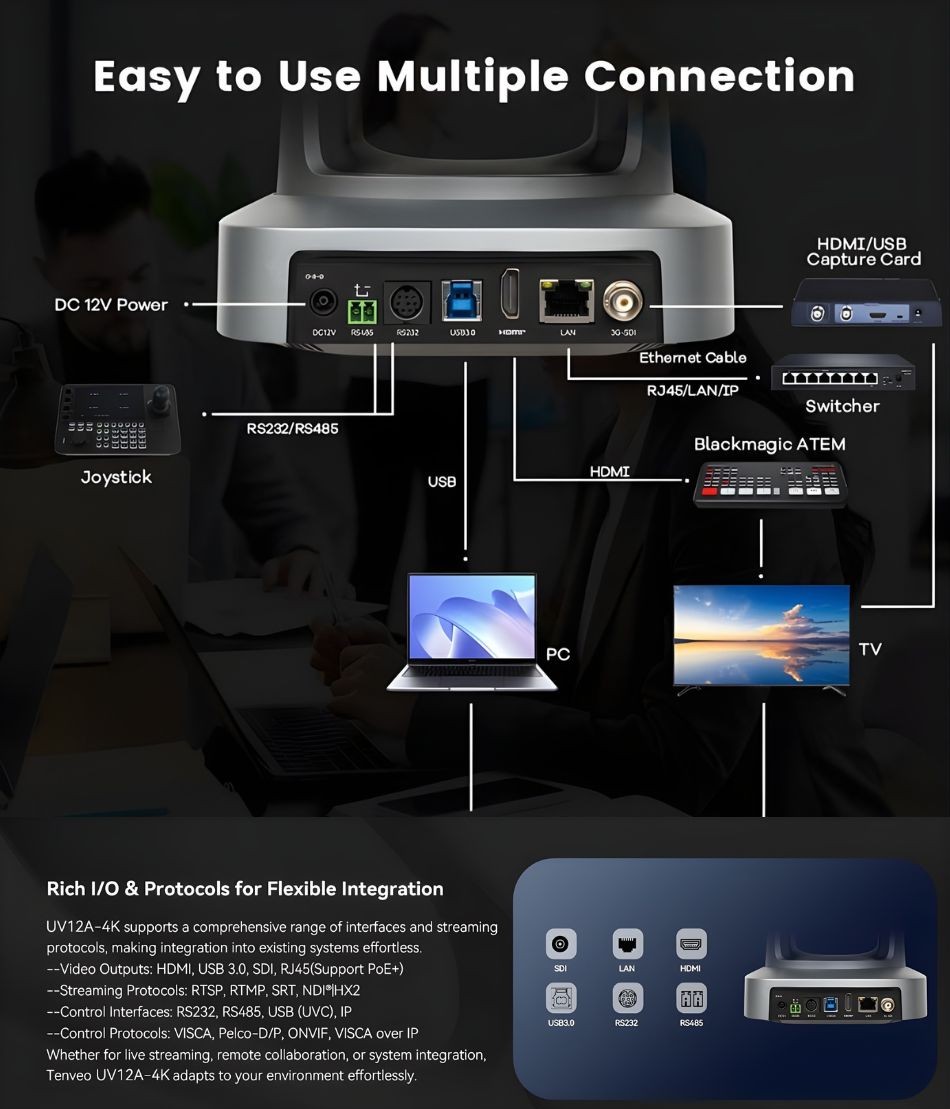

• HDMI, USB, SDI, and LAN video outputs
• Line-in and line-out audio support
• RTSP, RTMP, VISCA over IP, ONVIF, SRT support
• Up to 10 presets via IR remote
• Up to 255 presets via RS232 control
• Supports ceiling, wall, or tripod mounting
• Reverse mount installation supported
• 2D and 3D noise reduction for low light
• VISCA, Pelco-P, Pelco-D control protocols
• Compatible with major video platforms
• Ultra-quiet PTZ belt drive movement
• Fast and smooth camera operation
4K with NDI HX2
• 12X Optical Zoom for Clear Close-Up
• Smart AI Auto Tracking and Auto Framing
• Presenter Tracking for Active Speakers
• Sleek and Intelligent Camera Design
• Crystal Clear 4K Video at 30fps
• Up to 10 Presets via IR Remote
• Up to 255 Presets via RS232 Control
• 78.36° Wide Field of View
• 1/2.8" 8.29MP CMOS Image Sensor
• Full Glass Lens for Sharp Imaging
• HDMI, USB, SDI, and LAN Video Output
• Line-In and Line-Out Audio Support
• NDI|HX2, RTSP, RTMP, VISCA over IP
• ONVIF and SRT Network Support
• Ceiling, Wall, or Tripod Mounting
• Reverse Mount Installation Supported
• 2D and 3D Noise Reduction
• VISCA, Pelco-P, Pelco-D Control
• RS232 and RS485 Camera Control
• Works with Major Video Platforms
• Ultra-Quiet Belt Drive PTZ System
• Smooth and Fast Camera Movement
Specifications:

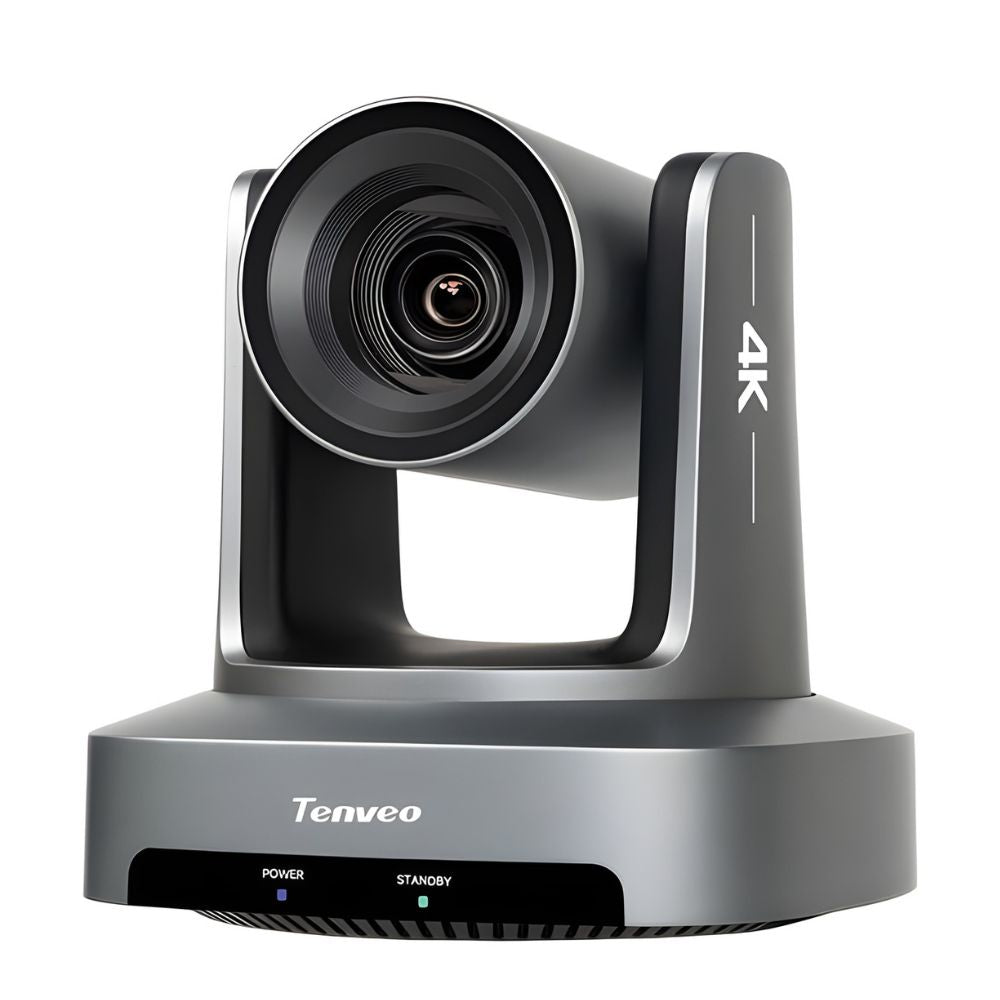

Standard 4K
• Brand: Tenveo
• Model: UV12A-4K
• Image Sensor: Sony 1/2.8" CMOS
• Effective Pixels: 8.29MP
• Optical Zoom: 12x
• Lens Aperture: F1.8–2.68
• Focal Length: 4.1–49.2 mm
• Horizontal Viewing Angle: 70.28°–6.57°
• Video Output: HDMI, 3G-SDI, USB 3.0
• Max Video Resolution: 4K 2160p at 30fps
• Video Encoding: H.264, H.265, MJPG, YUY2
• AI Tracking: Single-Person and Multi-Person Tracking
• Pan Rotation: ±175° (350° Total)
• Tilt Rotation: ±90° (180° Total)
• Minimum Illumination: 0.1 Lux
• Network Protocols: RTSP, RTMP, ONVIF, VISCA over IP
• Power Input: DC 12V
• Power Consumption: 24 W Max
• Operating Temperature: 0°C to 40°C
• Weight: 1.6 kg

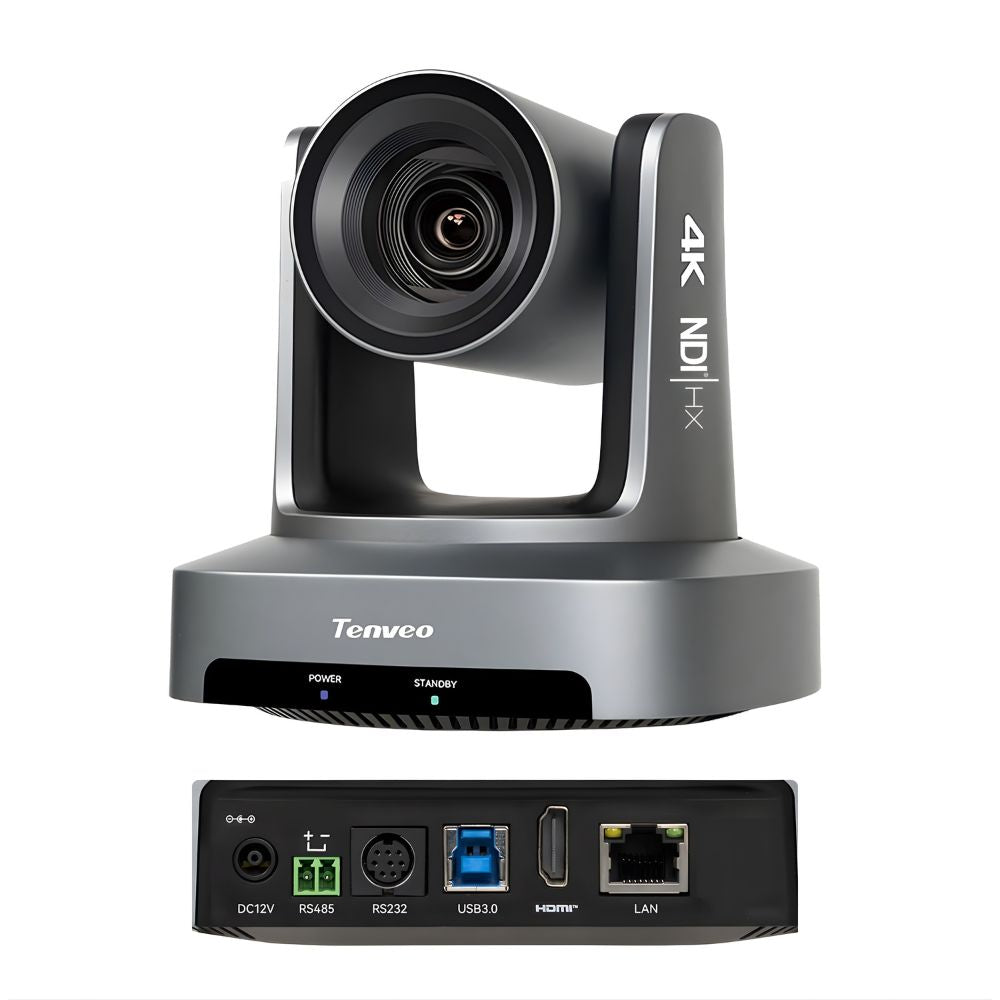

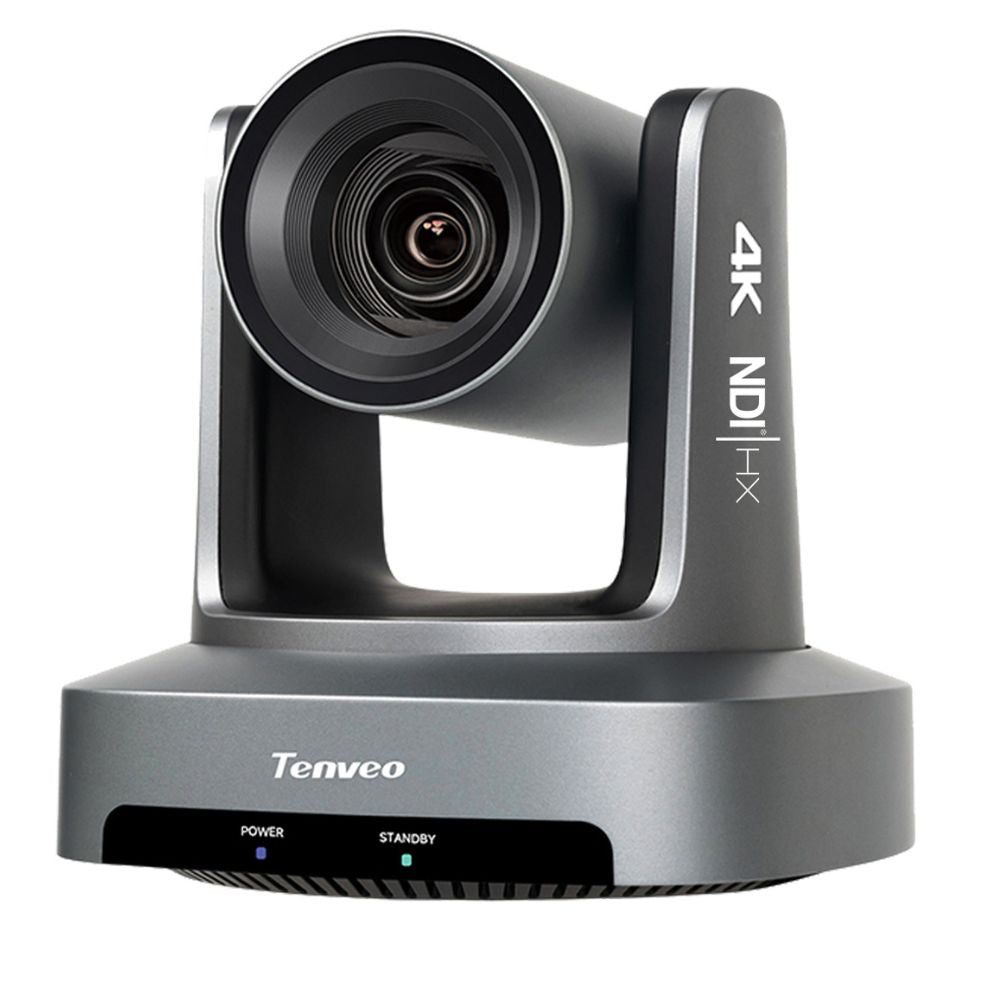

4K with NDI HX2
• Brand: Tenveo
• Model: UV12A-4K-NDI
• Image Sensor: Sony 1/2.8" CMOS
• Effective Pixels: 8.29MP
• Optical Zoom: 12x
• Lens Aperture: F1.8–2.68
• Focal Length: 4.1–49.2 mm
• Horizontal Viewing Angle: 70.28°–6.57°
• Video Output: HDMI, 3G-SDI, USB 3.0, RJ45
• Max Video Resolution: 4K 2160p at 30fps
• Video Encoding: H.264, H.265, MJPG, YUY2
• AI Tracking: Single-Person and Multi-Person Tracking
• Pan Rotation: ±175° (350° Total)
• Tilt Rotation: ±90° (180° Total)
• Minimum Illumination: 0.1 Lux
• Network Protocols: NDI|HX2, RTSP, RTMP, ONVIF, VISCA over IP
• Power Input: DC 12V
• Power Consumption: 24 W Max
• Operating Temperature: 0°C to 40°C
• Weight: 1.6 kg
What's in the box?
• PTZ Camera
• DC 12V Power Supply
• Wall Mount
• Mounting Screws
• Remote Control
• USB Cable
• Manual
