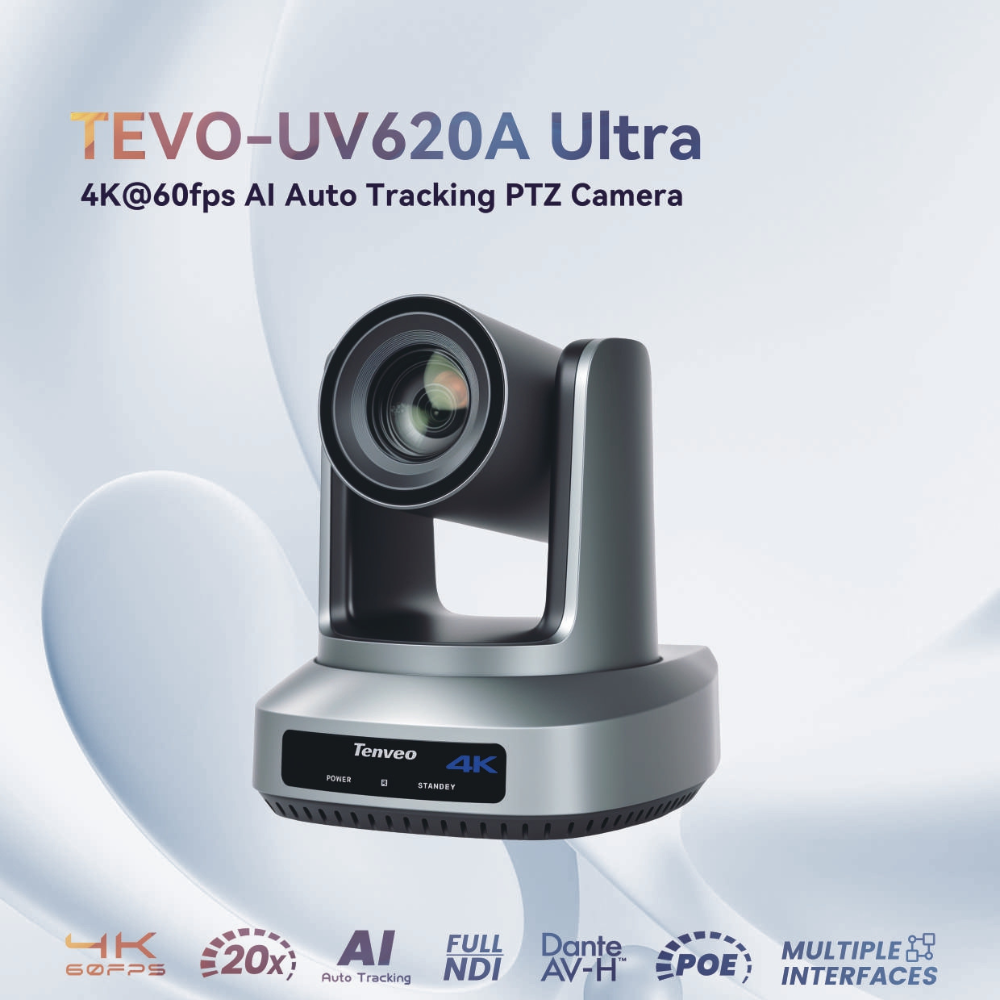

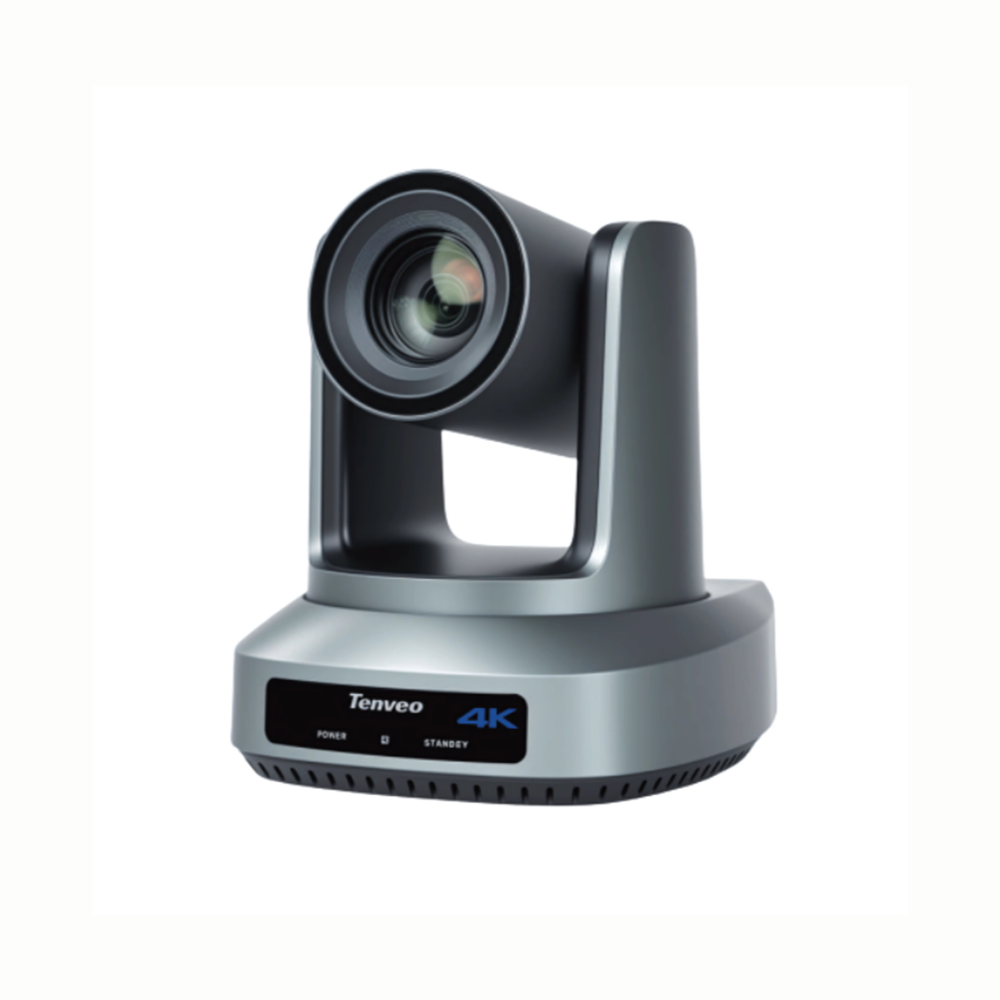

TENVEO TEVO-UV620A ULTRA
Tenveo UV620A Ultra is a professional 4K@60fps PTZ camera featuring a 1/1.8 inch 8.29MP CMOS sensor that captures ultra-sharp UHD video with vibrant colors, enhanced low-light capability, and wide dynamic range (WDR). Its 20x optical zoom with 16x digital extension provides seamless framing flexibility, while the 66.6° wide field of view accommodates large spaces. With Al-powered humanoid tracking, PoE support and FULL NDI&Dante AV-H compatibility, UV620A Ultra enables high-quality, low-latency IP video transmission over networks-perfect for professional live production, broadcasting, video production and AV applications.
Feature
1. Sensor & Image Quality
- Features a 1/1.8″ CMOS sensor with 8.42 MP effective pixels, supporting True 4K at up to 60 fps for ultra-sharp, vibrant video with excellent color accuracy and dynamic range.
2. Zoom & Field of View
- Offers a powerful 20× optical zoom with an additional 16× digital zoom, enhancing framing flexibility without compromising image detail.
- Wide coverage: 66.6° diagonal field of view, tapering to about 4.0° at maximum zoom.
3. Multi-Format Video Output
- Supports an impressive array of video signal formats across different outputs:
- HDMI outputs: 4K at 60/59.94/50/30/29.97/25 fps, plus 1080p and 720p ranges.
- 3G‑SDI outputs: various formats up to 1080p60, including interlaced options.
- USB 2.0, RJ45 (IP) and SDI for flexible connectivity.
4. Advanced PTZ Capabilities
- Pan range: 350° (±175°), with speeds from 0.1°/s to 100°/s.
- Tilt range: 180° (±90°), at speeds from 0.1°/s to 80°/s.
- Supports H & V image flip, plus Freeze Image—great for live-switching scenarios.
5. Tracking, Presets & Precision Control
- Equipped with AI-powered humanoid tracking to automatically follow subjects.
- 255 preset positions (with ~0.1° precision) and PoE support for streamlined setup.
6. Imaging Enhancements
- Offers backlight compensation, 3D noise reduction, and adjustable white balance (Auto, Indoor, Outdoor, One-Push, Manual, VAR).
- Minimal illumination requirement is 0.5 Lux at f/1.8 (AGC ON), with an excellent SNR ≥ 55 dB—perfect for low-light environments.
7. Protocol & Control Interfaces
- Multi-layered control via VISCA, Pelco‑D/P; connectivity includes RS‑232, RS‑485, USB, and network (NET).
- USB protocol follows UVC 1.1–1.5, ensuring compatibility for plug-and-play streaming.
- Shutter speeds: 1/30 s to 1/10000 s.
8. IP Streaming & Codec Support
- IP streaming capabilities include H.264, H.265, MJPEG, and multi-stream output (main and sub-streams).
- Supported bitrate: 32 Kbps–20,480 Kbps; frame rate: up to 60 fps depending on region.
- Integrated audio streaming: includes AAC and G.711A compression, up to 128 Kbps.
- Compatible network protocols: Dante AV‑H, NDI HX2 (full NDI), SRT, RTSP, RTMP(S), ONVIF, GB/T28181, DHCP, Multicast, HTTP, TCP/IP. Ideal for broadcast-grade, low-latency workflows.
9. Power, Build & Environmental Specs
- Power: DC 12 V / 2 A (max), with maximum power consumption of 24 W.
- Operating Range: 0 °C–40 °C; Storage: –20 °C–60 °C; Humidity: 20–80% (operational), 20–90% (storage).
- Dimensions: ~156 × 176 × 175 mm (camera)
