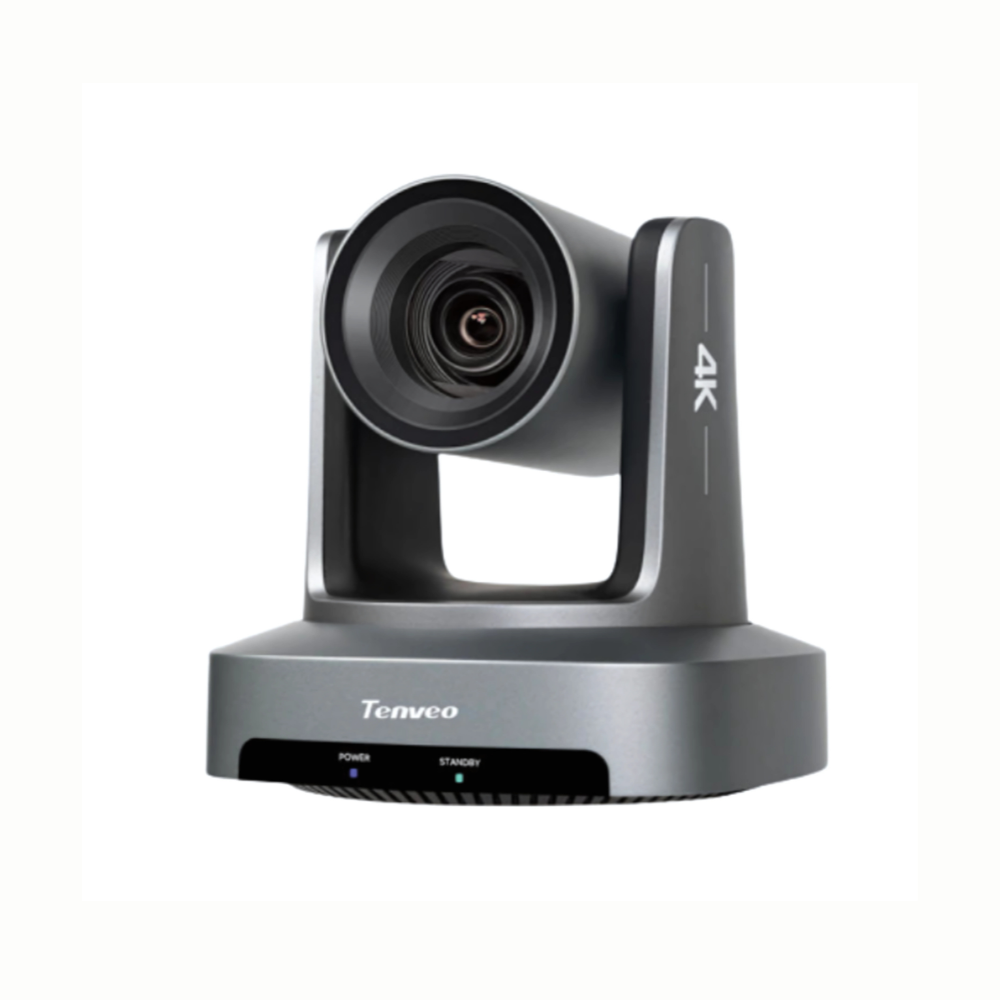

TENVEO TEVO-UVS20A-4K
Tenveo UVS20A-4K is a professional-grade 4K Ultra HD PTZ camera featuring a Sony 8.29MP sensor and 20x optical zoom for crystal-clear imaging in any environment. With advanced Al auto-tracking that maintains perfect framing of presenters, plus smooth PTZ operation, comprehensive I/O options, and multi-protocol support, the 4k camera integrates effortlessly with your workflow. From education and corporate meetings to live streaming and broadcasting, UVS20A-4K offers high-performance video, intelligent automation, and broad compatibility.
Features
1. Sensor & Image Quality
- 1/2.8″ Sony CMOS sensor, delivering 8.29 megapixels
- Captures True 4K resolution with excellent clarity and color reproduction
2. Optical Zoom & Field of View
- 20× optical zoom with versatile close-up framing
- Lens focal length: f = 4.95 mm – 99 mm
- Field of View (FOV):
- Horizontal: 51.9° (wide) to 3.0° (tele)
- Vertical: 39.7° (wide) to 2.2° (tele)
- Diagonal: 63.1° (wide) to 3.7° (tele)
3. Video Formats & Encoding
- Supports a wide range of video outputs:
- 4K at 30/25 fps
- 2K at 60 fps
- 1080p up to 60/59.94/50/30/29.97/25 fps
- 720p at multiple frame rates, plus 480p and 240p @ 30fps
- Video encoding formats include H.264, H.265, MJPG, and YUY2
4. Imaging Enhancements
- Offers backlight compensation, 2D & 3D noise reduction
- Supports both auto and manual exposure modes
5. Connectivity & Streaming Protocols
- Video Interfaces: HDMI, USB 3.0, SDI, RJ45 (with PoE+ support)
- Streaming Protocols: RTSP, RTMP, SRT, NDI®|HX2
- Control Interfaces: RS‑232 (input only), RS‑485, USB 3.0 (UVC 1.1), RJ45 (IP)
- Control Protocols: VISCA, Pelco‑D/P, ONVIF, VISCA over IP
6. PTZ Performance
- Pan Range: 350° (±175°) with speeds from 0.1°/s to 100°/s
- Tilt Range: 180° (±90°) with speeds from 0.1°/s to 80°/s
- Supports up to 255 preset positions (plus 10 via IR remote)
7. General & Environmental Specifications
- Operating Systems Compatibility: Windows 10/11, Android, macOS 10.10+, and Linux (UVC support required)
- Power Requirements: DC 12 V, Max current 2.0 A; Max power consumption 24 W
- Operating Temperature: 0 °C to 40 °C
- Storage Temperature: –20 °C to 60 °C
- Operating Humidity: 20–80% RH; Storage Humidity: 20–90% RH
- Dimensions: 166 × 165 × 170 mm (camera only)
