Key Features:
Standard 4K
• 20X Optical Zoom for Clear Close-Ups
• Smart AI Auto Tracking and Framing
• Presenter Tracking for Active Speakers
• Sleek and Intelligent Camera Design
• Crystal Clear 4K Video at 30fps
• Up to 10 Presets via IR Remote
• Up to 255 Presets via RS232 Control
• 63.1° Wide Field of View
• 1/2.8"" 8.29MP CMOS Image Sensor
• Full Glass Lens for Sharp Imaging
• HDMI, USB, and LAN Video Output
• RTSP, RTMP, VISCA over IP Support
• ONVIF and SRT Network Protocols
• Ceiling, Wall, or Tripod Mounting
• Reverse Mount Installation Support
• 2D and 3D Noise Reduction
• VISCA, Pelco-P, Pelco-D Control
• RS232 and RS485 Camera Control
• Works with Major Video Platforms
• Ultra-Quiet Belt Drive PTZ System
• Smooth and Fast Camera Movement
4K with NDI HX2
• 20X Optical Zoom for Clear Close-Ups
• Sleek and Intelligent Camera Design
• Smart AI Auto Tracking and Framing
• Presenter Tracking for Active Speakers
• Crystal Clear 4K Video at 30fps
• Up to 10 Presets via IR Remote
• Up to 255 Presets via RS232 Control
• 63.1° Wide Field of View
• 1/2.8"" 8.29MP CMOS Image Sensor
• Full Glass Lens for Sharp Imaging
• HDMI, USB, and LAN Video Output
• RTSP, RTMP, VISCA over IP, ONVIF, SRT, NDI|HX2 Support
• Ceiling, Wall, or Tripod Mounting
• Reverse Mount Installation Support
• 2D and 3D Noise Reduction
• VISCA, Pelco-P, Pelco-D Control
• RS232 and RS485 Camera Control
• Works with Major Video Platforms
• Ultra-Quiet Belt Drive PTZ System
• Smooth and Fast Camera Movement
Specifications:
Standard 4K

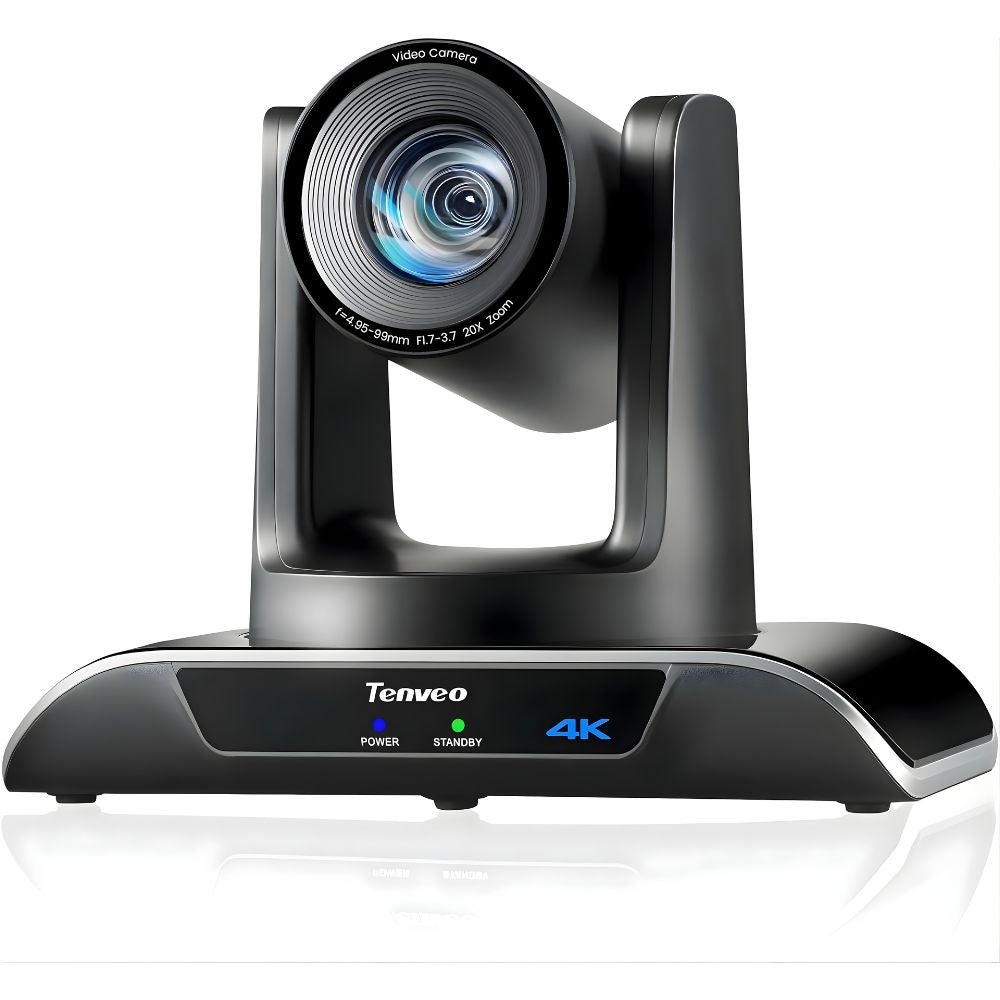

• Brand: Tenveo
• Model: VHD20H-4K
• 7Image Sensor: 1/2.8'' Sony CMOS
• Effective Pixels: 8.29MP
• Optical Zoom: 20x
• Lens Aperture: F1.7–F3.7
• Focal Length: 4.95–99 mm
• Horizontal Viewing Angle: 51.9°–3.0°
• Vertical Viewing Angle: 39.7°–2.2°
• Diagonal Viewing Angle: 63.1°–3.7°
• AI Tracking: Single-Person and Multi-Person Tracking
• Minimum Illumination: 0.11 Lux
• Shutter Speed: 1/25s–1/10000s
• White Balance: Auto/Manual/Indoor/Outdoor/Specific Color Temp/One-Push
• Backlight Compensation: Supported
• Digital Noise Reduction: 2D & 3D DNR
• SNR: >50 dB
• Exposure: Auto/Manual
• Focus: Auto/Manual
• Video Encoding: H.264, H.265, MJPG, YUY2
• Pan Rotation: ±175° (350° Total)
• Tilt Rotation: ±90° (180° Total)
• Preset Positions: Remote 10, Serial 255
• Preset Accuracy: 0.1°
• Preset Speed: Pan 0.1–100°/s, Tilt 0.1–90°/s
• PoE: Supported
• Video Output: USB 3.0, HDMI
• Network Protocols: RTSP, RTMP, VISCA over IP, ONVIF, SRT
• Max Video Resolution: 4K 2160p @30fps
• Video Streams: Primary and Secondary
• Bit Rate: 32Kbps–102400Kbps (VBR/CBR)
• Frequency: 50Hz/60Hz
• Frame Rate: 50Hz:1–50fps, 60Hz:1–60fps
• USB OS Support: Windows/macOS/Android/Linux
• USB Video Protocol: UVC1.1, PTZ Control Supported
• Communication: RS232 In/Out, RS485, VISCA/Pelco-D/Pelco-P
• Power Input: DC 12V, 2A Max
• Power Consumption: 24W Max
• Operating Temp/Humidity: 0°C–40°C / 20–80% RH
• Dimensions: 247.1 × 152 × 169.6 mm
• Weight: 1.4 kg
4K with NDI HX2

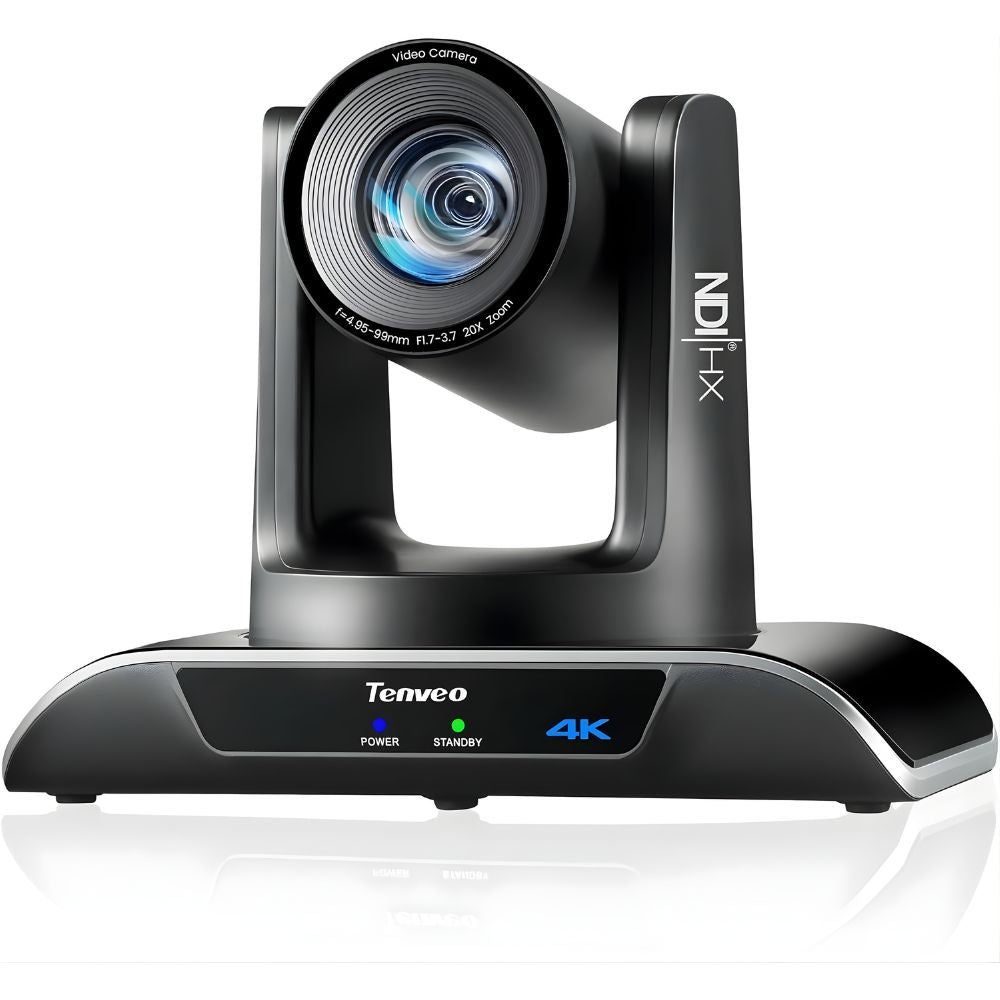

• Brand: Tenveo
• Model: VHD20H-4K-NDI
• Image Sensor: 1/2.8'' Sony CMOS
• Effective Pixels: 8.29MP
• Optical Zoom: 20x
• Lens Aperture: F1.7–F3.7
• Focal Length: 4.95–99 mm
• Horizontal Viewing Angle: 51.9°–3.0°
• Vertical Viewing Angle: 39.7°–2.2°
• Diagonal Viewing Angle: 63.1°–3.7°
• AI Tracking: Single-Person and Multi-Person Tracking
• Minimum Illumination: 0.11 Lux
• Shutter Speed: 1/25s–1/10000s
• White Balance: Auto/Manual/Indoor/Outdoor/Specific Color Temp/One-Push
• Backlight Compensation: Supported
• Digital Noise Reduction: 2D & 3D DNR
• SNR: >50 dB
• Exposure: Auto/Manual
• Focus: Auto/Manual
• Video Encoding: H.264, H.265, MJPG, YUY2
• Pan Rotation: ±175° (350° Total)
• Tilt Rotation: ±90° (180° Total)
• Preset Positions: Remote 10, Serial 255
• Preset Accuracy: 0.1°
• Preset Speed: Pan 0.1–100°/s, Tilt 0.1–90°/s
• PoE: Supported
• Video Compression: H.265/H.264/MJPEG
• Video Streams: Primary and Secondary
• Main Stream Resolution: 1920×1080
• Sub Stream Resolution: 1280×720
• Bit Rate: 32Kbps–102400Kbps (VBR/CBR)
• Frequency: 50Hz/60Hz
• Frame Rate: 50Hz:1–50fps, 60Hz:1–60fps
• Network Protocols: RTSP, RTMP, VISCA over IP, ONVIF, SRT, NDI|HX2
• USB OS Support: Windows/macOS/Android/Linux
• USB Video Protocol: UVC1.1, PTZ Control Supported
• Video Output: USB 3.0, HDMI
• Network Interface: RJ45
• USB Interface: 1×USB3.0 Type-B
• Communication: RS232 In/Out, RS485, VISCA/Pelco-D/Pelco-P
• Power Input: DC12V, 2.0A Max
• Power Consumption: 24W Max
• Operating Temp/Humidity: 0°C–40°C / 20–80% RH
• Dimensions: 247.1×152×169.6 mm / 285×217×197 mm (Package)
• Weight: 1.4 kg / 2.6 kg (Gross)
What's in the box?
• PTZ Camera
• DC 12V Power Supply
• Wall Mount
• Mounting Screws
• Remote Control
• USB Cable
• Manual
