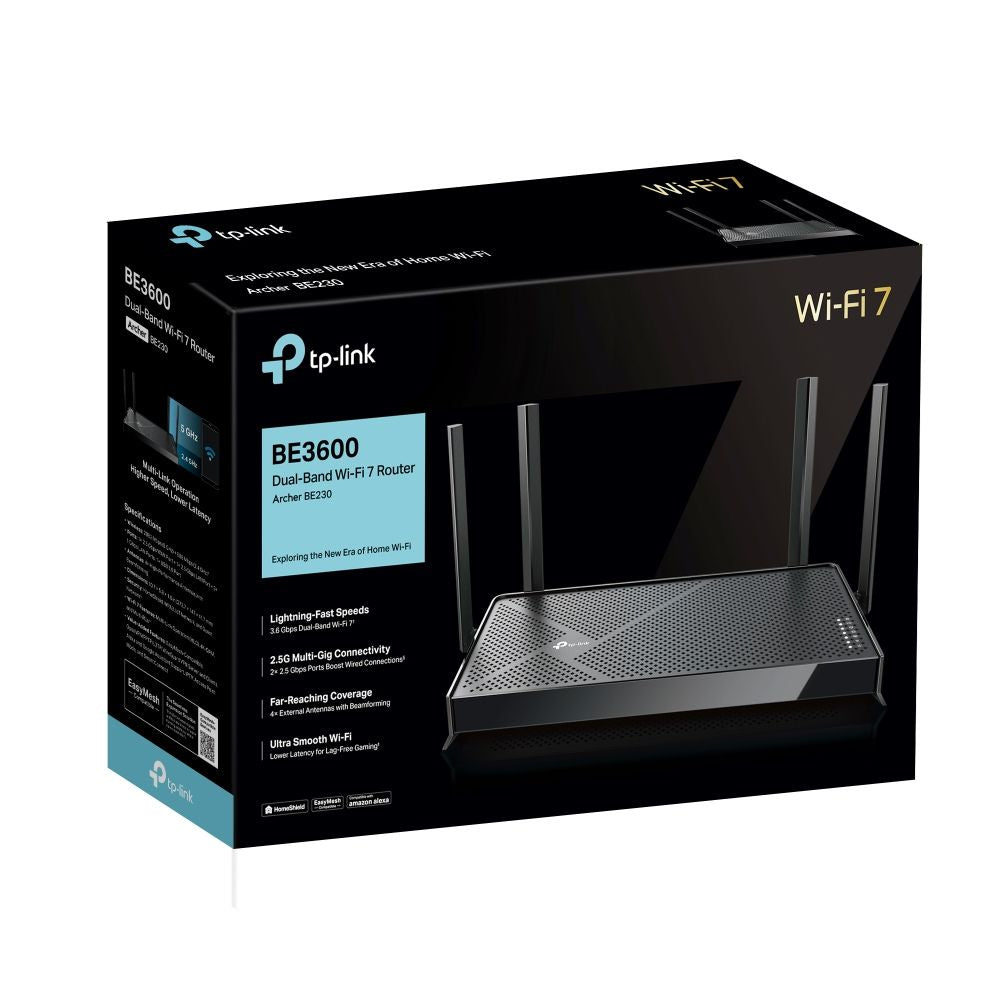

Archer BE230 (BE3600) Dual Band 3.6Gbps
Home WIFI 7 Router

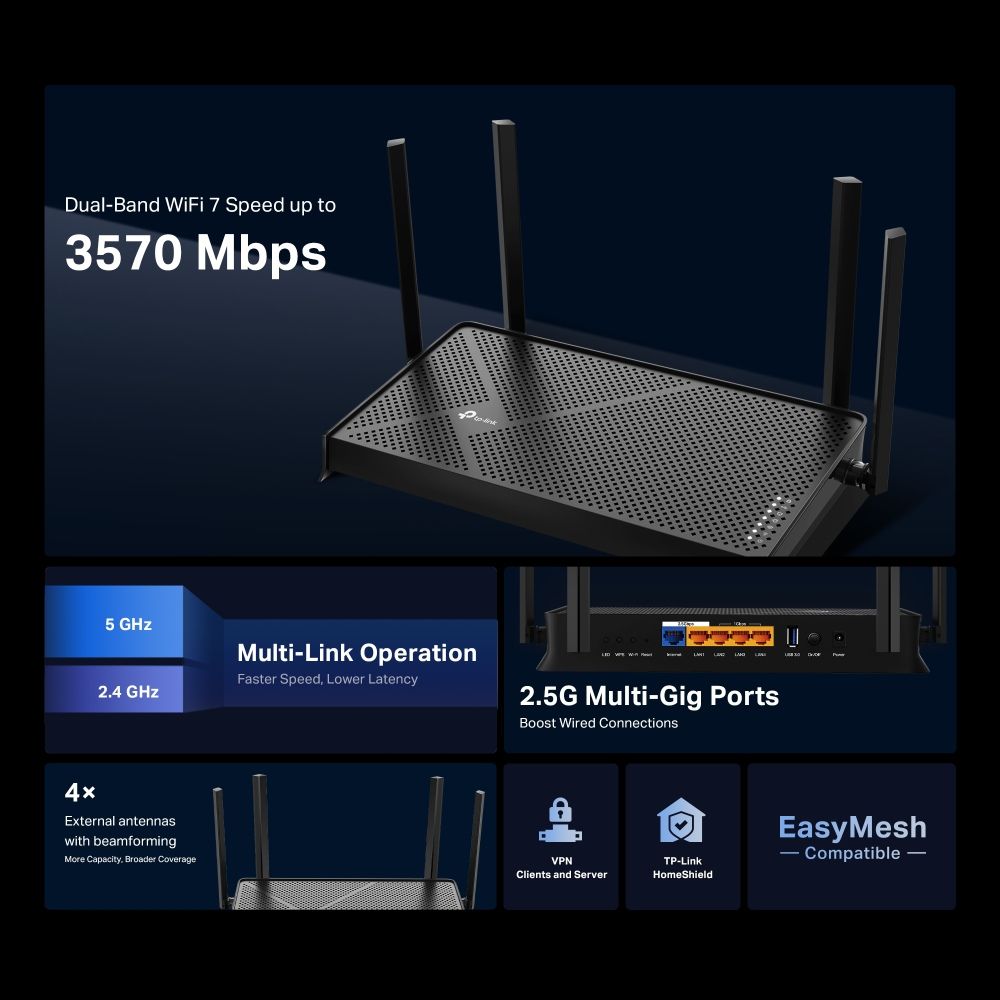

The product offers advanced WiFi 7 technology, providing speeds of up to 3.6 Gbps, ideal for 4K/8K streaming, AR/VR gaming, and fast downloads. It includes two 2.5 Gbps ports (WAN and LAN) for high-speed data transmission, along with three 1 Gbps LAN ports. Its four external antennas with Beamforming technology ensure wide coverage, stronger connections, and minimal interference.
The router is EasyMesh-compatible, allowing it to work seamlessly with other EasyMesh devices to create a whole-home WiFi network with no drop-offs or lag. Setup and network management are simplified through the Tether app.
Additionally, TP-Link HomeShield provides enhanced security against modern cyber threats. The device is highly compatible with all previous WiFi generations, all devices, and all internet service providers, making it versatile and easy to integrate into any home network.
Features:
-

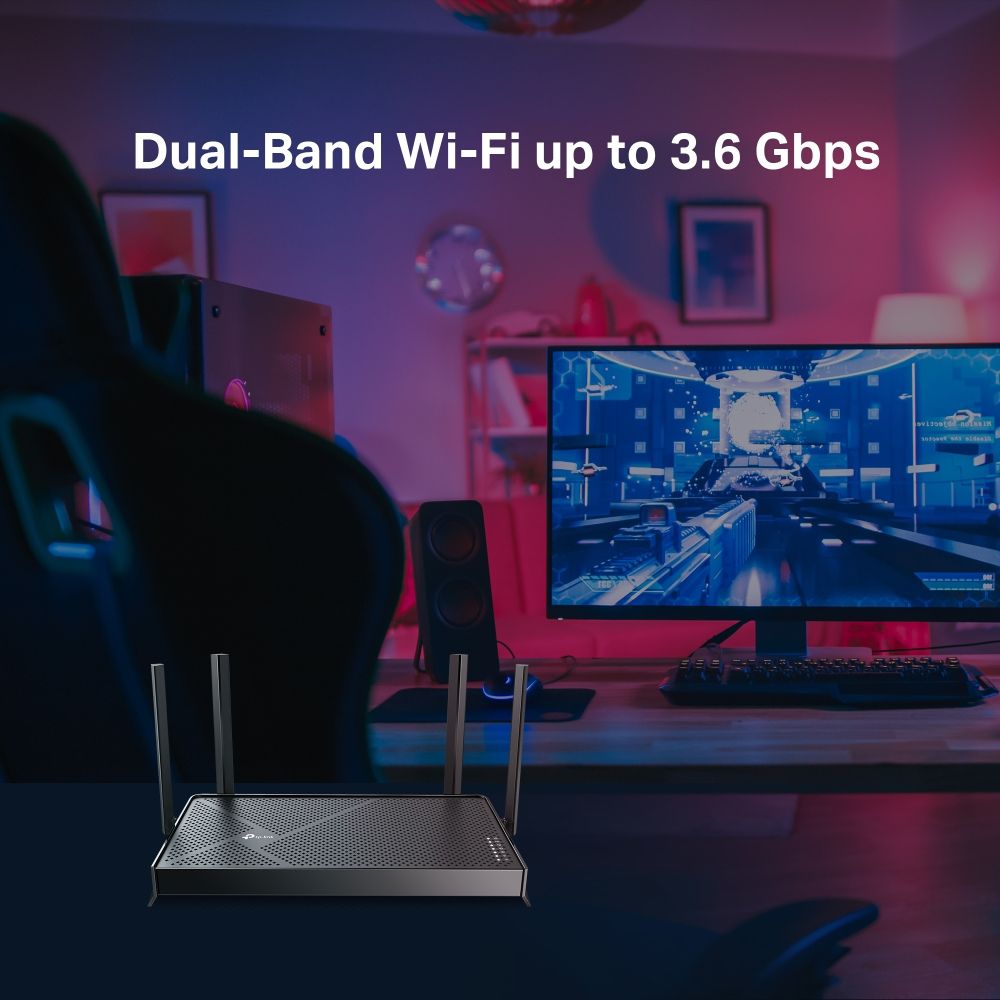

3.6Gbps Dual-Band WiFi 7: Enables your devices to run at full speed for fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.
-

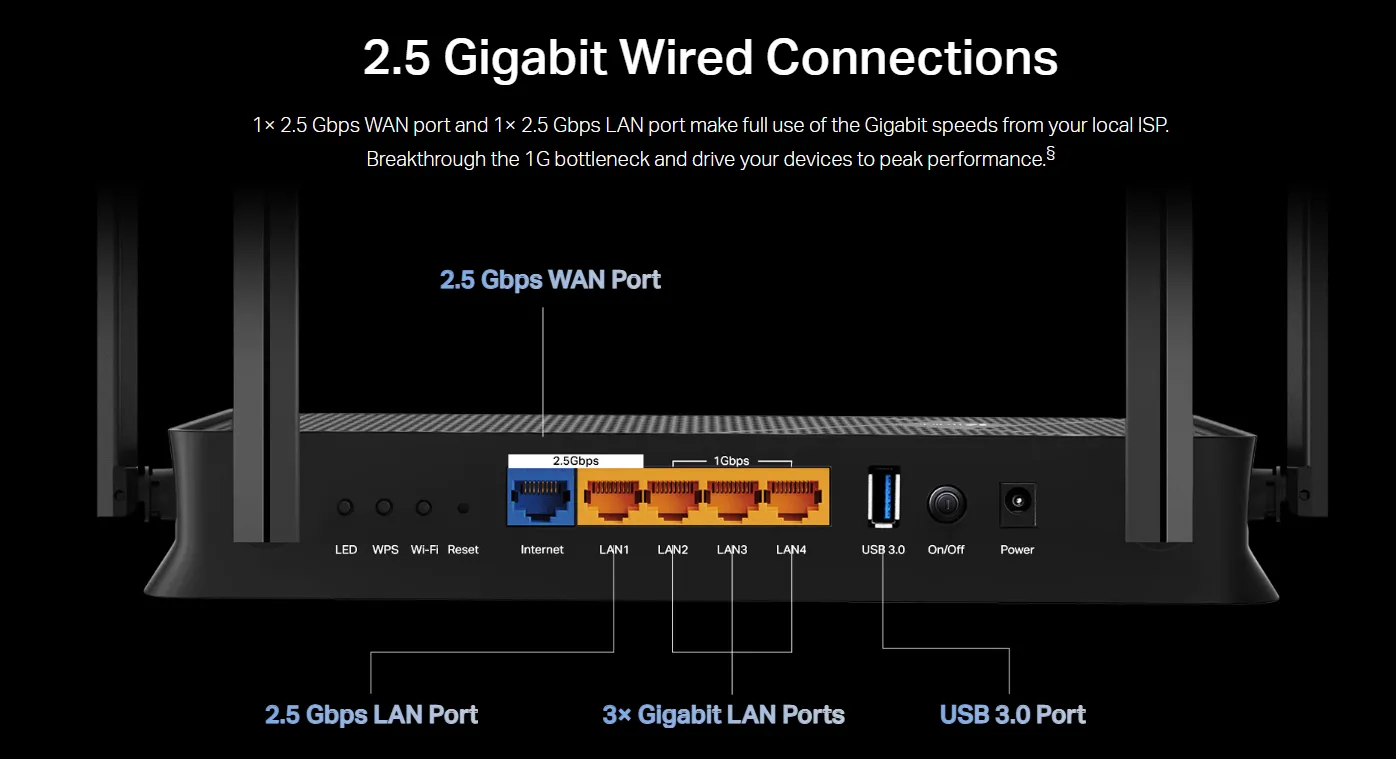

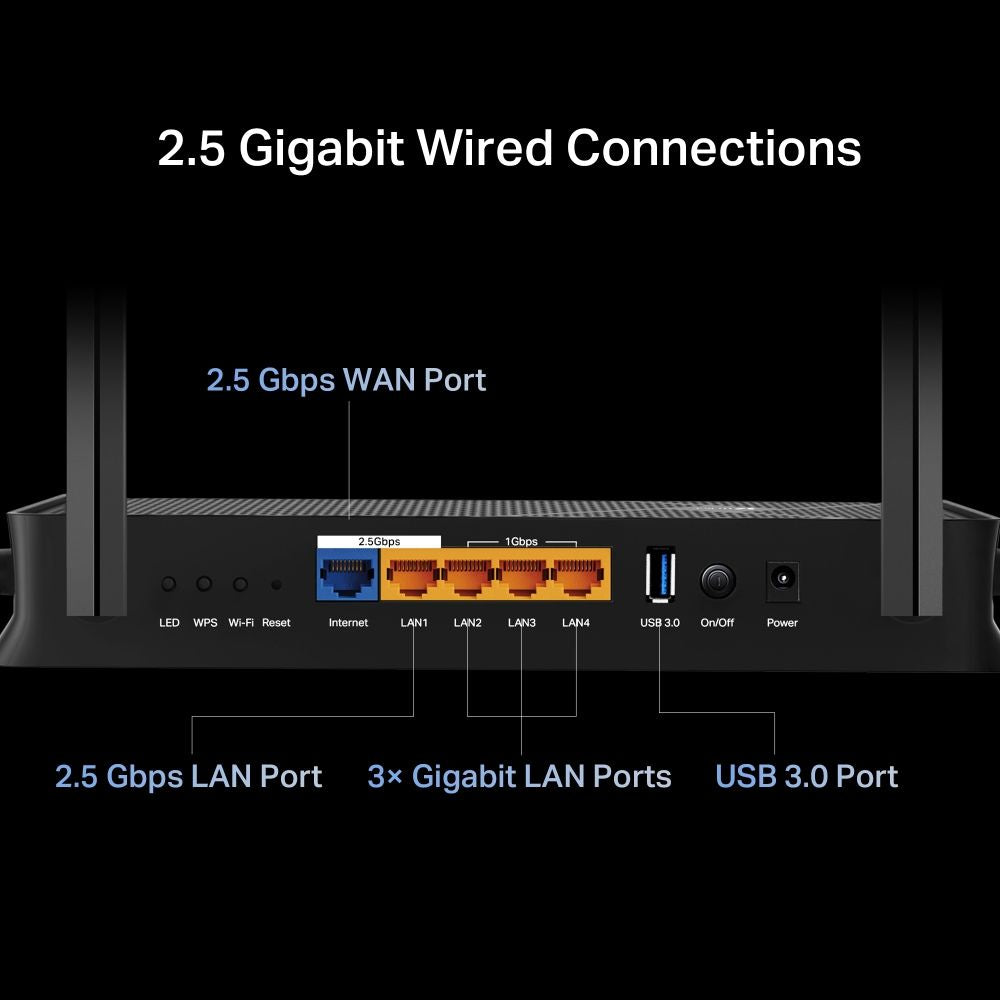

2× 2.5G Ports: Includes 1× 2.5 Gbps WAN port, 1× 2.5 Gbps LAN port, and 3× 1 Gbps LAN ports for high-speed data transmission.
-

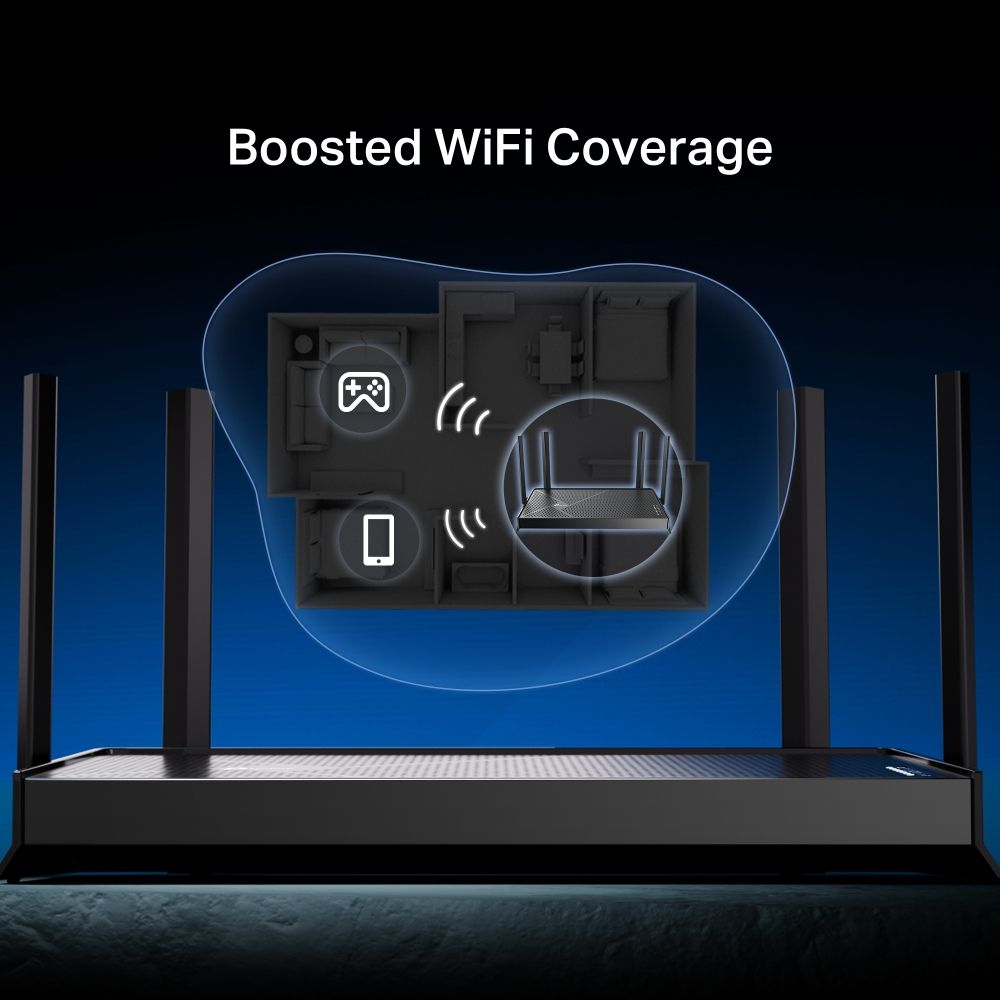

Maximized Coverage: 4× external antennas with Beamforming technology deliver more capacity, stronger connections, and reduced interference.
-
EasyMesh-Compatible: Seamlessly works with EasyMesh routers and extenders to form a whole-home Mesh WiFi network, eliminating signal drops and lag.
-
Easy Setup and Use: Simplified network management with the Tether app.
-
TP-Link HomeShield: Provides enhanced security against the latest cyber threats.
-
Great Compatibility: Supports all Wi-Fi generations, devices, and internet providers.
_____________________________________________________________________________________________
Specifications:
-
Brand: TP-Link
-
Series: Archer BE230 V1
-
Model: BE3600
-
Type: Dual-Band WiFi 7 Router
-
Service Kit: HomeShield
-
EasyMesh: Compatible with EasyMesh
Wireless:
-
WiFi Speeds:
-
5 GHz: 2882 Mbps (802.11be)
-
2.4 GHz: 688 Mbps (802.11be)
-
-
WiFi Range: Suitable for 3-bedroom houses
-

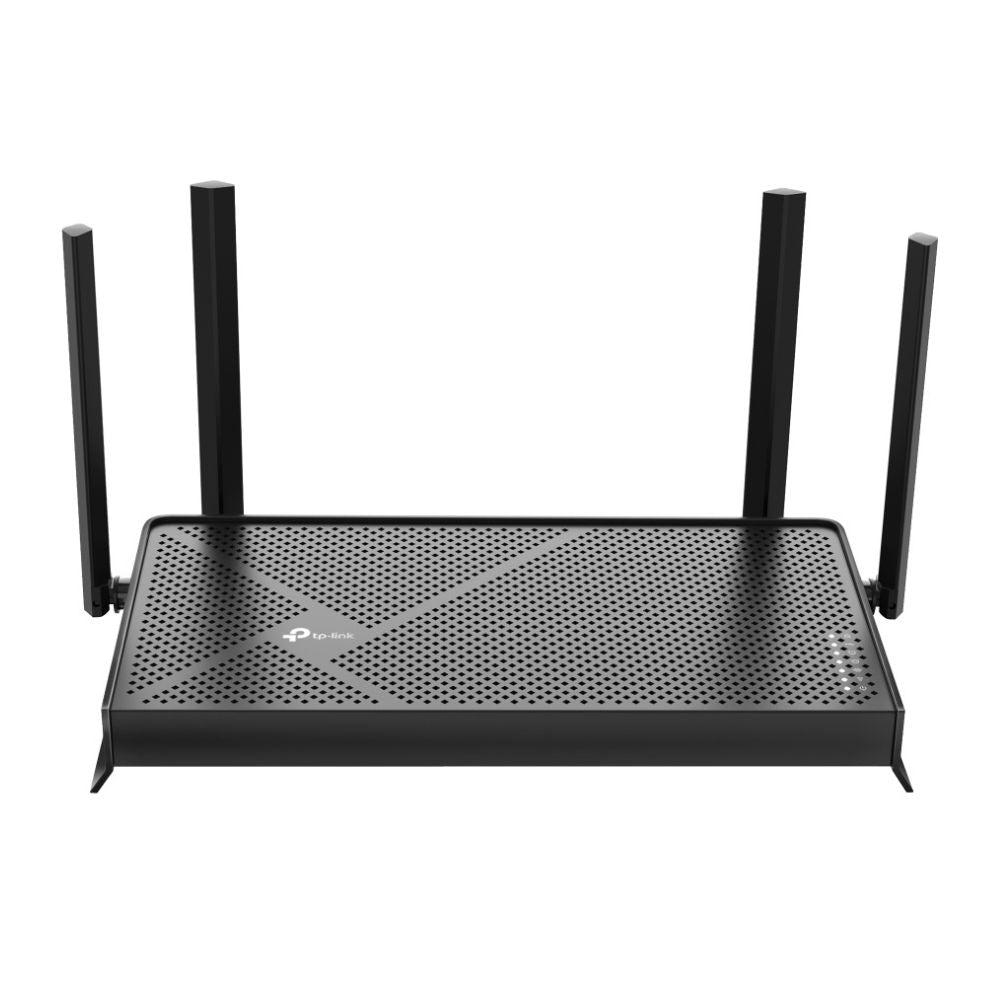

4× external antennas
-
Multiple antennas form a signal-boosting array to cover more directions and larger areas.
-
-
-
Beamforming: Focuses wireless signal strength towards clients, extending WiFi range.
-
WiFi Capacity: High capacity, Dual-Band
-
Dual-Band: Allocates devices to different bands for optimal performance.
-
-
2×2 MU-MIMO: Simultaneously communicates with multiple MU-MIMO clients.
-
OFDMA: Allows simultaneous communication with multiple clients.
-
Airtime Fairness: Enhances network efficiency by preventing excessive occupation.
-
DFS: Accesses an extra band to reduce congestion.
-
4 Streams: Provides more bandwidth for connected devices.
_____________________________________________________________________________________________
Advanced Functions:
-
Multi-Link Operation (MLO)
-
4K-QAM
-
Multi-RUs
-
EasyMesh-Compatible
-
Works with Alexa and Google Assistant
-
IoT Network
Wireless Mode:
-
Router Mode
-
Access Point Mode
-SECURITY-
-
Network Security
-
SPI Firewall
-
Access Control
-
IP & MAC Binding
-
Application Layer Gateway
HomeShield Security
-
Real-Time IoT Protection
-
Malicious Site Blocker
-
Intrusion Prevention System
-
DDoS Attack Prevention
-
Home Network Scanner
Guest Network
-
1× 5 GHz Guest Network
-
1× 2.4 GHz Guest Network
VPN Server
-
OpenVPN Server
-
PPTP VPN Server
-
L2TP VPN Server
-
WireGuard VPN Server
VPN Client
-
Open VPN Client
-
PPTP VPN Client
-
L2TP VPN Client
-
WireGuard VPN Client
WiFi Encryption
-
WPA
-
WPA2
-
WPA3
-
WPA/WPA2-Enterprise (802.1x)
-HARDWARE-

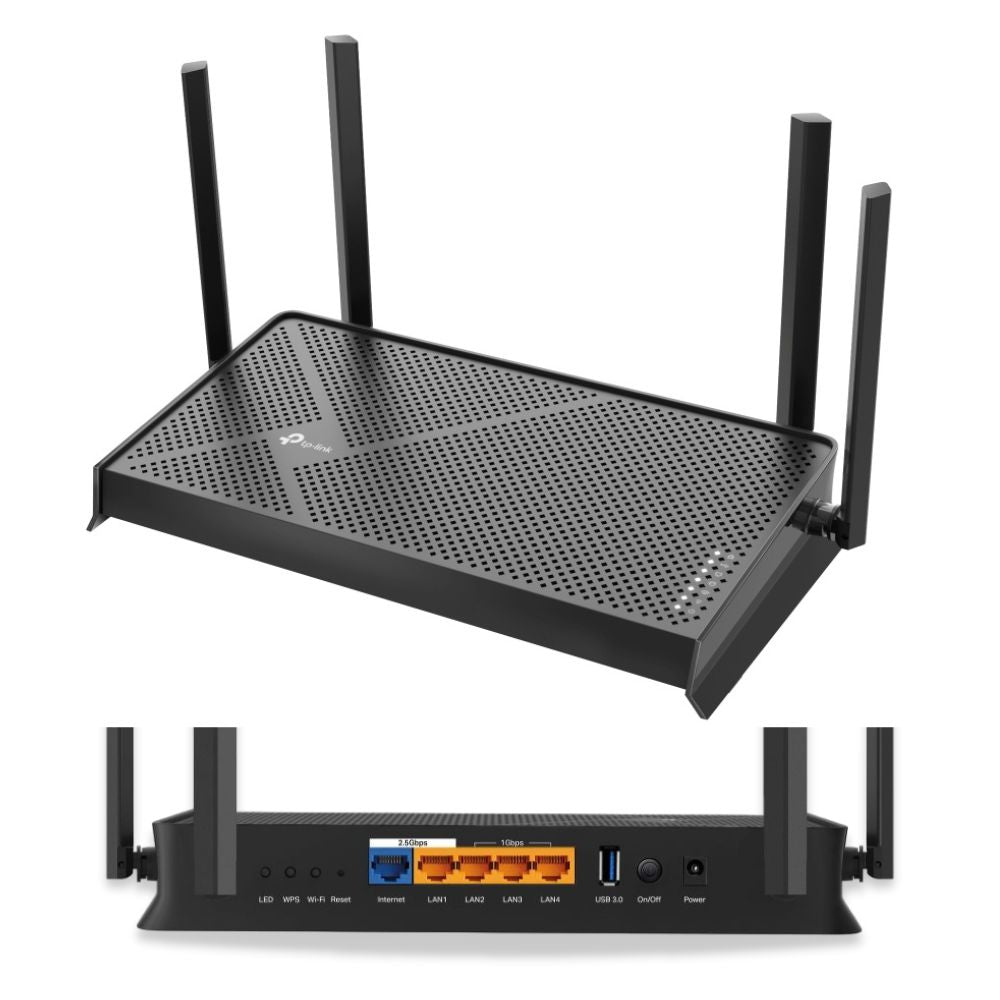

Ethernet Ports
-
1× 2.5 Gbps WAN
-
1× 2.5 Gbps LAN
-
3× 1 Gbps LAN

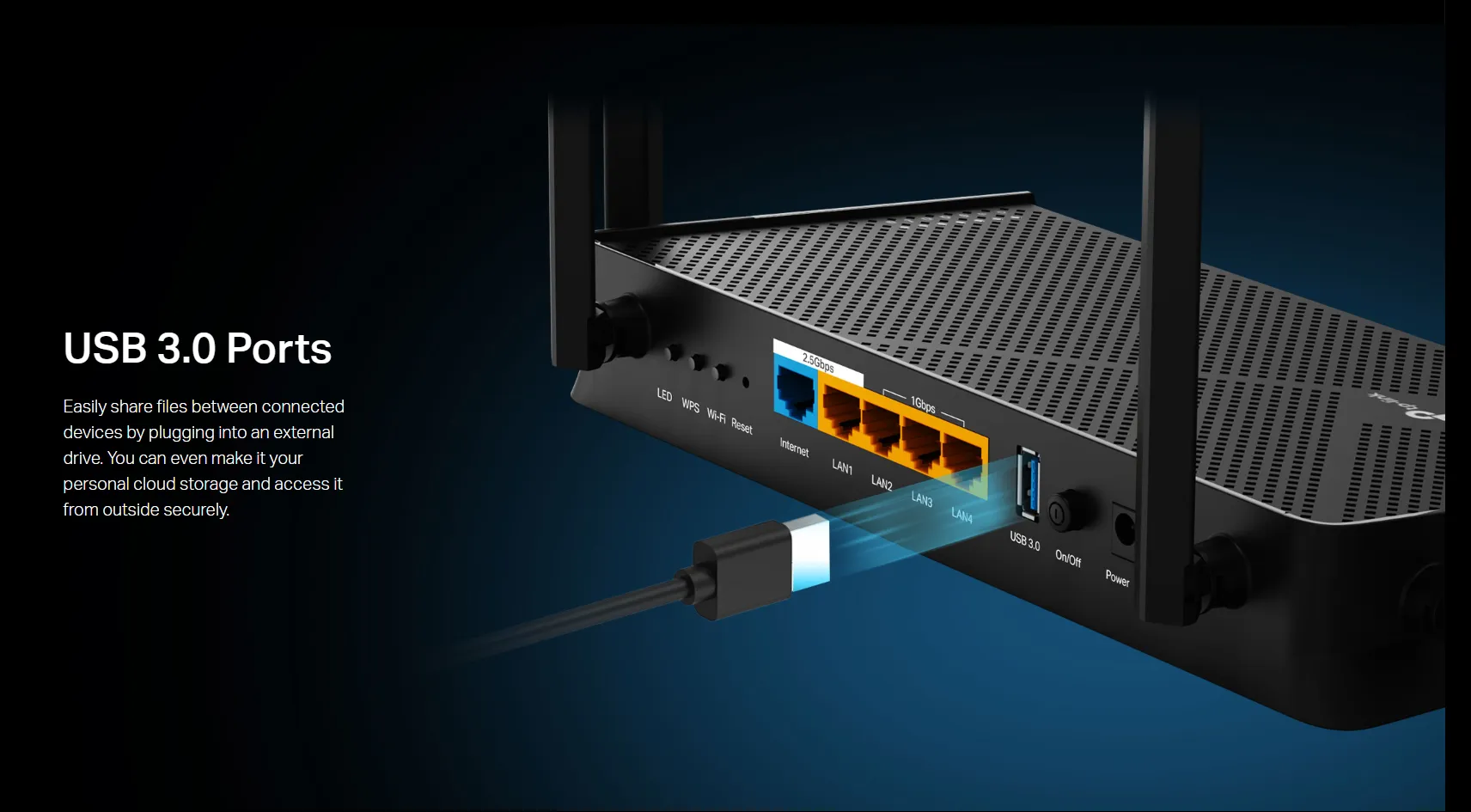

USB Support: 1× USB 3.0
Supported Partition Formats: NTFS, exFAT, HFS+, FAT32
Supported Functions:
-
+W6FTP Server
-
Media Server
-
Samba Server
Buttons:
-
Power On/Off Button
-
Wi-Fi On/Off Button
-
LED Button
-
WPS Button
-
Reset Button
Power:
-
12 V ⎓ 2 A (US)
-
12 V ⎓ 1.5 A (EU)
-SOFTWARE-
Protocol
-
IPv4
-
IPv6
Parental Controls:
-
HomeShield Parental Controls
-
Custom Profiles
-
Professional Content Filter Library
-
Family Time
-
Bedtime
-
Off Time
-
Time Rewards
-
Family Online Time Ranking
-
Pause the Internet
-
Weekly and Monthly Reports
WAN Type:
-
Dynamic IP
-
Static IP
-
PPPoE
-
PPTP
-
L2TP
Quality of Service: QoS by Device
-
Cloud Service
-
Auto Firmware Upgrade
-
TP-Link ID
-
DDNS
NAT Forwarding:
-
Port Forwarding
-
Port Triggering
-
DMZ
-
UPnP
IPTV:
-
IGMP Proxy
-
IGMP Snooping
-
Bridge
-
Tag VLAN
DHCP:
-
Address Reservation
-
DHCP Client List
-
Server
DDNS:
-
TP-Link
-
NO-IP
-
DynDNS
Management:
-
Tether App
-
Webpage
