Key Features
- 180° Panorama View with Huge Vision
- 4K (8MP) Ultra HD and IR Range Up to 65.62 ft (20 m)†
- Red-Blue Warning Lights with Stronger Deterrence
- People & Vehicle Analytics‡
- Smart Detection
- Smart Video Enhancement Technology
- Audio and Alarm Interface Available
- IP67 Weatherproof and IK10 Vandal Proof
Specifications
- Brand: TP-Link

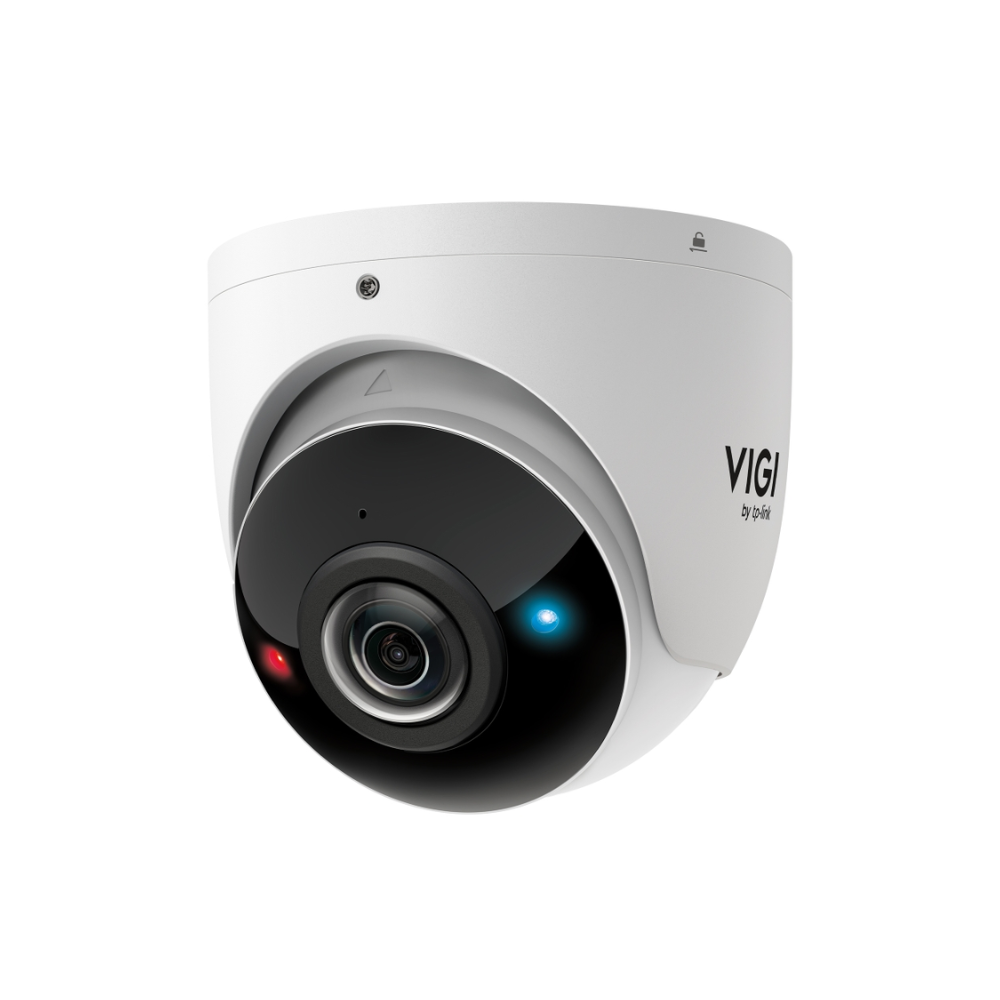

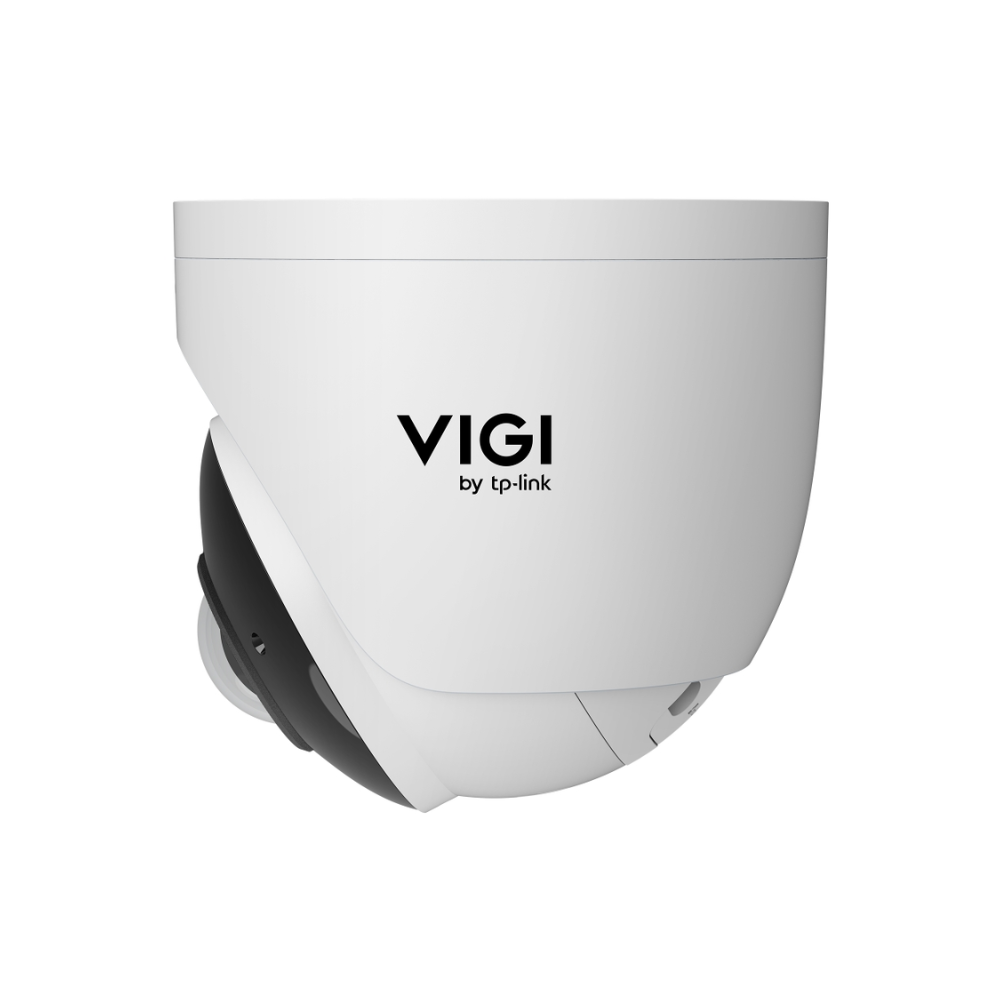

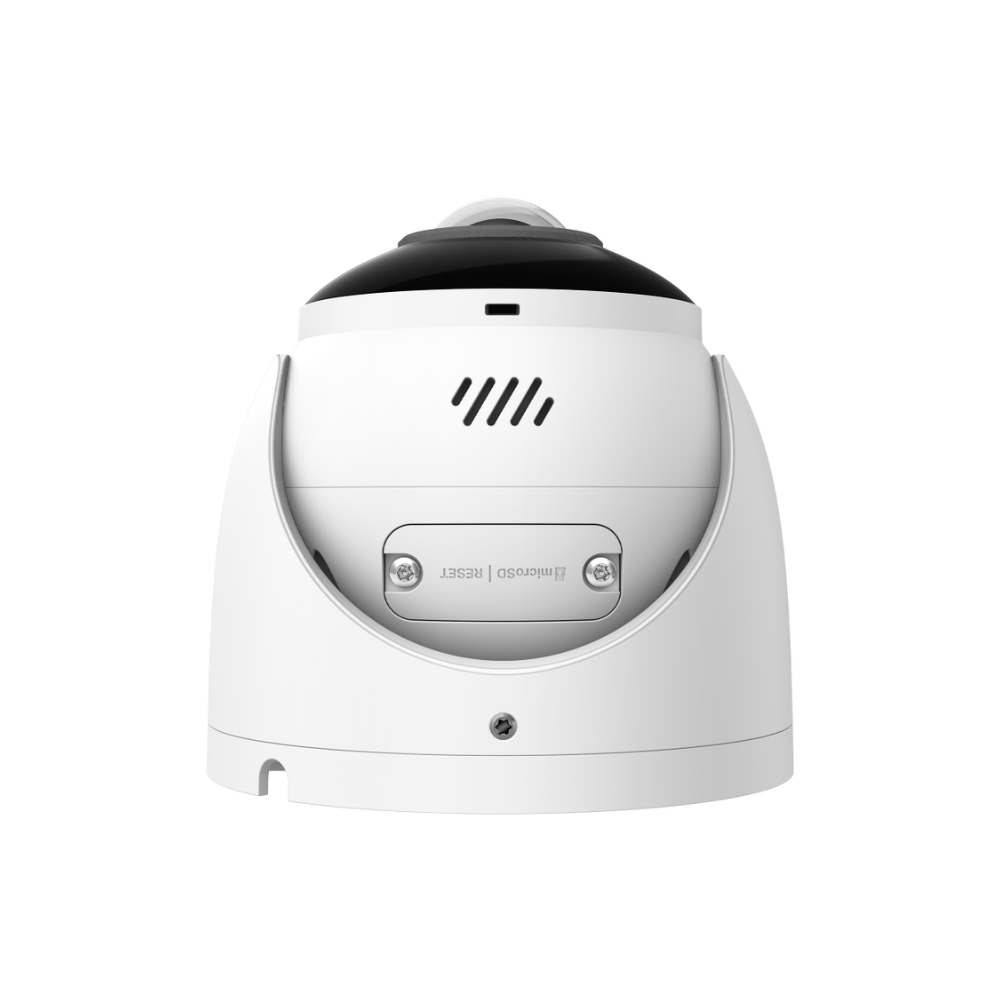

- Model: InSight S485PI
- Camera Type: IR Panoramic Turret Network Camera
- Image Sensor: 1/2.7" Progressive Scan CMOS
- Resolution: 4K / 8MP (3840 × 2160)
- Lens: 1.65mm Fixed Focal Lens, M12 Mount
- Aperture: F2.0
- Field of View: 180° (H), 86° (V), 180° (D)
- Night Vision: IR Night Vision up to 20m, 850nm IR LEDs
- Minimum Illumination: 0.005 Lux; 0 Lux with IR
- Video Compression: H.265+, H.265, H.264+, H.264
- Smart Detection: People & Vehicle Analytics, Human & Vehicle Classification, People Detection, Vehicle Detection, Motion Detection, Line-Crossing Detection, Intrusion Detection, Loitering Detection, Object Abandoned/Removed Detection, Scene Change Detection, Video Tampering Detection
- Audio: Built-In Microphone & Speaker; Two-Way Audio; 1 Audio In/Out
- Network Interface: 1× RJ45 10/100Mbps Self-Adaptive Ethernet Port, PoE
- Alarm Interface: 1 × Alarm In, 1 × Alarm Out
- Storage: MicroSD up to 512GB
- Power Supply: 12V DC ±5% (Max. 18W); PoE 802.3at Class 4 (Max. 21W)
- Weather Protection: IP67 Waterproof, IK10 Vandal-Proof
- Operating Temperature: -30°C to 60°C
- Dimensions: 112.3 × 112.3 × 110.2mm (4.4 × 4.4 × 4.3in)
- Weight: 0.76kg
What's in the box?
- 1x INSIGHT S485PI
- 1x Quick Start Guide
- 1x Mounting Accessories
- 1x Waterproof Accessories
