SG2005P-PD
Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out

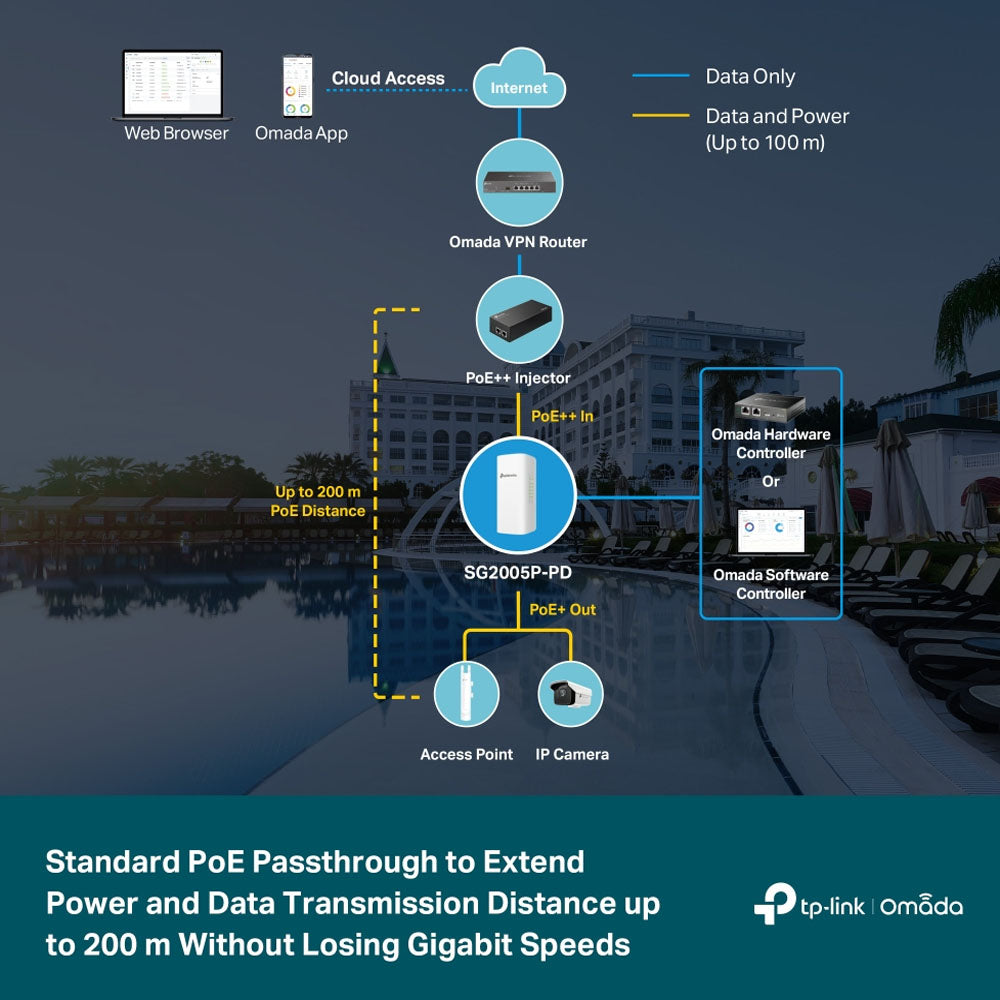

- Up to 200 m PoE Distance: Standard PoE Passthrough to doubles PoE source-to-device transmission distance from 100 m (328 ft) to 200 m (656 ft) without losing gigabit speeds, perfect for long-range surveillance cameras and access points.*

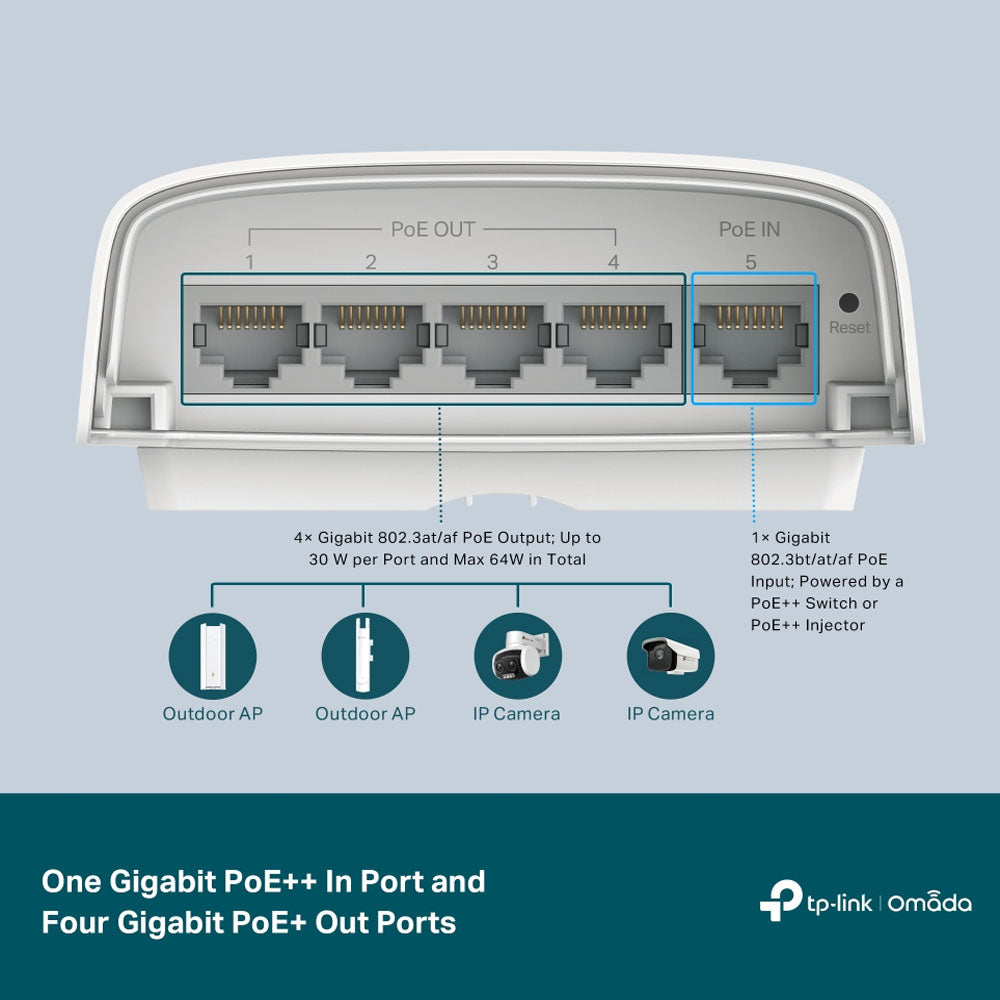

- 1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 64 W / 44 W / 19 W/ 6 W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.**
- Outdoor Weatherproof: IP55 waterproof, dustproof, and UV-resistant enclosure. Operation temperatures of -40 to 60 °C and 4KV lightning protection further ensure stable operation against harsh outdoor conditions.
- Easy Installation: Easy to mount to a wall or pole with the provided mounting kits to flexibly fit your needs.
- Centralized Cloud Management: Integrates into Omada SDN for cloud access, remote management, and multi-site management.
- Value-Added Features Foster Touchpoint Experiences: Static Routing, Access Control List (ACL), QoS, and VLAN.
Details:
► Static Routing
► IP Interfaces
► DHCP Relay
► Multiple VLANS
► 802.1p CoS/DSCP QoS
► Access Control List
► Link Aggregation
► IGMP Snooping
Specifications:
• Brand: TP-Link
• Model: OMADA SG2005P-PD
• Type: 5-Port Gigabit Smart Switch
• Input / Output: 1-Port PoE++ Input, 4-Port PoE+ Out
• Interface

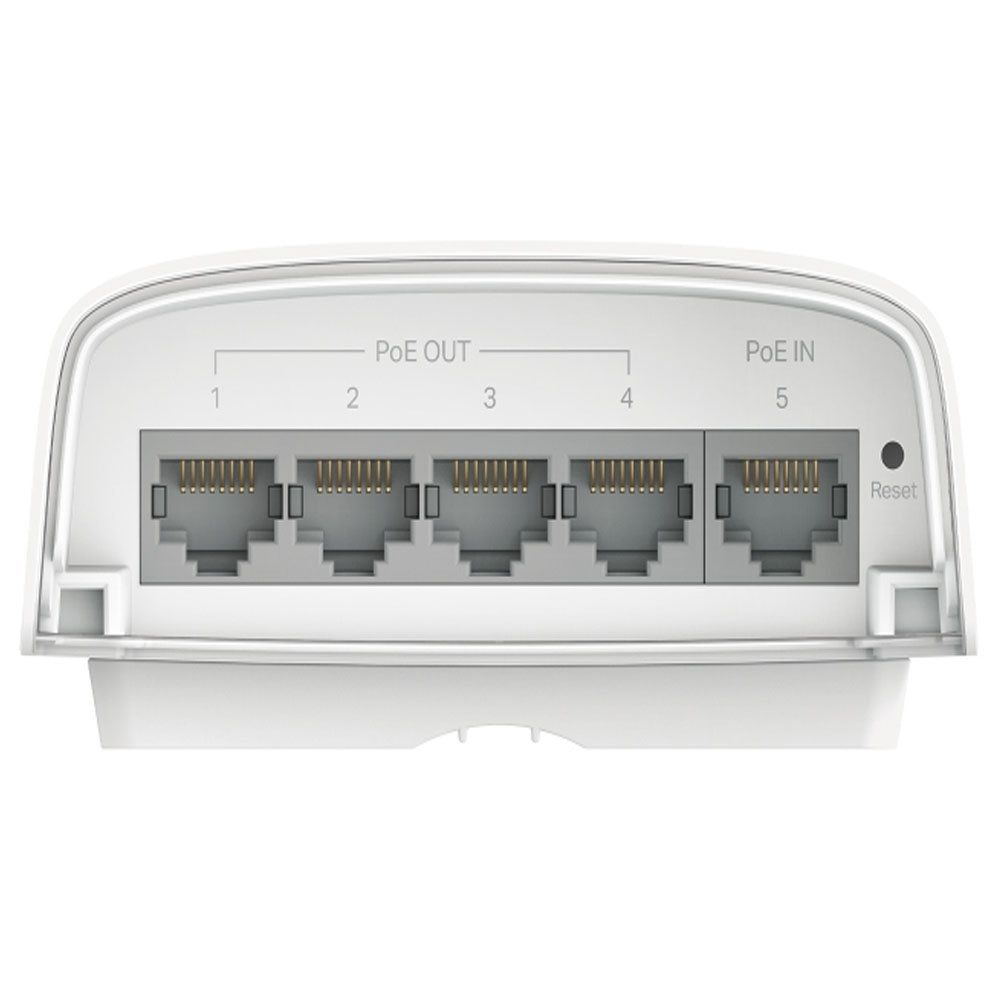

- 1× 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt)
- 4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at PoE)
• Switching Capacity: 10Gbps
