TG-3468

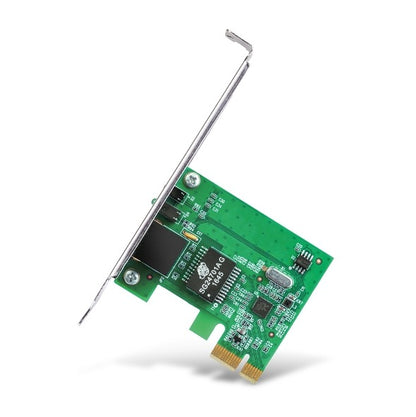

Gigabit PCI Express Network Adapter
-
TG-3468 10/100/1000Mbps Gigabit PCIe Network Adapter is a highly integrated and cost-effective 32-bit Gigabit PCIe Ethernet Adapter which is fully compliant with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab specifications.
-
The PCIe Gigabit Network Adapter TG-3468 is a high performance adapter designed for the high-speed PCI Express Bus Architecture. Designed to support 10/100/1000Mbps network speed Auto-Negotiation, 802.3x flow control and Wake-on-LAN technology. TG-3468 Gigabit PCIe Network Adapter is a highly integrated and cost-effective Gigabit Ethernet Adapter which is a good selection to upgrade your network.
Features:
-
Gigabit PCI Express Network Adapter
-
HARDWARE FEATURES
-
Standards and Protocols: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP
-
Interface: 32-bit PCI Express
-
1 10/100/1000Mbps RJ45 port
-
Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
-
EIA/TIA-568 100Ω STP (maximum 100m)
-
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
-
EIA/TIA-568 100Ω STP (maximum 100m)
-
1000Base-T: UTP category 5, 5e cable (maximum 100m)
-
LED: Status
-
Wireless Standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
-
Data Rates: 10/100/1000Mbps for Half-Duplex mode
-
20/200/2000Mbps for Full-Duplex mode
-
LED Indicator: 1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act
-
Dimensions: 3.1 × 4.8 × 0.8 in (78.5 × 120.8 × 21.5mm)
-
Flow Control: IEEE 802.3x Flow Control (Full-Duplex)
OTHERS
-
Certification: CE, FCC, RoHS
-
Package Contents: Gigabit PCI Express Network Adapter TG-3468, Resource CD, Quick Installation Guide
-
System Requirements: Windows 7(32/64bits),Windows Vista(32/64 bits),Window XP(32/64bits)
-
Environment: Operating Temperature: 0℃~40℃ (32℉~104℉)
-
Storage Temperature: -40℃~70℃ (-40℉~158℉)
-
Operating Humidity: 10%~90% non-condensing
-
Storage Humidity: 5%~90% non-condensing
