Description:
-
1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
-
Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
-

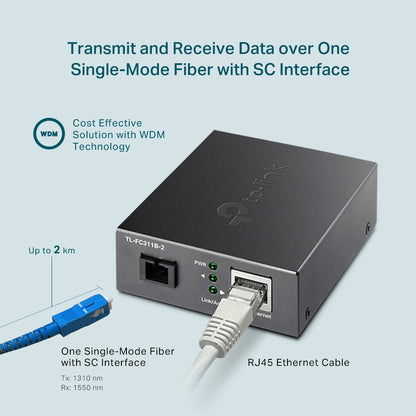

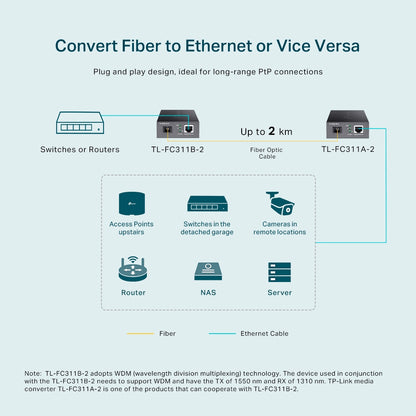

Adopts WDM technology, transmitting and receiving data on one single fiber
-
Extends fiber distance up to 2km
Specifications:
- Brand: TP-Link
- Model(s): TL-FC311B-2
- Standards: IEEE 802.3, IEEE 802.3i, IEEE 802.3u / IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z

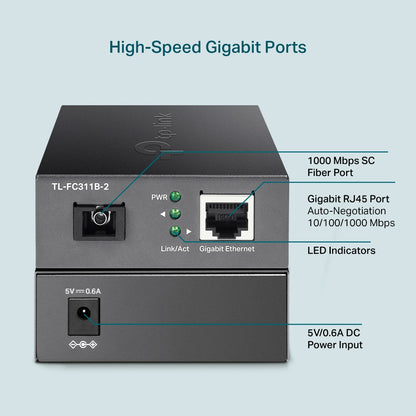

- Interface: 1× Gigabit SC Fiber Port / 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)
- Network Media: Single-mode Fiber / UTP category 5, 5e cable (maximum 100m)
- LED: PWR, Link/Act
- Connector: 1 SC Fiber Optic; 1 RJ45 jack
- Twisted Pair: 100BASE-Tx; 2-pair UTP/STP of Cat. 5 or above (<-100m) / 1000BASE-Tx; 4-pair UTP/STP of Cat. 5e or above (<-100m)
- Fiber: 9/125 μm single-mode fiber
- Transmission: TL-FC311B-2: <-2km
- Wave Length: TL-FC311B-2: 1310 nm Tx, 1550 nm Rx

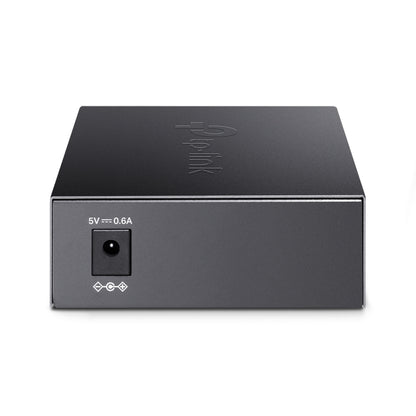

- Power: External Power Adapter: 5 V/0.6A
What's in the Box:
• Gigabit WDM Media Converter • Power Adapter • Installation Guide
