Description:
- 24× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots

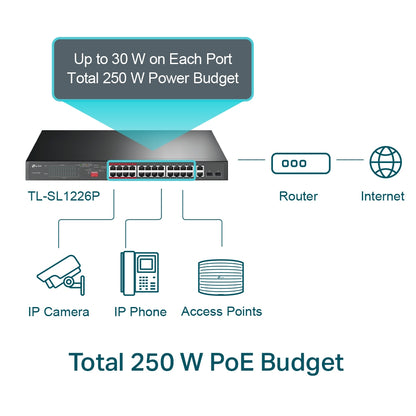

- High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*

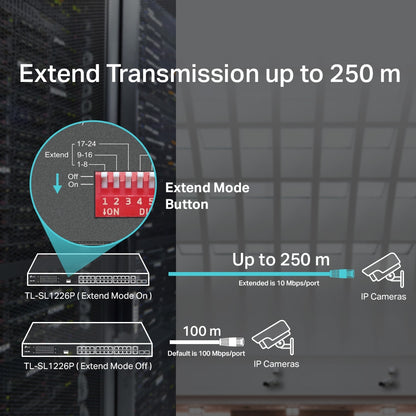

- Up to 250 m data and power PoE transmission range under Extend Mode**, ideal for surveillance system

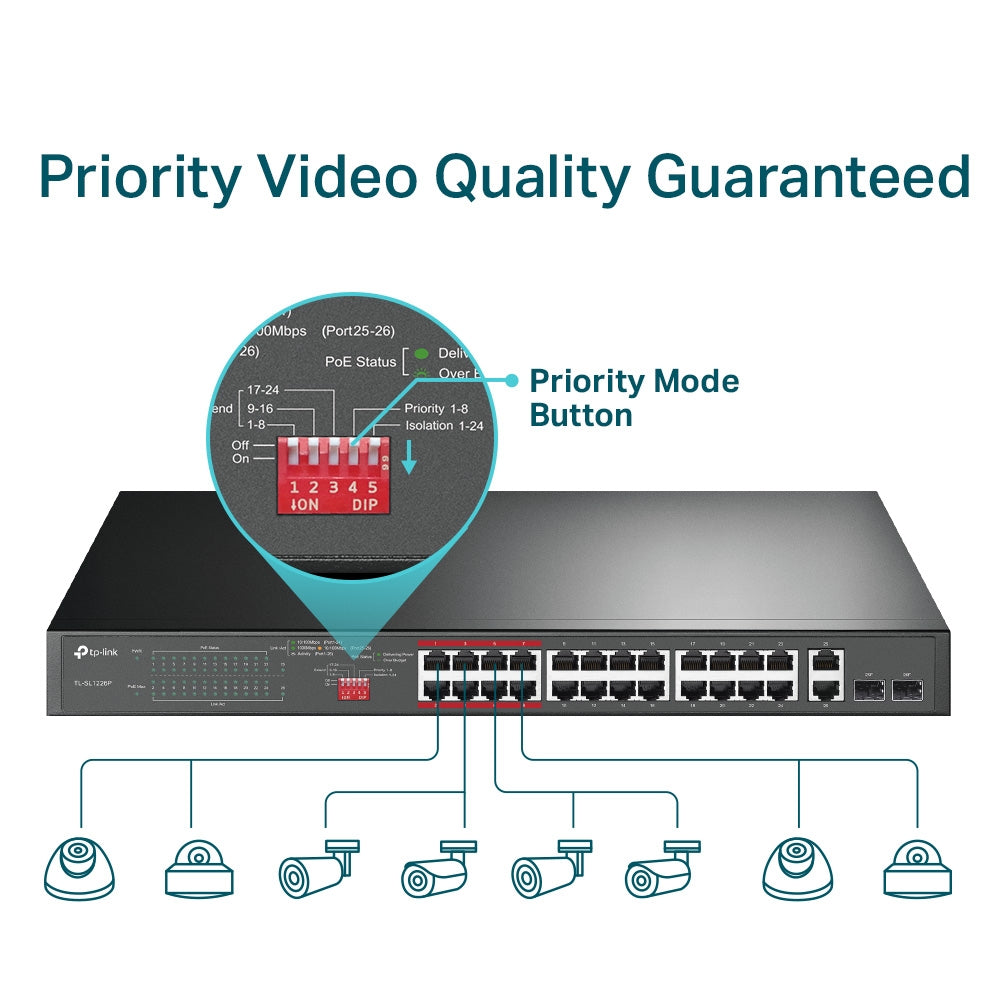

- Priority Mode ensures high priority of ports 1–8 to guarantees the quality of sensitive applications like video monitor
- Isolation Mode allows one-click client traffic separation for higher security and performance

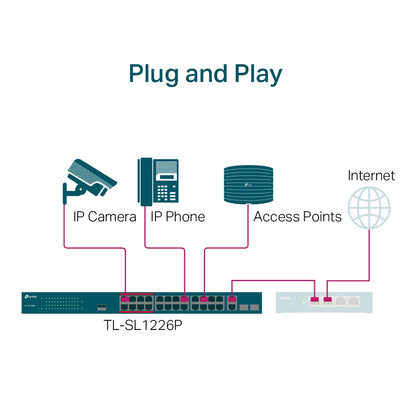

- Plug and play, with no configuration and installation needed
Features:
-
24 PoE+ Enabled 10/100Mbps RJ45 Ports
-
2 10/100/1000Mbps RJ45 Ports
-
2 Combo Gigabit SFP Slots
-
250W PoE Power Budget
-
up to 250m Data and Power Transmitting Range Under Extend Mode
-
Rack Mountable
-
Plug and Play Design
-
Auto MDI/MDIX
-
Auto Speed Negotiation
-
Green Technology
Specifications:
-
Brand: TP-Link
-
Model(s): TL-SL1226P
-
Switching Capacity: 8.8 Gbps
-
Mac Address Table: 8K
-
Jumbo Frame: 10KB
-
Fan Quantity: 2 Fans
-
Physical Security Lock: Yes
-
Standard: 802.3at/802.3af compliant
-
PoE Ports: Port 1 – Port 24
-
PoE Power Budget: 250 W
-
Transmission Method: Store-And-Forward
