Key Features

• 1× PON + 1× Gigabit LAN for fast fiber connectivity

• XPON dual mode (GPON + EPON) for flexible ISP support

• Up to 2.488 Gbps down / 1.244 Gbps up GPON speeds

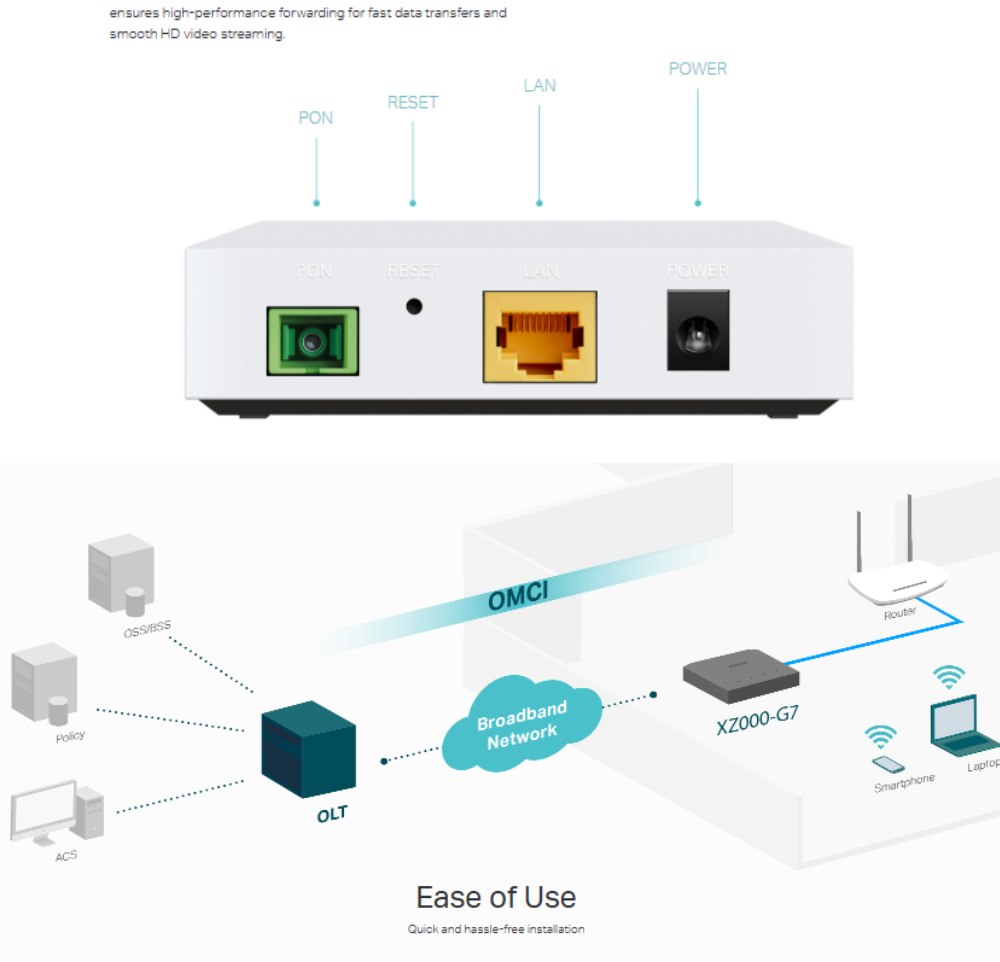

• OMCI remote management for centralized control

• Intelligent power-saving with easy installation

Specifications

Brand: TP-LINK
Model: XZ000-G7

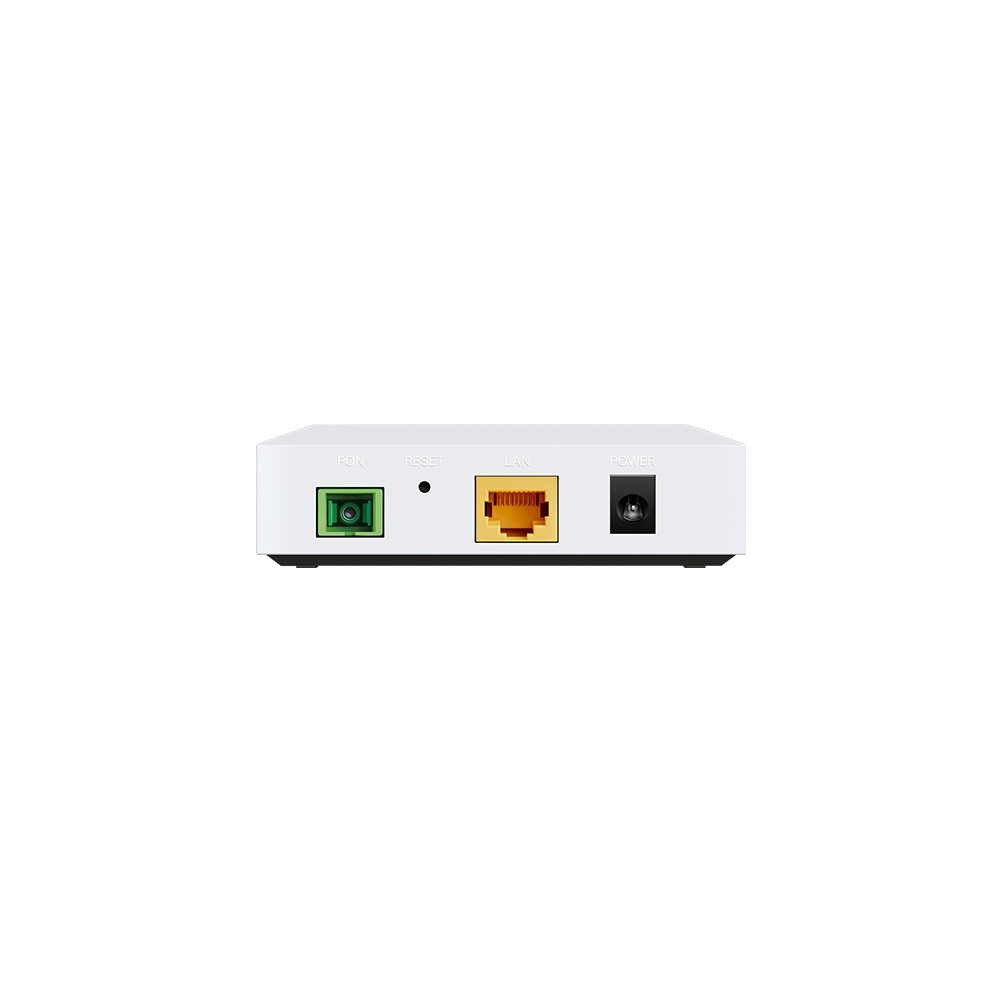

Ports: 1× PON, 1× Gigabit RJ45 (10/100/1000 Mbps)
XPON Mode: GPON + EPON dual mode
GPON Speed: Up to 2.488 Gbps (down) / 1.244 Gbps (up)
EPON Speed: Up to 1.25 Gbps (down/up)
Max Distance: Up to 20 km
Wavelength: 1310 nm (up) / 1490 nm (down)
Power Supply: 9VDC / 0.6A
Dimensions: 9.5 × 7.5 × 2.93 cm
Management: OMCI, Web GUI, Telnet
Standards: ITU-T G.984.x, G.988, IEEE 802.3 / 802.3u / 802.1Q

What's in the box?

• 1x XZ000-G7

• 1x Power Adapter

• 1x Installation Guide
