Overview:

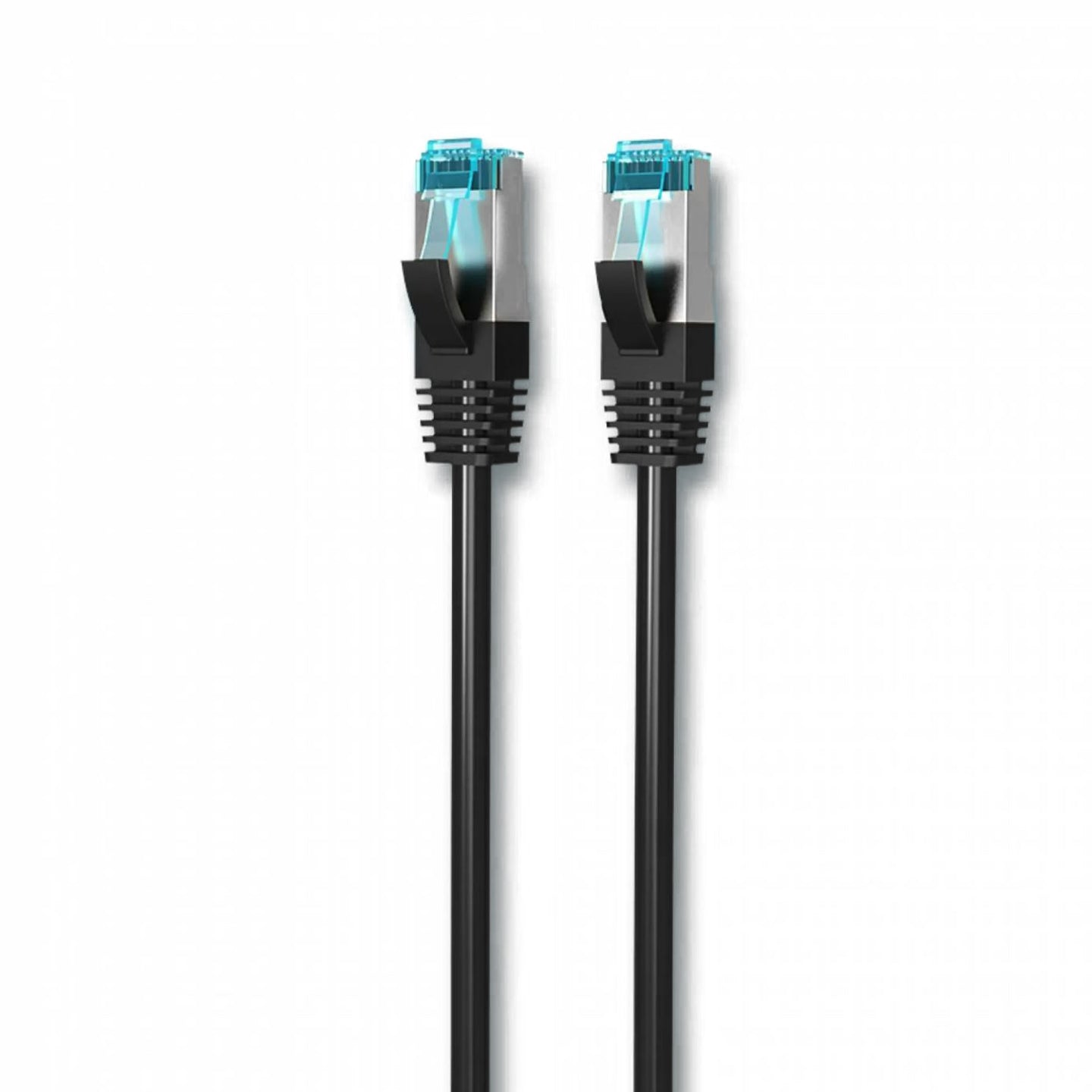

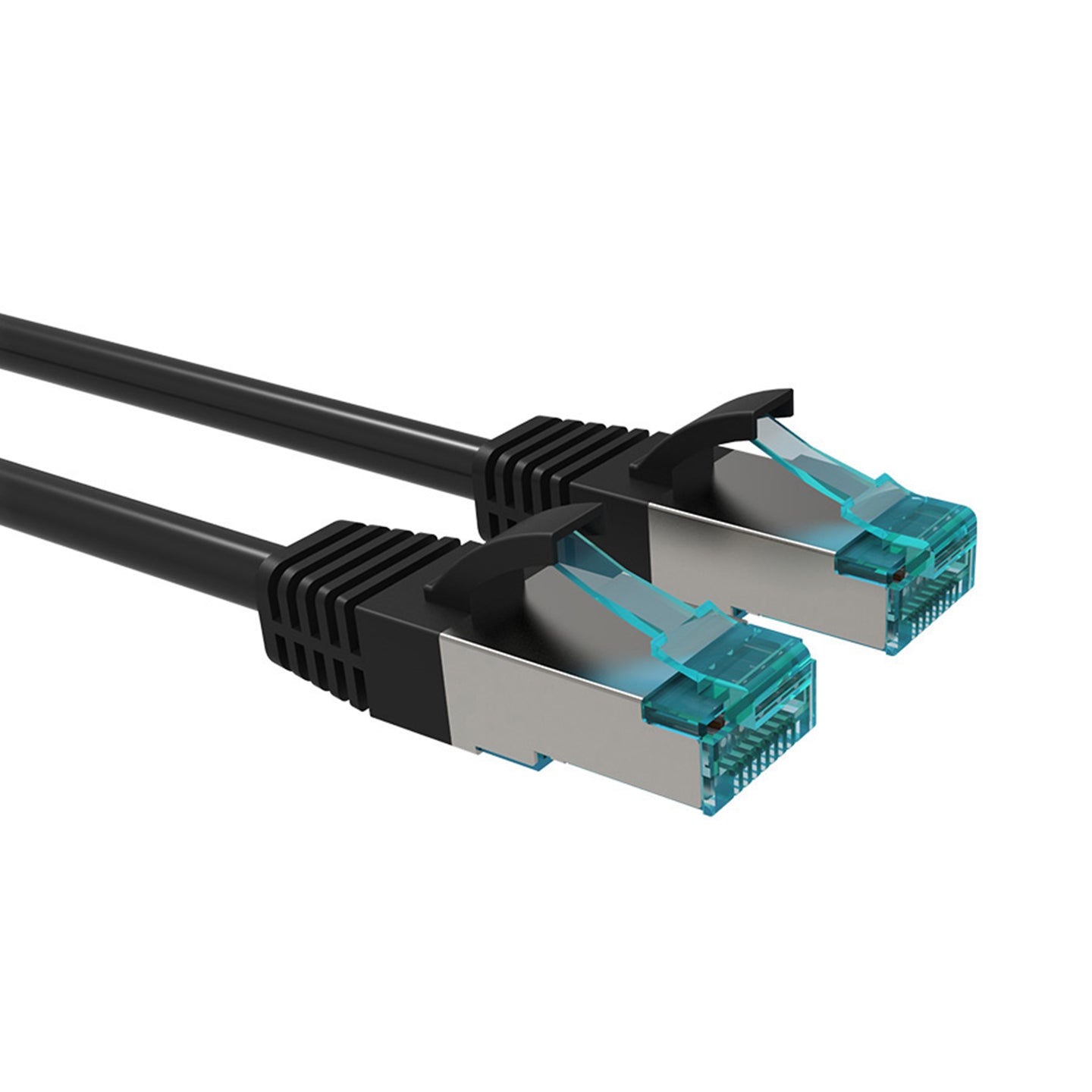

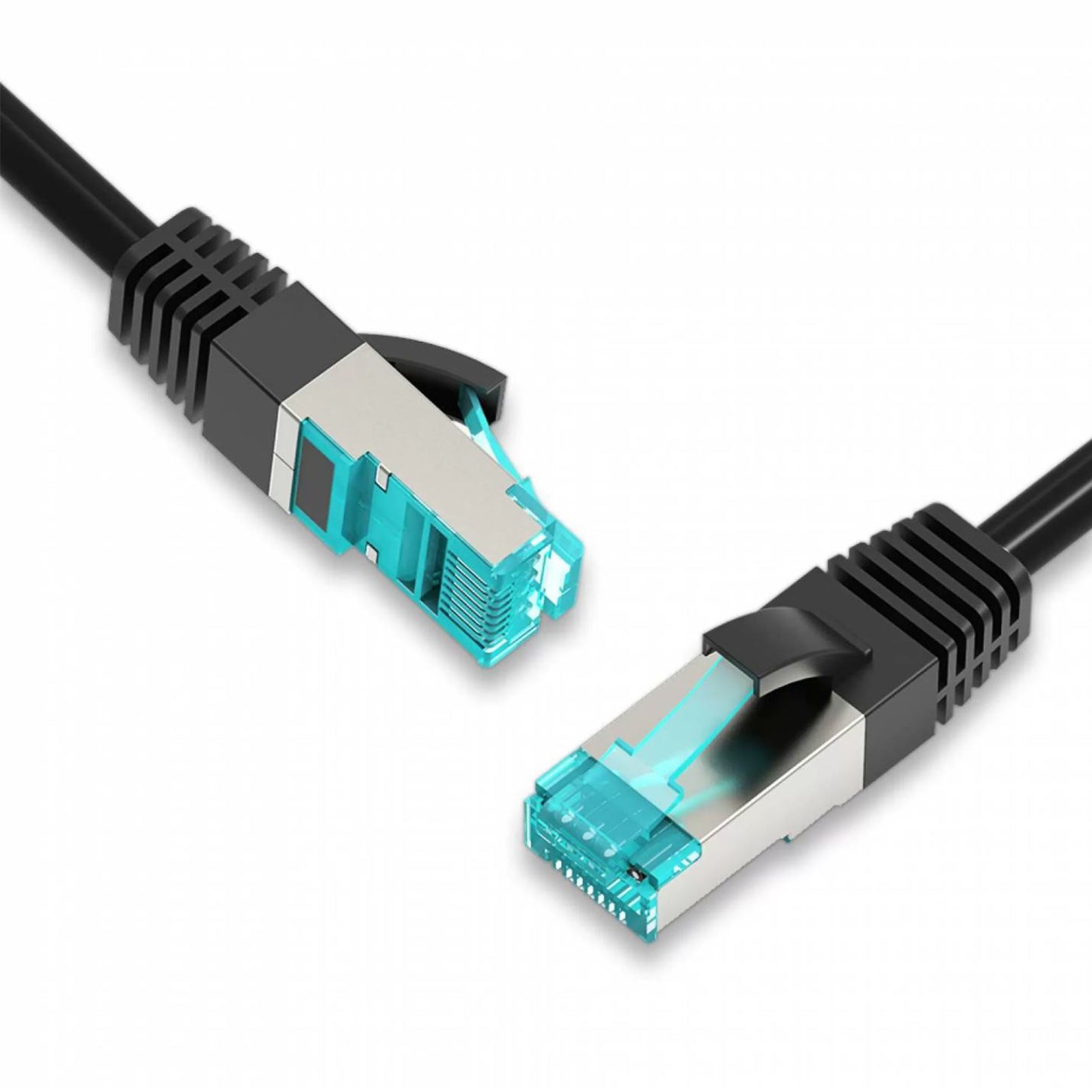

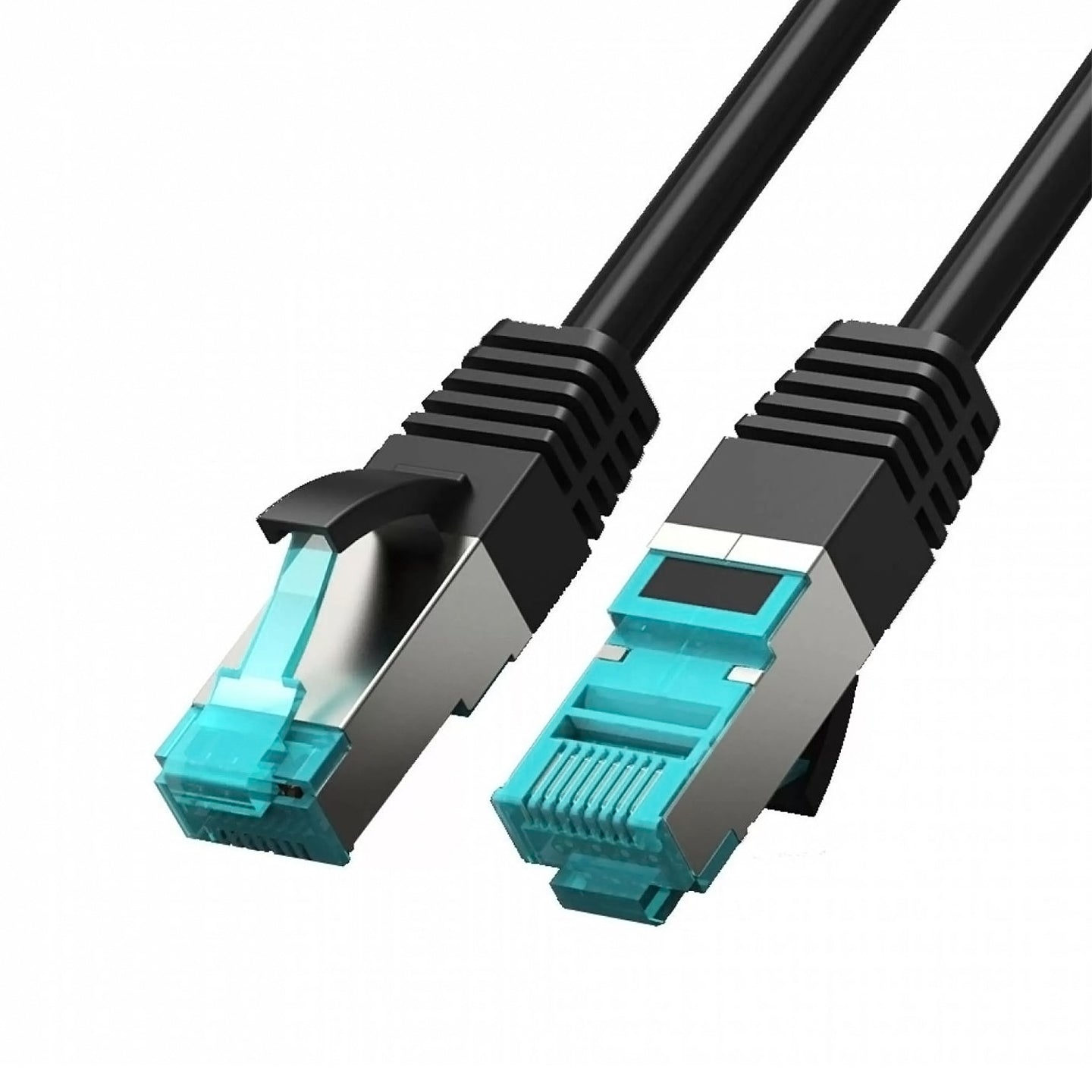

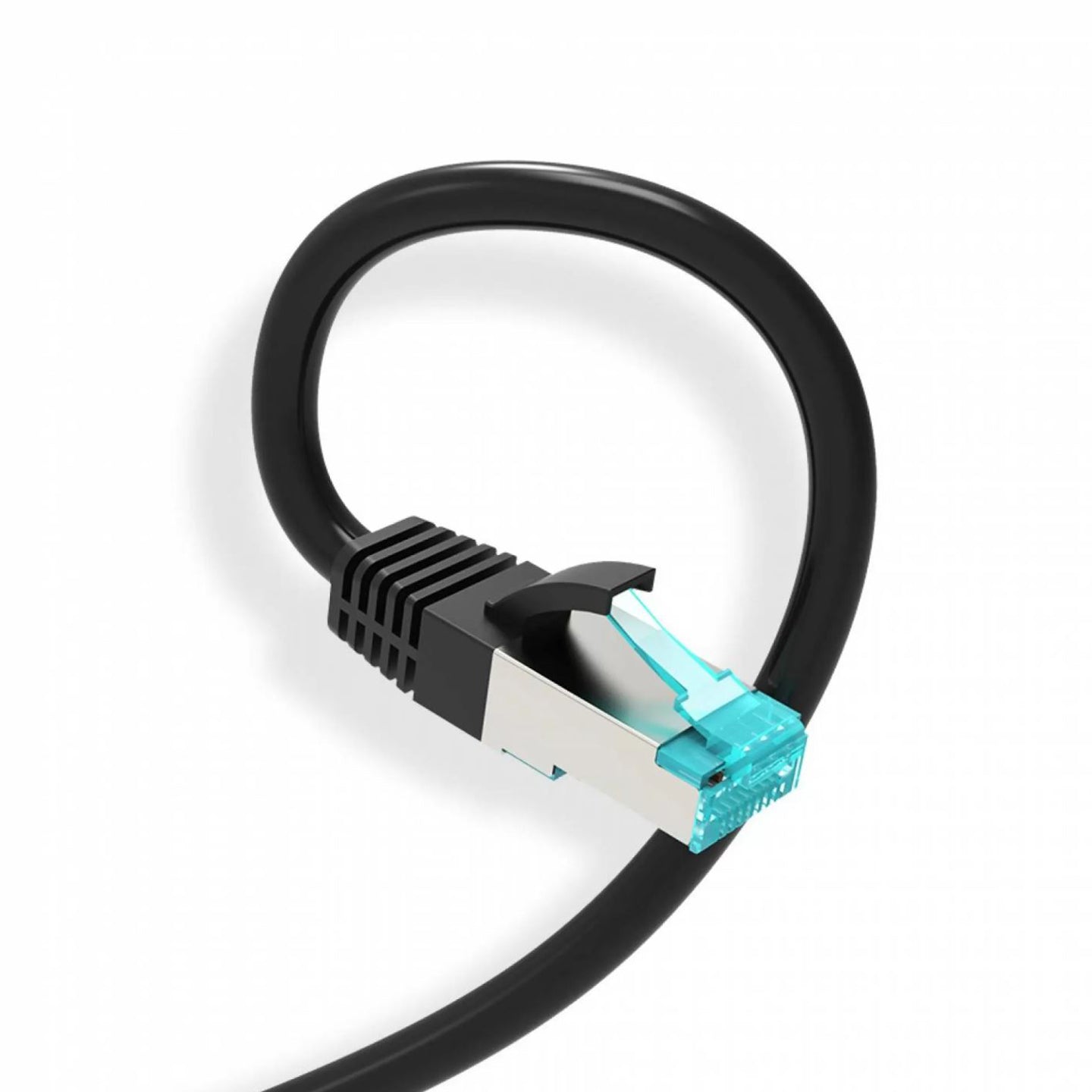

Vention CAT5E FTP Patch Cable is the fully-approved system-standard CAT5E Shielded Twisted Pair (FTP) cable. It is designed specifically for Gigabit Ethernet applications (Gigabit over copper). They perform at high-data transfer rates and work with any gigabit speed products. These cables deliver improved performance over standard Cat5 cables. Conductors are wired to gold plated RJ45 plugs in accordance with the TIA/EIA 568B standard. The shielded design of this CAT5 cable includes overall steel braid; fully shielded metal connectors have gold-plated RJ45 contacts and a boot with molded strain relief.
Specifications:
- Brand: Vention
- Model: VAP-B05-B075 (0.75M), VENTION VAP-B05-B100 (1M), VENTION VAP-B05-B150 (1.5M), VENTION VAP-B05-B200 (2M), VENTION VAP-B05-B300 - (3M), VAP-B05-B500 (5M)
- Type: Cable
- Cable Length (m): 5M, 8M
- Available Color: Black
- Connector: RJ45
- Gold-Plated Pins
- HQ PVC Molded Boots
- Host Standard: 100BASE-T, 1000BASE-T (100Mnz)
- Conductor: 24AWG OFC (99.99%)
- Shield: FTP, Aluminum Foil Shielded
- Wire Structure: Straight, Twisted Pair
- Insulator: High-Density Polyethylene HDPE
- Jacket Shell: PVC Environmental Material
