Overview:

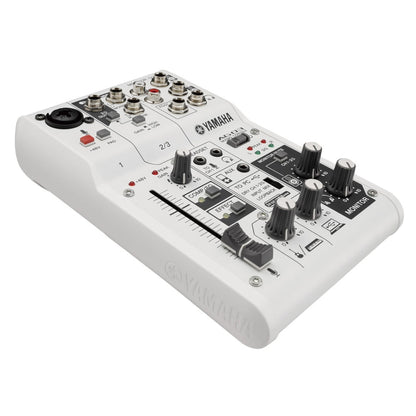

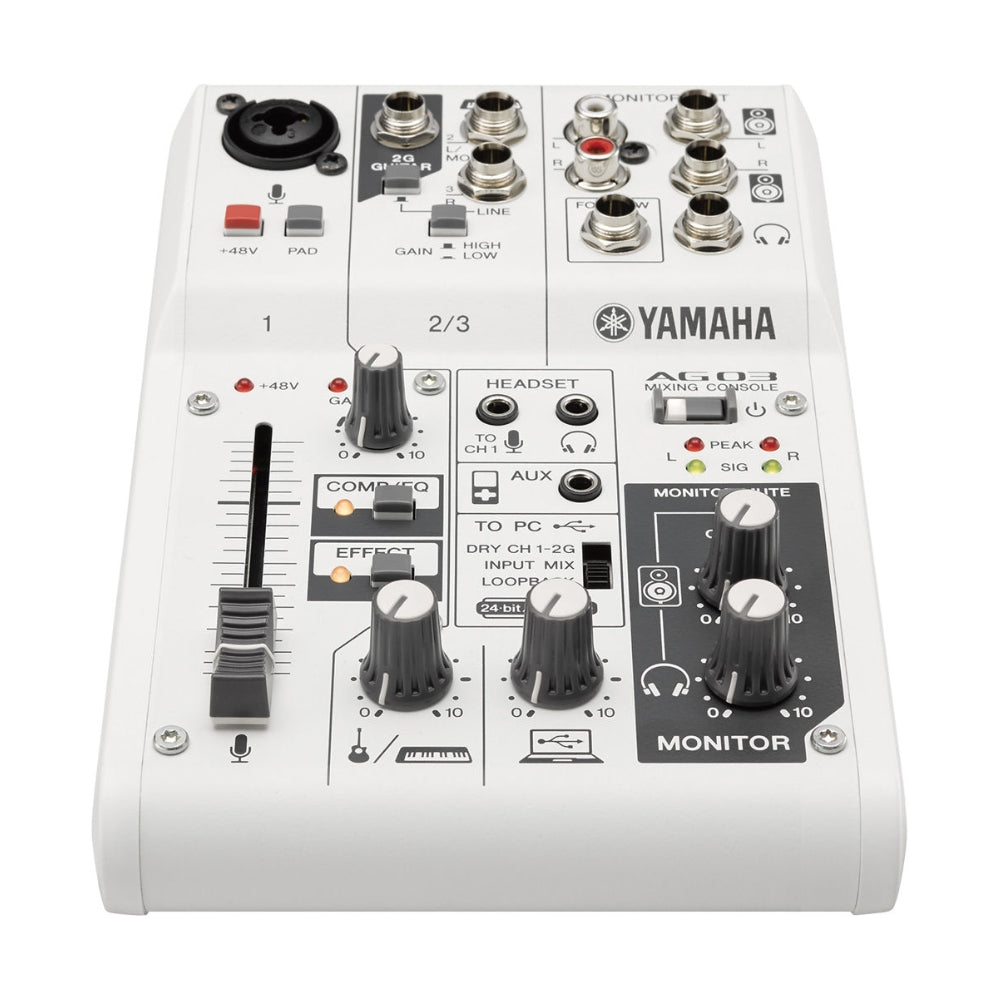

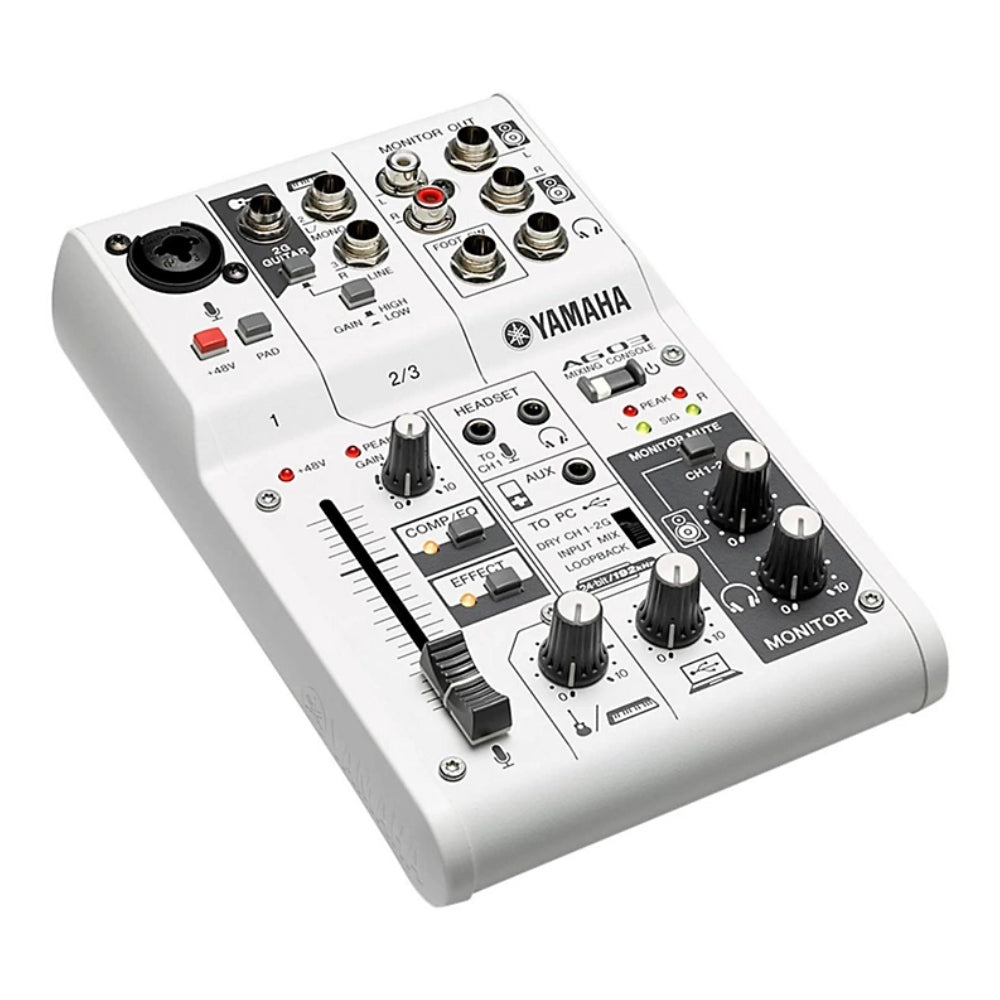

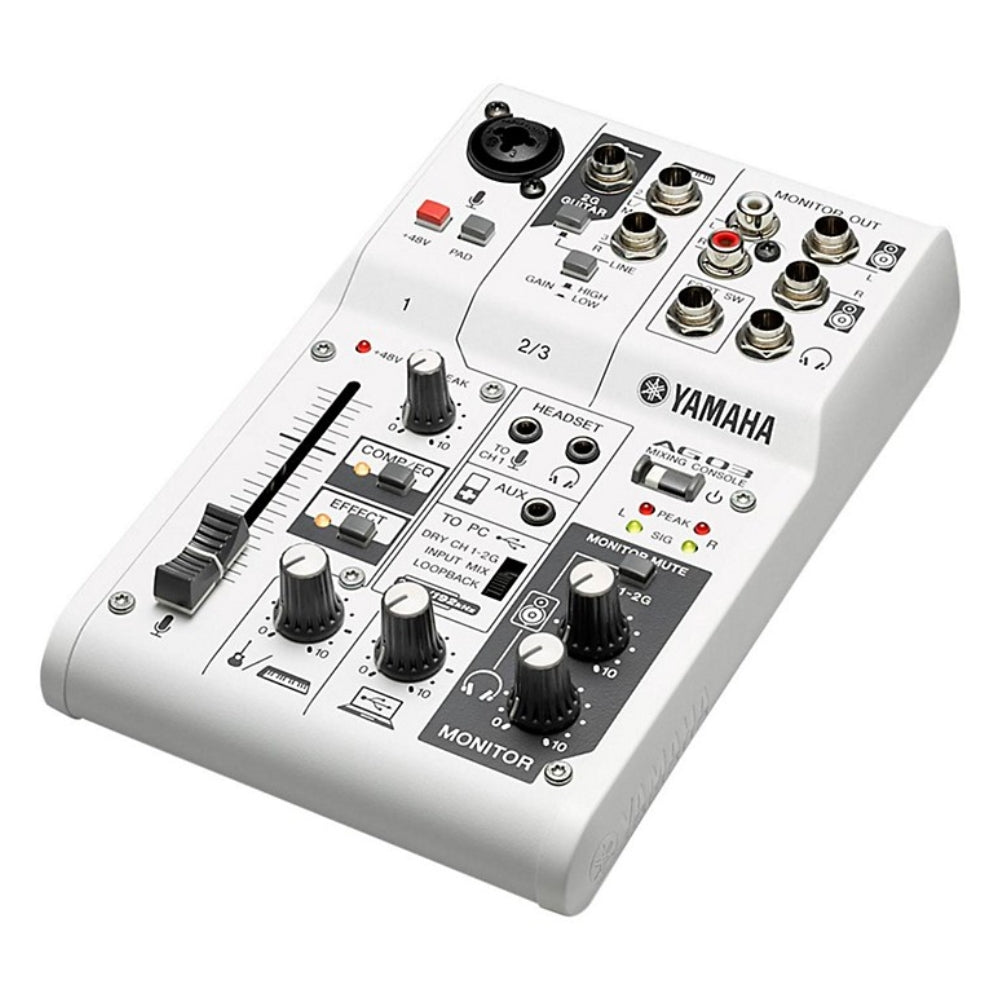

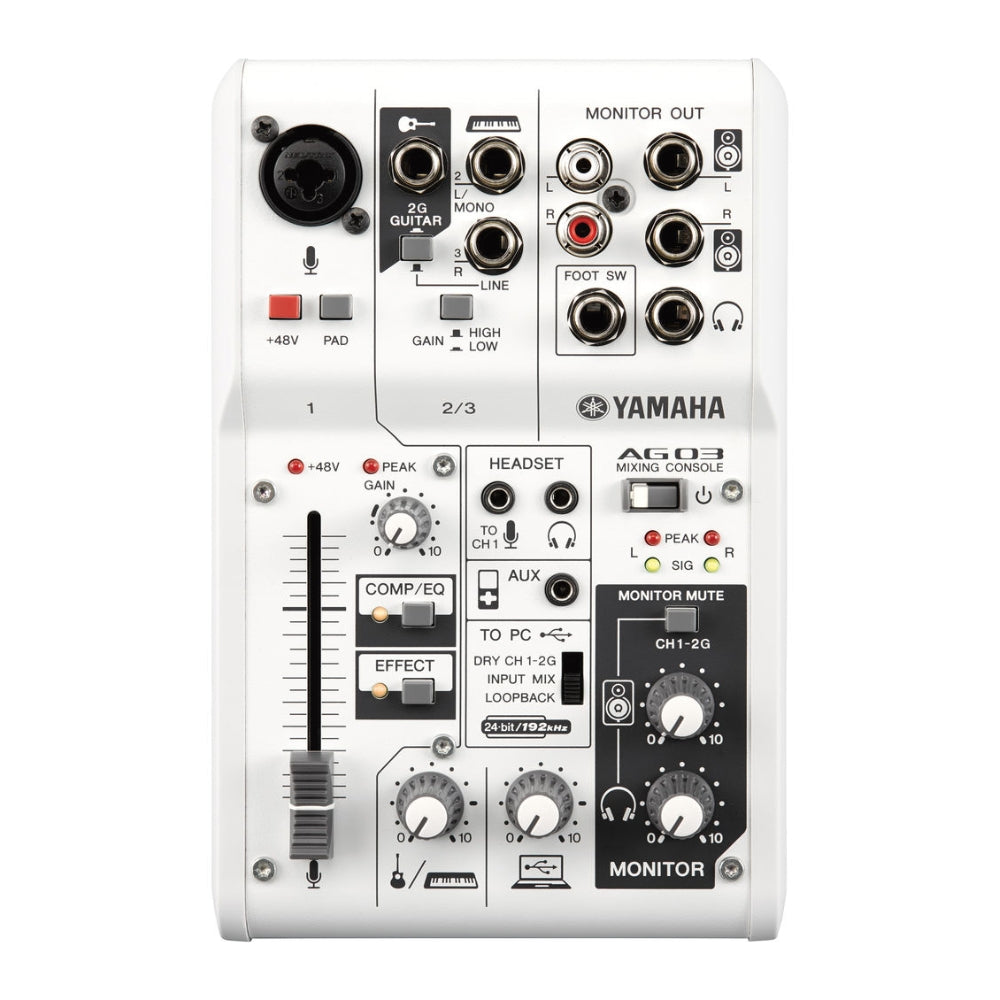

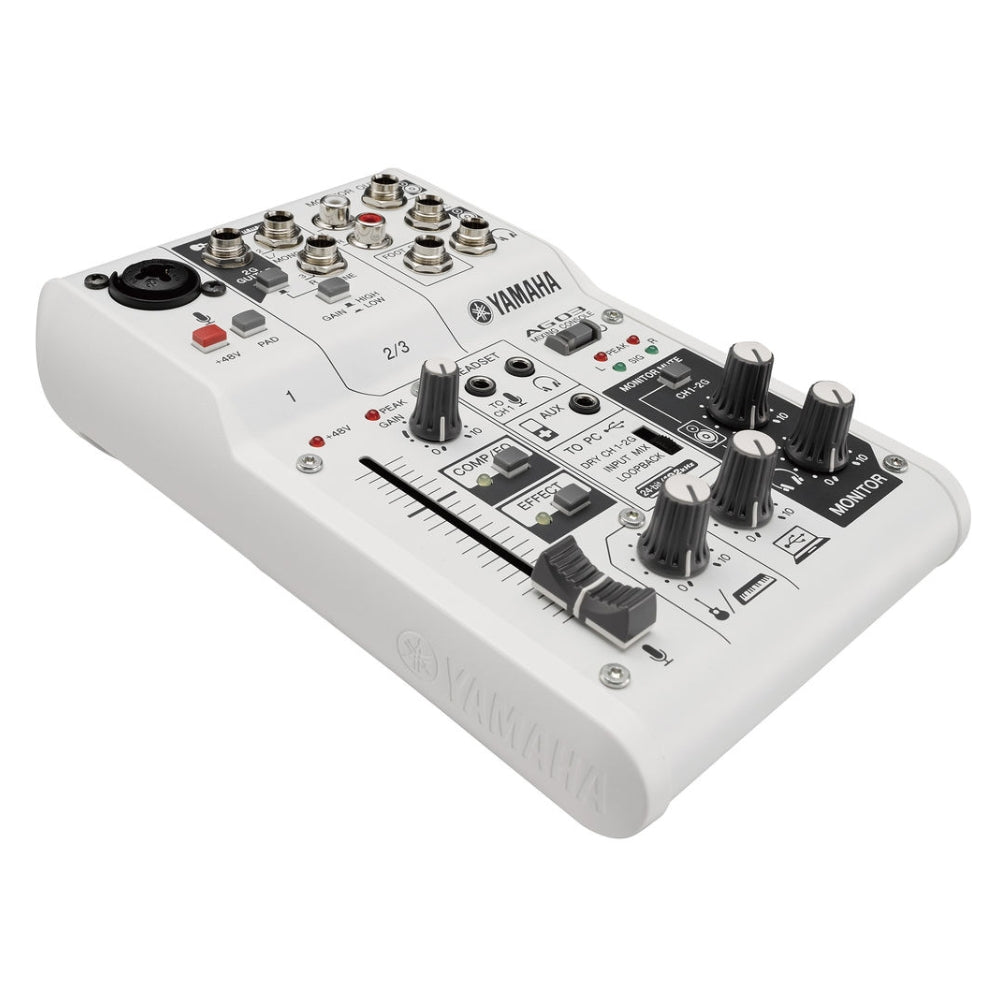

The AG03 from Yamaha is a compact 3-input mixer and USB interface with built-in DSP for sound-reinforcement and recording of small performances, podcasts, lectures and similar applications. Capable of recording and playback of high-resolution 24-bit/192 kHz sound, this mixer features one XLR/1/4" combo mic/line input, as well as stereo 1/4" line inputs with level control, and a Hi-Z switch for direct recording of guitar and bass.
The XLR/1/4" combo mic/line input is equipped with a D-PRE mic preamp that was originally designed by Yamaha for use in their high-end recording gear. This channel features switchable 48V phantom power for use with dynamic and condenser microphones, and also features a pad switch for recording loud sound sources such as guitar amplifiers.
The AG03 mixer has stereo 1/4" and stereo RCA outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring, as well as an 1/8" aux input for monitoring portable devices and headset connectivity.
Features:
- Input channels: 3 Line Inputs (1 mono, 1 stereo), 1 Mic Input with 48V phantom power and HPH per channel. Hi-Z input for guitars on CH2.
- Output channels: 2 MONITOR, 2 PHONES.
- Bus: 1 ST

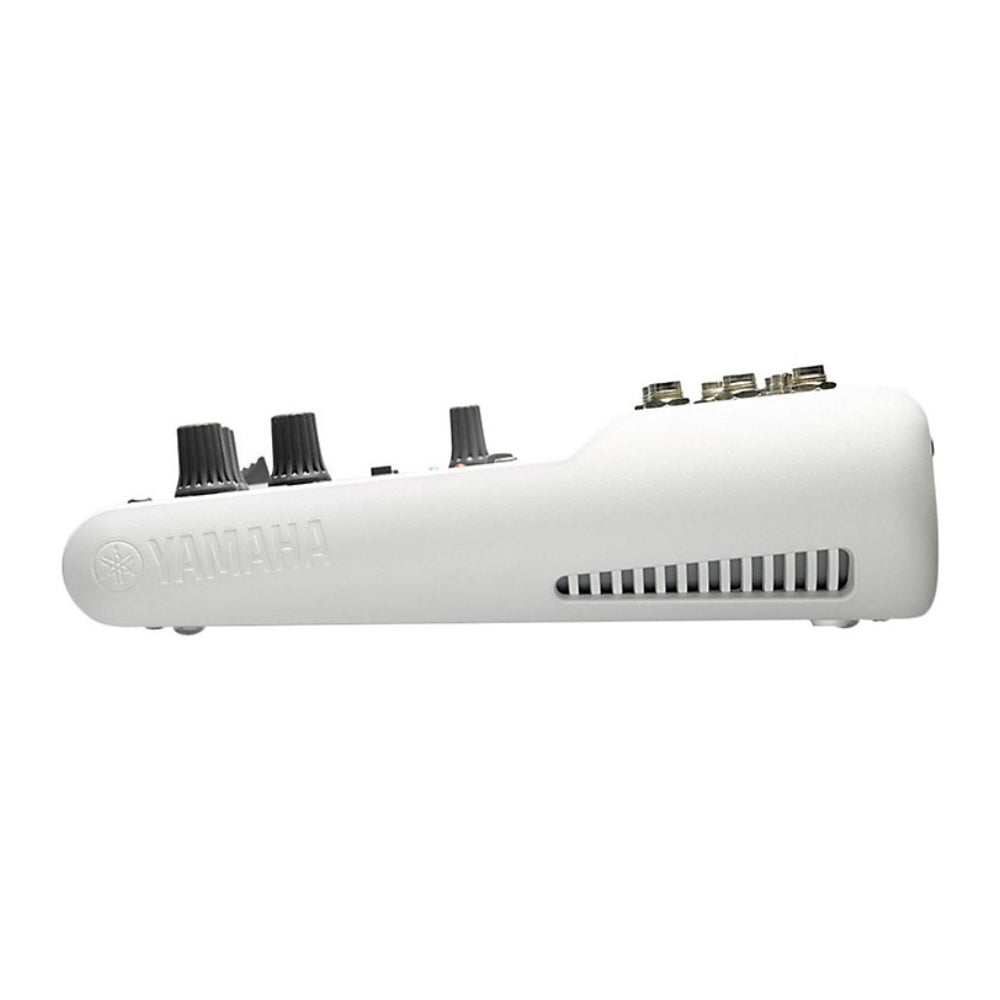

- Robust, impact-resistant, powder-coated metal chassis.
- USB Bus Power for Mac & PC.
- High resolution (24-bit192kHz) 2-track audio recording and playback.
- Flexible LOOPBACK feature - perfect for live recording or webcasting.
- Discrete class A “D-PRE” mic preamps with an inverted darlington circuit.
- Easy control and pro sound with 1-TOUCH COMP/EQ, EFFECT and AMP SIM processing.
Specifications:
-
Form Factor: Desktop
-
Channels of I/O: 3 Input / 4 Output
-
Maximum Sampling Rate: 192 kHz / 24-Bit
-
Number of Microphone Preamps: 1 Preamp
-
Input Level Adjustment: 2x Knob, 1x Fader
- Analog Audio I/O: Combo XLR-1/4" TRS Mic/Line Input, 1/4" TRS Mic/Line Input, 1/8" / 3.5 mm TRS Headset In/Out, 1/4" TRS Stereo Input, Stereo RCA TS Stereo Output, 1/4" TRS Stereo Output, 1/4" TRS Headphone Output
-
Phantom Power: 48 V, Selectable On/Off
-
Host Connection Protocol: USB 2.0
-
Sample Rates: Up to 192 kHz
-
Bit Depths: Up to 24-Bit
